TECHNICAL DATA SHEET
1/2

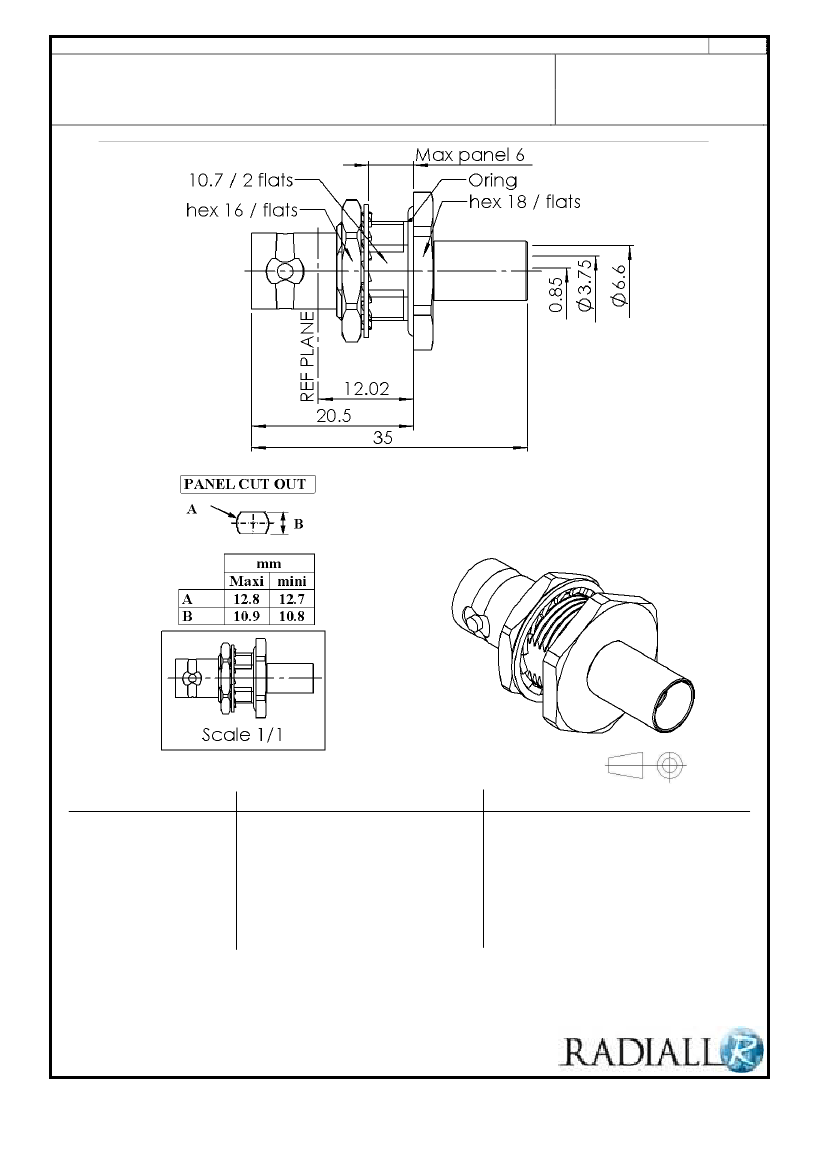

STRAIGHT BULKHEAD JACK PANEL SEAL
CRIMP TYPE CABLE 0.8/3.7
R142.334.700
Series :
BNC 75 HDTV
All dimensions are in mm.
.
po
.
an
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
PTFE
SILICONE RUBBER
BRASS
-
-
NICKEL 2
NPGR
PLATING
(µm)
NICKEL 2
-
-
Issue : 0836 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/2
STRAIGHT BULKHEAD JACK PANEL SEAL
CRIMP TYPE CABLE 0.8/3.7
R142.334.700
Series :
BNC 75 HDTV
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
75
Ω
Frequency
0-6
GHz
VSWR
1.05 + 0,0350
x F(GHz) Maxi
Insertion loss
0.1
√F(GHz)
dB Maxi
RF leakage
-(
55*
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
1500
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
3,30
b
10,3
c
16,8
d
0,00
e
13,5
f
0,00
mm
Assembly instruction
:
Crimp 01
Recommended cable(s)
DRAKA 0.8/3.7
BELDEN 1505A
CAE HD 08370
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
10
N mini
10
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
136
N mini
NA
N.cm
TOOLING
Part Number
.
R282.235.013
R282.249.000
R282.293.000
Description
.
CRIMPING DIES
Hexagon
.
6.48
6.48
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
370
NA
0,0000
N.cm
N.cm
N.cm
mm
CRIMPING TOOL
M22520/5-01
R282.223.000 CRIMPING TOOL
1000
Cycles mini
18,1600
g
OTHER CHARACTERISTICS
* From 2 to 3GHz
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-65/+165
° C
NA
Atm.cm3/s
NA
Issue : 0836 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
