MS17350N12: DescriptionCircular MIL Spec Tools, Hardware u0026 Accessories PLUG COVER NON CONDUCTIVE; CategoryThe connector Connector bracket; File Size74KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS17350N12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS17350N12	-	-	View	Buy Now

MS17350N12 Overview

Circular MIL Spec Tools, Hardware u0026 Accessories PLUG COVER NON CONDUCTIVE

MS17350N12 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MS17350
Base Number Matches	1

Preview

Download Datasheet

View All

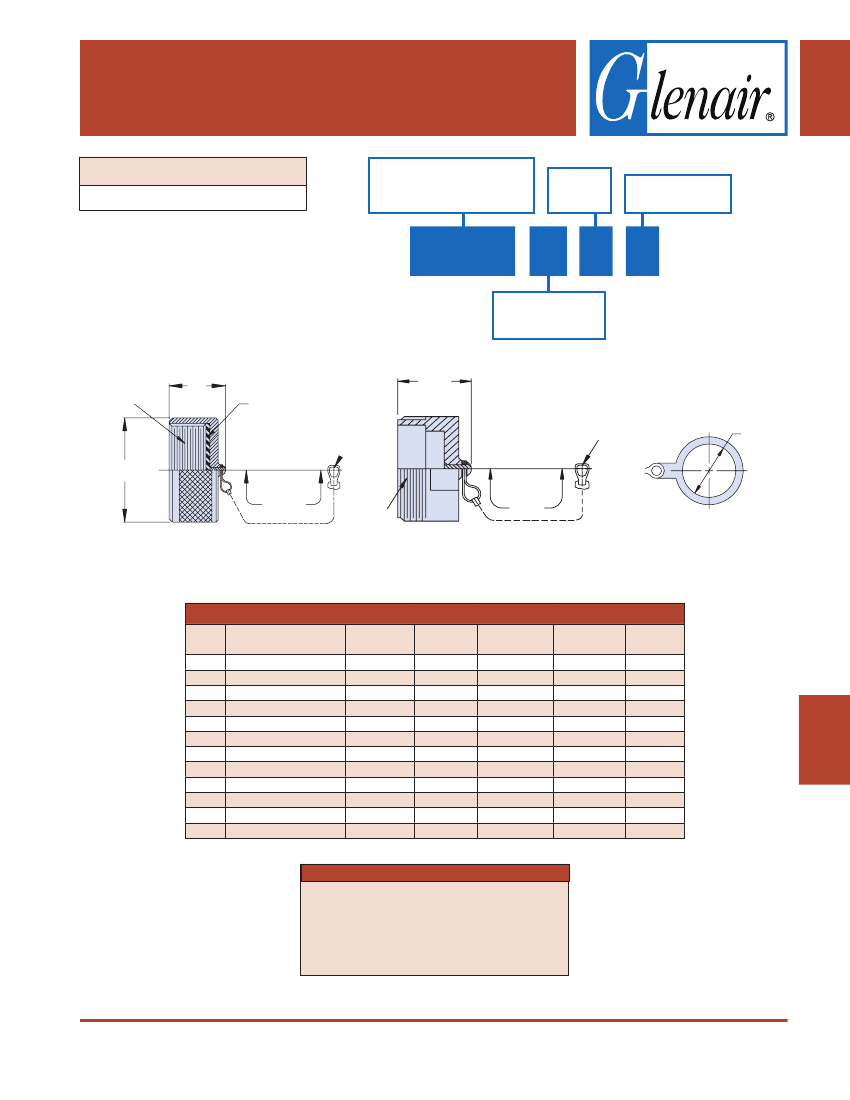

MS17349 and MS17350

Protective Plug and ReceptacleCovers

MATING CONNECTOR

MIL-DTL-22992

Basic Part Number

MS17349

= Plug Cover

MS17350

= Receptacle Cover

Dash No.

(Table I)

Attachment Type

A

= MS17349 Only

MS17349

C

28

A

Finish

C

= Conductive

N

= Non-Condictive

E Thread

H

Gasket

Attachment

(Type B)

M Dia

1.500

(38.1)

Max

Attachment

M Dia

MIL-C-22992

L

G

J

E Thread

J

MS17349 Receptacle Cover

MS17350 Plug Cover

MS17349

Attachment Type A

TABLE I: Dash Number, Thread, Attachment and Dimensions

Dash

No.

12

14

16

18

20

22

24

28

32

36

40

44

E

Thread

.8750-0.1P-0.2L-DS

1.0000-0.1P-0.2L-DS

1.1250-0.1P-0.2L-DS

1.2500-0.1P-0.2L-DS

1.3750-0.1P-0.2L-DS

1.5000-0.1P-0.2L-DS

1.7500-0.1P-0.2L-DS

2.0000-0.1P-0.2L-DS

2.2500-0.1P-0.2L-DS

2.5000-0.1P-0.2L-DS

2.7500-0.1P-0.2L-DS

3.0000-0.1P-0.2L-DS

G

Max

1.094 (27.8)

1.219 (31.0)

1.344 (34.1)

1.469 (37.3)

1.562 (39.7)

1.688 (42.9)

1.938 (49.2)

2.219 (56.4)

2.469 (62.7)

2.719 (69.1)

2.969 (75.4)

3.219(81.8)

H

J Chain

Max

Length

(Inches)

.765 (19.4) 5.00 (127.0)

.980 (24.9) 5.00 (127.0)

.980 (24.9) 6.00 (152.4)

L

Min

1.016 (25.8)

1.141 (29.0)

1.266 (32.2)

1.391 (35.3)

1.516 (38.5)

1.641 (41.7)

1.891 (48.0)

2.141 (54.4)

2.391 (60.7)

2.641 (67.1)

2.891 (73.4)

3.141 (79.8)

M Dia

Min

.150 (3.8)

.177 (4.5)

.199 (5.1)

APPLICATION NOTES

1.

2.

3.

Assembly identified with manufacturer’s name

and part number, space permitting.

For complete dimensions, see the applicable

Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-3
