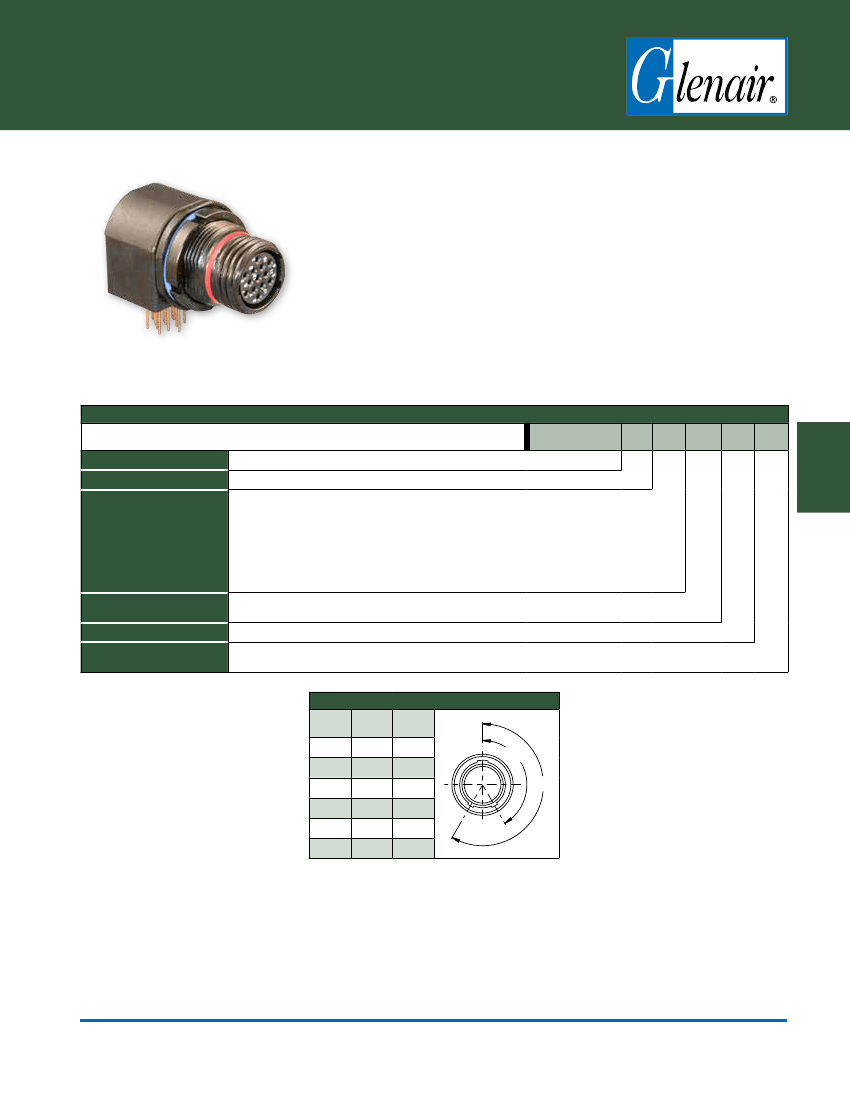

801-023 Ordering Information
Right Angle PCB Receptacle
connectors offer militar y grade
performance in a small, lightweight
package. These connectors are rated for
MIL-STD-810 Method 512 immersion.
High temperature thermoplastic
housing withstands soldering
temperatures. Stainless steel threaded
inserts simplify attachment to printed
circuit board.
Double-Start ACME Thread
Right Angle Contacts
High Temperature Housing
Threaded Inserts
Environmentally Sealed
How To Order
Sample Part Number
Series
Shell Style
801-023
= PCB Right Angle Receptacle
-07
= Jam Nut
C
= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
5-3, 6-1, 6-23, 6-4, 6-6, 6-7, 7-1, 7-25, 7-10, 8-2, 8-28, 8-13, 9-4, 9-210, 9-19, 9-200, 10-2, 10-5, 10-201
P
= Pin
S
= Socket
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
801-023
-07
M
7-10
P
A
Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table I)
A
= Normal
Table I: Alternate Keyway Positions
A°
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-23
E-Mail: sales@glenair.com
Series 801
Series 801 Mighty Mouse Double-Start ACME Thread
Right Angle PCB Receptacle
