TLS359 datasheet, PDF - EEWORLD Datasheet

TLS359: DescriptionTOSHIBA LED DISPLAY; CategoryLED optoelectronic/LED photoelectric; File Size243KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

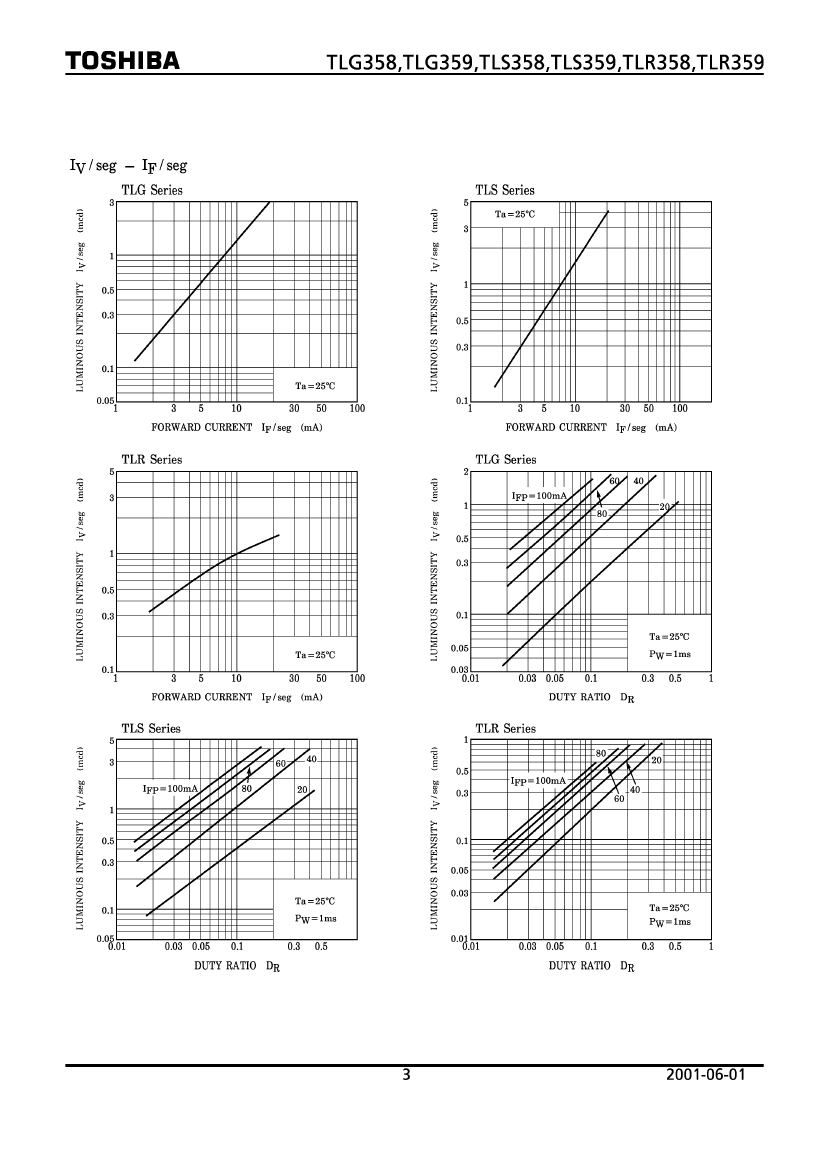

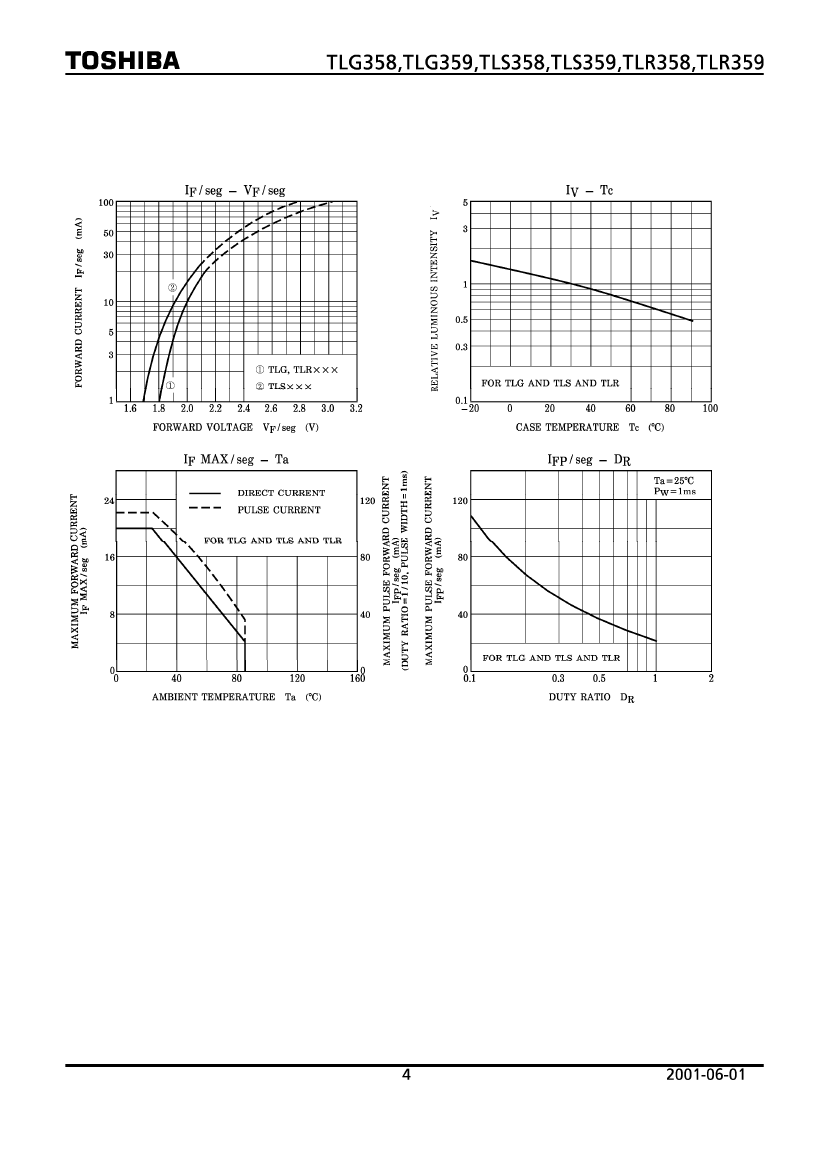

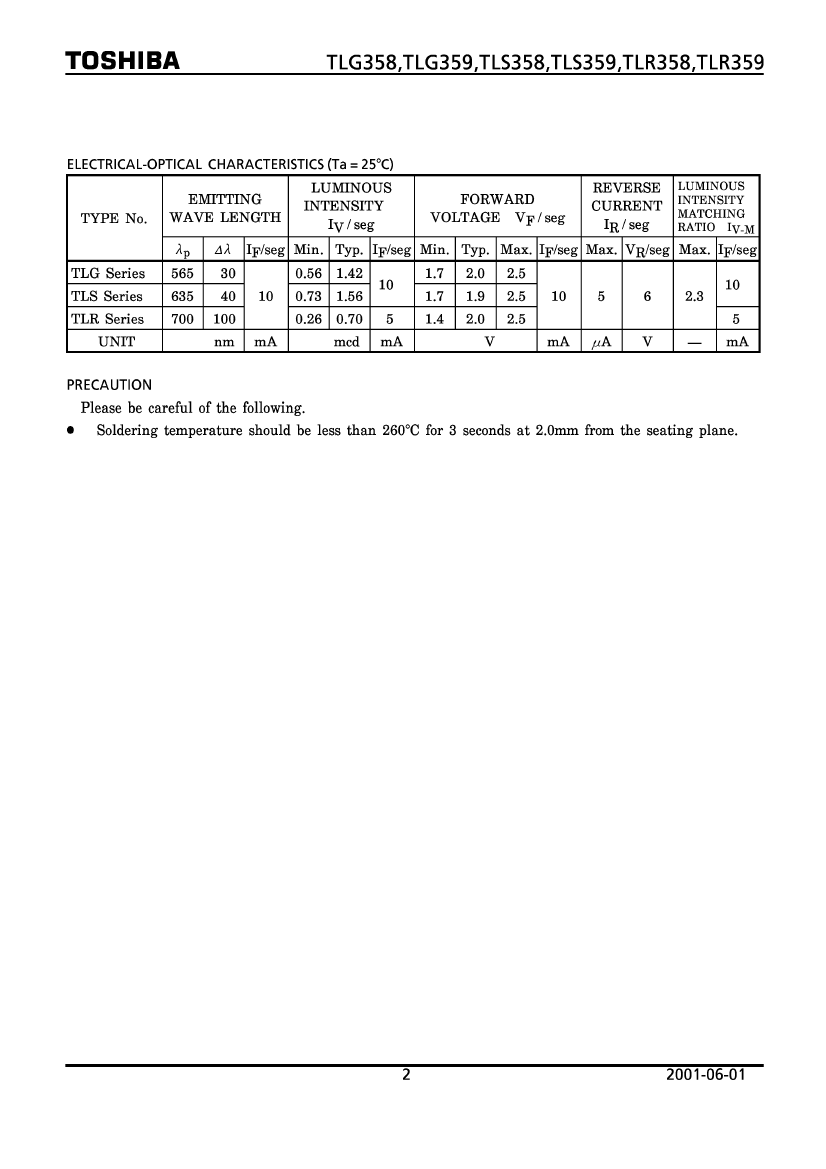

TLS359 Overview

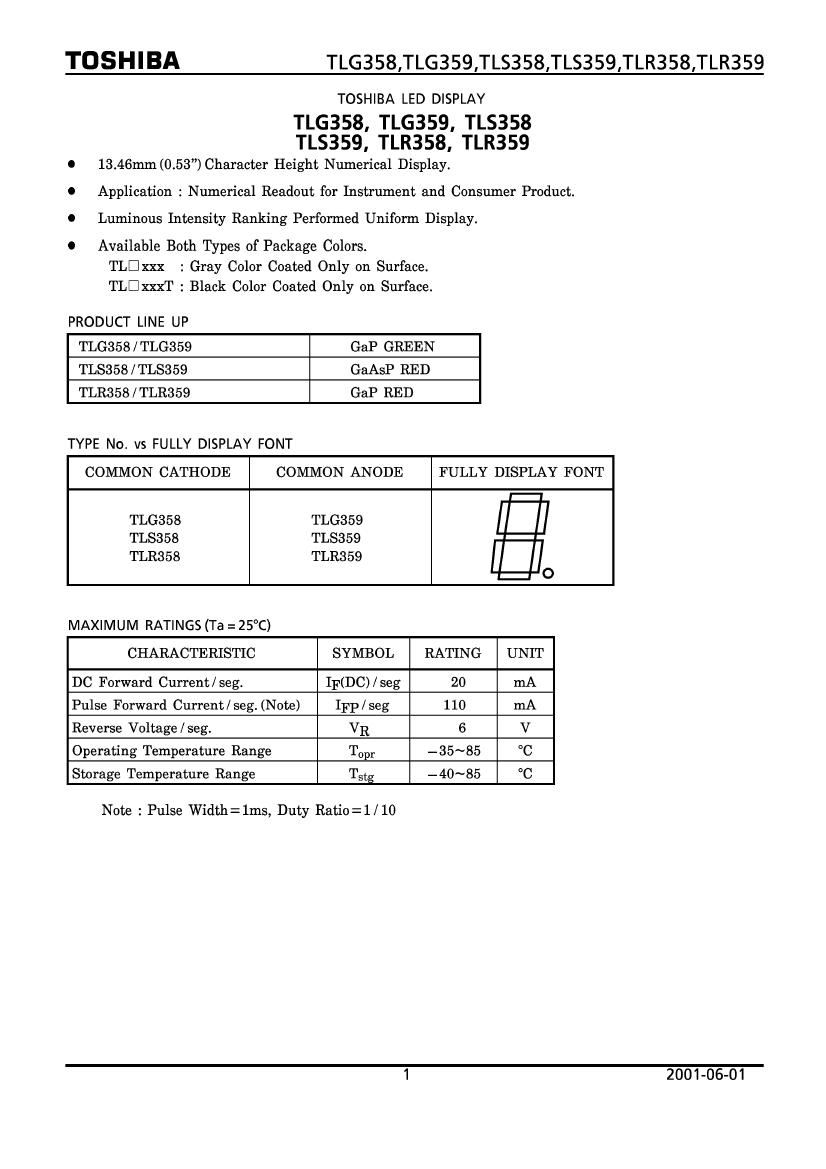

TOSHIBA LED DISPLAY

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor

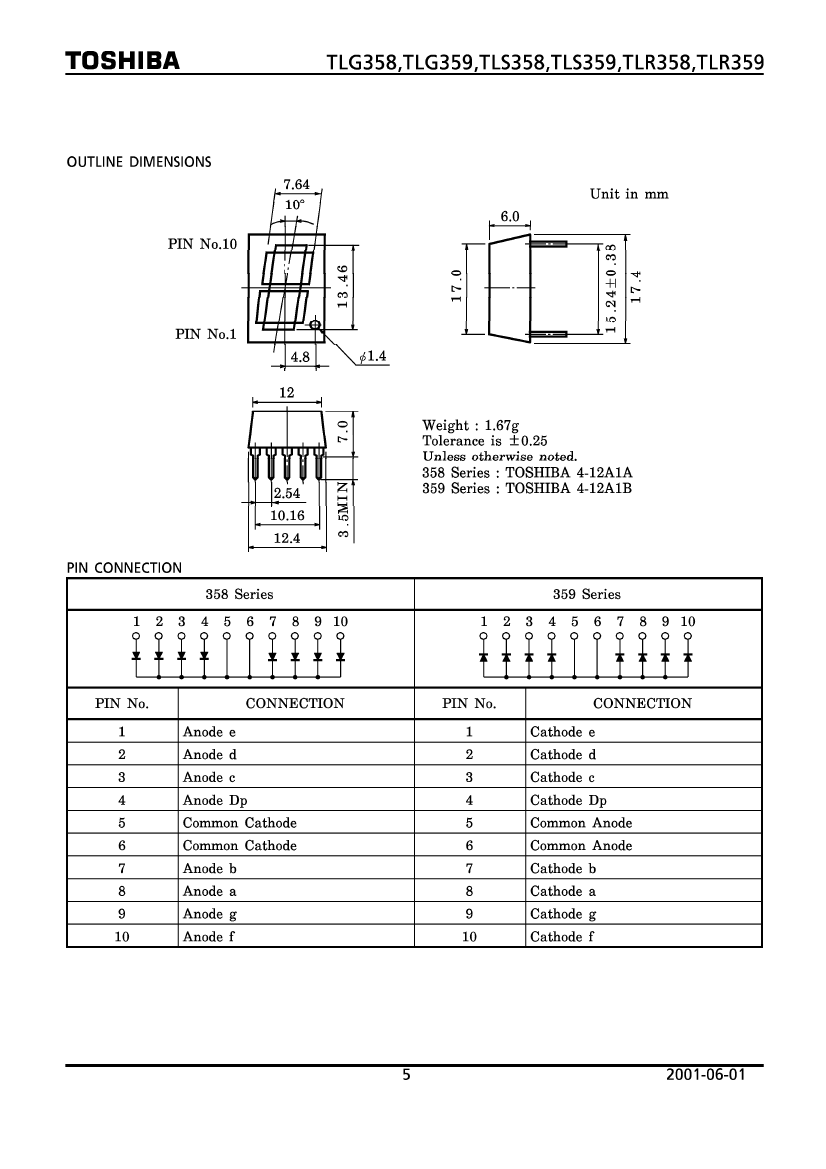

package instruction	4-12A1B, 10 PIN
Reach Compliance Code	unknow
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	13.46 mm
Maximum forward current	0.02 A
Maximum forward voltage	2.5 V
JESD-609 code	e0
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm
Terminal surface	Tin/Lead (Sn/Pb)

	TLS359	TLG359	TLR359	TLR358	TLS358
Description	TOSHIBA LED DISPLAY	TOSHIBA LED DISPLAY	TOSHIBA LED DISPLAY	TOSHIBA LED DISPLAY	TOSHIBA LED DISPLAY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
package instruction	4-12A1B, 10 PIN	4-12A1B, 10 PIN	4-12A1B, 10 PIN	4-12A1A, 10 PIN	4-12A1A, 10 PIN
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
color	RED	GREEN	RED	RED	RED
color@wavelength	Red	Gree	Red	Red	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	13.46 mm	13.46 mm	13.46 mm	13.46 mm	13.46 mm
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JESD-609 code	e0	e0	e0	e0	e0
Number of characters	1	1	1	1	1
Number of functions	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm	565 nm	700 nm	700 nm	635 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
