SB
®
350 Connectors
- up to 450 Amps

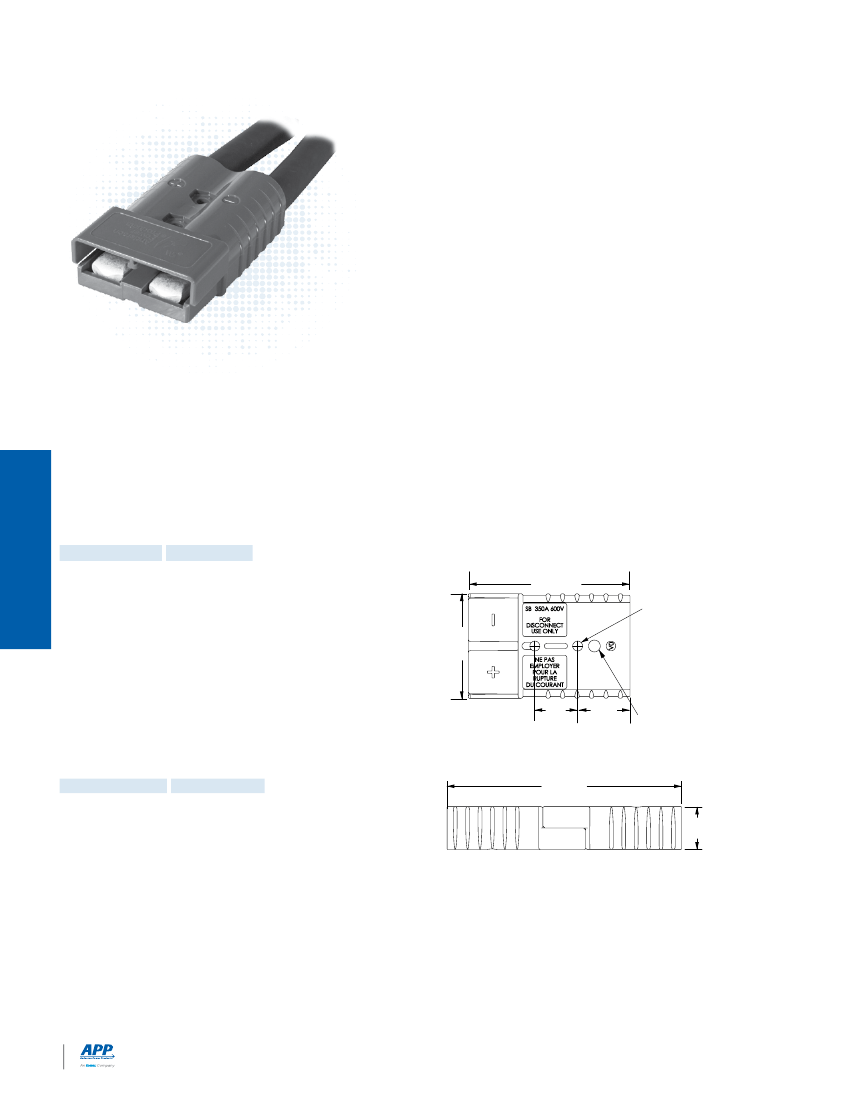

The SB
®
350 is the largest connector in the series with
power capabilities up to 450 amps with 4/0 wire. Wires
ranging from #1/0 (50 mm²) to 300 mcm (152 mm²) fit
into the one piece housing available in standard PC or
a chemical resistant PBT/PC blend. Silver plated wire
or busbar contacts minimize electrical resistance while
offering supreme durability and reliability.
• Up to 300 mcm (152 mm²) Wires
Allows UL rated currents up to 450 amps with 4/0 wire
• Chemical Resistant Housing Option
Extends temperature range down to -40°C, while offering
enhanced UV and chemical resistance
• Same Housings Used for Wire and Busbar Contacts
Enables color-coded mechanically keyed wire to busbar
connections
| SB
®
350 ORDERING INFORMATION |
The largest SB
®
housings work with wire contacts up to 300 mcm [150 mm²] as
well as busbar contacts. Genderless design mates with itself. Mechanical keys
are color coded. NOTE: SB
®
350 Black and Blue Housings have the same
keying features and can be intermated.
SB
®
350 Standard Housings
SECTION 3
Description
Minimum Quantity ......
Yellow
Orange
Red
Gray
Blue
Green
Black
--- Part Numbers ---
50
25 ...
914-BK
914
932-BK
932
913-BK
913
906-BK
906
912-BK
912
931-BK
931
2-7250G8
-
Bottom View
[ 107.9 ]
4.25
SB
®
350
[ 6.6 ]
Ø 0.26
(2) PLC’S
[ 69.9 ]
2.75
SB 350 Chemical Resistant Housings
®
[ 28.6 ]
1.13
[ 34.9 ]
1.38
MATERIAL ID
P = Chemical Resistant
Same features as the Standard SB
®
350 but molded in a
chemical resistant PBT/ PC blend. Suitable for use to -40°C.
Description
Minimum Quantity ......
Red
Gray
--- Part Numbers ---
50
25 ....
P913-BK
P913
P906-BK
P906
[ 182.6 ]
7.19
[ 33.3 ]
1.31
Mated Length
© 2017 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products®, A®, SB® and the APP Logo are registered trademarks of Anderson Power Products, Inc.
- 76 -
www.andersonpower.com
All Data Subject To Change Without Notice
SB
®
350 Silver Plated Wire Contacts
Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles.
See reducing bushings in accessory section for smaller wires.
Dimensions
Mating
-A-
-B-
-C-
AWG
mm²
Force
- Loose Piece Part Numbers - inches mm
inches mm
inches mm
Minimum Quantity ..............
200
150
50
.............................................................................
300mcm 152
High
-
910-BK 910 *
0.75
19.05 0.87
22.10
3.04
77.2
4/0
107.2
High
908-BK
-
908 *
0.64
16.26 0.75
19.05
3.03
77.0
3/0
85
High
916-BK
-
916 *
0.58
14.73 0.70
17.78
3.00
76.2
2/0
67.4
High
907-BK
-
907 *
0.49
12.45 0.64
16.26
2.96
75.2
1/0
53.5
High
917-BK
-
917 *
0.44
11.18
0.51
12.95
2.91
73.9
* Sold as pairs. 2 parts shipped for every 1 part ordered.
[ 32.8 ]
1.29 MIN
A
B
[ C ± 2.0 ]
C ± 0.08
[ 20.6 ]
0.81
SB
®
350 Silver Plated Busbar Contacts
Use 2 busbar contacts per housing to provide a quick disconnect input or output busbar
connection. Busbar contacts are for mating with wire contacts only. Part number 350BBS
includes lock nuts. Locknuts must be ordered separately for B01998P1.
Mating
Type
Thread
Force
- Loose Piece Part Numbers -
Minimum Quantity ..................
50
10
.............
Busbar
3/8-16
High
B01998P1 350BBS
Lock Nut 3/8-16
-
H1216P9
110G73
NOTE: Has not been tested by UL.
[ 131.7 ]
5.19
[ 17.0 ]
0.67
See Busbar contact drawing on
website for further detail.
B
# 3/8 - 16 THD
[ 22.3 ]
0.88
[ 2.5 ]
0.10
| SB
®
350 CONNECTOR SPECIFICATIONS |
Electrical
Current Rating Amperes
Wire to Wire (350 mcm)
Voltage Rating AC/DC
UL 1977
Dielectric Withstanding Voltage
Volts AC
1
SB
®
350
SECTION 3
UL 1977
500
CSA
325
Mechanical
Wire Size Range
Wire Contacts with Bushings
Max. Wire Insulation Diameter
Operating Temperature ²
Standard
Chemical Resistant
Mating Cycles No Load by Plating
Wire and Busbar Contacts
Avg. Mating / Unmating Force
2 Pole
Min. Contact / Spring Retention Force
lbf
N
Connector
Series
SB®350
AWG
1/0 to 300 mcm
in.
1.100
°F
-4° to 221°
-40 to 221°
Silver (Ag)
10,000
Lbf.
30
mm²
53.5 to 152
mm
27.900
°C
-20° to 105°
-40° to 105°
600
2,200
Avg. Mated Contact Resistance Milliohms
1
2 1/2” of 300mcm wire
0.050
Hot Plug Current Rating Amperes - Wire & Busbar
250 cycles at 120V DC
100A
N
133
Materials
Housing
Standard Plastic Resin
Chem. Resistant Resin
Contact Retention Spring
Housing Flammability Rating
UL94
Glow Wire
Wire & Busbar Contacts
4
Base
Plating
Contact Termination Methods
Crimp ³
Hand Solder
Wrench / Socket
Polycarbonate
Polycarbonate / PBT blend
Stainless Steel
150
667
Creepage/Clearance Material
Configurations per IEC 60950-1
Group
Unmated
Mated
5.66 mm
5.66 mm
IIIa
V-0
960°C (GWFI) / 800°C (GWIT)
Copper Alloy
Silver
Protection
Touch Safety with Wire Contacts
IEC 60529
IP10
NOTE 1: See IEC 60664-1 for working voltage.
¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP
recommended tooling, and a 25°C ambient temperature. UL rating not to exceed the
maximum operating temperature. CSA rating below a 30°C temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Use APP recommended tooling only. Alternate tools may adversely affect the
performance of our connectors along with UL and CSA recognition.
4
Has not been tested by UL.
Wire Contacts
Wire Contacts
Busbar Contacts
All Data Subject To Change Without Notice
www.andersonpower.com
- 77 -
| SB
®
350 CONNECTOR TEMPERATURE CHARTS|

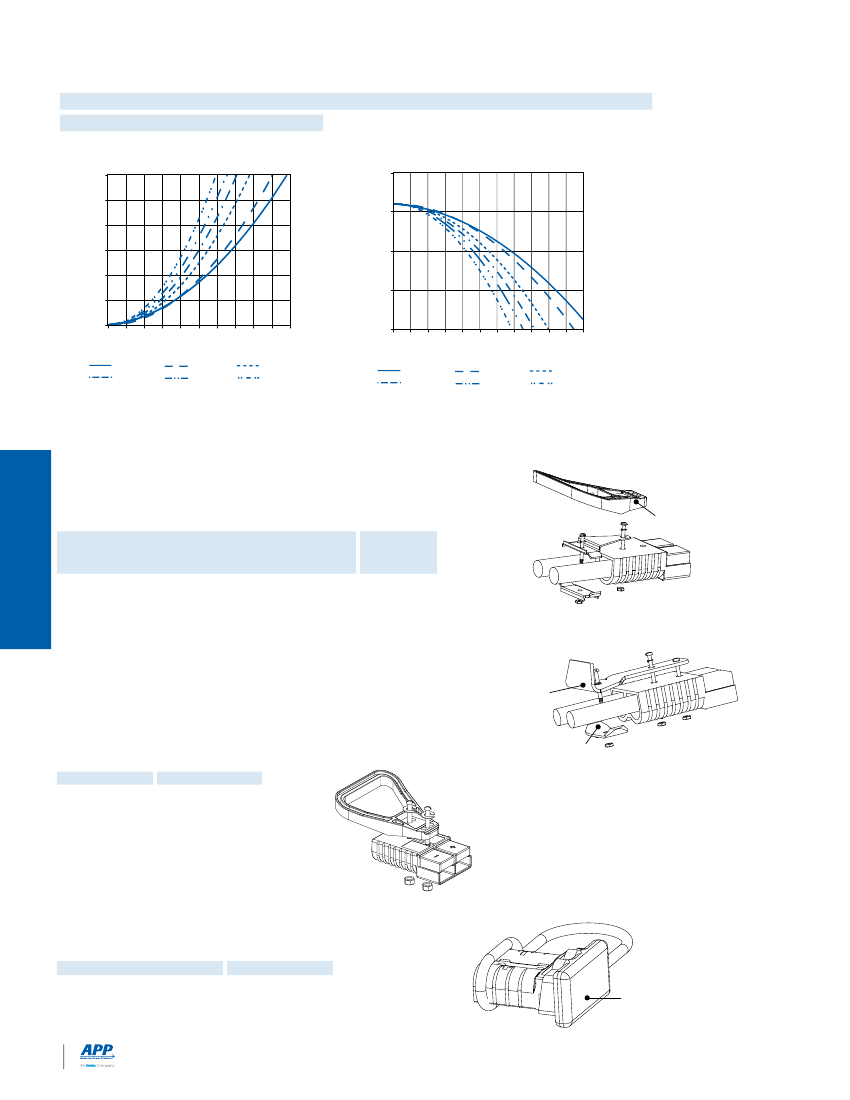

Current - Temperature Derating per IEC 60512-5-2 Test 5B
Temperature rise charts are based on a
25°C ambient temperature.
For Temperature Rise Above 60°C, Consult the Extended Temperature Rise Charts in the Appropriate Product Section on the Website.
60
Temperature Rise
Above Ambient (°C)
50
40
30
20
10
0
SB
®
350
Temperature Rise at Constant Current
125
Ambient Temperature (°C)
SB
®
350
Derating vs. Ambient Temperature
100
75
50
0
50 100 150 200 250 300 350 400 450 500
350 MCM
3/0 AWG
Amperes Applied
300 MCM
2/0 AWG
4/0 AWG
1/0 AWG
25
0 50 100 150 200 250 300 350 400 450 500 550
350 MCM
3/0 AWG
Amperes Applied
300 MCM
2/0 AWG
4/0 AWG
1/0 AWG
| SB
®
350 Accessories |
Cable Clamps
Durable metal cable clamps securely hold cables to prevent accidental strain or pulls from
dislodging wire or contacts from the housing. Cable clamps are recommended for solder
terminated wires.
Cable Size
Min / Max
Min / Max
Description
Inches O.D.
mm O.D.
- Part Numbers -
Minimum Quantity ...............................................................................
10 .....
Bolt On for Discrete Conductor
1.00 to 0.35
25.4 to 8.8
996G1
Discrete Conductor w/ Integral Handle 0.76 to 0.32
19.3 to 8.2
911
The given wire O.D. information is an estimate. Cable clamps should be evaluated for
performance with the actual wire to be used.
996G1
“A” frame handle
(not included).
SECTION 3
SB
®
350
911
Handle
Handles
Handles are made out of durable PC plastic.
Hardware to attach to connector body included in kits.
Description
Minimum Quantity ....
Gray Handle Kit
Red Handle Kit
Handle Only, Gray
Handle Only, Red
Handle Only, Black
Hardware Bag
----- Part Numbers -----
100
25 ...
-
995G2
-
995G4
3-5074P1
-
3-5074P3
-
3-5074P5
-
-
106G7
Clamp
Dust Cover
Prevents dust and dirt from entering the mating interface
of the connector when unmated. NOTE: Not a Hermetic Seal.
Description
----- Part Numbers -----
Minimum Quantity ..............................
500
50 ...
Dust Cover with Lanyard Strap, Red
113890P3
134G3
Slide cover over
mating end.
- 78 -
www.andersonpower.com
All Data Subject To Change Without Notice
SB
®
350 Lockout
Works with standard lockout - tagout equipment to prevent access to
the mating interface of the connector. Made from durable PC plastic.
Description
--- Part Number ---
Minimum Quantity ...........
25
.....
Red Lockout - Tagout Kit SB350-LOCKOUT
SB350 Connector
not included.

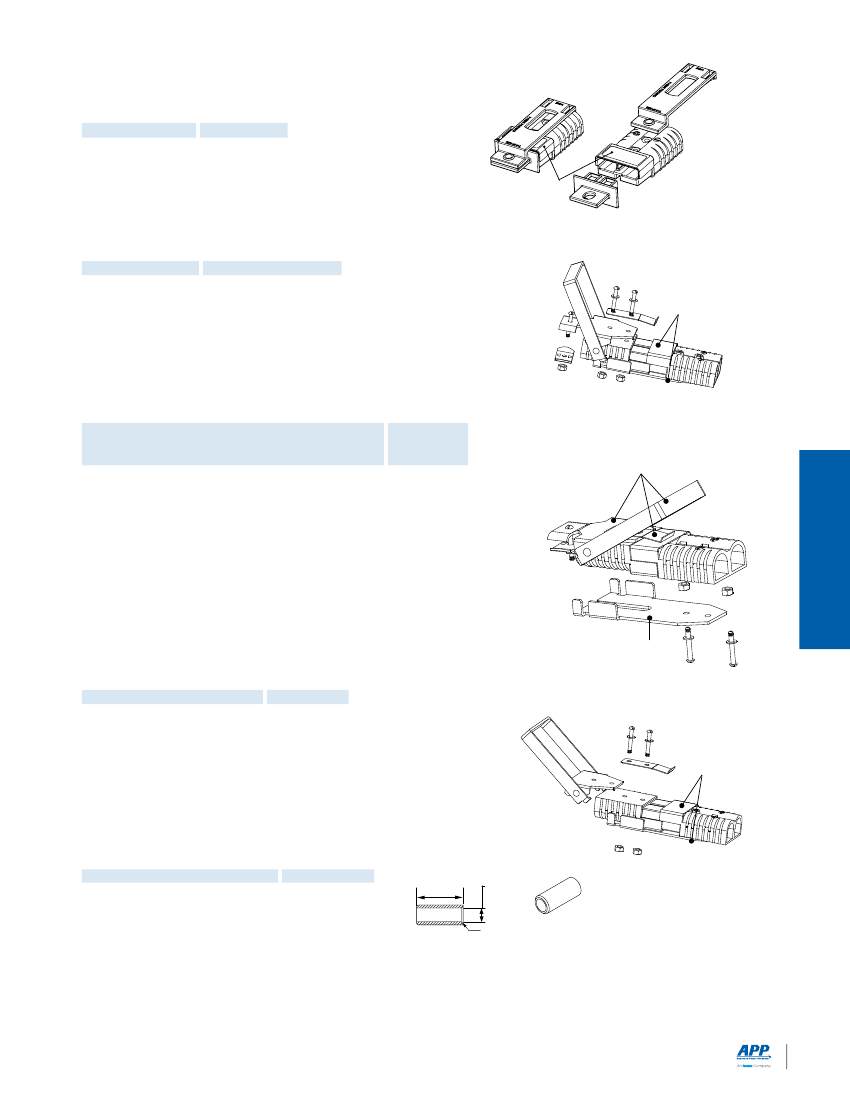

Manual Release Bracket - Mounting Side
Description
Minimum Quantity ...........
Bracket and Hardware Kit
Bracket Only
Hardware Bag
Works with the Locking Side to ease mating and unmating connectors.
----------- Part Numbers ----------
66
25
10 ...
-
-
922G1
B00229P1
-
-
-
106G6
-
Mounting Half
(charger).
Manual Release Bracket - Locking Side with Cable Clamp
Works with the Mounting Side to ease mating and unmating connectors.
Cable Size
Min / Max
Min / Max
Description
Inches O.D.
mm O.D.
- Part Numbers -
Minimum Quantity ...............................................................................
10 ..........
Bracket and Hardware Kit w/ Clamp Kit 0.94 to 0.61
23.7 to 15.5
919
The given wire O.D. information is an estimate. Cable clamps should be evaluated for
performance with the actual wire to be used.
Locking Half
Components
SB
®
350
SECTION 3
Mounting Half
Manual Release Bracket - Locking Side no Cable Clamp
Works with the Battery side to ease mating and unmating connectors.
Description
- Part Numbers -
Minimum Quantity ...................................
10 .............
Bracket and Hardware Kit No Clamp Kit
919G1
Mounting Half
Reducing Bushings: for Use with Contact # 907
Use with contact part number 907-BK to allow a smaller wire to be used
with the connector. Electrical capability is derated with smaller wire.
Contact Barrel Size
Wire Size
--- Part Numbers ---
Minimum Quantity .........................................
500
100 ...
2/0 AWG [67.4 mm²] 1/0 AWG [53.5 mm²] 5918-BK 5918
[ 28.4 ]
1.12
[ 11.1 ]
0.44
Wire Entrance
All Data Subject To Change Without Notice
2017-0041
DS-SB350 REV C5
www.andersonpower.com
- 79 -
SB
®
- Tooling Information
Wire Size
Loose Piece
Part Numbers
Silver
Plating
1307
5900
5952
5953
5915
SB®120
#1
#2
#4
#6
42.4
33.6
21.2
13.3
1323G1
1319
1319G4
1319G6
SB®175
1/0
#1
#2
#4
#6
53.5
42.4
33.6
21.1
13.3
152
107.2
85
67.4
53.5
1382
1347
1383
1384
1348
SB®350
300mcm
4/0
3/0
2/0
1/0
910
908
916
907
917
1368
Series
N/A
1303G3
1387G2
1303G12
1304G31
Double
1387G1
1388G4
1389G3
Single
1368
Series
1387G2
1303G13
1304G32
Double
1368
Series
1387G1
1388G3
1388G4
1389G4
Single
1309G4
1387G1
1388G7
1389G7
1388G6
1389G6
Single
Hand
Tool
Loose Piece Contact Crimp Tools
Pneumatic
Bench Tool
SB®50
#6
#8
13.3
8.4
Number
of
Crimps
AWG
mm²
Die
Locator
#10 / 12 5.3 / 3.3
SECTION 3
SB
®
- 80 -
NOTE: See website for the most current information.
www.andersonpower.com
All Data Subject To Change Without Notice
京公网安备 11010802033920号
EEWORLD
