SMP5025-331K

Description
General Purpose Inductor, 3.3uH, 10%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 5024, CHIP, 5025
CategoryPassive components    inductor
File Size2MB,2 Pages
ManufacturerGowanda Electronics
Download Datasheet Parametric View All

SMP5025-331K Overview

General Purpose Inductor, 3.3uH, 10%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 5024, CHIP, 5025

SMP5025-331K Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerGowanda Electronics
package instructionCHIP, 5025
Reach Compliance Codenot_compliant
ECCN codeEAR99
uppercase and lowercase codes5024
structureChip
core materialNICKEL-ZINC FERRITE
DC Resistance0.035 Ω
Nominal inductance(L)3.3 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height5.585 mm
Package length12.7 mm
Package formSMT
Package width6.095 mm
method of packingTR, 13 Inch
Maximum rated current3.34 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.001 MHz
Tolerance10%
Base Number Matches1

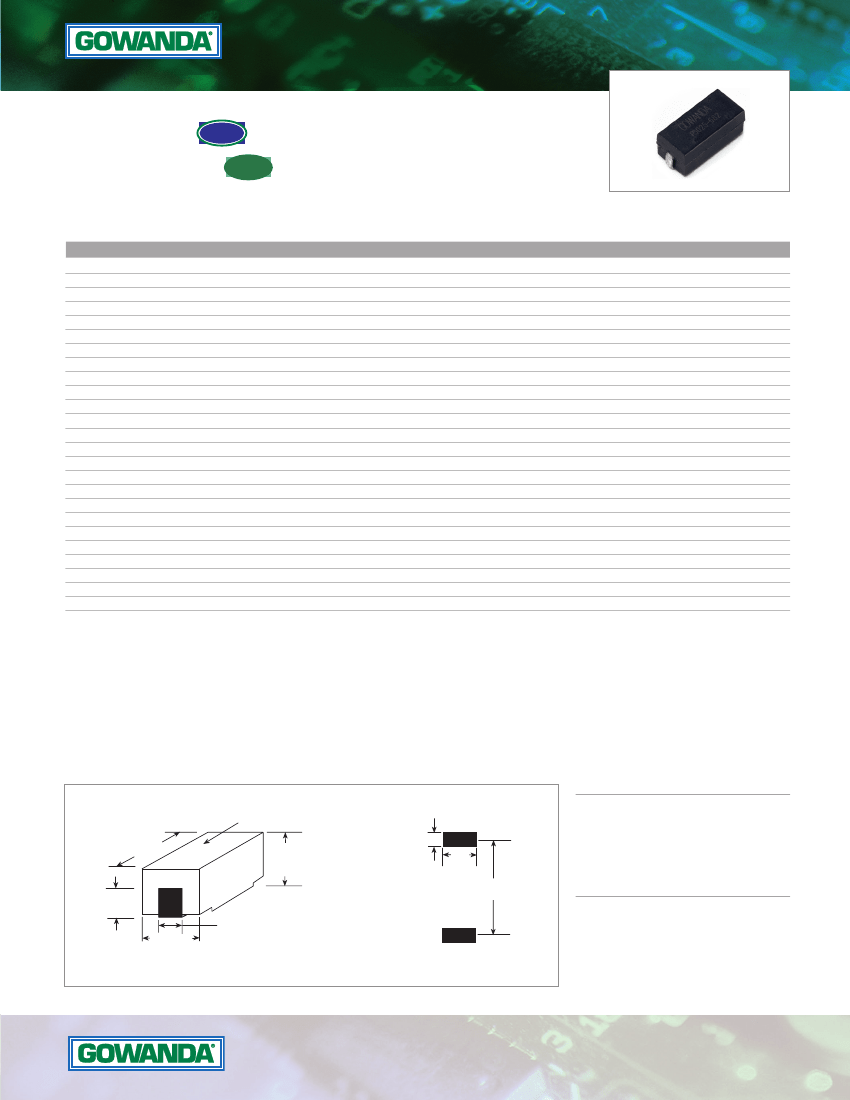

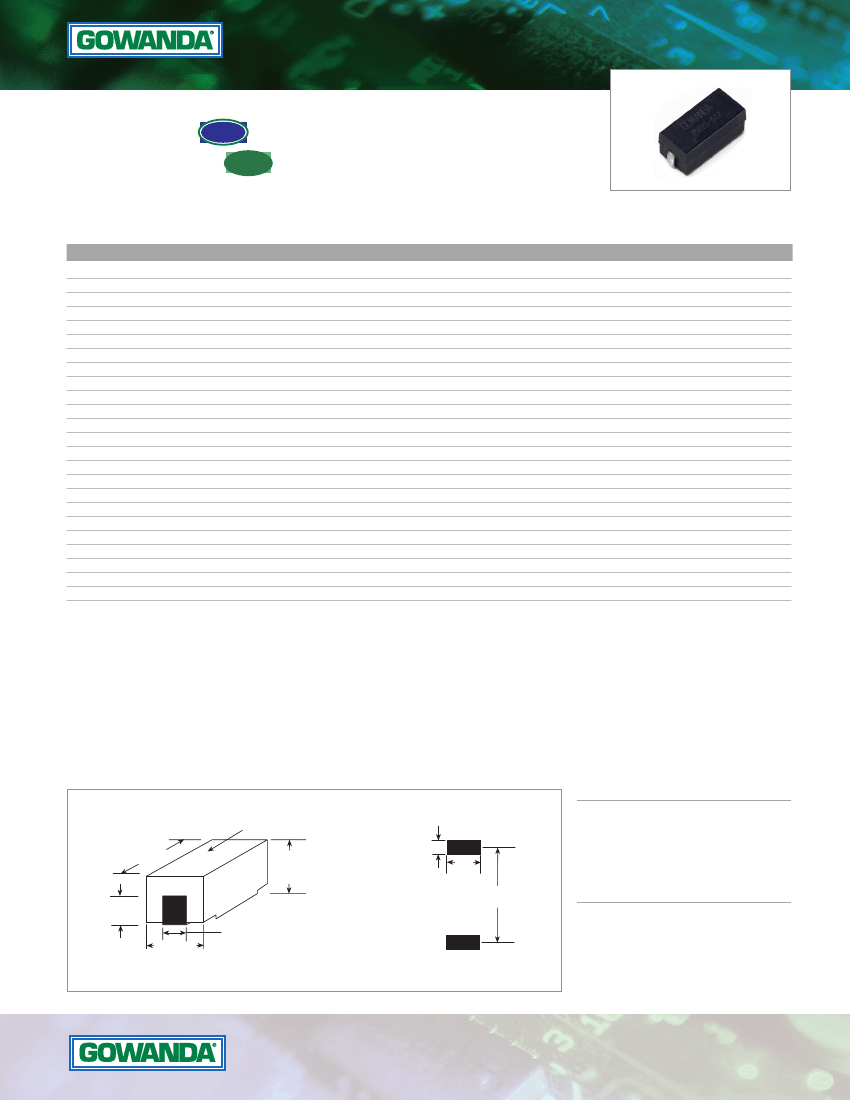

STANDARD POWER INDUCTORS - SURFACE MOUNT
SMP5025
SMP5025LF
*
PART
NUMBER
SMP5025-101K
SMP5025-121K
SMP5025-151K
SMP5025-181K
SMP5025-221K
SMP5025-271K
SMP5025-331K
SMP5025-391K
SMP5025-471K
SMP5025-561K
SMP5025-681K
SMP5025-821K
SMP5025-102K
SMP5025-122K
SMP5025-152K
SMP5025-182K
SMP5025-222K
SMP5025-272K
SMP5025-332K
SMP5025-392K
SMP5025-472K
SMP5025-562K
SMP5025-682K
SMP5025-822K
TRADITIONAL
Pb
COMPLIANT
RoHS
Wirewound, Molded
L µH
@1 kHz
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
DCR
OHMS
MAX
0.015
0.017
0.020
0.023
0.029
0.030
0.035
0.038
0.043
0.046
0.053
0.058
0.071
0.079
0.089
0.109
0.150
0.170
0.222
0.250
0.330
0.370
0.418
0.468
SATURATION CURRENT
A DC
FERRITE CORE
7.4
6.4
6.0
5.6
5.2
4.6
4.0
3.8
3.6
3.2
2.8
2.7
2.4
2.2
2.0
1.8
1.6
1.5
1.4
1.2
1.1
1.0
0.96
0.90
5.10
4.80
4.42
4.12
3.67
3.61
3.34
3.20
3.00
2.91
2.71
2.59
2.34
2.22
2.09
1.89
1.61
1.51
1.33
1.25
1.09
1.03
0.966
0.913
continued next page
CURRENT RATING
A DC
Suffix “K” for 10% tolerance
Custom designs are available to meet your specific requirements; please contact factory.
*Add “LF” suffix for RoHS requirement. Example: SMP5025-101KLF
Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
NOTES:
MARKING: GOWANDA
P5025-XXXK
0.210/0.230
(5.33/5.84)
OVER TERMINAL
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
0.440 (11.18)
CENTERS
• Operating Temperature Range:
-55°C to +125°C
• Current Rating is based on a 40°C temperature
rise at an ambient temperature of 85°C
• Saturation Current is the approximate value
that will reduce the initial inductance by 5%
TAPE AND REEL SPECS:
Pcs./Reel maximum:
Pitch between parts:
Tape width:
Reel diameter:
800
12 mm
24 mm
13 in.
0.490/0.510
(12.45/12.95)
OVER TERMINAL
0.110
(2.79) REF
0.230/0.250
(5.84/6.35)
0.055/.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
2 SIDES
in. (mm)
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
122813
