380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
380 F S 007 M 16 05 L 6
38
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
A Thread
(Table I)
C Typ.
(Table I)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (L, G)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Minimum Order Length 1.5 Inch
(See Note 4)
E
(Table III)

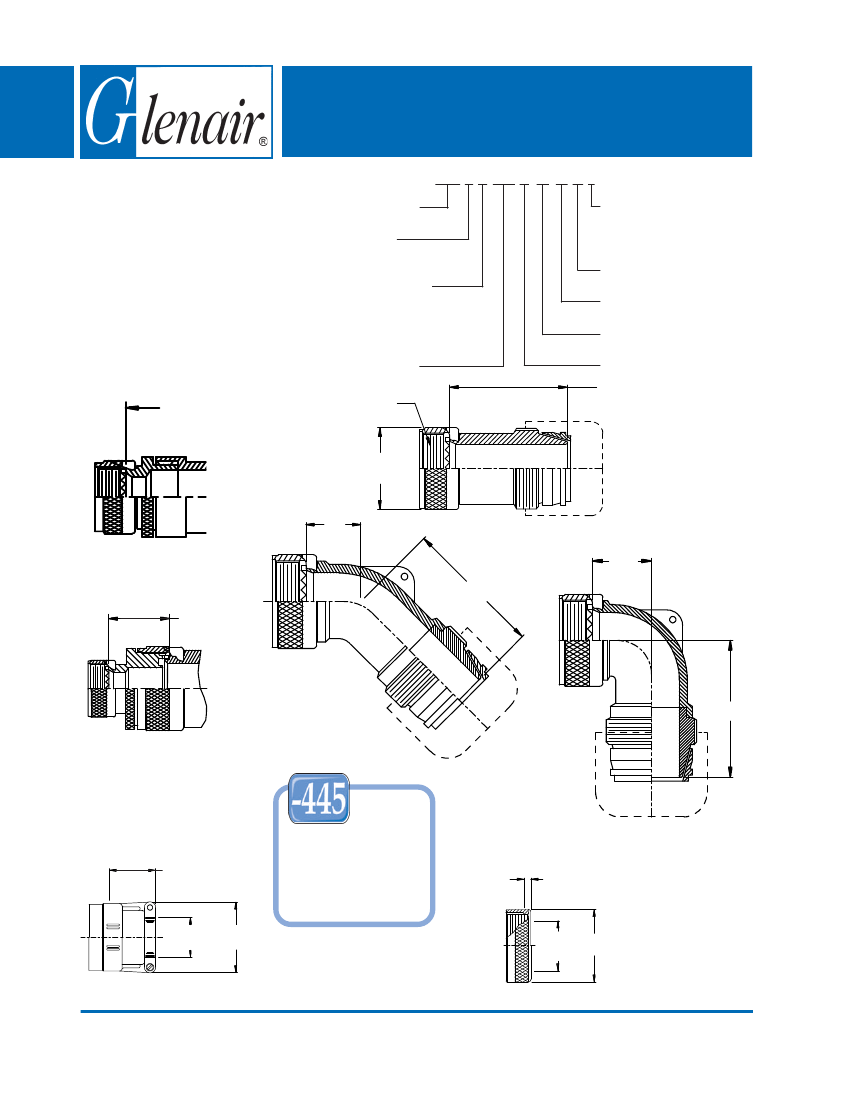

STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
Now Available
with the “NESTOR”
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
Cable
Range
K
Cable
Entry
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 30
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for
unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
36
40
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.680 (42.7)
1.740 (44.2)
1.800 (45.7)
1.890 (48.0)
2.000 (50.8)
2.190 (55.6)
2.190 (55.6)
2.340 (59.4)
2.340 (59.4)
2.390 (60.7)
2.490 (63.2)
2.580 (65.5)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.781 (45.2)
1.901 (48.3)
1.921 (48.8)
1.991 (50.6)
2.081 (52.9)
2.251 (57.2)
2.251 (57.2)
2.361 (60.0)
2.361 (60.0)
2.531 (64.3)
2.781 (70.6)
2.781 (70.6)
TABLE Il: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE IV: CABLE ENTRY
Cable Range
K
Dash
Max
Min
No.
Max
.781 (19.8)
.062 (1.6)
01
.125 (3.2)
.968 (24.6)
.125 (3.2)
02
.250 (6.4)
.250 (6.4)
03 1.046 (26.6)
.375 (9.5)
.250 (6.4)
04 1.156 (29.4)
.500 (12.7)
.375 (9.5)
05 1.218 (30.9)
.625 (15.9)
.500 (12.7)
06 1.343 (34.1)
.750 (19.1)
.625 (15.9)
07 1.468 (37.3)
.875 (22.2)
.625 (15.9)
08 1.593 (40.5)
1.000 (25.4)
.750 (19.1)
09 1.718 (43.6)
1.125 (28.6)
.875 (22.2)
10 1.843 (46.8)
1.250 (31.8)
TABLE V: CABLE ENTRY
Cable Entry
L
Dash
Max
Max
No.
.125 (3.2)
.593 (15.1)
01
.250 (6.4)
.718 (18.2)
02
.375 (9.5)
.843 (21.4)
03
.500 (12.7)
.968 (24.6)
04
.625 (15.9)
1.109 (28.2)
05
.750 (19.1)
1.218 (30.9)
06
.875 (22.2)
1.343 (34.1)
07
1.000 (25.4)
1.468 (37.3)
08
1.125 (28.6)
1.593 (40.5)
09
1.250 (31.8)
1.718 (43.6)
10
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
