M85049-51S16N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049-51S16N

M85049-51S16N: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters STRAIN RLF SELF LK NI; CategoryThe connector; File Size153KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-51S16N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-51S16N	-	-	View	Buy Now

M85049-51S16N Overview

Circular MIL Spec Strain Reliefs u0026 Adapters STRAIN RLF SELF LK NI

M85049-51S16N Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair
Product	Strain Reliefs
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II
Shell Size	16
Mating Style	Self Locking
Shell Material	Aluminum Alloy
Shell Style	Right Angle
Factory Pack Quantity	1
Type	Strain Relief Clamps

Preview

Download Datasheet

View All

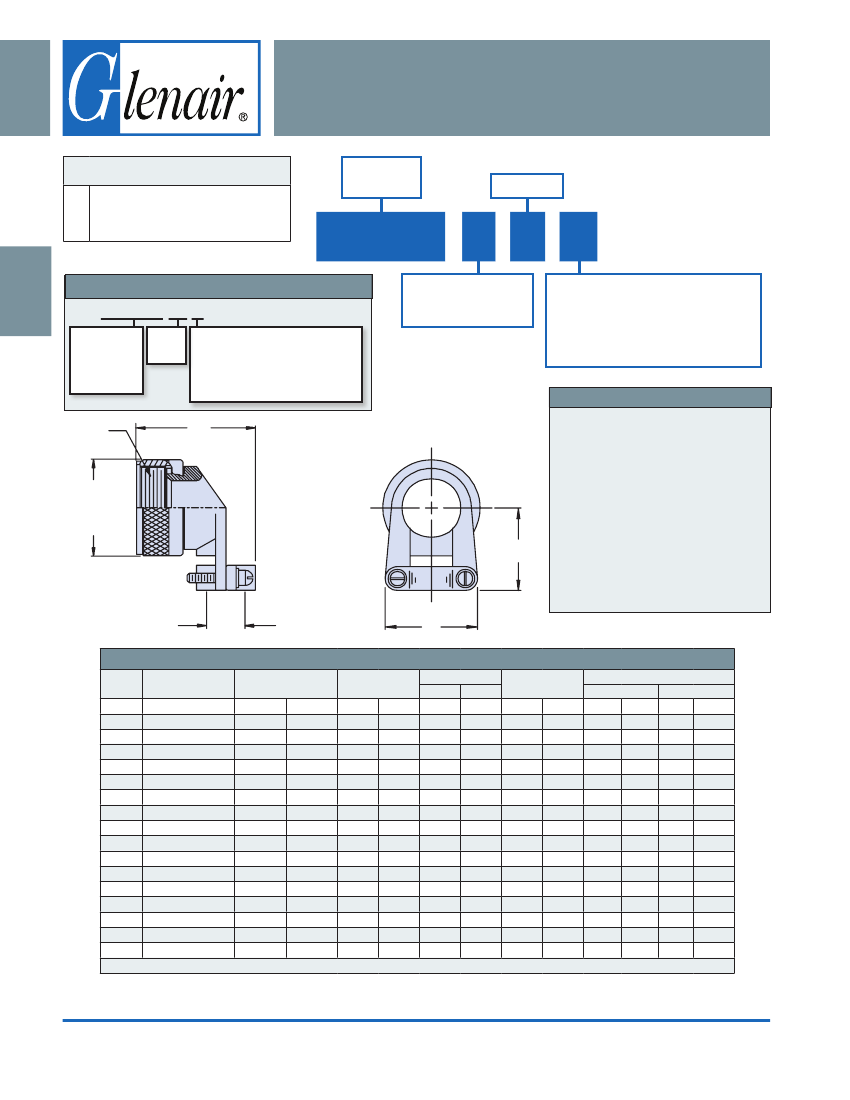

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Basic

Part Number

AS85049/51 and MS3418

90° Strain Relief

AS85049

AS50151 Series AS34001 Crimp,

MIL-DTL-26482 Series II,

SAE-AS1703 Crimp Series III,

MIL-DTL-83723 Series I & III

Dash No.

M85049/51

FOR NEW DESIGN

USE AS85049/120

Superseded Part Number

MS3418-10 C

Basic

Part No.

(Non-Self-

Locking)

Dash

No.

Metal and Finish Designator

A = Aluminum 1000 Hour Cadmium Olive

Drab over Electroless Nickel

C = Aluminum, Cadmium Olive Drab

G = Aluminim Black Anodize

N = Aluminum, Electroless Nickel

= Self-Locking

-1

= Non-Self-Locking

= Non-Detented

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= Stainless Steel, Passivate

= Aluminum, 1000 Hr. Cadmium O.D.

over Electroless Nickel

APPLICATION NOTES

Assembly to be identified with

manufacturer’s name and part

number, space permitting.

Cable Entry is defined as the

accommodation entry for the

wire bundle or cable.

Dimensions are not intended for

inspection criteria.

For complete dimensions, see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

A Thread

Self Locking

Only

Self Locking

Only

Cable

Entry

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Dash

No.

3*+

28+

32+

36+

40+

44+

48+

61*+

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

Ø E Max

Self-Locking

.885

(22.5)

1.010

(25.7)

1.135

(28.8)

1.260

(32.0)

1.385

(35.2)

1.510

(38.4)

1.635

(41.5)

(44.7)

1.760

1.885

(47.9)

2.135

(54.2)

2.395

(60.8)

2.635

(66.9)

2.885

(73.3)

3.135

(79.6)

3.385

(86.0)

F Max

Self-Locking

1.257 (31.9)

1.339 (34.0)

1.532 (38.9)

1.592 (40.4)

1.741 (44.2)

1.853 (47.1)

1.978 (50.2)

2.108 (53.5)

2.228 (56.6)

2.528 (64.2)

2.591 (65.8)

2.716 (69.0)

2.841 (72.2)

3.091 (78.5)

3.216 (81.7)

±.062

.777

.746

.805

.867

.930

.994

1.171

1.234

1.296

1.358

1.572

1.797

1.922

2.047

2.296

2.421

1.388

(1.6)

(19.7)

(18.9)

(20.4)

(22.0)

(23.6)

(25.2)

(29.7)

(31.2)

(32.9)

(34.5)

(39.9)

(45.6)

(48.8)

(52.0)

(58.3)

(61.5)

(35.3)

Cable Entry

Max

Min

Max

.782 (19.9) .125 (3.2) .204 (5.2)

.862 (21.9) .187 (4.7) .286 (7.3)

1.003 (25.5) .291 (7.4) .416 (10.6)

1.061 (26.9) .351 (8.9) .476 (12.1)

1.334 (33.9) .501 (12.7) .626 (15.9)

1.466 (37.2) .518 (13.2) .706 (17.9)

1.572 (39.9) 581 (14.8) .831 (21.1)

1.688 (42.9) .644 (16.4) .956 (24.3)

1.790 (45.5) .706 (17.9) 1.081 (27.5)

2.035 (51.7) .750 (19.1) 1.187 (30.1)

2.386 (60.6) .875 (22.2) 1.250 (31.8)

2.496 (63.4) .938 (23.8) 1.375 (34.9)

2.566 (65.2) .938 (23.8) 1.500 (38.1)

2.860 (72.6) 1.188 (30.2) 1.750 (44.5)

3.344 (84.9) 1.312 (33.3) 1.875 (47.6)

1.775 (45.1) .706 (17.9) 1.081 (27.5)

* Not Available in Self Locking

+ Not Available under M83723/15A

Dimensions in inches (millimeters) and are subject to change without notice.

Mil-Spec Backshells

U.S. CAGE Code 06324

Rev. 04.28.16

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-76

E-Mail: sales@glenair.com
