390HB005NF1510MC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 390HB005NF1510MC

Preview

390HB005NF1510MC: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RLF RC LOW 45DEG MEDIUM DTY; CategoryThe connector; File Size123KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

390HB005NF1510MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390HB005NF1510MC	-	-	View	Buy Now

390HB005NF1510MC Overview

Circular MIL Spec Backshells SUB CBL SEAL RLF RC LOW 45DEG MEDIUM DTY

390HB005NF1510MC Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

390-005

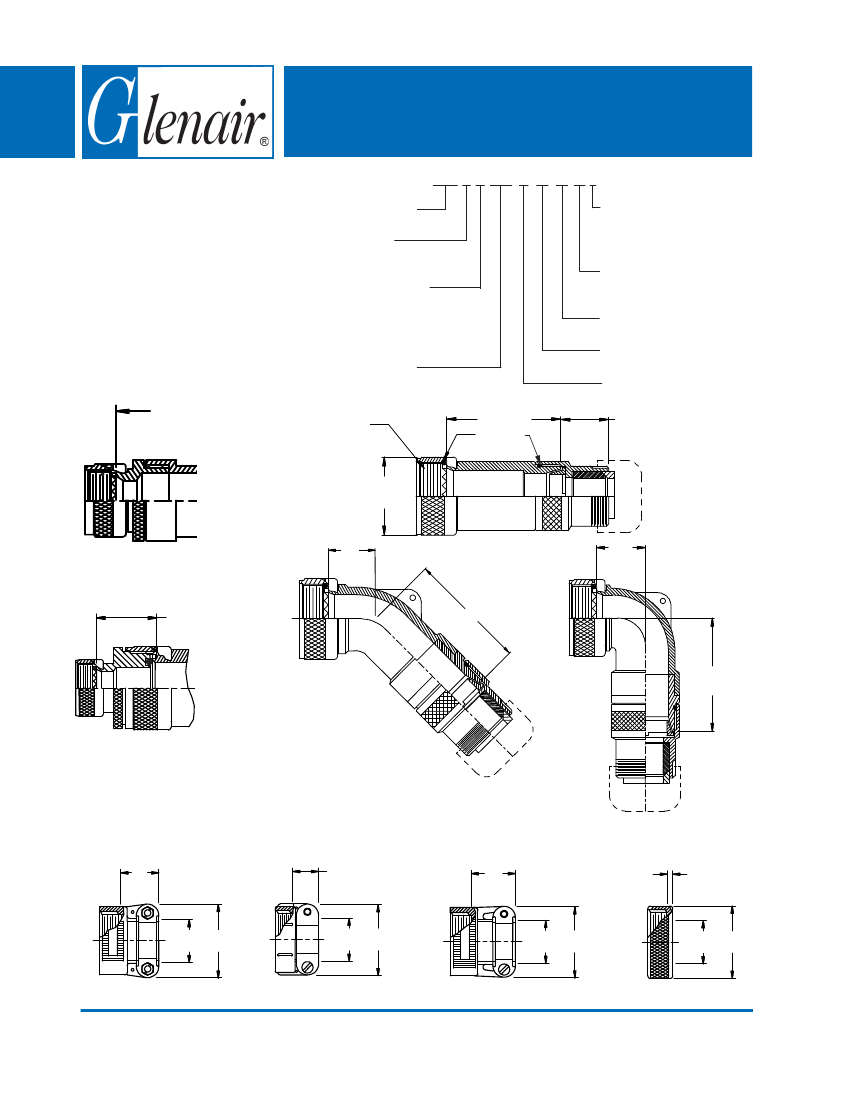

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type B - Rotatable Coupling - Low Profile

39

CONNECTOR

DESIGNATORS

390 F S 005 M 16 10 M 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Finish (Table II)

Length *

O-Rings

1.188 (30.2) Approx.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE B INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Minimum Order Length 2.0 Inch A Thread

(Table I)

(See Note 4)

C Typ.

(Table I)

* Length

± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

G

(Table III)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

E

(Table III)

F (Table III)

H (Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

T

STYLE A

Medium Duty

(Table XI)

W

STYLE M

Medium Duty

(Table XI)

X

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

V

Cable

Range

Y

Cable

Range

Y

Cable

Entry

Z

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 24
