804-02007ZNU6-6SC

Description
Circular MIL Spec Connector
CategoryThe connector
File Size444KB,3 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

804-02007ZNU6-6SC Online Shopping

Suppliers Part Number Price MOQ In stock
804-02007ZNU6-6SC - - View Buy Now

804-02007ZNU6-6SC Overview

Circular MIL Spec Connector

804-02007ZNU6-6SC Parametric

Parameter NameAttribute value
Product CategoryCircular MIL Spec Connector
ManufacturerGlenair
Factory Pack Quantity1
Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Receptacle
804-005, 804-020 Ordering Information
Panel Mount Receptacles
feature factory-installed non-removable contacts.
Choose solder cup or PC Tail terminals. Available in front or rear panel mount
versions.
Water Immersion, Unmated
Specify
804-005
connectors for applications where open face water immersion
is not a requirement. For MIL-STD-810 Method 512G immersion requirements,
specify
804-020
watertight connectors . These 804-020 connectors are specially
sealed (“MOD-518”) and are 100% tested to maintain a helium leak rate of 1 x 10
-4
cc/second at one atmosphere pressure differential from -40C to +70C.
G
Series 804
Sample Part Number
Series
Shell Style (See Table I)
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
P
= Pin, PC Tail
S
= Socket, PC Tail

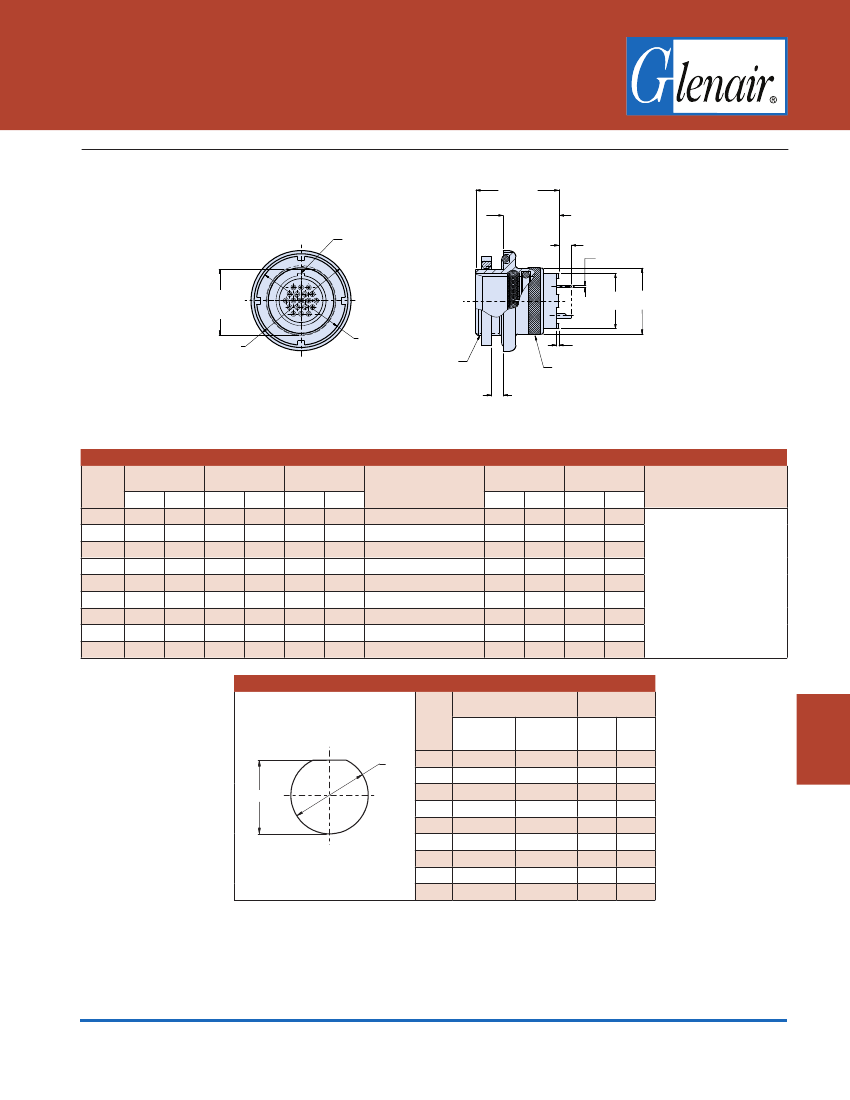

Table I: Shell Style
-00
Jam Nut, Front Panel Mount
© 2014 Glenair, Inc.

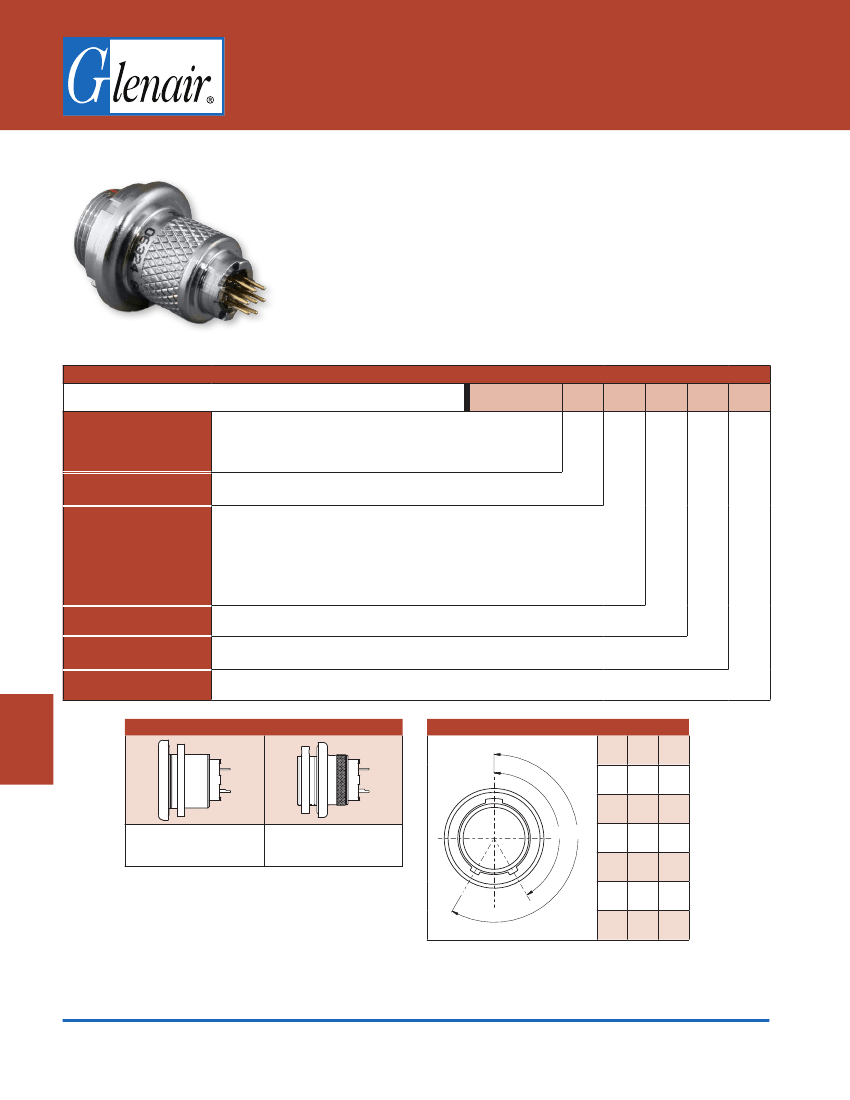

How To Order
804-005
804-005
= Solder Cup or PCB Receptacle with Standard Potting
804-020
= Solder Cup or PCB Receptacle with Special "MOD-518" Sealing
for Open Face (Unmated) Water Immersion Requirements. 100% Leak
Tested.
-00
= Front Panel Mount Jam Nut (See Table IV)
-07
= Rear Panel Mount Jam Nut (See Table III)
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
See Contact Arrangements Page G-2
E
= Pin, Solder Cup
F
= Socket, Solder Cup
-07
NF
9-4
E
A
Omit
= Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table II: Alternate Key Positions
Pos.
A
B
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°

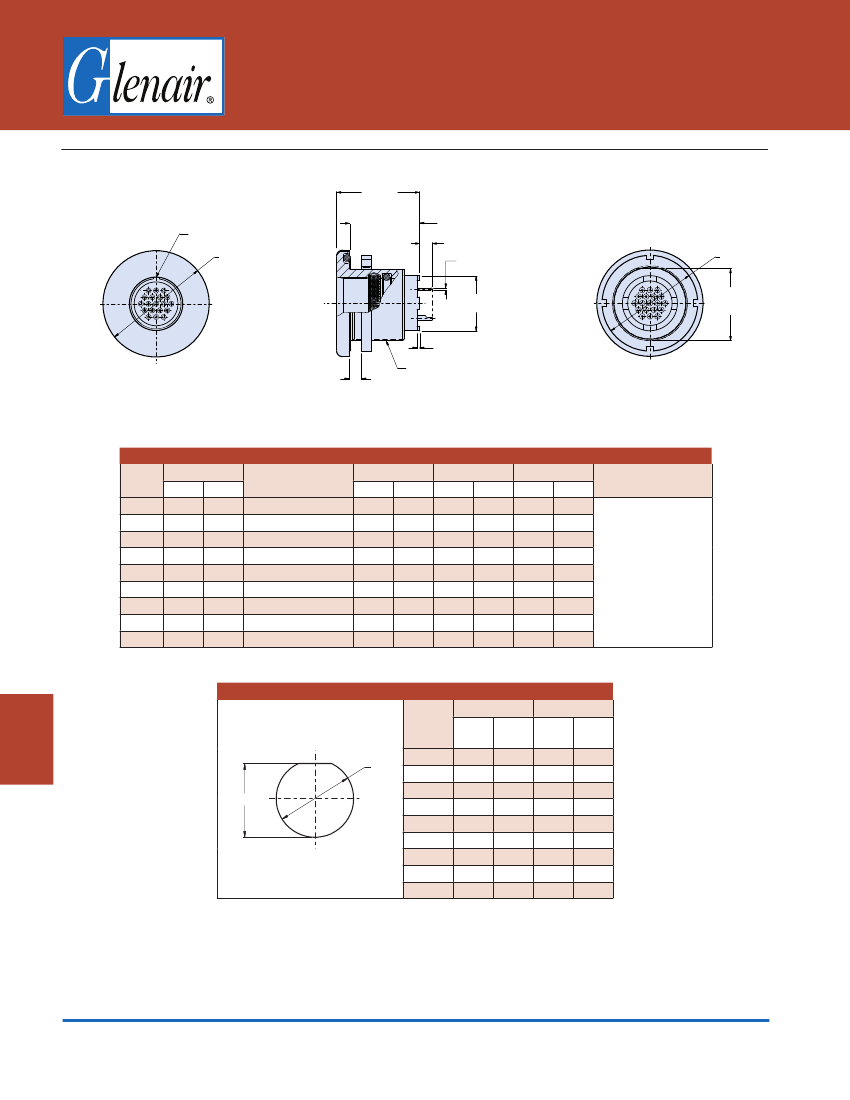

-07
Jam Nut, Rear Panel Mount
A° B°
C
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
G-24
E-Mail: sales@glenair.com
AD6.0
