ADC5206H/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADC5206H/B

ADC5206H/B: DescriptionA/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,; CategoryAnalog mixed-signal IC converter; File Size385KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

ADC5206H/B Overview

A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,

ADC5206H/B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Maximum analog input voltage	10 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

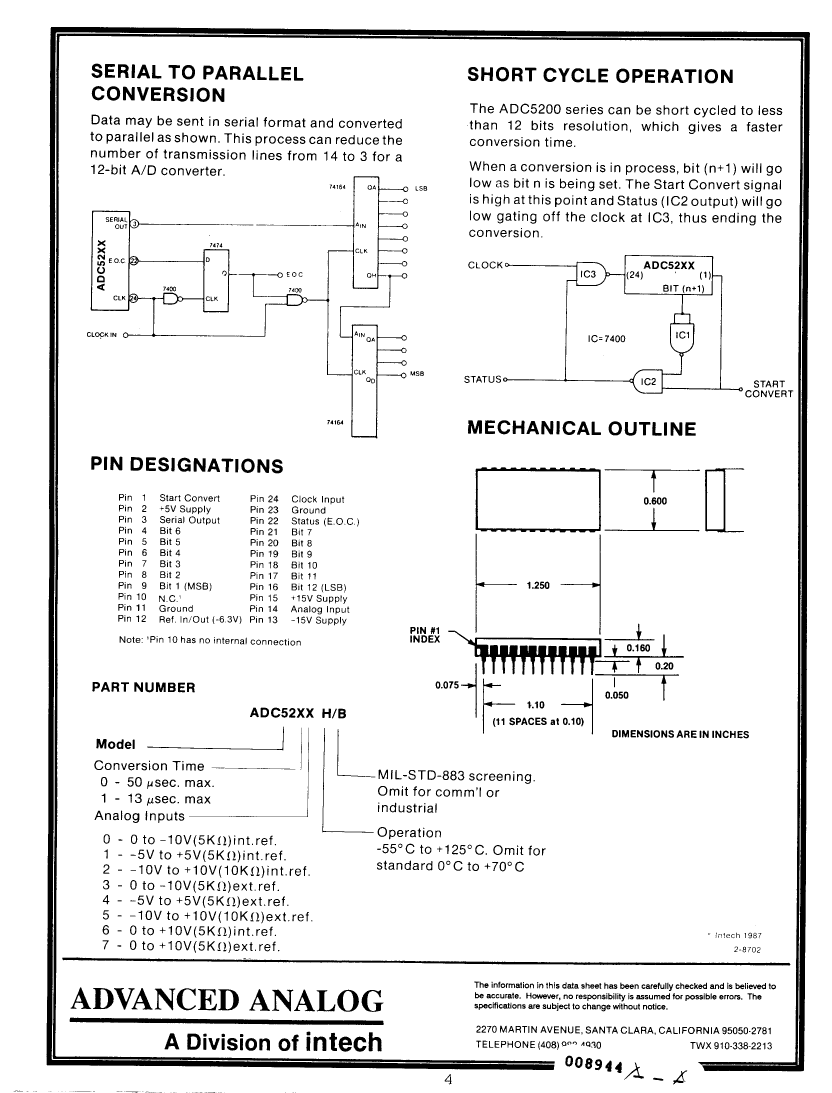

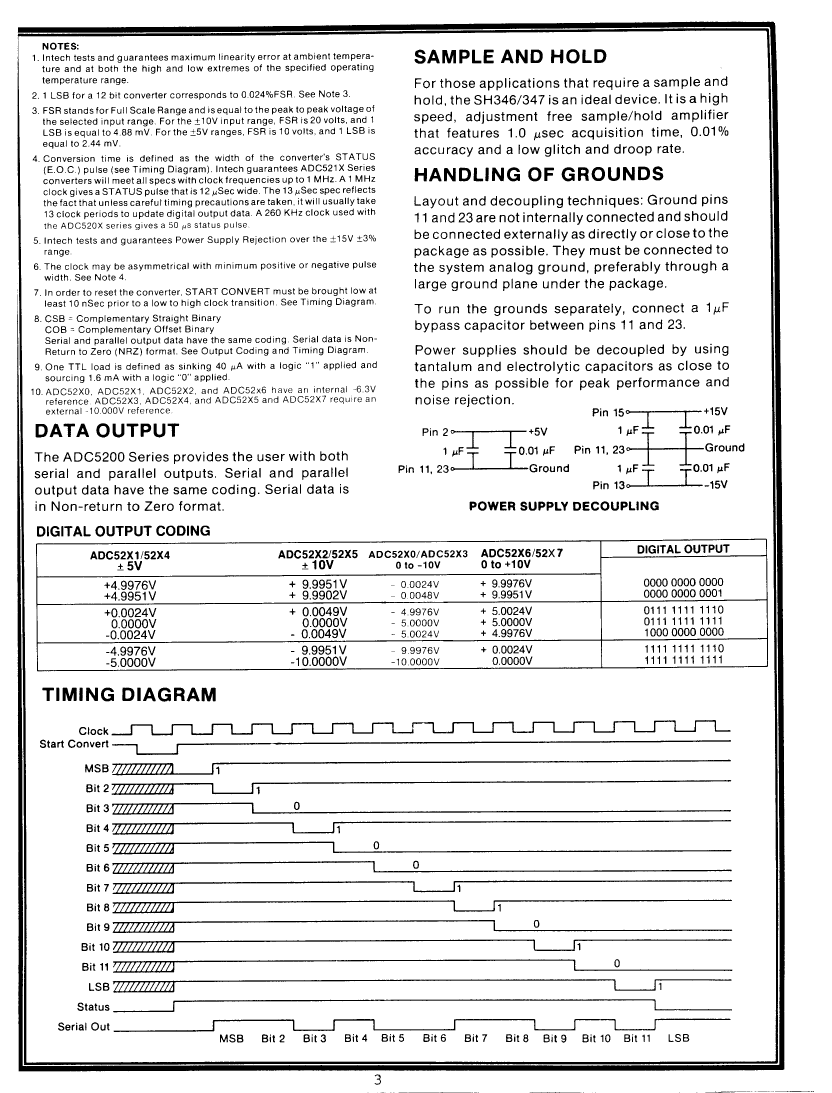

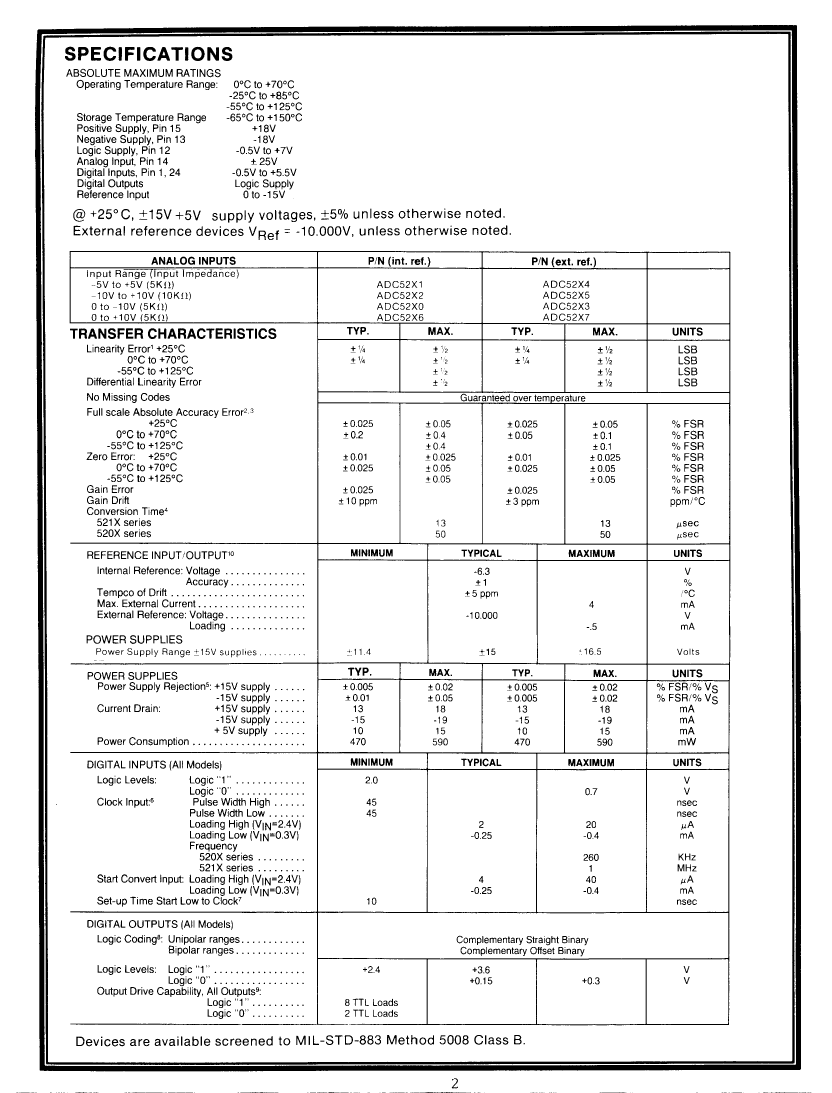

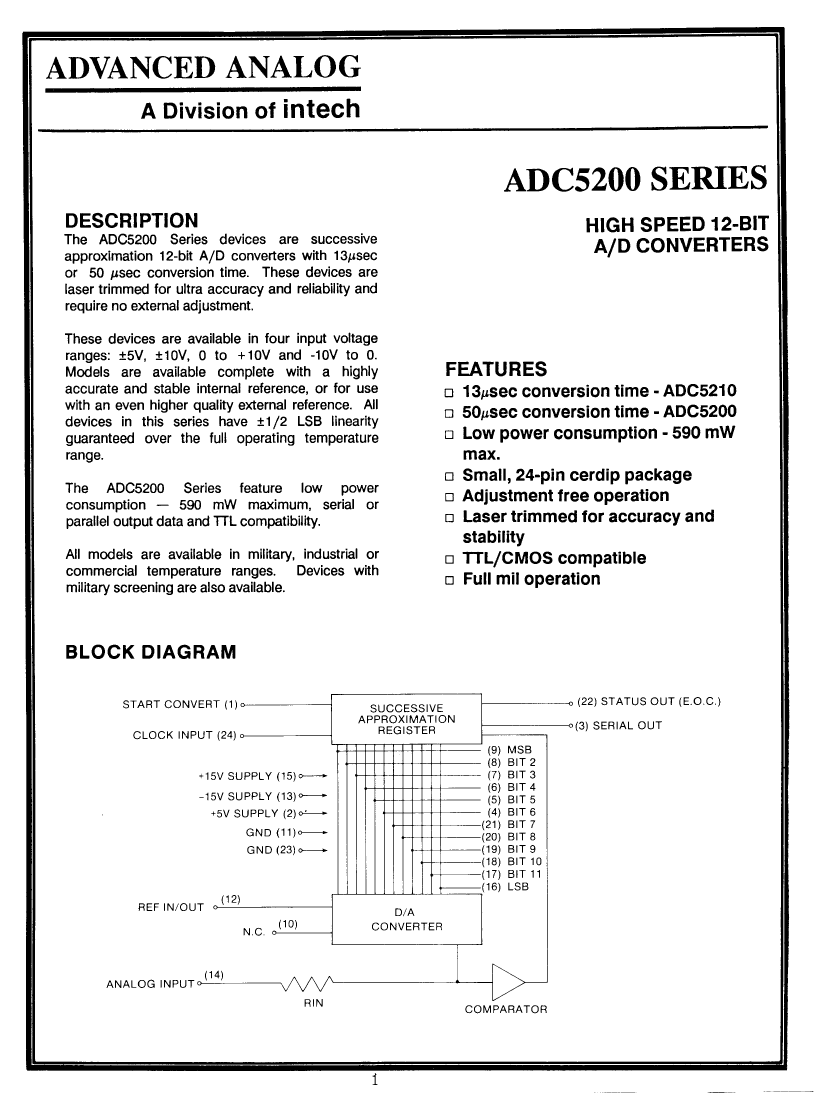

Preview

Download Datasheet

View All

ADC5206H/B Related Products

	ADC5206H/B	ADC5206H	ADC5207	ADC5204H/B	ADC5200H/B	ADC5213H/B	ADC5217
Description	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,	A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog input voltage	10 V	10 V	10 V	5 V	-	-	10 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.012%	0.012%	0.012%	0.012%	0.012%	0.012%	0.012%
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-
Output bit code	COMPLEMENTARY BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	BINARY	COMPLEMENTARY BINARY
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Filter level	MIL-STD-883 Class B (Modified)	-	-	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	-
Base Number Matches	1	1	1	1	1	-	-
