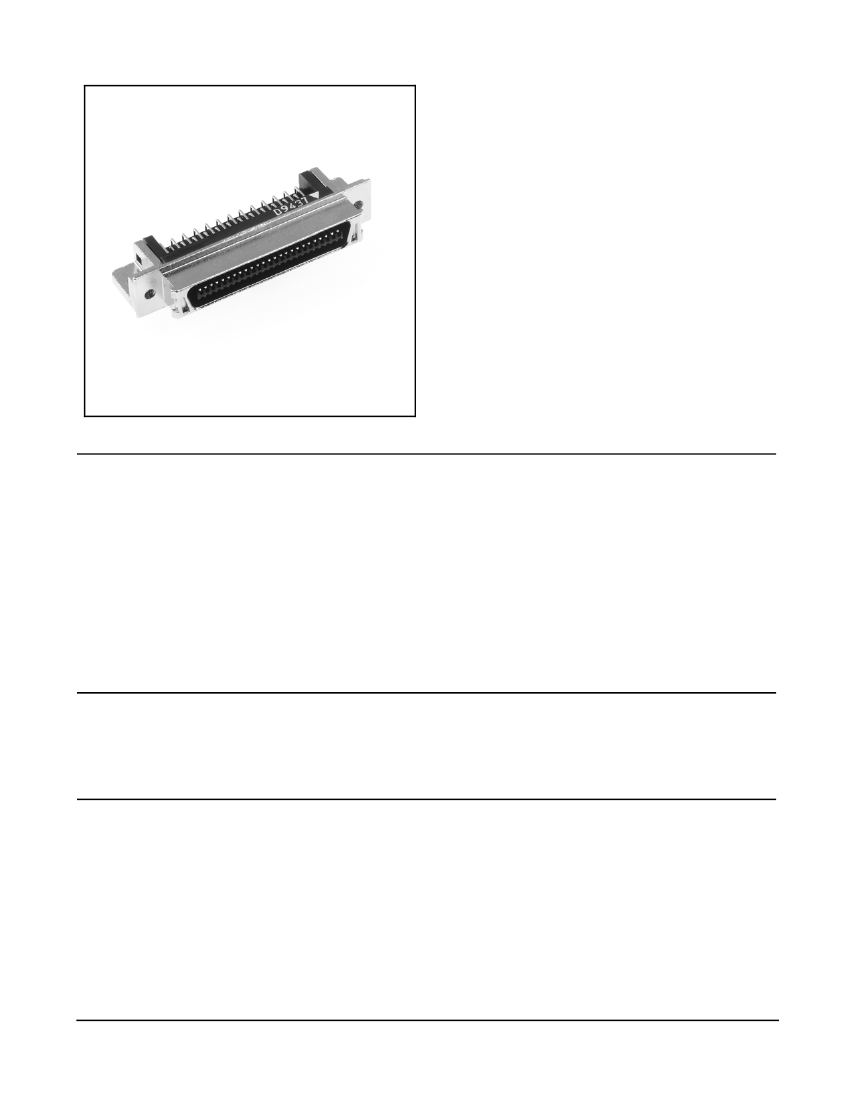

3M
™
Pak 50 I/O Plug
.050″ Straight and Right Angle, Boardmount
•
•
•
•
P50 Series
EMI shielded
20 to 100 position
Mates to P50 Series cable mount socket
RoHS* compliant
Date Modified: October 2, 2006
TS-1147-02
Sheet 1 of 7
Physical
Insulation
Material:
Glass Filled Nylon
Flammability:
UL 94V-0
Color:
Black
Contact
Material:
Phosphor Bronze
Plating
Underplating:
Nickel
Wiping Area:
10 µ" [ 0.25 µm ] Gold
Solder Tails:
Gold Flash
Electrical
Current Rating:
0.5 A
650 VAC for 1 minute
Insulation Resistance:
10
3
MΩ min. at 500 VDC
Withstanding Voltage:
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C (per J-STD-020C)
*"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration
values in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury,
hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated in
writing by 3M, this information represents 3M's knowledge and belief based on information provided by third party suppliers to 3M.
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Plug
.050″ Straight and Right Angle, Boardmount

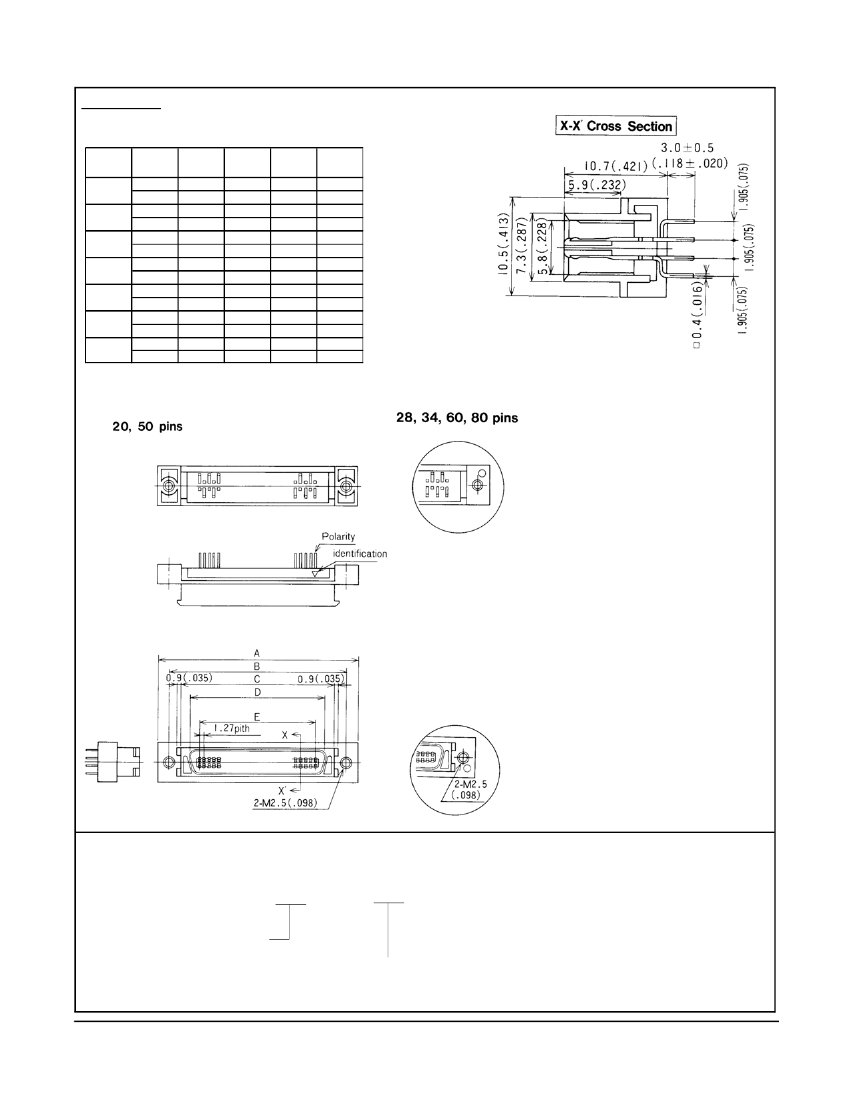

Straight Plug
Product Table / Dimensions
Contact
Q uantity
20
28
34
50
60
68
80
A
33.40
[1.315]
38.48
[1.515]
42.29
[1.665]
52.45
[2.065]
58.80
[2.315]
63.88
[2.515]
71.50
[2.815]
B
27.40
[1.079]
32.48
[1.279]
36.29
[1.429]
46.45
[1.829]
52.80
[2.079]
57.88
[2.279]
65.50
[2.579]
C
21.60
[0.850]
26.68
[1.050]
30.49
[1.200]
40.65
[1.600]
47.00
[1.850]
52.08
[2.050]
59.70
[2.350]
D
16.73
[0.659]
21.81
[0.859]
25.62
[1.009]
35.78
[1.409]
42.13
[1.659]
47.21
[1.859]
54.83
[2.159]
E
11.43
[0.450]
16.51
[0.650]
20.32
[0.800]
30.48
[1.200]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
P50 Series
Ordering Information
P50 - XXX - DDP - XXX - EA
Contact Quantity
See Table
S1 = Straight
SR1 = Right Angle
TS-1147-02
Sheet 2 of 7
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Plug
.050″ Straight and Right Angle, Boardmount
Straight Plug, 100 Pins
P50 Series
TS-1147-02
Sheet 3 of 7
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

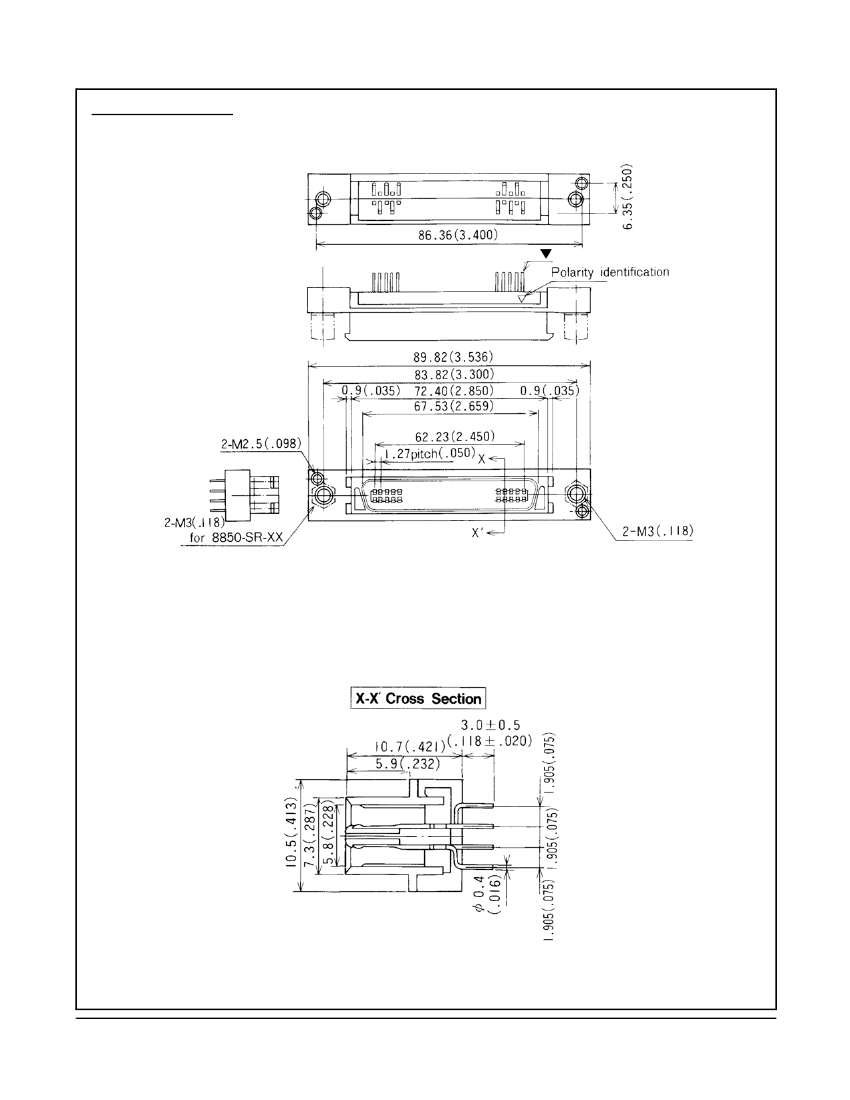

Pak 50 I/O Plug
.050″ Straight and Right Angle, Boardmount
Straight Plug
P r o d u c t T a b le / D im e n s io n s
C on ta c t
Q u a n tity
20
28
34
50
60
68
80
A
1 1 .4 3
[0 .4 5 0 ]
1 6 .5 1
[0 .6 5 0 ]
2 0 .3 2
[0 .8 0 0 ]
3 0 .4 8
[1 .2 0 0 ]
3 6 .8 3
[1 .4 5 0 ]
4 1 .9 1
[1 .6 5 0 ]
4 9 .5 3
[1 .9 5 0 ]
B
2 7 .4 0
[1 .0 7 9 ]
3 2 .4 8
[1 .2 7 9 ]
3 6 .2 9
[1 .4 2 9 ]
4 6 .4 5
[1 .8 2 9 ]
5 2 .8 0
[2 .0 7 9 ]
5 7 .8 8
[2 .2 7 9 ]
6 5 .5 0
[2 .5 7 9 ]
C
2 4 .4 0
[0 .9 6 1 ]
2 9 .4 8
[1 .1 6 1 ]
3 3 .2 9
[1 .3 1 1 ]
4 3 .4 5
[1 .7 1 1 ]
4 9 .8 0
[1 .9 6 1 ]
5 4 .8 8
[2 .1 6 1 ]
6 2 .5 0
[2 .4 6 1 ]
P50 Series

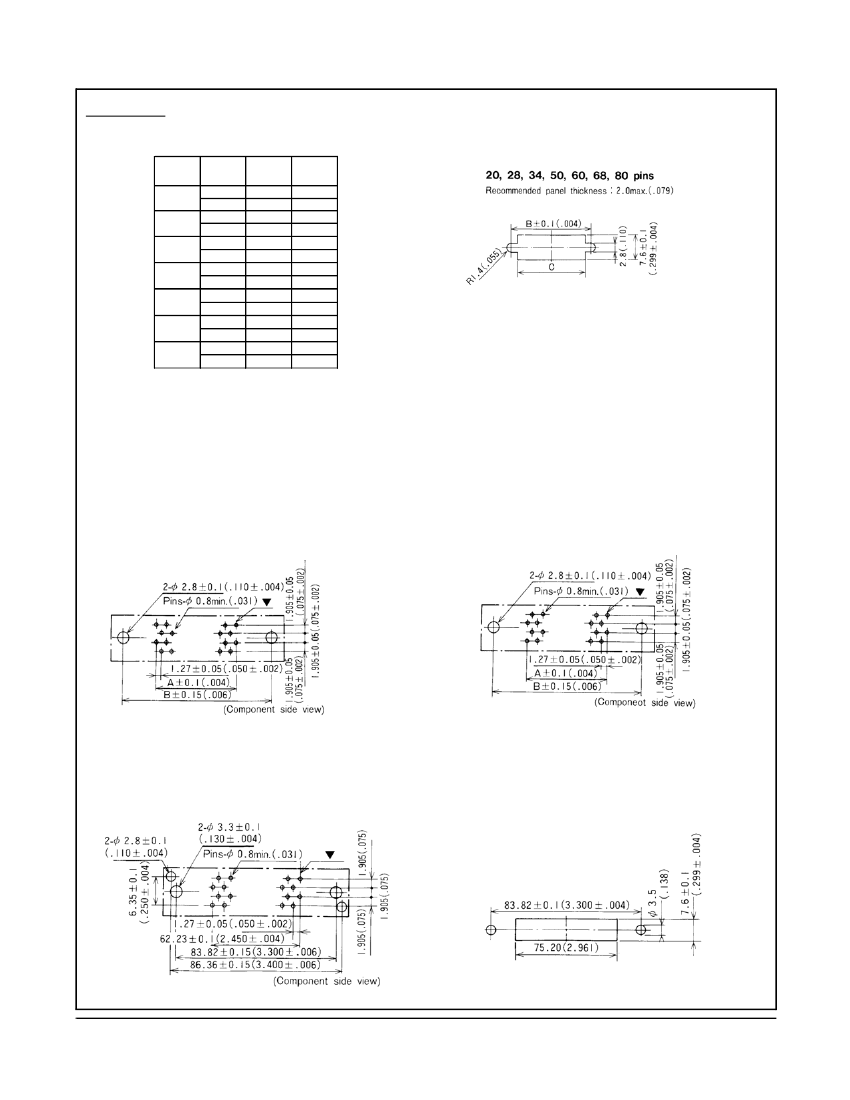

Panel Cutout Dimensions
Recommended PCB Thickness: 1.6
$
0.19 mm [ 0.063
$
.007 ]
Printed Circuit Board Layout
Recommended PCB Thickness: 1.6
$
0.19 mm [ 0.063
$
.007 ]
34, 50 Pins
20, 28, 60, 68, 80 Pins
Printed Circuit Board Layout
Recommended PCB Thickness: 1.6
$
0.19 mm [ 0.063
$
.007 ]
Panel Cutout Dimensions
Recommended Panel Thickness: 1.6 mm max. [ 0.063 ]
100 Pins
100 Pins
TS-1147-01
Sheet 4 of 7
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Plug
.050″ Straight and Right Angle, Boardmount

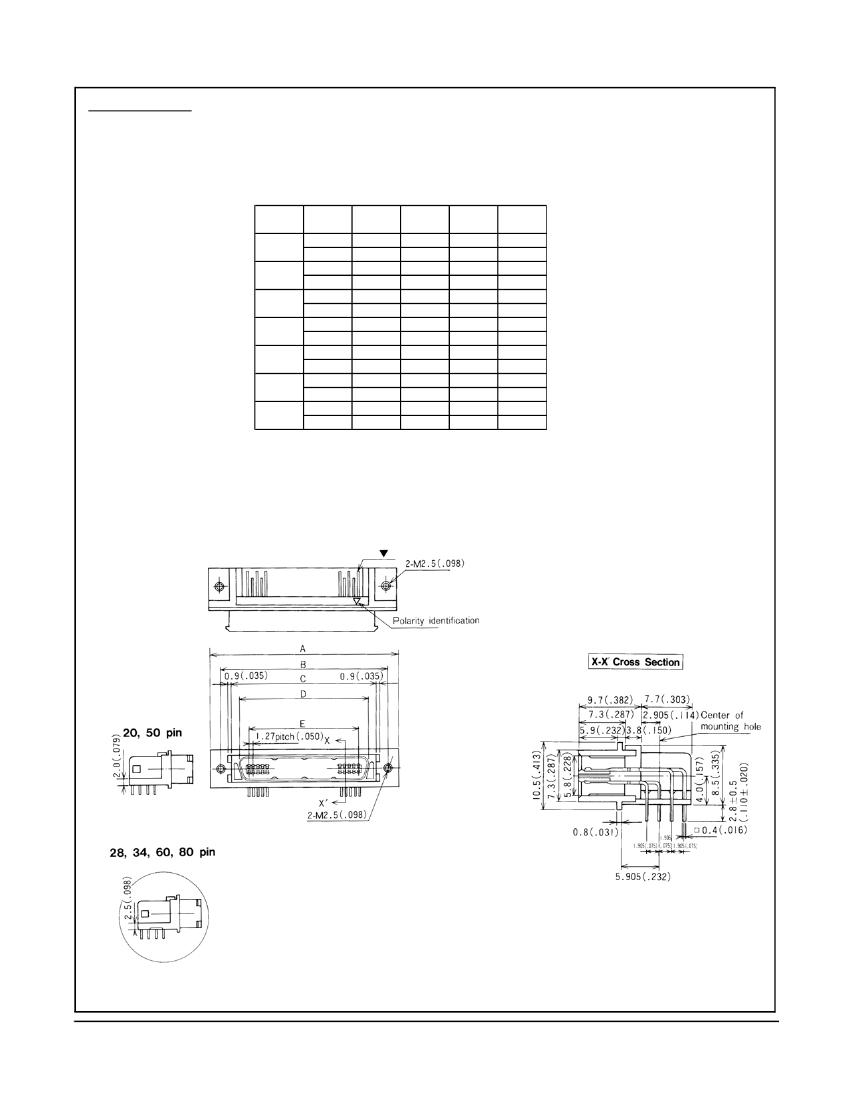

Right Angle Plug
P50 Series
Product Table / Dimensions
Contact
Q uantity
20
28
34
50
60
68
80
A
33.40
[1.315]
38.48
[1.515]
42.29
[1.665]
52.45
[2.065]
58.80
[2.315]
63.88
[2.515]
71.50
[2.815]
B
27.40
[1.079]
32.48
[1.279]
36.29
[1.429]
46.45
[1.829]
52.80
[2.079]
57.88
[2.279]
65.50
[2.579]
C
21.60
[0.850]
26.68
[1.050]
30.49
[1.200]
40.65
[1.600]
47.00
[1.850]
52.08
[2.050]
59.70
[2.350]
D
16.73
[0.659]
21.81
[0.859]
25.62
[1.009]
35.78
[1.409]
42.13
[1.659]
47.21
[1.859]
54.83
[2.159]
E
11.43
[0.450]
16.51
[0.650]
20.32
[0.800]
30.48
[1.200]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
TS-1147-02
Sheet 5 of 7
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
