MSC82306
RF & MICROWAVE TRANSISTORS
GENERAL PURPOSE AMPLIFIER APPLICATIONS
.
.
.
.
PRELIMINARY DATA
REFRACTORY\GOLD METALLIZATION
VSWR CAPABILITY 20:1 @ RATED
CONDITIONS
HERMETIC STRIPAC
®
PACKAGE
P
OUT
=
5.5 W MIN. WITH 9.6 dB GAIN
.250 2LFL (S010)
hermetically sealed
ORDER CODE
MSC82306
BRANDING
82306
PIN CONNECTION
DESCRIPTION
The MSC82306 is a common base hermetically
sealed silicon NPN microwave power transistor
utilizing a rugged overaly die geometry. This device
is capable of withstanding 20:1 load VSWR at
any phase angle under rated conditions.
The MSC82306 was designed for Class C Am-
plifier/Oscillator applications in the 1.5 - 2.3 GHz
frequency range.
ABSOLUTE MAXIMUM RATINGS
(T
case
=
25
°
C)
Symbol
Parameter
Value
Unit
1. Collector
2. Base
3. Emitter
4. Base
P
DISS
I
C
V
CC
T
J
T
STG
Power Dissipation*
Device Current*
(T
C
≤
50°C)
16.7
900
26
200
−
65 to +200
W
mA
V
°
C
°
C
Collector-Supply Voltage*
Junction Temperature
Storage Temperature
THERMAL DATA
R
TH(j-c)
Junction-Case Thermal Resistance*
9.0
°
C/W
*Applies only to rated RF amplifier operation
October 1992
1/4
MSC82306
ELECTRICAL SPECIFICATIONS
(T
case
=
25
°
C)
STATIC
Symbol
Test Conditions
Value
Min.
Typ.
Max.
Unit
BV
CBO
BV
EBO
BV
CER
I
CBO
h
FE
DYNAMIC
Symbol
I
C
=
1mA
I
E
=
1mA
IC
=
5mA
V
CB
=
22V
V
CE
=
5V
I
E
=
0mA
I
C
=
0mA
R
BE
=
10Ω
I
C
=
400mA
44
3.5
44
—
30
—
—
—
—
—
—
—
—
0.5
300
V
V
V
mA
—
Test Conditions
Value
Min.
Typ.
Max.
Unit
P
OUT
η
c
G
P
C
OB
f
=
2.3 GHz
f
=
2.3 GHz
f
=
2.3 GHz
f
=
1 MHz
P
IN
=
0.6 W
P
IN
=
0.6 W
P
IN
=
0.6 W
V
CB
=
22 V
V
CC
=
22 V
V
CC
=
22 V
V
CC
=
22 V
5.5
40
9.6
—
6.3
45
10.2
—
—
—
—
7.0
W
%
dB
pF
2/4
MSC82306
IMPEDANCE DATA
TYPICAL INPUT
IMPEDANCE
Z
IN
H
M
TYPICAL COLLECTOR
LOAD IMPEDANCE
Z
CL
L
Z
IN
Z
CL
FREQ.
L
=
2.0 GHz
H
=
2.3 GHz
Z
IN
(Ω)
2.60 + j 11.0
2.30 + j 14.5
Z
CL
(Ω)
4.1
−
j 6.5
3.3
−
j 9.0
2.8
−
j 10.5
L
M
H
P
IN
=
0.6 W
V
CC
=
22 V
Normalized to 50 ohms

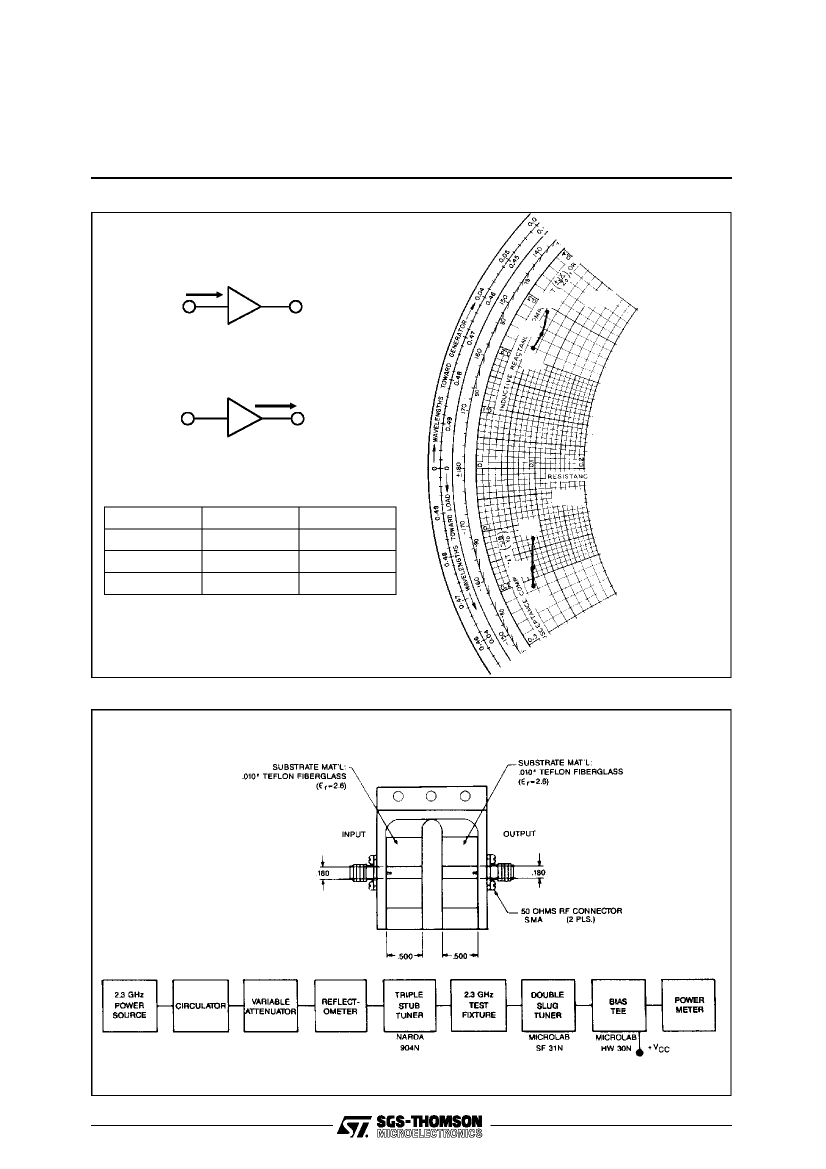

TEST CIRCUIT
Ref.: Dwg. No. C125518
M
=
2.15 GHz 2.75 + j 12.5
All dimensions are in inches.
Frequency 2.3 GHz
RF Amplifier Power Output Test
3/4
MSC82306
PACKAGE MECHANICAL DATA
Information furnished is believed to be accurate and reliable. However, SGS-THOMSON Microelectronics assumes no responsability for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may results from its use. No
license is granted by implication or otherwise under any patent or patent rights of SGS-THOMSON Microelectronics. Specifications mentioned
in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied.
SGS-THOMSON Microelectronics products are not authorized for use ascritical components in life support devices or systems without express
written approval of SGS-THOMSON Microelectonics.
©
1994 SGS-THOMSON Microelectronics - All Rights Reserved
SGS-THOMSON Microelectronics GROUP OF COMPANIES
Australia - Brazil - France - Germany - Hong Kong - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands -
Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A
4/4
