163-2641-E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 163-2641-E

Preview

163-2641-E: DescriptionDC Power Connectors SMD/SMT DC PWR JACK 2.5MM X 6.03MM SMT; CategoryThe connector; File Size134KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric View All

163-2641-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	163-2641-E	-	-	View	Buy Now

163-2641-E Overview

DC Power Connectors SMD/SMT DC PWR JACK 2.5MM X 6.03MM SMT

163-2641-E Parametric

Parameter Name	Attribute value
Product Category	DC Power Connectors
Manufacturer	Kobiconn
RoHS	Details
Product	Jacks
Inside Contact Diameter	2.5 mm
Outside Contact Diameter	6.03 mm
Termination Style	SMD/SMT
Current Rating	3.5 A
Voltage Rating	24 V
Mounting Angle	Right
Center Pin Length	8 mm
Color	Black
Connector Type	DC Power Jack
Contact Gender	Female
Contact Material	Brass
Contact Plating	Nickel
Factory Pack Quantity	1

Preview

Download Datasheet

View All

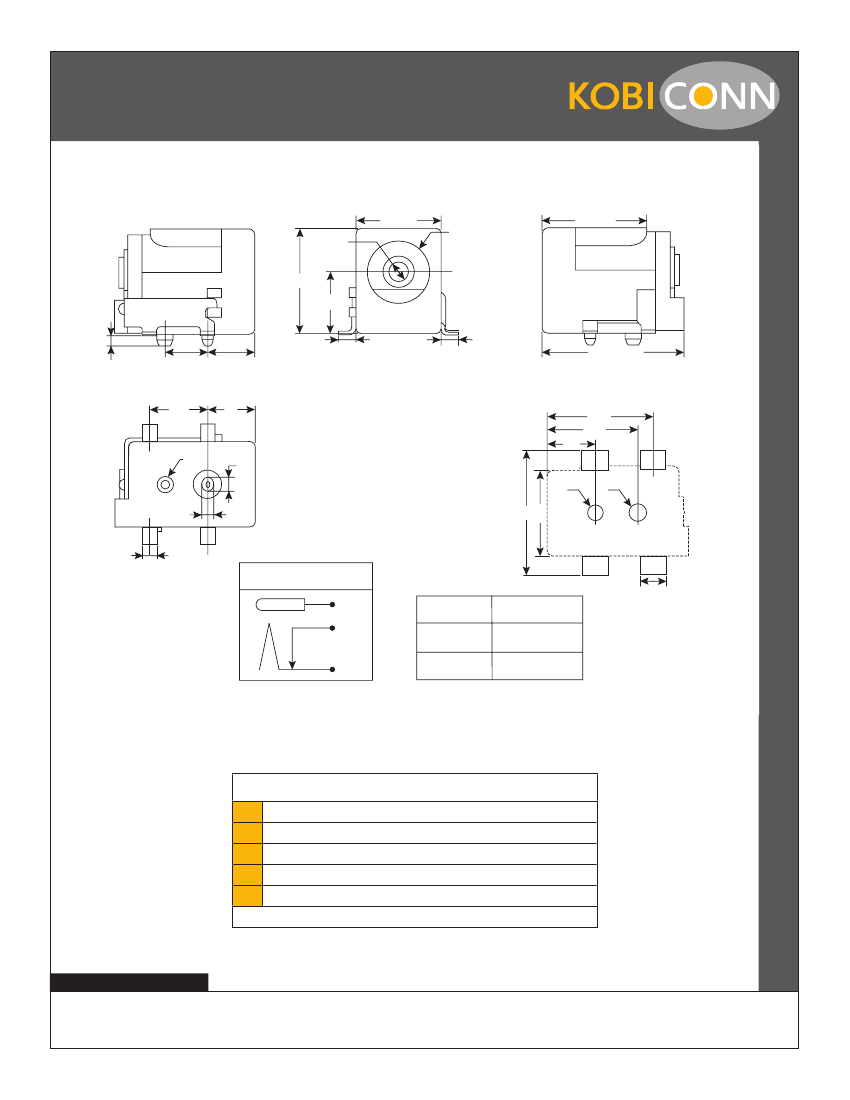

163-2640-E, 163-2641-E

DC Power Jack

9±0.2

11±0.3

6.5±0.2

1.1

4.5±0.2

5±0.2

1.8±0.15

ø6.5± 0.15

0.10

11±0.3

1.8±0.15

14.8±0.3

6.1

3

ø1.7

5

RECOMMENDED P.C.B LAYOUT(COMPONENT SIDE)

P.C.B. THICKNESS = 1.20mm

5

1.5

ø1.6

11.1

9.5

ø1.8

1.2

2

1

4-1.5

SCHEMATIC

3

2

1

P/N

163-2640-E

163-2641-E

13 9

PIN DIM.

2.00±.05

2.45±.05

4-2.7

Dimensions: mm

163-2640-E, 163-2641-E

MATERIAL SPECIFICATIONS

1

2

3

4

5

Housing: High Temp. Plastic

Terminal: Copper Alloy

Terminal Plating: Silver on Contact and Solder Al Over Nickel

Center Pin: Copper Alloy

Center Pin Plating: Nickel

RoHS Compliant by Exemption

Date Last Revised: 6/13/12

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-301316
