2.5mm Pitch Connector for Discrete Wire Connection
HNC Series
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

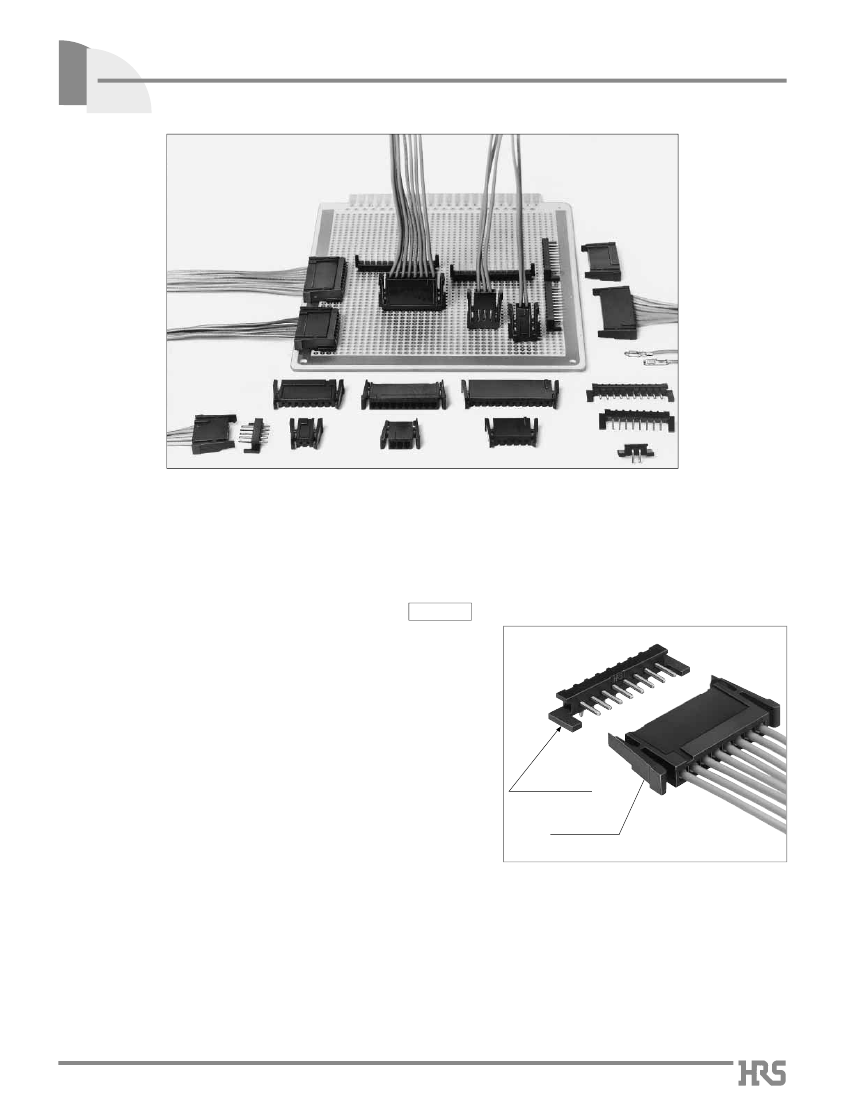

■Features
1. Full Lock Mechanism
The connector is equipped with the full lock mechanism so as not be removed, unless locks are reset on both sides. This mechanism is
activated effectively to prevent extraction by cable hooking or other causes.
2. Thin Type Connector
Mounting height when the connector is used at the right angle
:
4.8mm
3. Mechanism to Prevent Mis-insertion
This thin type connector is equipped with the mechanism to prevent mis-
insertion.
4. Tin Plating and Gold Plating Variation
Two kinds of tin plating and gold plating types are available, and can be
chosen according to application. The tin plating is also set to a light operating
touch.
Mechanism
to prevent
false-insertion
Full lock
mechanism
■Applications
Various business equipment, financial terminals
B169
HNC Series●2.5mm Pitch Connector for Discrete Wire Connection
■Product
Specifications
22 AWG : 3A
Current rating
Rating
(Note 1)
24 AWG : 3A
26 AWG : 2A
28 AWG : 1A
30 AWG : 0.5A
Voltage rating
Item
1. Insulation Resistance
1000MΩ
min.
No flashover or insulation breakdown.
10mΩ Max
No electrical discontinuity of 10μs or more
250V AC
Specification
500V DC
1000V AC/1 minute
Measured at a maximum of 20V, 1mA (DC or 1000Hz)
10 cycles in each of three axis at frequency 10-55Hz, half amplitude 0.75mm
(-55ç : 30 minutes
➝
5
to
35ç : 2 to 3 minutes
(-85ç
: 30 minutes
➝
5
to
35ç : 2 to 3 minutes) 5 cycles
Tin plating : 30 cycles
Gold plating : 50 cycles
Flow : 250ç for 5 seconds
Operating Temperature Range
Operating Humidity Range
Storage Temperature Range
Storage Humidity Range
-55 to +85ç (Note 2)
-20
to 80%
-10 to +60ç
(Note 3)
-40
to 70% (Note 3)
Condition
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2. Withstanding voltage
3. Contact Resistance
5. Vibration
4. Insertion/Extraction Force Insertion force : 4.4N max. Extraction force : 0.4N min. Measure at the square steel pin of 0.635±0.002mm
6.
Humidity (Steady state)
Contact resistance : 10mΩ max. Insulation resistance : 1000MΩ min.
96 hours at temperature of 40±2ç and humidity of 90% to 95%
7. Temperature Cycle
8. Durability (Mating/un-mating)
9. Resistance to Soldering heat
Contact resistance : 10mΩ max. Insulation resistance : 1000MΩ min.
Tin plating : Contact resistance : 30mΩ max.
Gold plating : Contact resistance : 20mΩ max.
No deformation of components affecting performance.
Manual soldering : 300ç for 2 seconds
Note 1 :
The rated current will be changed according to cable sizes for use. The header rating only t is 3A.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4 : Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Materials
/ Finish
Product
Crimping Socket
Contact
Pin Header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor Bronze
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Remarks
UL94V-2
–––––
UL94V-2
–––––
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Crimping
Plug
HNC 2 - 2.5 P -
*
DSL
q
q
Series Name
w
Series No.
e
Contact Pitch
r
Connector Type
S : Socket
P : Pin Header
w
: HNC
: 2, 1
: 2.5mm
e
r
t
y
t
Number of Contacts : 2
to
8,10,12,15
y
Contact Type
None : Crimping socket
DS
: Straight
DSL : Right angle
●Contact
HNC - 2.5S - C - A
q
q
Type: 2.5mm pitch socket
w
Packaging Type
C : Reel
D : Bag
w
e
e
Applicable cable size
A
: 22 to 26 AWG
B
: 26 to 30 AWG
B170
HNC Series●2.5mm Pitch Connector for Discrete Wire Connection

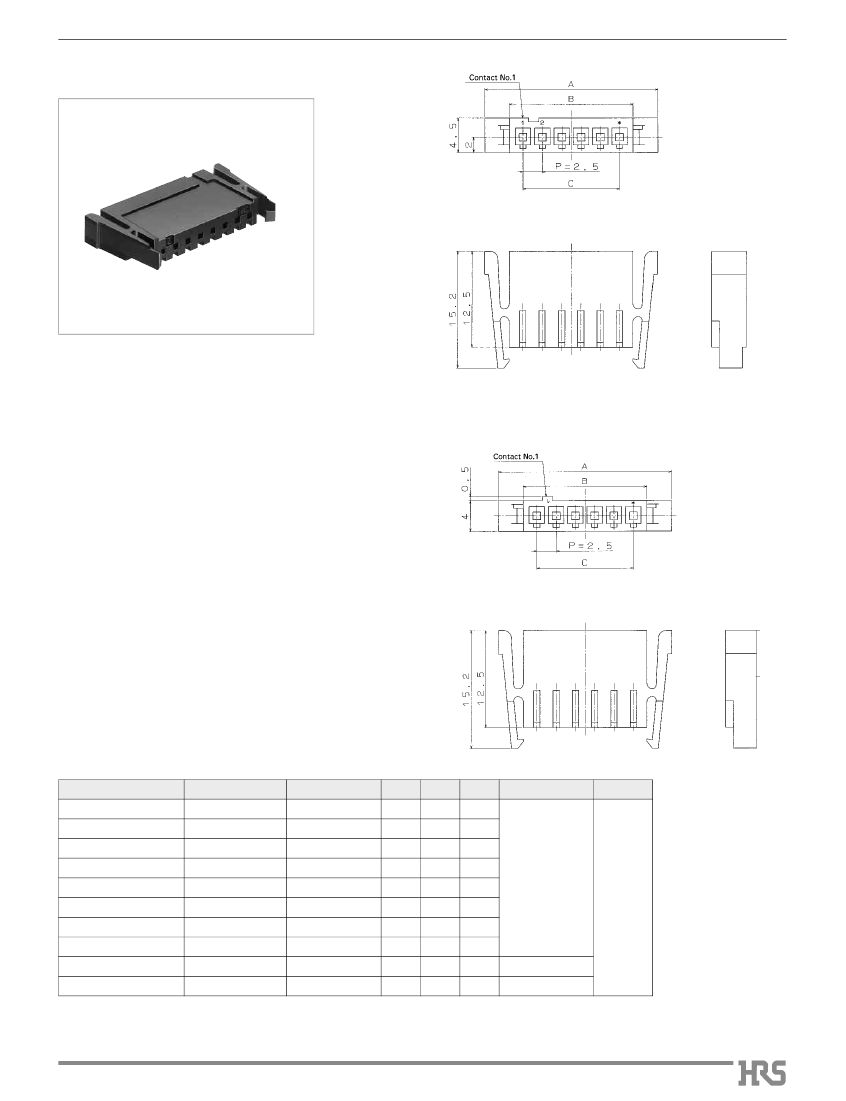

■Crimping
Socket
[Fig.1]
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Fig.2]
Unit : mm
Part No.
HNC2-2.5S- 2
HNC2-2.5S- 3
HNC2-2.5S- 4
HNC2-2.5S- 5
HNC2-2.5S- 6
HNC2-2.5S- 7
HNC2-2.5S- 8
HNC2-2.5S-10
HNC1-2.5S-12
HNC2-2.5S-15
HRS No.
218-0011-1
218-0022-8
218-0039-0
218-0027-1
218-0042-5
218-0030-6
218-0014-0
218-0017-8
218-0008-7
218-0045-3
No. of Contacts
2
3
4
5
6
7
8
10
12
15
A
12.4
14.9
17.4
19.9
22.4
24.9
27.4
32.4
37.0
44.9
B
6.0
8.5
11.0
13.5
16.0
18.5
21.0
26.0
31.0
38.5
C
2.5
5.0
7.5
10.0
12.5
15.0
17.5
22.5
27.5
35.0
Fig.2
Fig.1
Fig.1
Yes
Dimensions
RoHS
Note1 : Please order a quantity multiplied by 100 pcs. (Not per bag, but per pcs.)
Note2 : The series name of 12 contacts connector is HNC1, and partially will be changed in the style.
B171
HNC Series●2.5mm Pitch Connector for Discrete Wire Connection

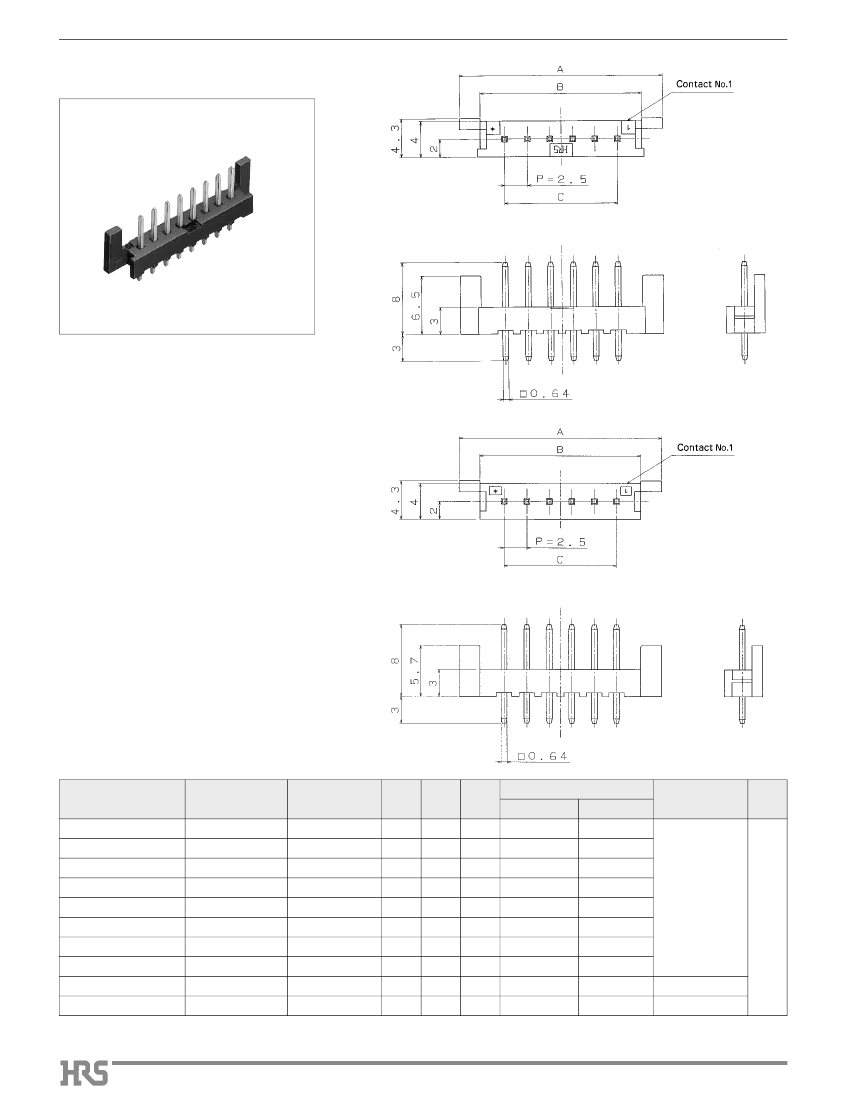

■Straight
Pin Header
[Fig.3]
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.1
+
●Board
Through-hole Diameter: ø1.1
+0
[Fig.4]
Unit : mm
Part No.
HNC2-2.5P- 2DS(**)
HNC2-2.5P- 3DS(**)
HNC2-2.5P- 4DS(**)
HNC2-2.5P- 5DS(**)
HNC2-2.5P- 6DS(**)
HNC2-2.5P- 7DS(**)
HNC2-2.5P- 8DS(**)
HNC2-2.5P-10DS(**)
HNC1-2.5P-12DS(**)
HRS No.
218-0012-4-**
218-0023-0-**
218-0040-0-**
218-0028-4-**
218-0043-8-**
218-0031-9-**
218-0015-2-**
218-0018-0-**
218-0009-0-**
No. of Contacts
2
3
4
5
6
7
8
10
12
A
12.5
15.0
17.5
20.0
22.5
25.0
27.5
32.5
35.5
B
7.8
10.4
12.9
15.4
17.9
20.4
22.8
27.8
32.8
C
2.5
5.0
7.5
10.0
12.5
15.0
17.5
22.5
27.5
Specific No.
Tin plating
55
55
55
55
55
55
55
55
55
Gold plating
02
02
01
02
01
02
02
02
02
Fig.4
Fig.3
Fig.3
Yes
Dimensions
RoHS
01
55
15
45.0 40.4 35.0
HNC2-2.5P-15DS(**) 218-0046-6-**
Note1 : Please order a quantity multiplied by 100 pcs. (Not per bag, but per piece)
Note2 : The series name of the 12 contacts connector is HNC1 and the style will be partially changed.
B172
HNC Series●2.5mm Pitch Connector for Discrete Wire Connection

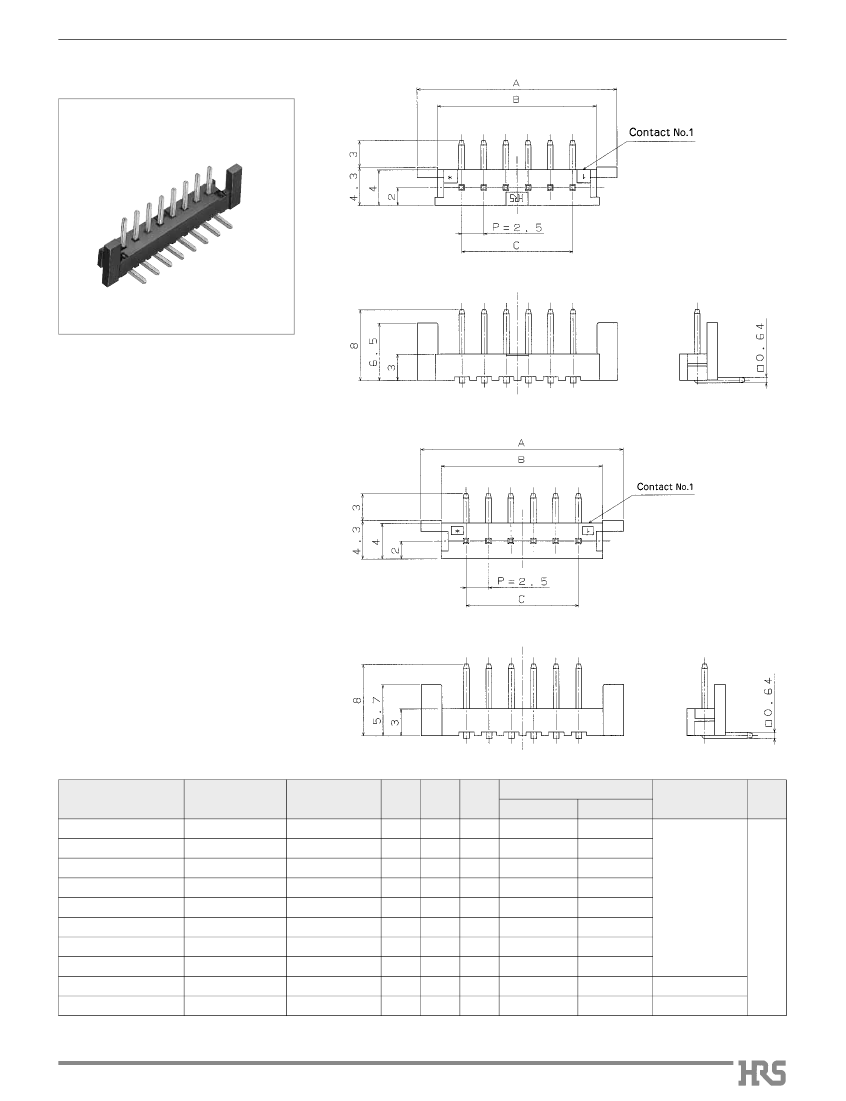

■Right
Angle Pin Header
[Fig.5]
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.1
+
●Board
Through-hole Diameter: ø1.1
+0
[Fig.6]
Unit : mm
Part No.
HNC2-2.5P- 2DSL(**)
HNC2-2.5P- 3DSL(**)
HNC2-2.5P- 4DSL(**)
HNC2-2.5P- 5DSL(**)
HNC2-2.5P- 6DSL(**)
HNC2-2.5P- 7DSL(**)
HNC2-2.5P- 8DSL(**)
HNC2-2.5P-10DSL(**)
HNC1-2.5P-12DSL(**)
HRS No.
218-0013-7-**
218-0024-3-**
218-0041-2-**
218-0029-7-**
218-0044-0-**
218-0032-1-**
218-0016-5-**
218-0019-3-**
218-0010-9-**
No. of Contacts
2
3
4
5
6
7
8
10
12
A
12.5
15.0
17.5
20.0
22.5
25.0
27.5
32.5
35.5
B
7.8
10.4
12.9
15.4
17.9
20.4
22.8
27.8
32.8
C
2.5
5.0
7.5
10.0
12.5
15.0
17.5
22.5
27.5
Specific No.
Tin plating
55
55
55
55
55
55
55
55
55
Gold plating
02
02
01
02
01
02
02
02
02
Fig.6
Fig.5
Fig.5
Yes
Dimensions
RoHS
01
55
15
45.0 40.4 35.0
HNC2-2.5P-15DSL(**) 218-0047-9-**
Note1 : Please order a quantity multiplied by 100 pcs. (Not per bag, but per piece)
Note2 : The series name of the 12 contacts connector is HNC1 and the style will be partially changed.
B173
