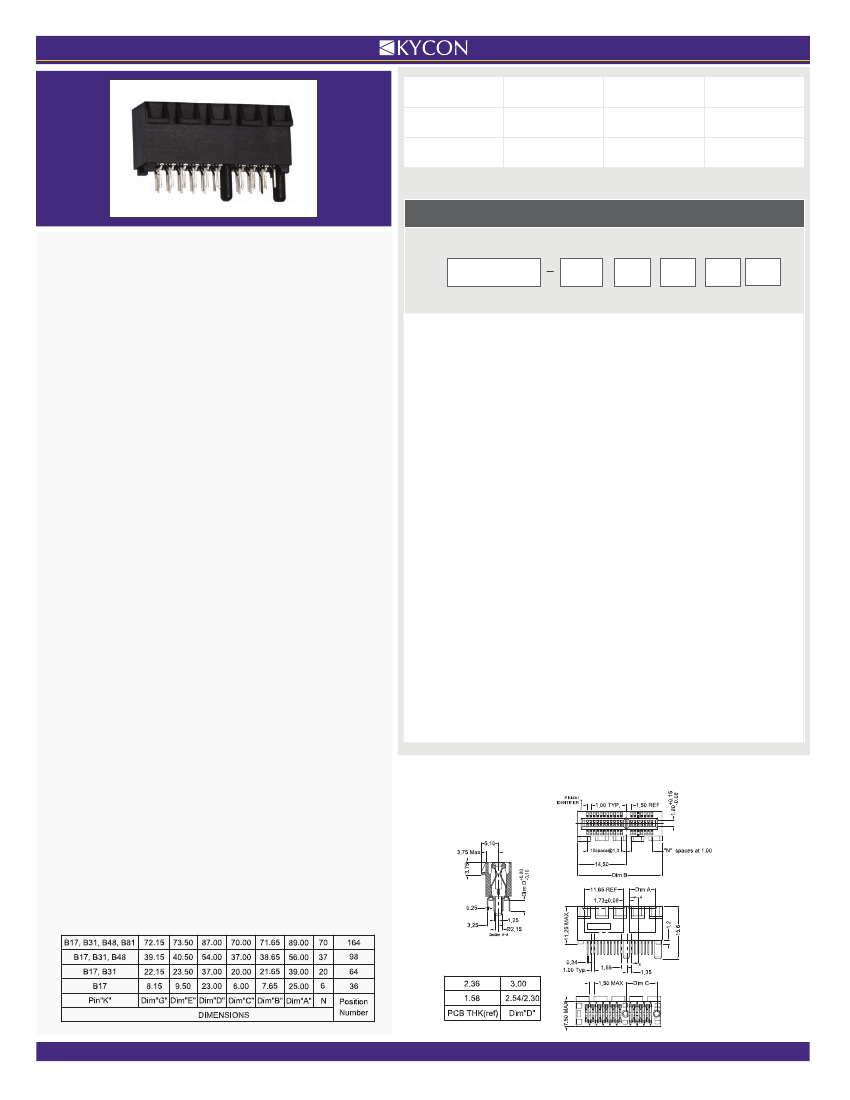

PCI Express / PCI Connectors 164P PCI Express Vrt T/H 2.3mm Tail
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Kycon |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Board mount options | PEG |
| body width | 0.295 inch |
| subject depth | 0.443 inch |
| body length | 3.504 inch |
| Body/casing type | PLUG |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL (50) |
| Contact completed and terminated | TIN (100) OVER NICKEL (50) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 700VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.112 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | KPCIEX |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 1.1 A |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SOLDER |
| Total number of contacts | 164 |
| KPCIEX-T164-1BK | KPCIEX-T36-1BK | KPCIEX-T64-3BK | KPCIEX-T64-2BK30 | KPCIEX-T280-1BK | KPCIEX-T230-1BK | KPCIEX-T36-3BK | KPCIEX-T280-1BK30 | KPCIEX-T230-1BK30 | KPCIEX-T36-2BK | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | PCI Express / PCI Connectors 164P PCI Express Vrt T/H 2.3mm Tail | PCI Express / PCI Connectors 36P PCI Express Vert T/H 2.3mm Tail | PCI Express / PCI Connectors 64P PCI Express Vert T/H 3.0mm Tail | PCI Express / PCI Connectors 64P PCI Express Vert T/H 2.54mm Tail 30u | PCI Express / PCI Connectors 280P PCI Express Vrt T/H 2.3mm Tail | PCI Express / PCI Connectors 230P PCI Express Vrt T/H 2.3mm Tail | PCI Express / PCI Connectors 36P PCI Express Vert T/H 3.0mm Tail | PCI Express / PCI Connectors 280P PCI Express Vrt T/H 2.3mm Tail 30u | PCI Express / PCI Connectors 230P PCI Express Vrt T/H 2.3mm Tail 30u | PCI Express / PCI Connectors 36P PCI Express Vert T/H 2.54mm Tail |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Board mount options | PEG | PEG | PEG | PEG | PEG | PEG | PEG | PEG | PEG | PEG |
| body width | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch |
| subject depth | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch | 0.443 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL (50) | GOLD FLASH OVER NICKEL (50) | GOLD FLASH OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD FLASH OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD FLASH OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD FLASH OVER NICKEL (50) |
| Contact completed and terminated | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) | TIN (100) OVER NICKEL (50) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX | KPCIEX |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | FLASH inch | FLASH inch | FLASH inch | 30u inch | FLASH inch | FLASH inch | FLASH inch | 30u inch | 30u inch | FLASH inch |
| Rated current (signal) | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A | 1.1 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 164 | 36 | 64 | 64 | 280 | 230 | 36 | 280 | 230 | 36 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 |
| body length | 3.504 inch | 0.984 inch | 1.535 inch | 1.535 inch | - | - | 0.984 inch | - | - | 0.984 inch |
