• High temperature insulator compatible with IR and
wave soldering
• Guide posts for easy mating/unmating
• Retention clips stabilize connector to the board
during wave soldering
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
P50L Series
Date Modified: August 4, 2010
TS-2054-C
Sheet 1 of 3
Physical
Insulator:
Flammability: UL 94V-0
Color: Brown
Material: Glass Filled PPS
Contact Material: Phosphor Bronze
Underplating: Nickel
Alignment Plate: Glass Filled Nylon (Brown)
Plating:
Wiping Area: Gold Flash
Solder Tails: Gold Flash
Mating Compatibility: TS-1145, TS-1161, TS-2053
Retaining Clips: Tin-Copper
Electrical
Current Rating:
0.5 A
Withstanding Voltage:
650 V
AC
for 1 minute
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC MSL1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

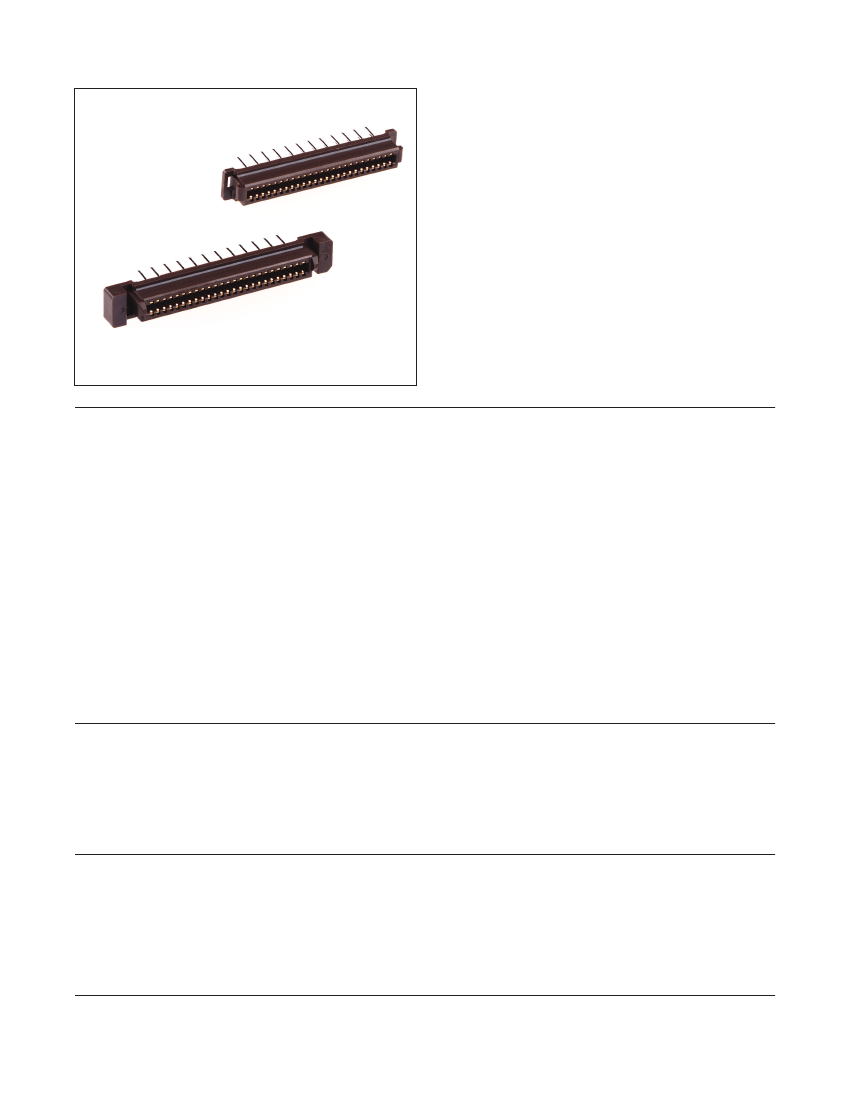

Pak 50 Low Profile Socket
.050" Vertical Stacking with and without Flanges

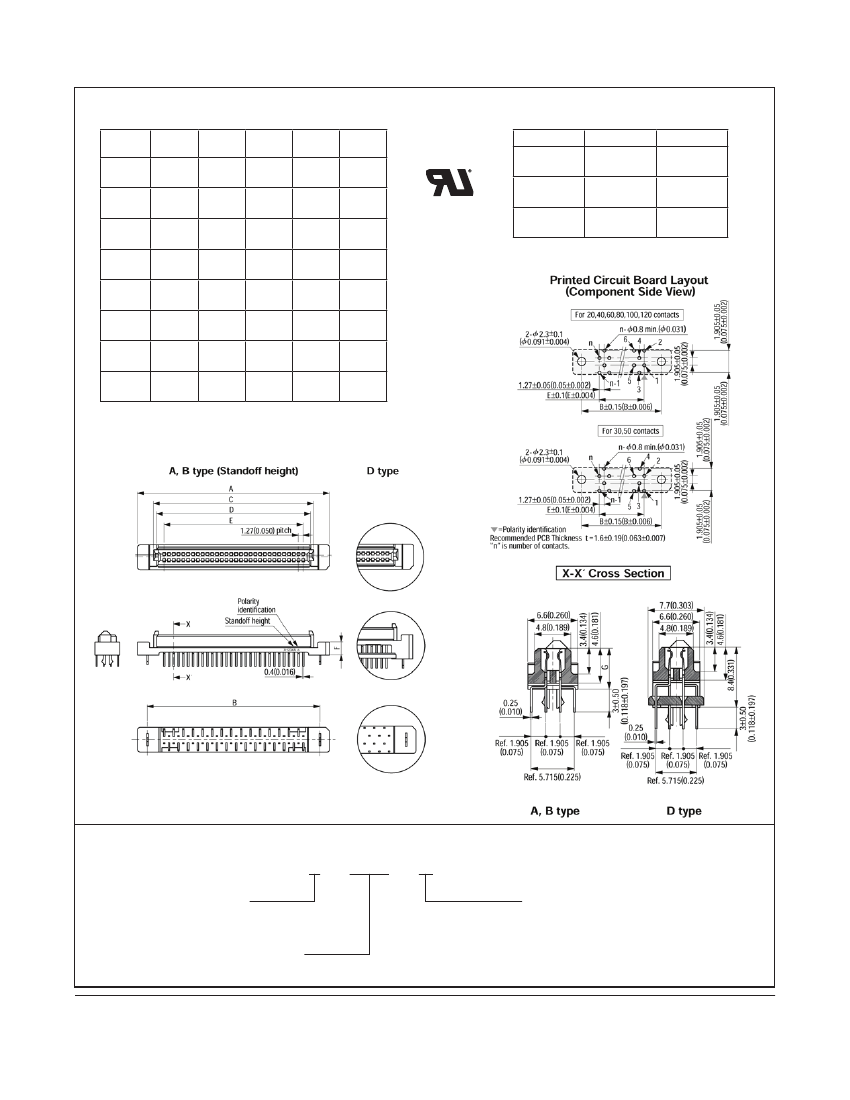

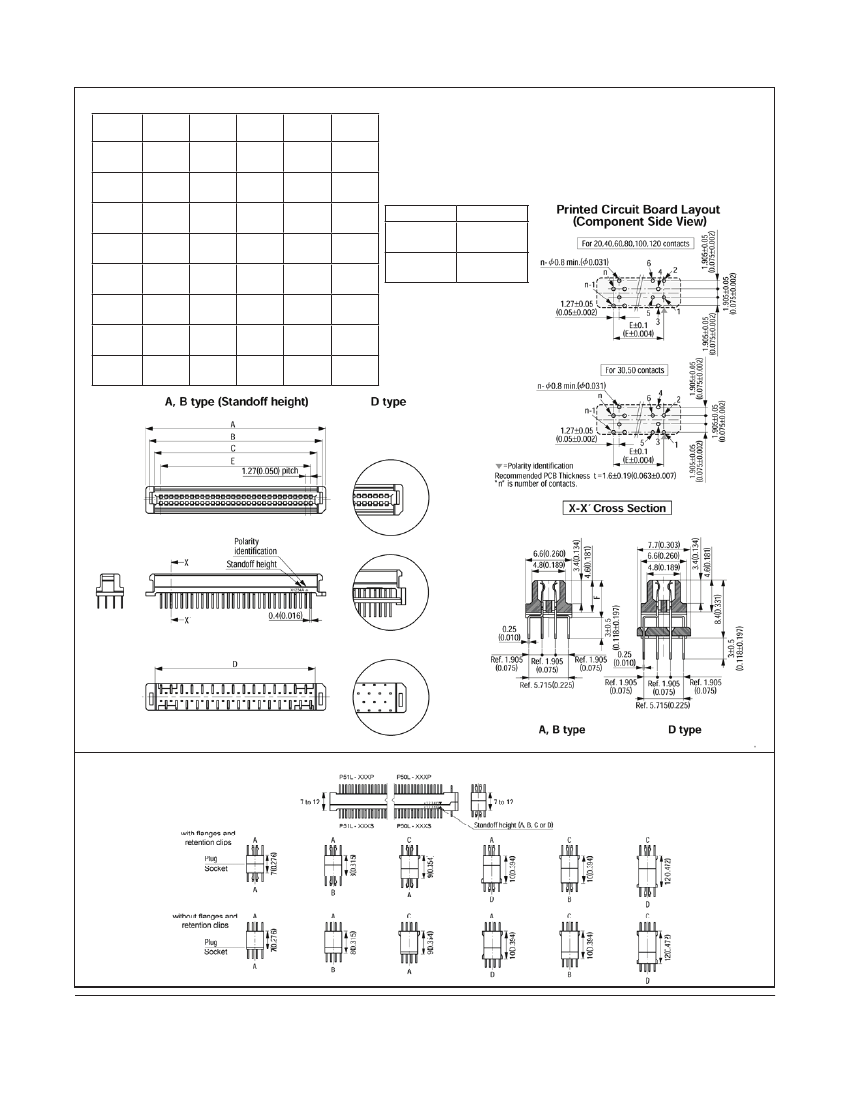

Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
120
A
25.43
[1.001]
31.78
[1.251]
38.13
[1.501]
44.48
[1.751]
50.83
[2.001]
63.53
[2.501]
76.23
[3.001]
88.93
[3.501]
B
20.32
[0.800]
26.67
[1.050]
33.02
[1.300]
39.37
[1.550]
45.72
[1.800]
58.42
[2.300]
71.12
[2.800]
83.82
[3.300]
C
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
P50L Series
Socket with Flanges and Retention Clips
D
15.43
[0.607]
21.78
[0.857]
28.13
[1.107]
34.48
[1.357]
40.83
[1.607]
53.53
[2.107]
66.23
[2.607]
78.93
[3.107]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
D
F
3.50
[0.138]
4.50
[0.177]
6.50
[0.256]
G
5.40
[0.213]
6.40
[0.252]
NA
NA
Note:
Plugs/Sockets with flanges and retention clips are not interchangeable
with plugs/sockets without flanges and retention clips
Ordering Information
0 = With Flanges and Retention Clips
1 = Without Flanges and Retention Clips
P5XL - XXXS - X - DA
(RIA E1 and C1 apply)
A = Type A
B = Type B
D = Type D
Contact Quantity
See Table
TS-2054-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Socket
.050" Vertical Stacking with and without Flanges
Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
120
A
18.83
[0.741]
25.18
[0.991]
31.53
[1.241]
37.88
[1.491]
44.23
[1.741]
56.93
[2.241]
69.63
[2.741]
82.33
[3.241]
B
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
C
14.53
[0.572]
20.88
[0.822]
27.23
[1.072]
33.58
[1.322]
39.93
[1.572]
52.63
[2.072]
65.33
[2.572]
78.03
[3.072]
D
13.43
[0.529]
19.78
[0.779]
26.13
[1.029]
32.48
[1.279]
38.83
[1.529]
51.53
[2.029]
64.23
[2.529]
76.93
[3.029]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
F
5.40
[0.213]
6.40
[0.252]
P50L Series
Socket without Flanges and Retention Clips
TS-2054-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
