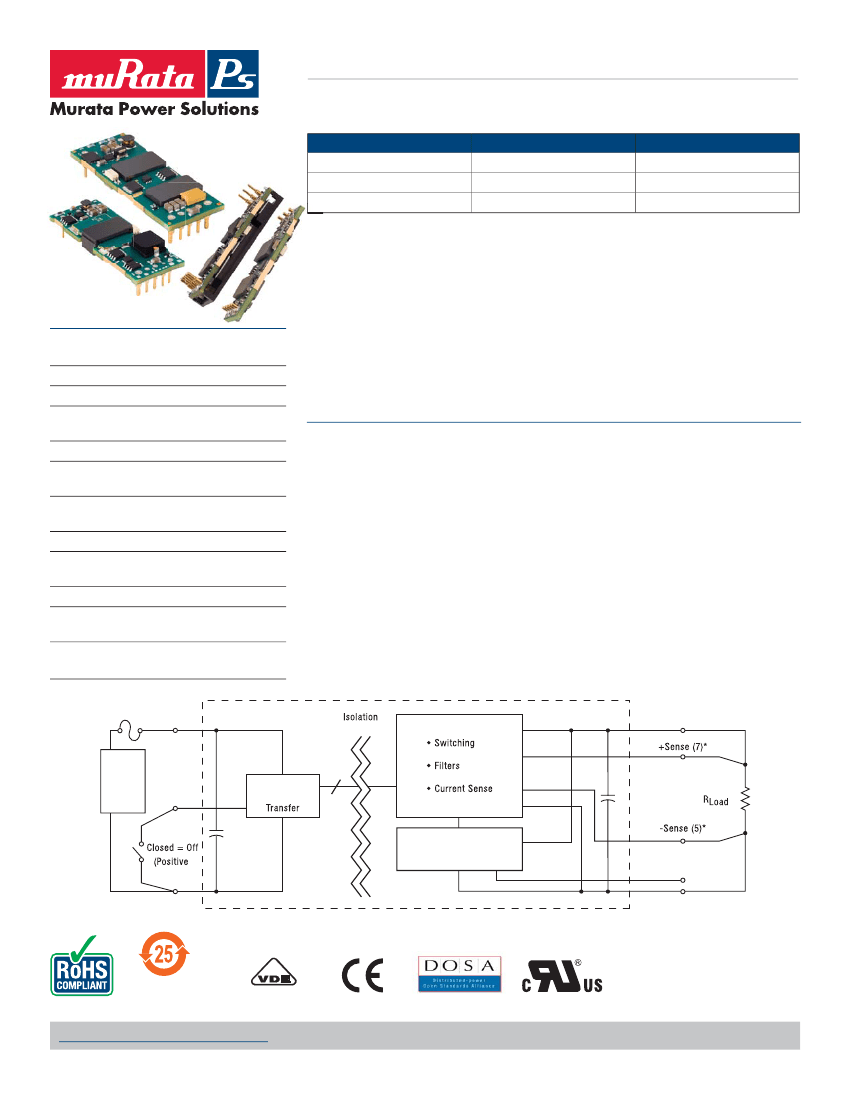

For efficient, fully isolated DC power in the smallest space, the UEE
ope
open frame DC-DC converter series fit in industry-standard “eighth
bri
brick” outline dimensions and mounting pins (on quarter-brick pinout)
or surface mount option.
PRODUCT OVERVIEW
Units are offered with a fixed output voltage and
current up to 45 Amps. UEEs operate over a wide
temperature range (up to +85 degrees Celsius at
moderate airflow) with full rated power. Synchro-
nous rectifier topology yields excellent efficiency.
UEEs achieve these impressive mechanical and
environmental specs while delivering excellent
electrical performance in an industry standard
DOSA compatible through-hole package or surface
mount option. The unit is fully protected against
input undervoltage, output overcurrent and short
circuit. An on-board temperature sensor shuts
down the converter if thermal limits are reached
and automatically restarts the converter when the
fault is removed.
An On/Off control input enables phased startup
and shutdown in multi-voltage applications. UEEs
include a Sense input to correct for ohmic losses. A
trim input may be connected to a user’s adjustment
potentiometer or trim resistors for output voltage
calibration.
UEEs include industry-standard safety certifi-
cations and BASIC I/O insulation provides input/
output isolation to 2250V. Radiation and conducted
emission testing is performed to widely accepted
EMC standards.
F1
+Vin (1)
Barrier
+Vout (8)
External
DC
Power
Source
On/Off
Control
(2)
Controller
and Power
Open = On
Reference and
Error Amplifier
Trim (6)
logic)
-Vin (3)
-Vout (4)
Figure 1. Connection Diagram
Typical topology is shown. Murata Power Solutions recommends an external fuse.
For full details go to
www.murata-ps.com/rohs
(pending)
www.murata-ps.com/support
MDC_UEE 150W_Series.A01
Page 1 of 35
UEE 150W Series
Isolated, High-Density, Eighth-Brick
DOSA Low Profile DC-DC Converters
PERFORMANCE SPECIFICATIONS SUMMARY AND ORDERING GUIDE
Output
V
OUT
(V)
3.3
5
12
Input
I
IN,
no
load
(mA)
80
100
120
Model Family
UEE-3.3/45-D48
UEE-5/30-D48
UEE-12/12.5-D48
I
OUT
(A)
45.5
30
12.5
Power
(W)
150
150
150
Ripple & Noise
(mVp-p)
Regulation (max.) V
IN
Nom. Range
Typ.
Max.
Line
Load
(V)
(V)
45
50
100
80
80
150
±0.1%
±0.1%
±0.1%
±0.25%
±0.1%
±0.25%
48
48
48
36-75
36-75
36-75
I
IN,
full
Efficiency
load
(A)
Min. Typ.
3.4
3.4
3.36
91%
91%
92%
92%
92%
93%
Inches
Dimensions
Millimeters
58.42 x 22.9 x 10.7
58.42 x 22.9 x 10.7
58.42 x 22.9 x 10.7
2.3 x 0.9 x 0.42
2.3 x 0.9 x 0.42
2.3 x 0.9 x 0.42
➀
Please refer to the model number structure for additional ordering part numbers and options.
➁
All specifications are typical unless noted. General conditions for Specifications are +25 deg.C,
Vin=nominal, Vout=nominal (no trim installed), full rated load. Adequate airflow must be supplied
for extended testing under power.
All models are tested and specified with external 1μF and 10 μF paralleled output capacitors and
no external input capacitor. All capacitors are low ESR types. Caps are layout dependent. These
capacitors are necessary to accommodate our test equipment and may not be required in your
applications. All models are stable and regulate within spec under no-load conditions.
PART NUMBER STRUCTURE
U EE
-
3.3
/
45
-
D48 N M B H
Output Configuration:
U = Unipolar/Single
Lx
-
C
RoHS Hazardous Materials compliance
C = RoHS6 (does not claim EU RoHS exemption 7b–lead in solder), standard
Pin Length Option (Through-hole packages only)
Blank = Standard pin length 0.180 inches (4.6mm)
L1 = Pin length 0.110 inches (2.79mm)
➀
L2 = Pin length 0.145 inches (3.68mm)
➀
Eighth-Brick Package
Nominal Output Voltage
Maximum Rated Output
Current in Amps
Conformal coating (optional)
Blank = no coating, standard
H = Coating added, optional, special quantity order
(not available on SMT models)
Baseplate (optional, not available on SMT models)
Blank = No baseplate, standard
B = Baseplate installed, optional, special quantity order
Surface Mount (SMT models cannot accept the baseplate)
Blank = Thru-hole pin mount, no SMT
M = Surface mount (MSL Rating 2a)
➁
On/Off Control Logic
N = Negative logic, standard
P = Positive logic, optional
Input Voltage Range:
D48 = 36-75V,
48V nominal
➀
Special quantity order is required; samples available with standard pin length only.
➁
SMT (M) versions not available in sample quantities.
➂
Some model number combinations may not be available. See website or contact your local Murata sales representative.
www.murata-ps.com/support
MDC_UEE 150W_Series.A01
Page 2 of 35
UEE 150W Series
Isolated, High-Density, Eighth-Brick
DOSA Low Profile DC-DC Converters
FUNCTIONAL SPECIFICATIONS, UEE-3.3/45-D48
ABSOLUTE MAXIMUM RATINGS
Input Voltage, Continuous
Input Voltage, Transient
Isolation Voltage
On/Off Remote Control
Output Power
Output Current
Conditions
➀
100 mS max. duration
Input to output, continuous
Power on, referred to -Vin
Minimum
0
Typical/Nominal
Maximum
80
100
2250
15
151.65
Units
Vdc
Vdc
Vdc
Vdc
W
0
0
Current-limited, no damage, short-circuit
0
45.5
A
protected
Storage Temperature Range
Vin = Zero (no power)
-55
125
°C
Absolute maximums are stress ratings. Exposure of devices to greater than any of these conditions may adversely affect long-term reliability. Proper operation under conditions other than those
listed in the Performance/Functional Specifications Table is not implied or recommended.
INPUT
Operating Voltage Range
Recommended External Fuse
Start-Up Threshold
Undervoltage Shutdown
Overvoltage Shutdown
Internal Filter Type
Input Current
Full Load Conditions
Low Line Input Current
Inrush Transient
Short Circuit Input Current
No Load
Shut-Down Input Current (Off, UV, OT)
Reflected (back) ripple current
➁
Pre-biased startup
Conditions
➀ ➂
36
Fast blow
Rising input voltage
Falling input voltage
33.5
32
48
34.5
33
None
Pi
3.4
4.63
0.05
300
80
7
20
Monotonic
91
2250
1500
1500
basic
10
1000
Certified to UL-60950-1, CSA-C22.2 No.60950-1,
IEC 60950-1, 2nd edition (pending)
Per Telcordia SR-332, issue 1, class 1, ground
fixed, Tcase = +25°C
Yes
2.5
400
6
15
50-75-50% load step, settling time to within
±1% of Vout
same as above
2500
±250
Hours x 10
6
KHz
mS
mS
μSec
mV
92
75
10
35.5
34
Vdc
A
Vdc
Vdc
Vdc
Vin = nominal
Vin = minimum
Iout = minimum, unit = ON
Measured at input with specified filter
External output voltage < Vset
Vin = 48V, full load
Input to output, continuous
Input to baseplate, continuous
Output to baseplate, continuous
3.51
4.79
0.1
500
120
10
40
A
A
A
2
-Sec.
mA
mA
mA
mA, P-P
GENERAL and SAFETY
Efficiency
Isolation
Isolation Voltage
Isolation Voltage
Isolation Voltage
Insulation Safety Rating
Isolation Resistance
Isolation Capacitance
Safety
Calculated MTBF
%
Vdc
Vdc
Vdc
MΩ
pF
DYNAMIC CHARACTERISTICS
Fixed Switching Frequency
Startup Time
Rise Time
Dynamic Load Response
Dynamic Load Peak Deviation
10
25
3000
±350
FEATURES and OPTIONS
Remote On/Off Control
➃
“N” suffix:
Negative Logic, ON state
Negative Logic, OFF state
Control Current
“P” suffix:
Positive Logic, ON state
Positive Logic, OFF state
Control Current
Remote Sense
Base Plate
SMT Mounting
ON = Ground pin or external voltage
OFF = Pin open or external voltage
Open collector/drain
ON = Pin open or external voltage
OFF = Ground pin or external voltage
Open collector/drain
Sense connected to load
"B" suffix
"M" suffix
-0.1
2.5
0.2
2.5
0
0.2
10
optional
optional
0.8
15
1
15
1
1
Vdc
Vdc
mA
V
V
mA
%
www.murata-ps.com/support
MDC_UEE 150W_Series.A01
Page 3 of 35
UEE 150W Series
Isolated, High-Density, Eighth-Brick
DOSA Low Profile DC-DC Converters
FUNCTIONAL SPECIFICATIONS, UEE-3.3/45-D48 (CONT.)
OUTPUT
Total Output Power
Voltage
Nominal Output Voltage
Setting Accuracy
Output Voltage Range
Overvoltage Protection
Current
Output Current Range
Current Limit Inception
Short Circuit
Short Circuit Current
Short Circuit Duration
(remove short for recovery)
Short circuit protection method
Regulation
Line Regulation
Load Regulation
Ripple and Noise
➁
Temperature Coefficient
Maximum Capacitive Loading
Conditions
➀
See Derating
No trim
At 50% load, no trim
User-adjustable
Via magnetic feedback
Minimum
Typical/Nominal
150.15
Maximum
151.65
3.333
1
10
6.3
45.5
70
8
Units
W
Vdc
% of Vnom
% of Vnom.
Vdc
A
A
A
3.267
-1
-20
3.3
4.3
0
52
45.5
60
4
Continuous
Yes
10% of Vnom., after warmup
Hiccup technique, autorecovery within ±1.25%
of Vout
Output shorted to ground, no damage
Current limiting
Vin = min. to max., Vout = nom., Iout = nom.
Iout = min. to max.,
5 Hz- 20 MHz BW
At all outputs
Low ESR, resistive load only
45
0.008
±0.1
±0.25
80
0.02
20000
% of Vout
% of Vout
mV pk-pk
% of Vout./°C
μF
Inches
mm
Ounces
Grams
Ounces
Grams
Inches
mm
μ-inches
μ-inches
MECHANICAL (Through Hole Models)
Outline Dimensions
(Please refer to outline drawing)
Weight
LxWxH
No baseplate
With baseplate
Through Hole Pin Diameter
Through Hole Pin Material
TH Pin Plating Metal and Thickness
2.3 x 0.9 x 0.42
58.42 x 22.9 x 10.7
0.88
25
1.3
37
0.04 & 0.062
1.016 & 1.575
Copper alloy
100-299
10-31
-40
-40
-55
115
85
115
125
130
Nickel subplate
Gold overplate
With Derating
No derating.
Vin = Zero (no power)
Measured in center
External filter is required
ENVIRONMENTAL
Operating Ambient Temperature Range
Operating Case Temperature Range
Storage Temperature
Thermal Protection/Shutdown
Electromagnetic Interference
Conducted, EN55022/CISPR22
RoHS rating
°C
°C
°C
°C
Class
125
A
RoHS-6
Notes
➀
Unless otherwise noted, all specifications are at nominal input voltage, nominal output voltage and
full load.
General conditions are +25˚ Celsius ambient temperature, near sea level altitude, natural convec-
tion airflow.
All models are tested and specified with external parallel 1 μF and 10 μF multi-layer ceramic
output capacitors.
A 220μF external input capacitor is used. All capacitors are low-ESR types wired close to the
converter.
➁
Input (back) ripple current is tested and specified over 5 Hz to 20 MHz bandwidth. Input filtering is
Cbus=220 μF, Cin=33 μF and Lbus=12 μH.
➂
All models are stable and regulate to specification under no load.
➃
The Remote On/Off Control is referred to -Vin. For external transistor control, use open collector
logic or equivalent.
➄
NOTICE—Please use only this customer data sheet as product documentation when laying out your
printed circuit boards and applying this product into your application. Do NOT use other materials as
official documentation such as advertisements, product announcements, or website graphics.
We strive to have all technical data in this customer data sheet highly accurate and complete. This cus-
tomer data sheet is revision-controlled and dated. The latest customer data sheet revision is normally
on our website (www.murata-ps.com) for products which are fully released to Manufacturing. Please be
especially careful using any data sheets labeled “Preliminary” since data may change without notice.
The pinout (Pxx) and case (Cxx) designations (typically P32 or C56) refer to a generic family of
closely related information. It may not be a single pinout or unique case outline. Please be aware
of small details which may affect your application and PC board layouts. Study the Mechanical
Outline drawings, Input/Output Connection table and all footnotes very carefully. Please contact
Murata Power Solutions if you have any questions.
www.murata-ps.com/support
MDC_UEE 150W_Series.A01
Page 4 of 35
UEE 150W Series
Isolated, High-Density, Eighth-Brick
DOSA Low Profile DC-DC Converters

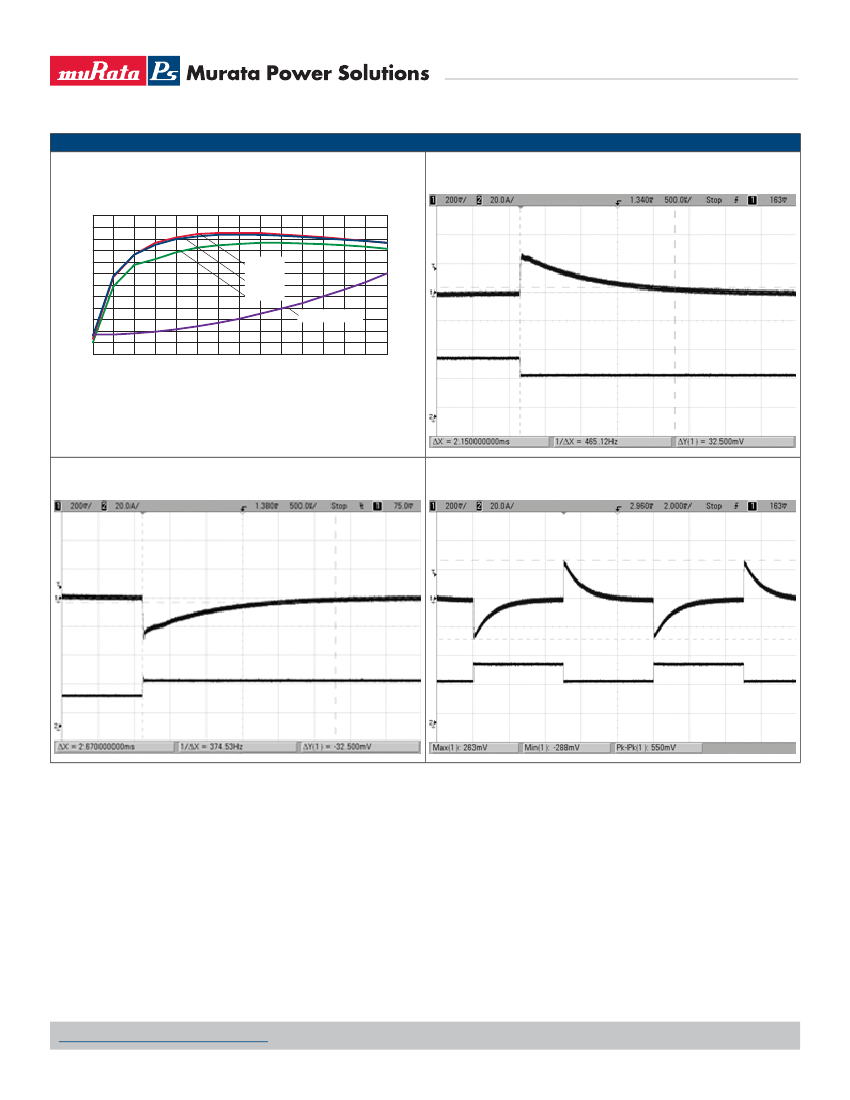

TYPICAL PERFORMANCE DATA AND OSCILLOGRAMS, UEE-3.3/45-D48
Hello everyone, are you familiar with the application of wireless measurement and control technology (input and output module RTU in SCADA system? I hope that I, a newcomer, can learn and communicate ...
[i=s] This post was last edited by wolfcan on 2016-4-7 20:38 [/i] I have a question for you. I saw a circuit designed by my senior brother before. A capacitor is connected in parallel with the MOS tub...
[i=s]This post was last edited by tinnu on 2022-1-3 12:41[/i]Lianshengde W801 is an upgraded version of Lianshengde W806 which was very popular some time ago . Lianshengde W806 program can be directly...
Now we have realized evc+sqlce2.0 access to sqlserver2000. If sqlserver2005 is installed on the server, can it also be supported? Every time we pull data, we need to drop the previous data table and r...
Hardware designers have begun to adopt FPGA technology in high-performance DSP designs because it can provide 10-100 times faster computing than PC-based or microcontroller-based solutions. Previou...[Details]
introduction
my country has a vast territory and a large population. The scale of housing construction is huge, and the amount of residential construction is large and wide. It is still on t...[Details]
System design is a complex process. It is not enough to just use ICs. There are many details to consider. This article uses a high-fidelity music playback system as an example to introduce how to s...[Details]
In this article, the high-performance DSP developed by TI can be used as an effective confidentiality method if it is applied to PC encryption cards.
As an effective network security solution,...[Details]
Contact resistance
is the resistance to current flow through a closed pair of contacts. This type of measurement is performed on devices such as connectors,
relays
, and switches. The...[Details]
1 Introduction to HART Protocol
HART (Highway Addressable Remote Transducer), an open communication protocol for addressable remote sensor high-speed channels, was launched by Rosemen in the U...[Details]
In the "digital pressure measurement" experimental device of applied physics, the subject technical knowledge of analog circuits, digital circuits, sensors and single-chip microcomputers is used. In o...[Details]
Our flight had just begun to descend when a gentleman sitting next to me turned to talk to me about engineering—he had seen me reading an engineering journal. The gentleman next to me said that he ...[Details]
Distributed Wireless Communication System (DWCS) uses distributed antennas, distributed processing control, joint signal processing and other technologies to improve the system's spectrum efficie...[Details]
People who often surf the Internet until late at night, their families always complain that turning on the big lights in the living room affects their rest, but some people don't have keyboard ligh...[Details]
For battery-powered portable devices, in addition to breaking through the limitations of processing power, the performance of portable system power supplies also needs to be continuously improved. ...[Details]
1. The composition and structure of mobile phone lithium battery
Mobile phone lithium batteries are mainly composed of plastic shell upper and lower covers, lithium battery cells, protection c...[Details]
introduction
Temperature and humidity are the main environmental parameters of industrial and agricultural production. It is of great significance to measure them accurately and timely. Using a s...[Details]
0 Introduction
In the design and construction of communication systems,
communication power supply
is called the heart of the communication system. The power supply system will dire...[Details]
1 Introduction
CAN (Controller Area Network) bus is a kind of field bus. It is used in many industrial sectors due to its outstanding advantages such as high performance, high reliability, high...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
