1-Phase Line Filters
https://www.schurter.com /PG84
FMBB RAIL

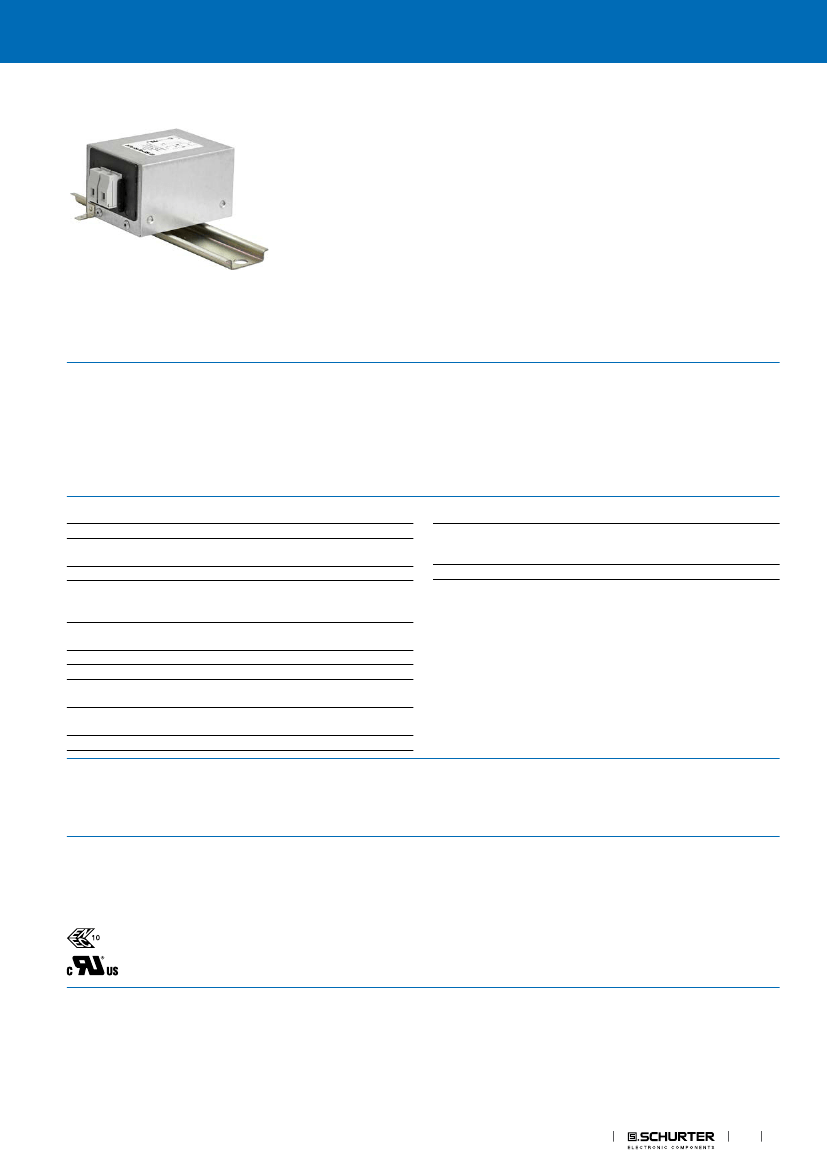

AC Filter 2-Stage, DIN Rail Mounting, Very Broad Band Attenuation
Approvals and Compliances
Description
-
-
-
-
Line filter in standard or industrial version
2 positions
very high attenuation
broadband
Characteristics
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Especially designed for electric switch and control cabinets
- Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125/250 VAC;
60 Hz
standard < 0.25 mA (250 V / 50 Hz)
1.7 kVDC between L-N
2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
IP 20 IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Bolts and nuts M4, Quick connect ter-
minal for PE
Metal
Line Filter
Standard and Industrial Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMBB Rail
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40030734
UL File Number: E72928
EMC Products
1
FMBB RAIL
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
2
EMC Products
1-Phase Line Filters
https://www.schurter.com /PG84
FMBB RAIL

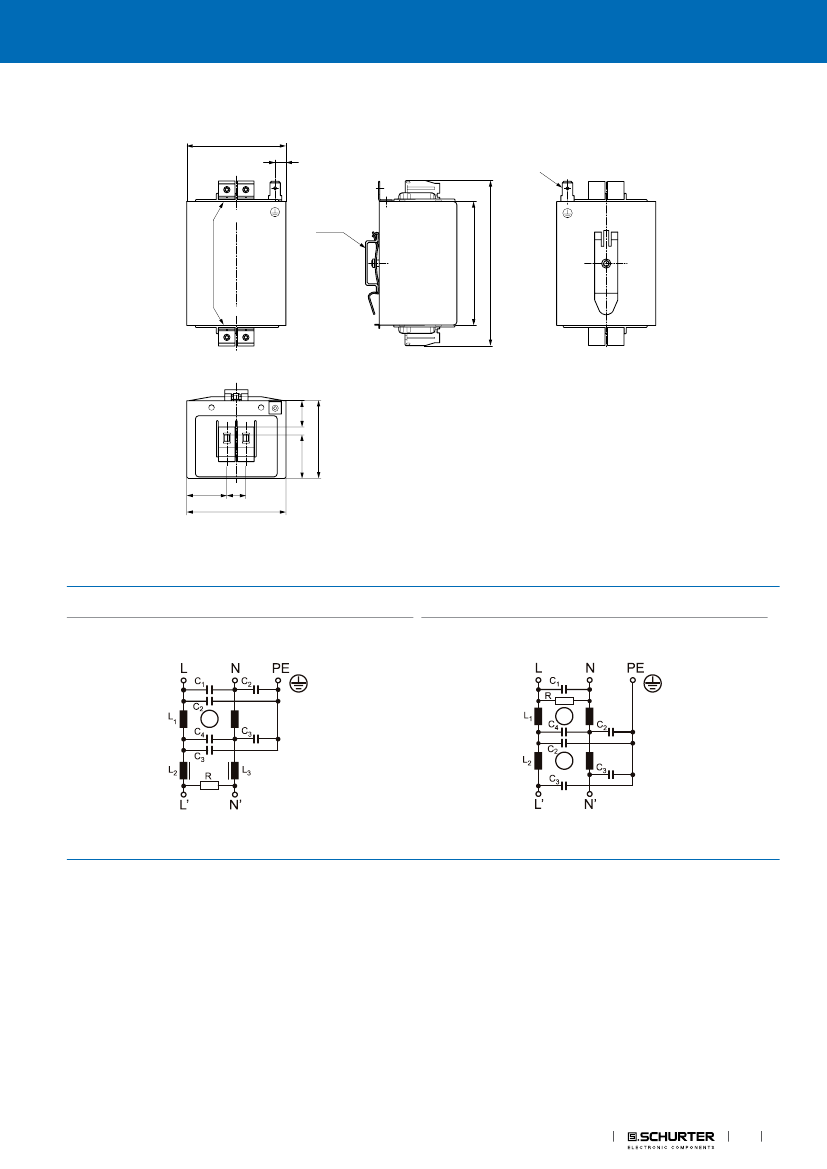

Dimension [mm]
max. 61
(6.5)
4)
L
1)
N
EN 60715
35x7.5
max. 102
(75)
3)
L
'
2)
N'
16
24.5
11.5
max. 61
1) Line
2) Load
3) Tightening torque 0.6-0.8 Nm, Screw 4mm²
4) Quick connect terminal 6.3x0.8mm
Diagrams
S1
S2
1)
27
max. 48
1)
2)
1) Line
2) Load
1) Line
2) Load
2)
EMC Products
3
FMBB RAIL
.

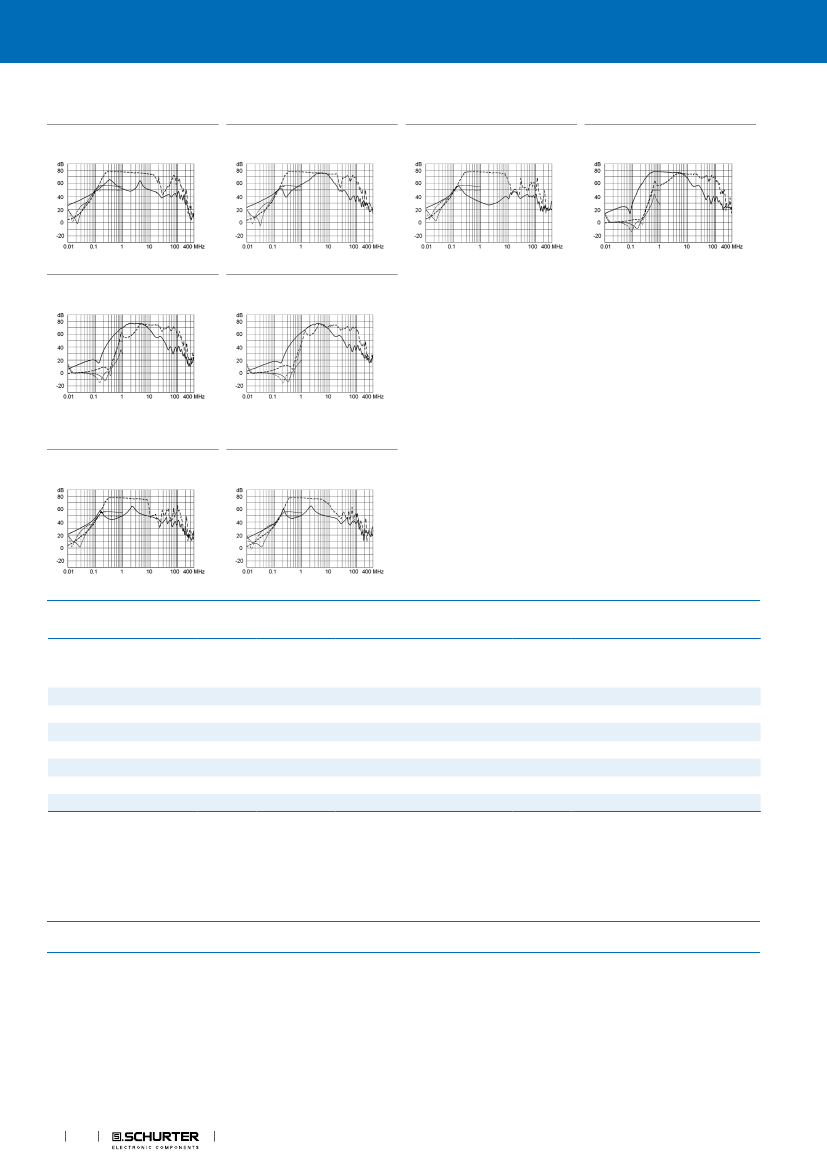

Attenuation Loss
. . . . 0.1/100Ω differential mode
Standard version
........... 100/0.1Ω differential mode
https://www.schurter.com /PG84
1-Phase Line Filters
- - - - 50Ω differential mode _____ 50Ω common mode
1 A (S1)
2 A (S1)
3 A (S1)
3 A (S2)
6 A (S2)
10 A (S2)
Industrial version
4 A (S1)
6 A (S1)
All Variants
Rated Cur-
rent [A]
1
2
3
3
4
6
6
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Industrial Version
Standard Version
Industrial Version
Standard Version
Leakage Cur-
rent [mA]
1)
0.25
0.25
0.25
0.25
1.5
0.25
1.5
0.25
L [mH]
2 x 15
2 x 10
2 x 12
2x2
2 x 10
2 x 0.8
2x6
2 x 0.4
C1 (X2)
[nF]
100
100
100
100
100
100
100
100
C2 (Y2)
[nF]
1.5
1.5
1.5
1.5
10
1.5
10
1.5
C3 (Y2)
[nF]
1
1
1
1
4.7
1
4.7
1
C4 (Y2)
[nF]
470
470
680
100
680
100
680
100
R [MΩ]
1
1
1
1
1
1
1
1
Diagram
S1
S1
S1
S2
S1
S2
S1
S2
Weight
[g]
340 g
375 g
415 g
355 g
435 g
355 g
485 g
370 g
Screw clamps
[mm
2
]
2)
4
4
4
4
4
4
4
4
Order Number
5500.2263
5500.2264
5500.2265
5500.2268
5500.2266
5500.2269
5500.2267
5500.2270
█
█
█
█
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Leakage current acc. IEC60950 - 5.2.3 - Annex D (situation when neutral is interrupted)
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.
com/emc_info
Packaging unit
5 Pcs
4
EMC Products
