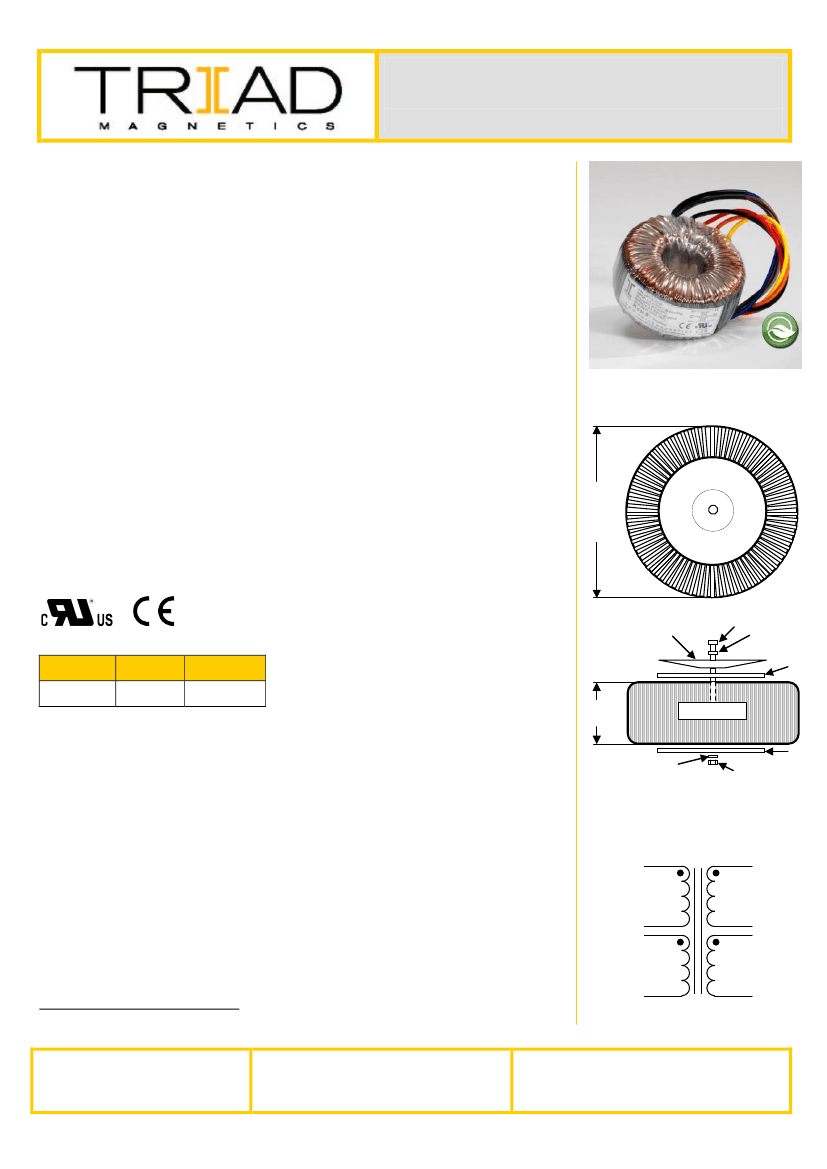

POWE R TRANS FO RME R
CHASSIS MOUNT :
TOROIDAL WORLD SERIES
VPT12-13300
Electrical Specifications (@25C)
1. Maximum Power: 160VA
2. Input Voltage:
Series:
230VAC, 50/60Hz
Parallel:
115VAC, 50/60Hz
3. Output Voltage:
Series:
12VAC CT @ 13.3A
Parallel:
6.0VAC @ 26.6A
4. Voltage Regulation: 8% TYP from full load to no load
5. Temperature Rise: 50°C TYP
6. Hipot: 4000VAC, Primary to Secondary
7. Efficiency: 89% TYP. @ full load
RoHS
2002/95/EC
Construction:
The toroidal construction inherently helps reduce stray fields, increases efficiency
and minimizes size compared to traditional EI transformers. Built with Class B (130°)
insulation system.
Safety:
World Series Transformers are designed and manufactured to meet most
International Safety agency standards.
Agency File:
UL: File E122529, UL 506
CE: EN 61558-1:2005, EN 61558-2-6:1995, Low Voltage Directive (LVD)
EN 6-000-6-6:2001+A11:2004, EN 55014-1:2000+A1:2001+A2:2002, EN
6100-6-1:2001, EN 55014-2:1997+A1:2001, Electromagnetic Compatibility (EMC)
OD
Dimensions (mm):
H*
52.0 Max
I.D.
28.0 Min
O.D.
106.0 Max
H
*Add 3mm to the height for mounting hardware
Weight: 1.6Kg
MOUNTING
METAL
PLATE
BOLT
FLAT
WASHER
RUBBER
PAD
Mounting:
Transformer is provided with one metal mounting plate, two rubber pads,
M6 x 60mm bolt, nut, spring and flat washer.
SPRING
WASHER
NUT
RUBBER
PAD
Connections:
Transformer is provided with 8” (200mm) long, 0.25” (6mm) stripped and tinned,
stranded UL 1015 lead wire. Primaries are 22AWG, Secondaries are 12AWG.
Input :
Series – BLUE and BROWN, Jumper GRAY to VIOLET
Parallel – BLUE and BROWN, Jumper BLUE to VIOLET, GRAY to BROWN
1
Output :
Series – BLACK and YELLOW, Jumper RED to ORANGE
Parallel – BLACK and YELLOW, Jumper BLACK to ORANGE, RED to YELLOW
1
S
P
R
I
M
A
R
Y
BLUE
GRAY
VIOLET
BROWN
BLACK
RED
ORANGE
YELLOW
E
C
O
N
D
A
R
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet the
requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the
most current version.
Primary and secondary windings are designed to be connected in series or parallel. Windings are not
intended to be used independently.
1
SCHEMATIC
Y
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: September 27, 2016
