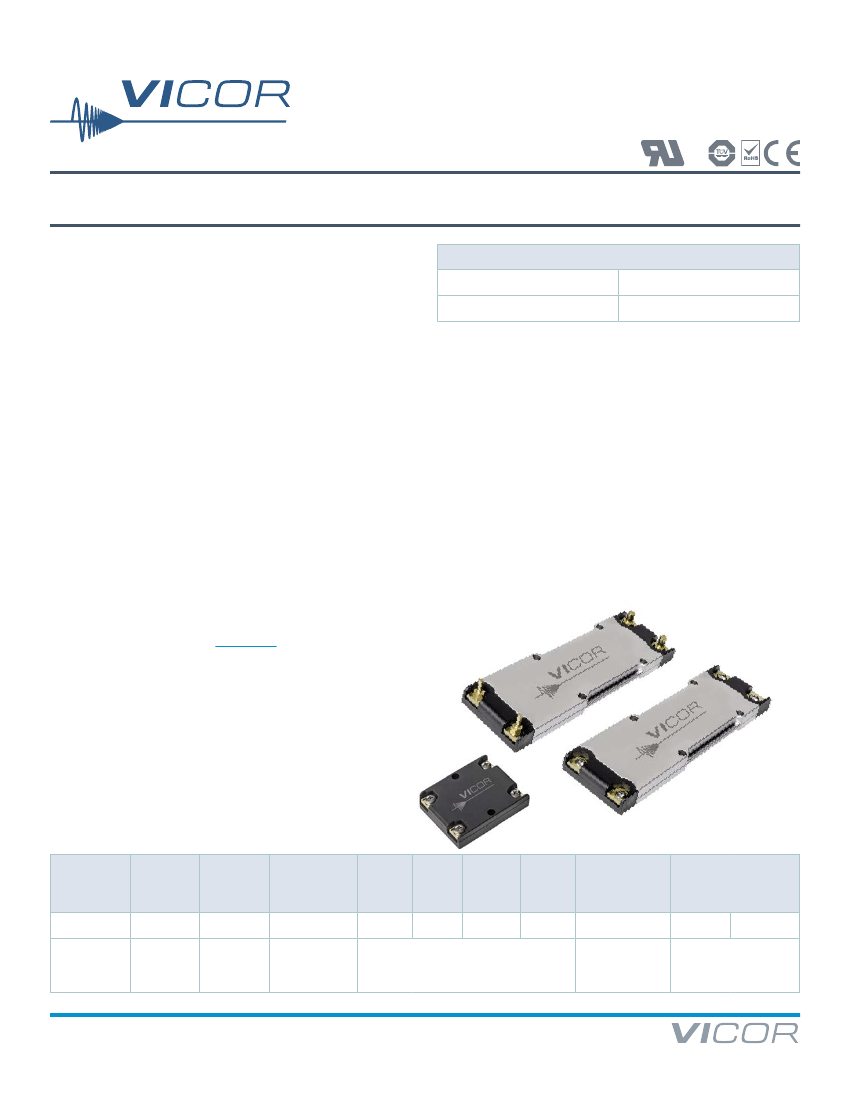

PFM™ in a VIA Package
AC-DC Converter
PFM4414xB6M24D0yzz
®
S
C
US
C
NRTL
US
Isolated AC-DC Converter with PFC
Features & Benefits
•
Universal input (85 to 264V
AC
)
•
24V
OUT
, regulated, isolated
•
400W maximum power
•
High efficiency
•
Built-in EMI filtering
•
Chassis mount or board mount packaging options
•
Always-on, self-protecting converter control architecture
•
SELV Output
•
Two temperature grades including operation to -40°C
•
Robust package
•
Versatile thermal management
•
Safe and reliable secondary-side energy storage
•
High MTBF
•
140W/in
3
power density
•
4414 package
•
AC Input Front-End Module provides external rectification
and transient protection (VIA
AIM™
sold separately)
V
IN
= 85 – 264V
V
OUT
= 24V
Product Ratings
P
OUT
= up to 400W
I
OUT
= 16.7A
Product Description
The PFM in a VIA Package is a highly advanced 400W AC-DC
converter operating from a rectified universal AC input which
delivers an isolated and regulated Safety Extra Low Voltage (SELV)
24V secondary output.
This unique, ultra-low profile module incorporates AC-DC
conversion, integrated filtering and transient surge protection in a
chassis mount or PCB mount form factor.
The PFM enables a versatile two-sided thermal strategy which
greatly simplifies thermal design challenges.
When combined with downstream Vicor DC-DC conversion
components and regulators, the PFM allows the Power Design
Engineer to employ a simple, low-profile design which will
differentiate his end-system without compromising on cost or
performance metrics.
Typical Applications
•
Small cell base stations
•
Telecom switching equipment
•
LED lighting
•
Industrial power systems
Shown with required
companion component,
VIA AIM™
(see pages 2-3)
Size:
4.35 x 1.40 x .37in
110.6 x 35.5 x 9.3mm
Part Ordering Information
Product
Function
PFM
PFM =
Power Factor
Module
Package
Length
44
Length in
Inches x 10
Package
Width
14
Width in
Inches x 10
Package
Type
x
B = Board VIA
V = Chassis VIA
Input
Voltage
B6
Range
Ratio
M
Output
Voltage
(Range)
24
Max
Output
Power
D0
Product Grade
Option Field
y
C = -20 to 100°C
T = -40 to 100°C
z
z
Internal Reference
00 = Chassis/Always On
04 = Short Pin/Always On
08 = Long Pin/Always On
PFM™ in a VIA Package
Page 1 of 24
Rev 1.1
08/2017
PFM4414xB6M24D0yzz
Typical PCB Mount Applications
J
1
F
1
M
1
M
2
L
+OUT
+IN
+OUT
24 V
2 x Cool-Power
®
ZVS Buck
+
_ 24 V 10 A
+
C
2
+
C
3
Cool-Power
®
ZVS Buck
85 -
264V
AC
MOV
VIA
AIM™
N
-OUT
-IN
Inlet
VIA PFM
-OUT
+
C
1
+
_ 3.3V 10 A
+
_ 1.8V 8 A
The PCB terminal option allows mounting on an industry standard printed circuit board, with two different pin lengths. Vicor offers a
variety of downstream DC-DC converters driven by the 24V output of the PFM in a VIA package. The 24V output is usable directly by loads
that are tolerant of the PFC line ripple, such as fans, motors, relays, and some types of lighting. Use downstream DC-DC Point of Load
converters where more precise regulation is required.
Parts List for Typical PCB Mount Applications
J1
F1
M1
M2
Qualtek
703W IEC 320-C14 Power Inlet
Littelfuse
0216008.MXP 8A 250V
AC
5 x 20mm holder
Vicor AIM™
AIM1714BB6MC7D5yzz
Vicor PFM™
PFM4414BB6M24D0yzz
Nichicon
UVR1V153MRD 15,000µF 35V 4.3A 25 x 50mm bent 90°, x 3 pcs
or
C1, C2, (C3)
CDE
380LX153M035A022 15,000µF 35V 5.6A 35 x 30mm snap in, x 3 pcs
or
Sic Safco
Cubisic LP A712062 22,000µF 35V 5.8A 45 x 75 x 12mm rectangular, x 2 pcs
or
CDE
MLPE1566 22,000µF 35V 8.4A 45 x 76 x 12.5mm x 2 pcs.
MOV
Littelfuse
TMOV20RP300E VARISTOR 10kA 300V 250 J 20mm
PFM™ in a VIA Package
Page 2 of 24
Rev 1.1
08/2017
PFM4414xB6M24D0yzz
Typical Chassis Mount Applications
J
1
F
1
M
1
M
2
L
+OUT
+IN
+OUT
24V
Fan
85 -
264V
AC
MOV
VIA
AIM™
N
-OUT
Inlet
VIA PFM
-IN
-OUT
C
1
C
2
C
3
8
8
Relays
16
Dispensors
Controller
Coin Box
The PFM in a VIA package is available in Chassis Mount option, saving the cost of a PCB and allowing access to both sides of the power
supply for cooling. The parts list below minimizes the number of interconnects required between necessary components, and selects
components with terminals traditionally used for point to point chassis wiring.
Parts List for Typical Chassis Mount Applications
J1
F1
M1
M2
C1, C2, C3
C1
MOV
Qualtek
719W or 723W IEC 320-C14 Power Inlet
Littelfuse
0216008.MXP 8A 250 VAC 5 x 20mm in J1, or separate fuse holder
Vicor AIM™
AIM1714VB6MC7D5y00
Vicor PFM™
PFM4414VB6M24D0y00
Nichicon
LNT1V153MSE 15,000µF 35V 5.1A 35 x 83mm screw terminal
or
Kemet
ALS30A473KE040 47,000µF 40V 14.2A 51 x 84mm screw terminal
Littelfuse
TMOV20RP300E VARISTOR 10kA 300V 250 J 20mm
PFM™ in a VIA Package
Page 3 of 24
Rev 1.1
08/2017
PFM4414xB6M24D0yzz
Pin Configuration
TOP VIEW
+IN
1
3
+OUT
–IN
2
4
–OUT
4414 VIA PFM - Chassis Mount - Terminals Up
TOP VIEW
–IN
2
4
–OUT
+IN
1
3
+OUT
4414 VIA PFM - PCB Mount - Pins Down
Please note that these Pin drawings are not to scale.
Pin Descriptions
Pin Number
1
2
3
4
Signal Name
+IN
–IN
+OUT
–OUT
Type
INPUT POWER
INPUT POWER
RETURN
OUTPUT POWER
OUTPUT POWER
RETURN
Positive input power terminal
Negative input power terminal
Positive output power terminal
Negative output power terminal
Function
PFM™ in a VIA Package
Page 4 of 24
Rev 1.1
08/2017
PFM4414xB6M24D0yzz
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Parameter
Input Voltage +IN to –IN
Input Voltage (+IN to –IN)
Output Voltage (+OUT to –OUT)
Output Current
Screw Torque
Operating Junction Temperature
Storage Temperature
Dielectric Withstand *
Input-Case
Input-Output
Output-Case
4 mounting, 2 input, 2 output
T-Grade
T-Grade
See note below
Basic Insulation
Reinforced Insulation
(Internal ChiP tested at 4242V
DC
prior to assembly.)
Functional Insulation
2121
2121
707
V
DC
V
DC
V
DC
-40
-65
1ms max
Continuous, Rectified
Comments
Min
0
0
-0.5
0.0
Max
600
275
29
24.7
4 (0.45)
125
125
Unit
V
PK
V
RMS
V
DC
A
in/lbs (N-m)
°C
°C
* Please see Dielectric Withstand section. See page 18.
20.00
500
Output Current (A)
12.00
8.00
4.00
0.00
-60
-40
-20
0
20
Current
300
200
100
0
40
60
Power
80
100
Case Temperature (°C)
Safe Operating Area
PFM™ in a VIA Package
Page 5 of 24
Rev 1.1
08/2017
Output Power (W)
16.00
400
