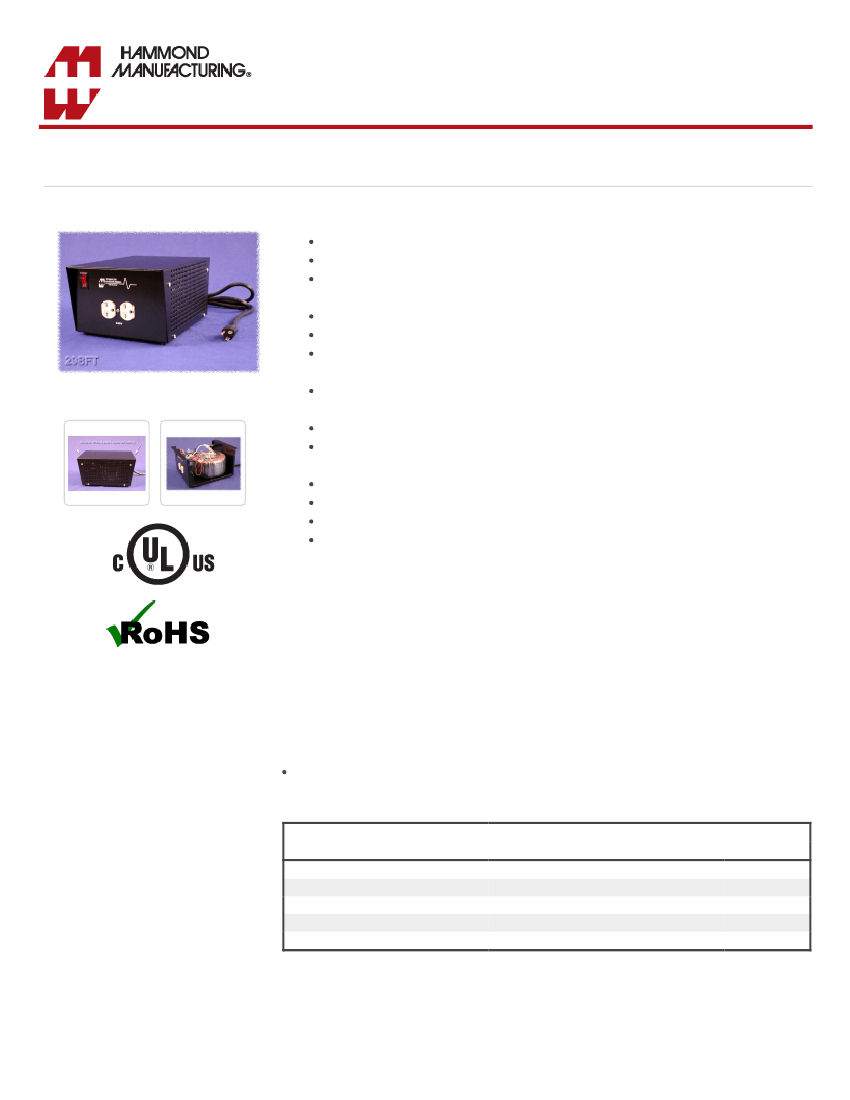

TOROIDAL Isolation - Step Up (120VAC to 240VAC) (298 Series) - Hammond Mfg.
Quality Products. Service Excellence.
TOROIDAL Isolation - Step Up (120VAC to 240VAC)
298 Series
Plug-In
Features
Primary 120VAC, 50/60 Hz., Secondary 240VAC.
Provides circuit isolation.
Toroidal transformer for high isolation, low noise, light weight cool operation and low
profile.
50 or 60 Hz. operation, step up (120VAC to 240 VAC).
Standard 3-wire, grounded plug (can also be used with
adaptors
for proper grounding).
Input (primary) connected to a 5 foot cord & standard North American plug (NEMA 5-
15P).
Output (secondary) connected to a standard North American duplex - 3 wire grounded
receptacle (NEMA 6-15R).
Transformer Hi-Pot test of 4,000V RMS between primary & secondary
Features include ventilated black steel case with rocker lighted on-off switch & circuit
breaker protected output.
North American Mark of Safety - C UL & UL listed (File #E211544).
Indoor use only.
Remember
- These units do NOT convert line frequency.
Note about Inrush Current:
Due to the superior magnetic properties of Toroidal transformers they will be susceptible
to high magnetizing current when initially energized, only limited by the low DC resistance
of the primary winding. Depending on where you are in the AC cycle when the
transformer is energized dictates the chances of overloading the supply circuit. This is
why the transformer may sometimes energize without a problem and other times it will
blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than
a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed
circuit breaker or other form of soft start circuitry for the supply line when using these high
efficient Toroidal transformers.
Accessories
International Grounded Adaptor Plugs
Capacity
Part No.
298CT
298DT
298ET
298FT
298GT
VA
250
500
750
1000
1500
Outlet
Qty
2
2
2
2
2
Length
8.25
9.00
10.25
10.25
12.50
Overall Dimensions
Width
6.00
6.00
7.50
7.50
9.00
Height
4.00
4.00
5.00
5.00
5.00
Data subject to change without notice
