GE
Data Sheet
12V Austin SuperLynx
TM
16A: SIP Non-Isolated DC-DC Power Module
10Vdc –14Vdc input; 0.75Vdc to 5.5Vdc output; 16A Output Current
Features
RoHS Compliant
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with lead
solder exemption (non-Z versions)
Delivers up to 16A output current
High efficiency – 92% at 3.3V full load (V
IN
= 12.0V)
Small size and low profile:
50.8 mm x 12.7 mm x 8.10 mm
(2.00 in x 0.50 in x 0.32 in)
Low output ripple and noise
High Reliability:
Calculated MTBF = 4.4M hours at 25
o
C Full-load
Constant switching frequency (300 kHz)
Output voltage programmable from 0.75 Vdc to 5.5Vdc
via external resistor
Line Regulation: 0.3% (typical)
Load Regulation: 0.4% (typical)
Temperature Regulation: 0.4 % (typical)
Remote On/Off
Remote Sense
Output overcurrent protection (non-latching)
Wide operating temperature range (-40°C to 85°C)
UL*
60950-1Recognized,
CSA
†
C22.2 No. 60950-1-03
Certified, and
VDE
‡
0805:2001-12 (EN60950-1) Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Description
Austin SuperLynx
TM

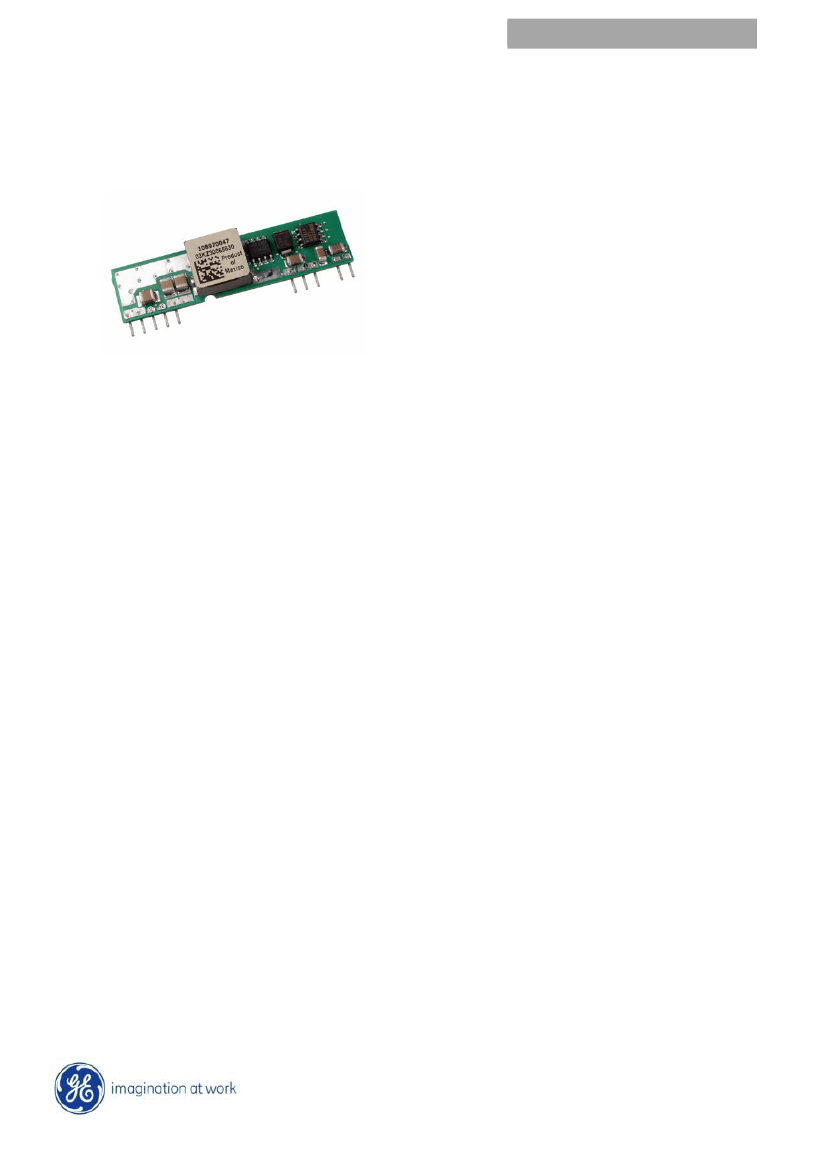

12V SIP power modules are non-isolated dc-dc converters that can deliver up to 16A of output current
with full load efficiency of 92% at 3.3V output. These modules provide a precisely regulated output voltage ranging from
0.75Vdc to 5.5Vdc, programmable via an external resistor over a wide range of input voltage (V
IN
= 10 – 14Vdc). Their
open-frame construction and small footprint enable designers to develop cost- and space-efficient solutions. Standard
features include remote On/Off, remote sense, output voltage adjustment, overcurrent and overtemperature protection.
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
†
‡
CSA
is a registered trademark of Canadian Standards Association.
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
January 14, 2016
©2016 General Electric Company. All rights reserved.
GE
10Vdc –14Vdc input; 0.75Vdc to 5.5Vdc output; 16A Output Current
Absolute Maximum Ratings
Data Sheet
12V Austin SuperLynx
TM
16A: SIP Non-Isolated DC-DC Power Modules
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings
only, functional operation of the device is not implied at these or any other conditions in excess of those given in the operations
sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect the device reliability.
Parameter
Input Voltage
Continuous
Operating Ambient Temperature
(see Thermal Considerations section)
Storage Temperature
All
T
stg
-55
125
°C
All
T
A
-40
85
°C
Device
All
Symbol
V
IN
Min
-0.3
Max
15
Unit
Vdc
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.
Parameter
Operating Input Voltage
Maximum Input Current
(V
IN
=10.0V to 14.0V, I
O
=I
O, max
)
Input No Load Current
(V
IN
= 12.0Vdc, Io = 0, module enabled)
Input Stand-by Current
(V
IN
= 12.0Vdc, module disabled)
Inrush Transient
Input Reflected Ripple Current, peak-to-peak
(5Hz to 20MHz, 1μH source impedance; V
IN, min
to V
IN,
max,
I
O
= I
Omax
; See Test configuration section)
Input Ripple Rejection (120Hz)
All
All
All
I
2
t
30
30
0.4
A
2
s
mAp-p
dB
V
O,set
= 0.75 Vdc
V
O,set
= 5.0Vdc
All
I
IN,No load
I
IN,No load
I
IN,stand-by
40
100
2
mA
mA
mA
Device
V
O,set
≤ V
IN
– 0.5V
All
Symbol
V
IN
I
IN,max
Min
10.0
Typ
12.0
Max
14.0
9.5
Unit
Vdc
Adc
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This power module can be used in a wide variety of applications, ranging from simple standalone operation to being part of a
complex power architecture. To preserve maximum flexibility, internal fusing is not included, however, to achieve maximum safety
and system protection, always use an input line fuse. The safety agencies require a fast-acting fuse with a maximum rating of 15 A
(see Safety Considerations section). Based on the information provided in this data sheet on inrush energy and maximum dc input
current, the same type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s data sheet for further information.
January 14, 2016
©2016 General Electric Company. All rights reserved.
Page 2
GE
10Vdc –14Vdc input; 0.75Vdc to 5.5Vdc output; 16A Output Current
Electrical Specifications
(continued)
Parameter
Output Voltage Set-point
(V
IN
=
IN, min
, I
O
=I
O, max
, T
A
=25°C)
Output Voltage
(Over all operating input voltage, resistive load, and
temperature conditions until end of life)
Adjustment Range
Selected by an external resistor
Output Regulation
Line (V
IN
=V
IN, min
to V
IN, max
)
Load (I
O
=I
O, min
to I
O, max
)
Temperature (T
ref
=T
A, min
to T
A, max
)
Output Ripple and Noise on nominal output
(V
IN
=V
IN, nom
and I
O
=I
O, min
to I
O, max
Cout = 1μF ceramic//10μFtantalum capacitors)
RMS (5Hz to 20MHz bandwidth)
Peak-to-Peak (5Hz to 20MHz bandwidth)
External Capacitance
ESR ≥ 1 mΩ
ESR ≥ 10 mΩ
Output Current
Output Current Limit Inception (Hiccup Mode )
(V
O
= 90% of V
O, set
)
Output Short-Circuit Current
(V
O
≤250mV) ( Hiccup Mode )
Efficiency
V
IN
= V
IN, nom
, T
A
=25°C
I
O
=I
O, max ,
V
O
= V
O,set
V
O,set
=
0 75Vdc
V
O, set
= 1.2Vdc
V
O,set
= 1.5Vdc
V
O,set
= 1.8Vdc
V
O,set
= 2.5Vdc
V
O,set
= 3.3Vdc
V
O,set
= 5.0Vdc
Switching Frequency
Dynamic Load Response
(dIo/dt=2.5A/µs; V
IN
= V
IN, nom
; T
A
=25°C)
Load Change from Io= 50% to 100% of Io,max; 1μF
ceramic// 10 μF tantalum
Peak Deviation
Settling Time (Vo<10% peak deviation)
(dIo/dt=2.5A/µs; V
IN
= V
IN, nom
; T
A
=25°C)
Load Change from Io= 100% to 50%of Io,max: 1μF
ceramic// 10 μF tantalum
Peak Deviation
Settling Time (Vo<10% peak deviation)
All
t
s
All
All
t
s
V
pk
All
V
pk
All
η
η
η
η
η
η
η
f
sw
All
I
O, s/c
All
All
All
All
C
O, max
C
O, max
I
o
I
O, lim
0
All
All
All
All
All
All
V
O
0.7525
All
V
O, set
-2.5%
Device
All
Symbol
V
O, set
Min
-2.0
Data Sheet
12V Austin SuperLynx
TM
16A: SIP Non-Isolated DC-DC Power Modules
Typ
V
O, set
Max
+2.0
+3.5%
Unit
% V
O, set
% V
O, set
5.5
Vdc
0.3
0.4
0.4
% V
O, set
% V
O, set
% V
O, set
12
30
180
3
79.0
85.0
87.0
88.0
90.5
92.0
94.0
300
200
30
75
1000
5000
16
mV
rms
mV
pk-pk
μF
μF
Adc
% I
o
Adc
%
%
%
%
%
%
%
kHz
mV
25
200
µs
mV
25
µs
January 14, 2016
©2016 General Electric Company. All rights reserved.
Page 3
GE
10Vdc –14Vdc input; 0.75Vdc to 5.5Vdc output; 16A Output Current
Electrical Specifications
(continued)
Parameter
Dynamic Load Response
(dIo/dt=2.5A/µs; V V
IN
= V
IN, nom
; T
A
=25°C)
Load Change from Io= 50% to 100% of Io,max;
Co = 2x150 μF polymer capacitors
Peak Deviation
Settling Time (Vo<10% peak deviation)
(dIo/dt=2.5A/µs; V
IN
= V
IN, nom
; T
A
=25°C)
Load Change from Io= 100% to 50%of Io,max:
Co = 2x150 μF polymer capacitors
Peak Deviation
Settling Time (Vo<10% peak deviation)
All
All
t
s
V
pk
50
100
All
V
pk
100
Device
Symbol
Min
Typ
Data Sheet
12V Austin SuperLynx
TM
16A: SIP Non-Isolated DC-DC Power Modules
Max
Unit
mV
µs
mV
All
t
s
50
µs
General Specifications
Parameter
Calculated MTBF (I
O
=I
O, max
, T
A
=25°C)
Weight
Min
Typ
4,400,000
5.6 (0.2)
Max
Unit
Hours
g (oz.)
January 14, 2016
©2016 General Electric Company. All rights reserved.
Page 4
GE
10Vdc –14Vdc input; 0.75Vdc to 5.5Vdc output; 16A Output Current
Feature Specifications
Data Sheet
12V Austin SuperLynx
TM
16A: SIP Non-Isolated DC-DC Power Modules
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions. See
Feature Descriptions for additional information.
Parameter
Remote On/Off Signal interface
(V
IN
=V
IN, min
to V
IN, max
; Open collector pnp or equivalent
Compatible, Von/off signal referenced to GND
See feature description section)
Logic High (On/Off Voltage pin open - Module ON)
Von/Off
Ion/Off
Logic Low (Von/Off
≤
0.3V – Module OFF)
Von/Off
Ion/off
Turn-On Delay and Rise Times
(I
O
=I
O, max ,
V
IN
= V
IN, nom,
T
A
= 25
o
C, )
Case 1: On/Off input is set to Logic Low (Module
ON) and then input power is applied (delay from
instant at which V
IN
=V
IN, min
until Vo=10% of Vo,set)
Case 2: Input power is applied for at least one second
and then the On/Off input is set to logic Low (delay from
instant at which Von/Off=0.3V until Vo=10% of Vo, set)
Output voltage Rise time (time for Vo to rise from 10%
of V
o,set
to 90% of Vo, set)
Output voltage overshoot – Startup
I
O
= I
O, max
; V
IN
= 10 to 14Vdc, T
A
= 25
o
C
Remote Sense Range
Overtemperature Protection
(See Thermal Consideration section)
Input Undervoltage Lockout
Turn-on Threshold
Turn-off Threshold
All
All
8.2
8.0
V
V
―
All
T
ref
―
125
0.5
°C
All
All
Tdelay
Tdelay
―
―
3
3
―
―
msec
msec
All
All
V
IL
I
IL
―
―
―
―
0.3
1
V
mA
All
All
V
IH
I
IH
―
―
―
―
V
IN
10
V
μA
Device
Symbol
Min
Typ
Max
Unit
All
Trise
―
4
―
6
1
msec
% V
O, set
January 14, 2016
©2016 General Electric Company. All rights reserved.
Page 5
