MSASC100W45HR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MSASC100W45HR

MSASC100W45HR: DescriptionSURFACE MOUNT LOW LEAKAGE SCHOTTKY DIODE; CategoryDiscrete semiconductor diode; File Size41KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MSASC100W45HR Overview

SURFACE MOUNT LOW LEAKAGE SCHOTTKY DIODE

MSASC100W45HR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	POWER, HERMETIC SEALED, CERAMIC PACKAGE-1
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V
JESD-30 code	S-CSSO-G1
Maximum non-repetitive peak forward current	500 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	100 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

2830 S. Fairview St.

Santa Ana, CA 92704

PH: (714) 979-8220

FAX: (714) 966-5256

MSASC100W45H

MSASC100W45HR

1N6791

45 Volts

100 Amps

SURFACE MOUNT

LOW LEAKAGE

SCHOTTKY DIODE

Features

•

Tungsten schottky barrier

Oxide passivated structure for very low leakage currents

Guard ring protection for increased reverse energy capability

Epitaxial structure minimizes forward voltage drop

Hermetically sealed, low profile ceramic surface mount power package

Low package inductance

•

Very low thermal resistance

•

Available as standard polarity (strap-to-anode, MSASC100W45H) and

reverse polarity (strap-to-cathode: MSASC100W45HR)

Maximum Ratings @ 25° (unless otherwise specified)

DESCRIPTION

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Average Rectified Forward Current, Tc≤ 145°

derating, forward current, Tc≥ 145°

Nonrepetitive Peak Surge Current, tp= 8.3 ms, half-sinewave

Peak Repetitive Reverse Surge Current, tp= 1µs, f= 1kHz

Junction Temperature Range

Storage Temperature Range

Thermal Resistance, Junction to Case:

MSASC100W45H

MSASC100W45HR

SYMBOL

RRM

RWM

F(ave)

/dT

FSM

RRM

stg

MAX.

100

3.3

500

-65 to +175

0.35

0.5

UNIT

Volts

Amps

Amps/°

Amps

Amp

C/W

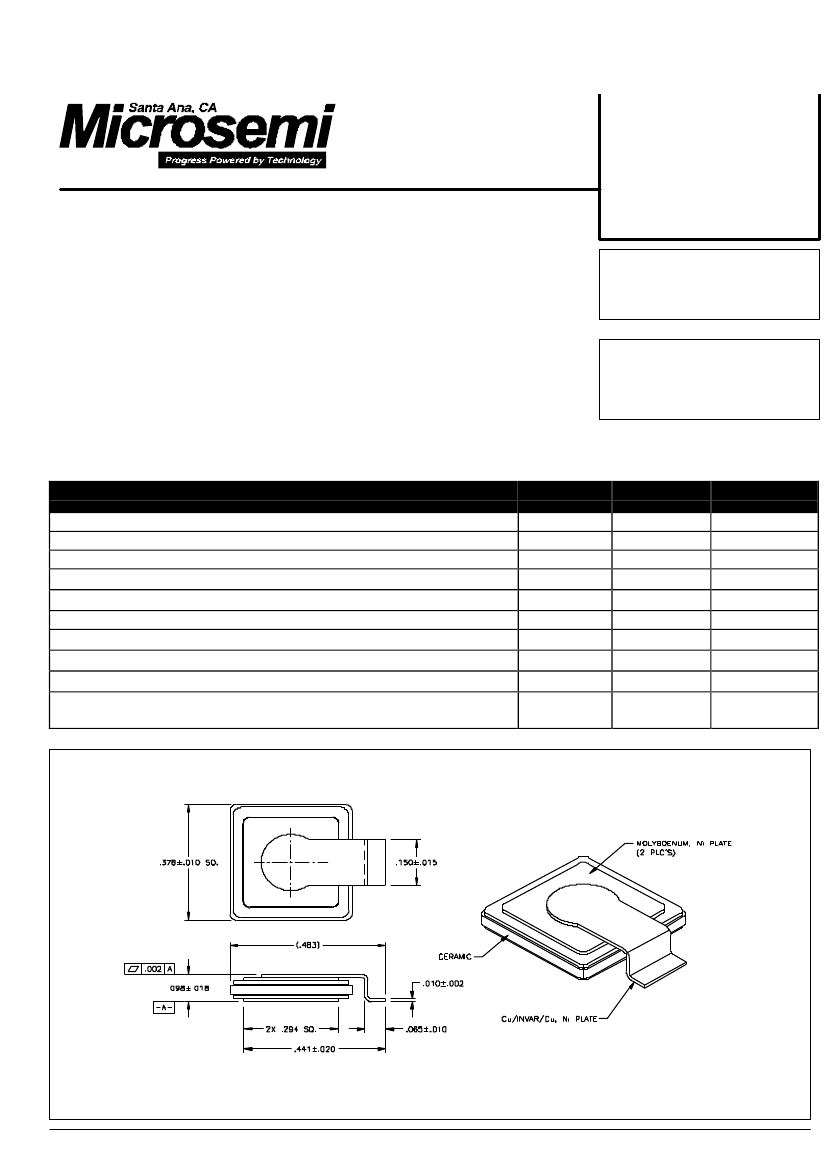

Mechanical

Outline

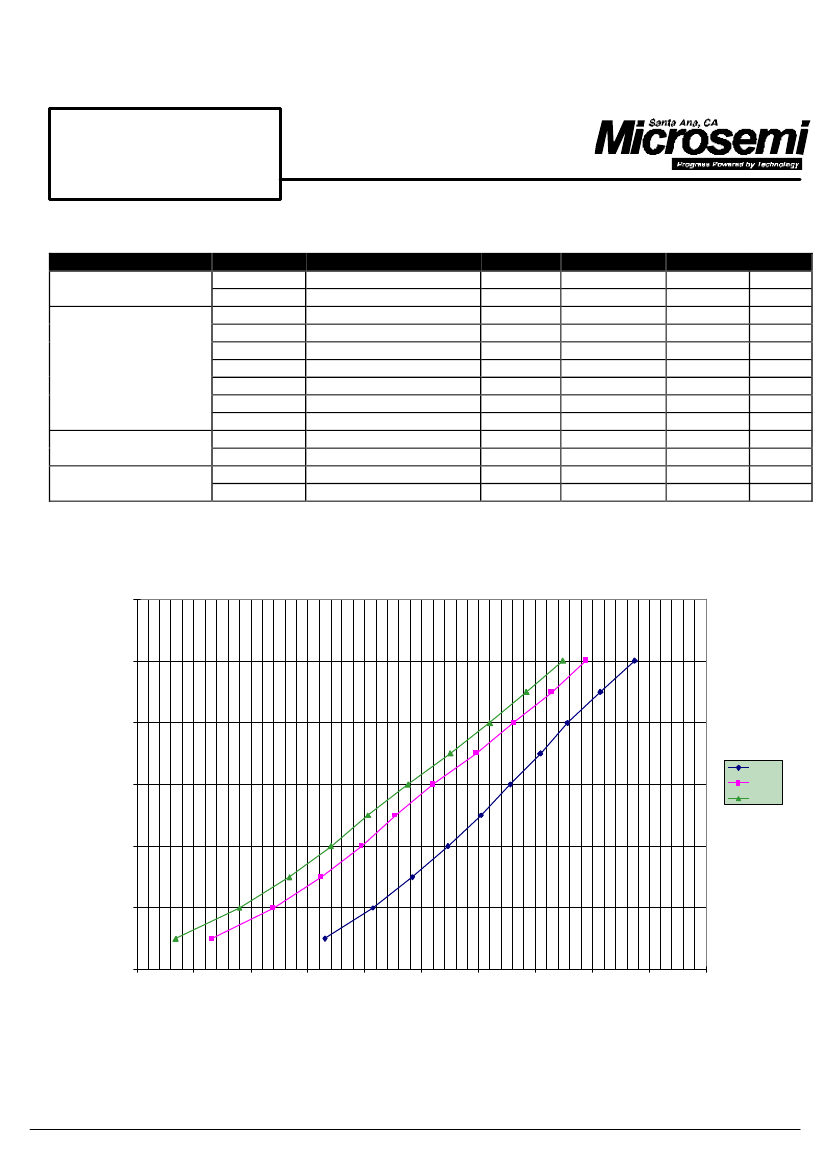

Datasheet# MSC0291A

MSASC100W45HR Related Products

	MSASC100W45HR	1N6791	MSASC100W45H
Description	SURFACE MOUNT LOW LEAKAGE SCHOTTKY DIODE	SURFACE MOUNT LOW LEAKAGE SCHOTTKY DIODE	SURFACE MOUNT LOW LEAKAGE SCHOTTKY DIODE
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi
package instruction	POWER, HERMETIC SEALED, CERAMIC PACKAGE-1	POWER, HERMETIC SEALED, CERAMIC PACKAGE-1	POWER, HERMETIC SEALED, CERAMIC PACKAGE-1
Contacts	1	1	1
Reach Compliance Code	unknow	compliant	unknow
ECCN code	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	S-CSSO-G1	S-CSSO-G1	S-CSSO-G1
Maximum non-repetitive peak forward current	500 A	500 A	500 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	100 A	100 A	100 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	45 V
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum forward voltage (VF)	0.8 V	-	0.8 V
