1-Phase Line Filters
https://www.schurter.com /PG84
FSS
AC Filter 2-Stage, Very High Symmetrical Attenuation
Approvals and Compliances

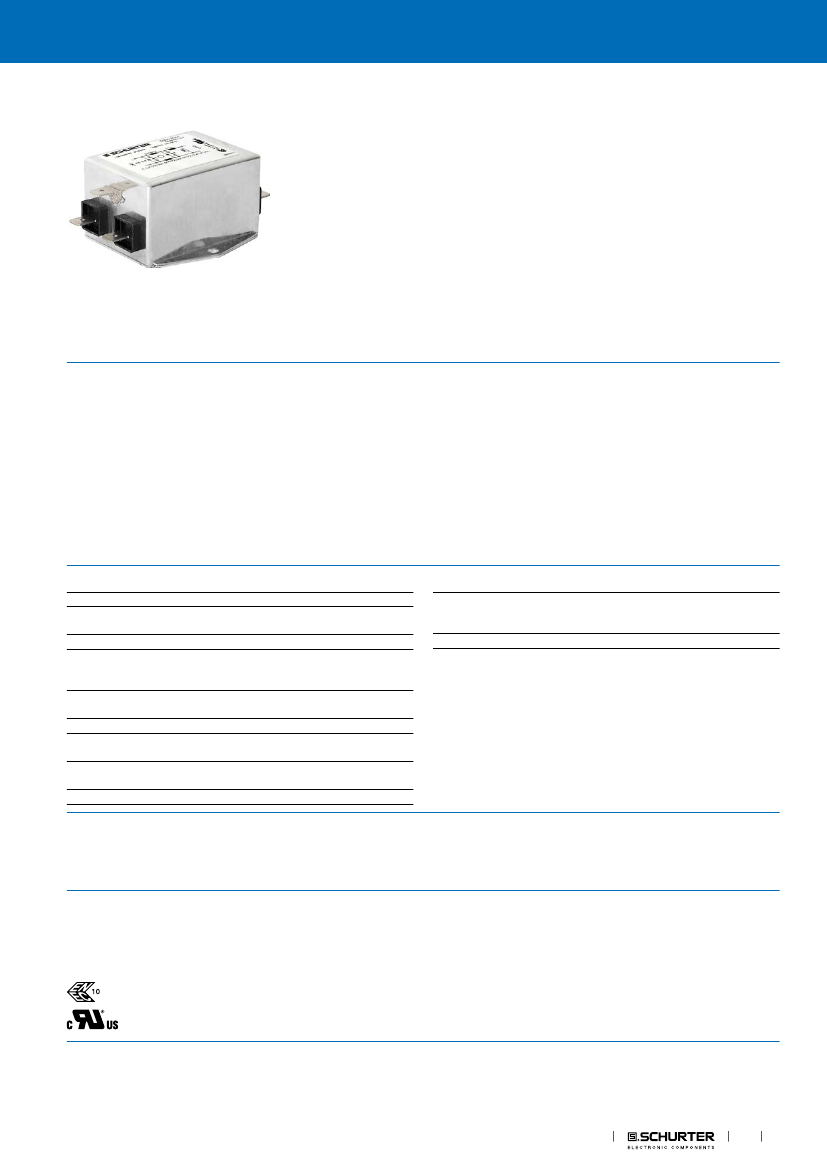

Description
- Line-filter in standard version
- 2 positions
- very high attenuation, broadband
Characteristics
- Designed for increased requirements
- 2-stage line filter with increased attenuation
Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Especially suitable for use in switching power supplies
e.g. in electronic designs with high repetitive switching frequency
- Suitable for use in equipment according to IEC/UL 60950
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 16 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 16 A @ Ta 40 °C / 125/250 VAC;
60 Hz
industrial < 1.4 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
or screw terminals
Aluminum
Line Filter
Standard and Industrial Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FSS
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1
FSS
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

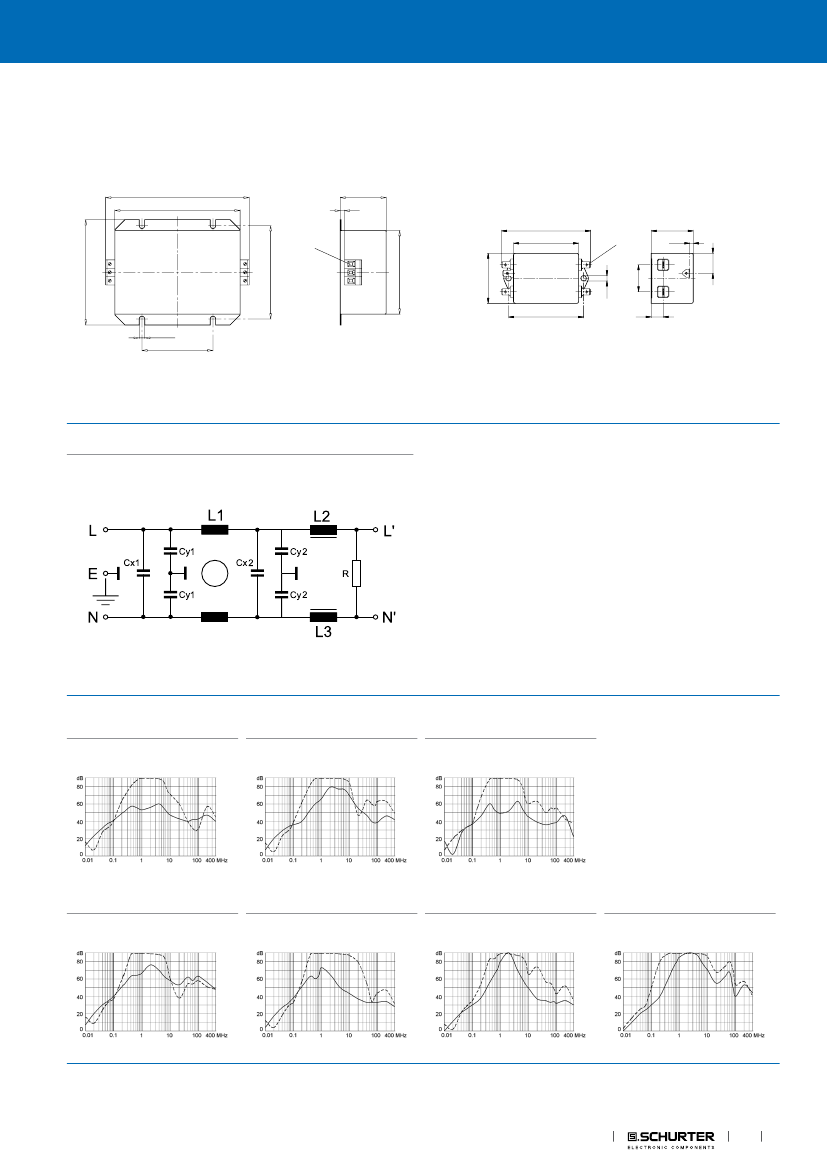

Dimension [mm]
Case 10
Case 19
max. 81
max. 56
6.3x0.8
max. 33
(26.5)
max. 112
max. 87
max. 49
(36)
(23)
5.3x8.8
(27)
(12)
max. 53
max. 57
48
±0.3
(20)
1)
2)
max. 41
1)
2)
3.8
±0.2
(11.5)
101
±0.8
max. 115
1) Line
2) Load
1) Line
2) Load
2
EMC Products
FSS
https://www.schurter.com /PG84
1-Phase Line Filters
Rated Current
[A]
1
2
3
4
6
10
16
█
Most Popular.
Filter-Type
Standard Version
Standard Version
Standard Version
Industrial Version
Industrial Version
Industrial Version
Industrial Version
Leakage Cur-
rent [mA]
0.25
0.25
0.25
1.4
1.4
1.4
1.4
L1
[mH]
2 x 15
2 x 10
2 x 12
2 x 10
2x6
2x5
2x4
L2
[mH]
1
0.4
1
0.8
0.5
0.2
0.2
L3
[mH]
-
0.4
-
-
-
0.2
0.2
Cx1 [μF] Cx2 [μF]
0.1
0.1
0.1
0.1
0.1
0.1
0.47
0.47
0.47
0.68
0.68
0.68
1
2.2
Cy1
[nF]
1.5
1.5
1.5
10
10
10
10
Cy2
[nF]
1
1
1
4.7
4.7
4.7
4.7
R [MΩ]
1
1
1
1
1
1
1
Weight
[g]
121 g
121 g
275 g
275 g
284 g
529 g
2000 g
Housings
10
10
48
48
48
19
27
Order Number
5500.2051
5500.2052
5500.2053
5500.2054
5500.2055
5500.2056
5500.2057
█
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
10 Pcs
4
