125W Constant Voltage LED Driver
PDA125 Series for Outdoor Lighting
Features
High Efficiency
UL8750 Compliant
5 Year Warranty
OVP, Short and Open Circuit Protection
Applications
General Lighting
Street Lighting
Safety Approvals
CE

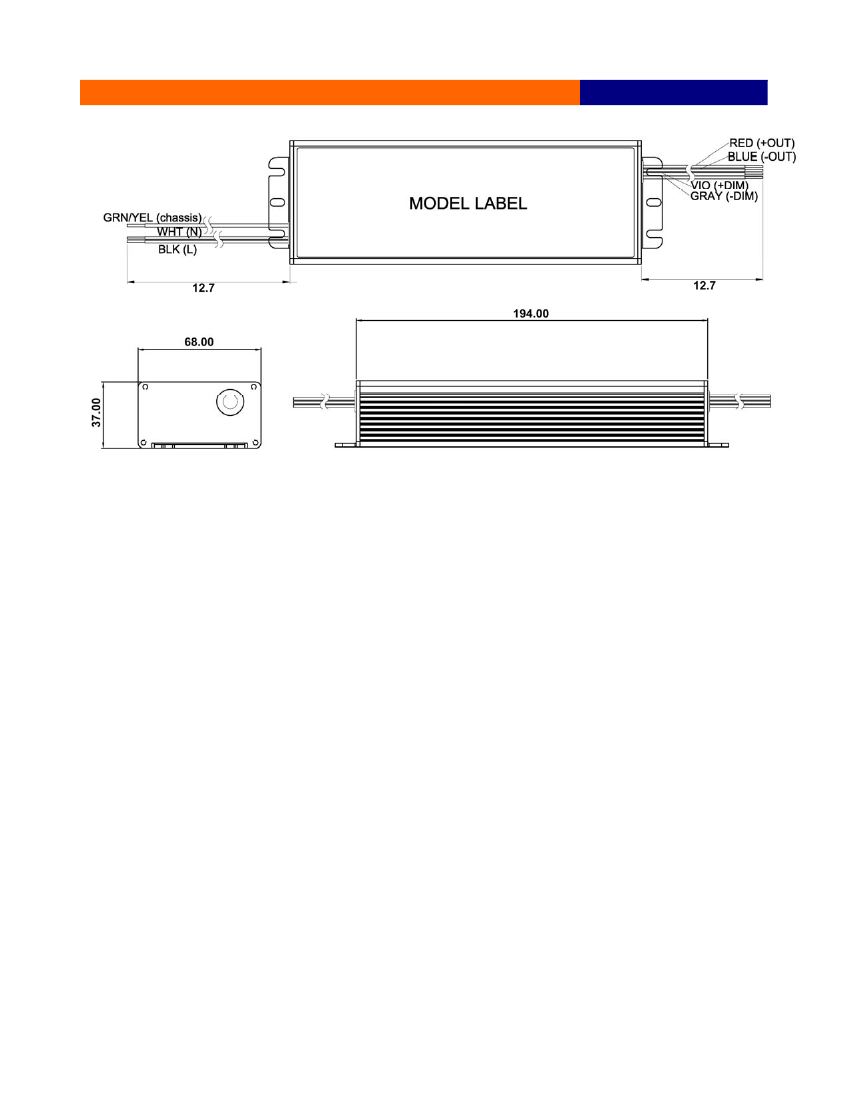

Mechanical Characteristics
Length: 194mm (7.64in)
Width: 68mm (2.67in)
Output Specifications
Model
PDA125X-24VF
PDA125X-48VF
Note
IP66, Potted
120V-277VAC Rated Operation
Brownout/Brownout Recovery
Class 2 per UL1310
Outdoor Lighting
Architectural Lighting
cUL/UL
Height: 37mm (1.46in)
Weight: 936g (2.06lbs)
DC Output
Voltage
24V
48V
Min.
0mA
0mA
Output Current
Typ.
-
-
Max.
5.2A
2.6A
Output
Power
(1)
125W
125W
(1): Output power drops to 112.5W maximum when input is 90-100VAC
(2): Substitute W for X when ordering dimming version and B for non-dimmable model.
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revised 12/19/2013
PDA125X Characteristics
Input:
AC Input Voltage Range
90VAC to 304VAC
WWW.PHIHONG.COM
EMC
EN55015/CISPR 15/FCC 47 Part 15/18 Class A
Immunity
AC Input Frequency
47~63Hz
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
IEC61000-3-2 Class C
Maximum Input Current
≤
2A
Leakage Current
0.5mA maximum at 230VAC Input
Inrush Current
≤
30A
Input Over Current Protection
The input power line will be fused with a 2A fuse
OUTPUT:
Power Factor
≥
0.9
Short-Circuit Protection
The PSU will withstand a short circuit across the
outputs without damage
Ripple and Noise
<35% (p-p)
Open Circuit Protection
Once the circuit is opened, the output voltage should be
less than 120% at nominal AC input conditions
Efficiency
93% at 230~ 277VAC
91% at 120VAC
Dielectric Withstand (Hi-pot) Test
Primary to secondary: 4242VDC for 1 minute, 5.5mA
Turn-on Delay Time
0.5s maximum at nominal AC Power ON
Insulation Resistance
Primary to secondary: >5M Ohm 500VDC, 1 Minute
Environmental:
Temperature
Operation
Non-operation
Operating Humidity
-40 to +60°C
-40 to +85°C
10 to 95%
Lifespan
50K Hours at full output power, 50°C ambient, Tcase <
rating
Wire Connections
Position Terminal Color
Line
Black
Neutral
White
Ground
Green/Yellow
Vout+
Red
Vout-
Blue
Dim+
Violet
Dim-
Grey
Specification
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
Dimming Function: (W Models)
Dimming Control
0-10VDC
Dimming Output to Load
PWM at 1000Hz
Warranty
Dimming Grounding
Dim(-) and Vout(-) must never be connected
together to ensure proper operation and isolation
requirements
5 Years
