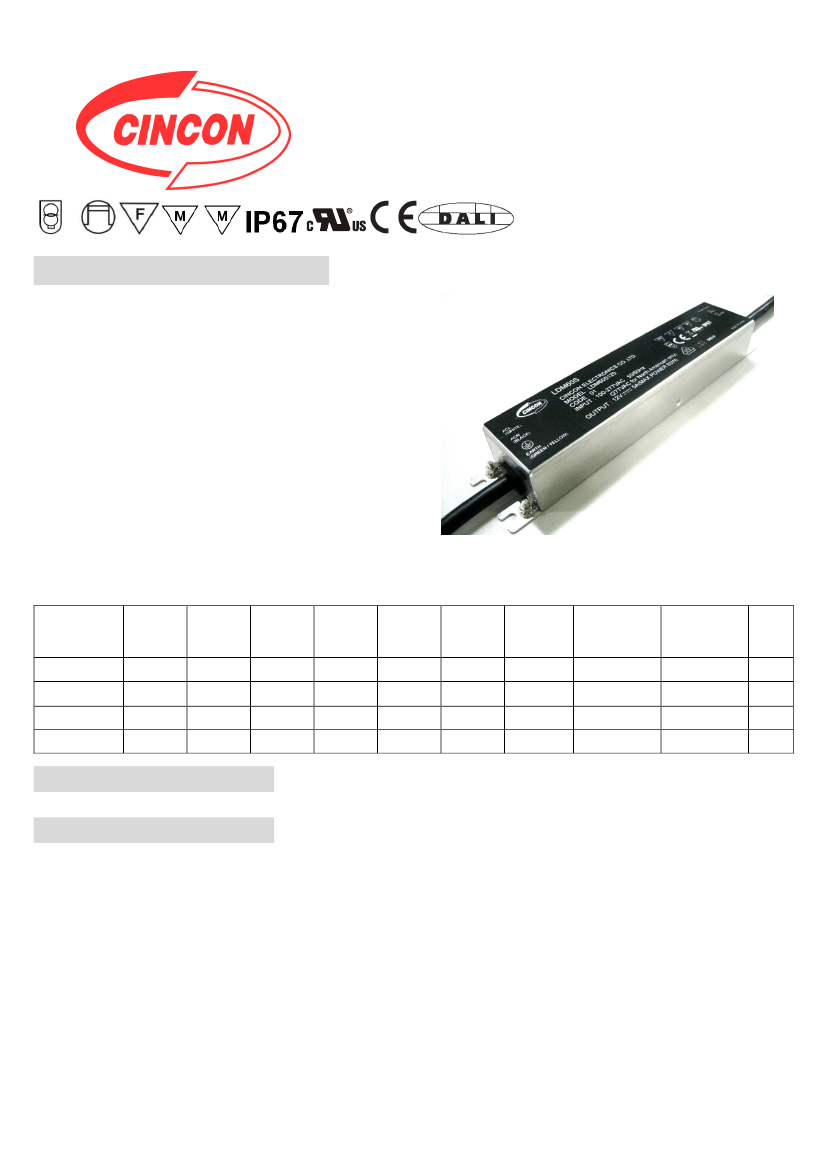

V12
LDM60S SERIES
60 WATT SINGLE OUTPUT
AC-DC
LED DRIVER
Features
* Universal Input 90-305VAC
* High Efficiency up to 90%
* Meets EN55015,EN61000-3-2 Class C
* Meets EN61347-1,EN61347-2-13
* Meets UL8750
* Dimming Input Range 1%~100%
* Active PFC Function
* IP67 Design for Indoor or Outdoor
Installations
(note7)
* Max. Output power 60W
* C.C+C.V Function
* Dimming function: 1~10Vdc, PWM
(note10)
and Resistance or DALI
(Optional)
* Protections: Short Circuit, Over Current
Over Voltage and Over Temperature
* No Load Power Consumption<0.75W
(note11)
* 3 Years Warranty
LDM60 Series
MODEL
Output
Voltage
Output
Current
Note.6
Ripple
(mV p-p)
Note.1
Voltage
Accuracy
Note.2
Line
Load
Regulation Regulation
Note.3
Note.4
Constant
Current
Region
Current
Adj. Rang
(Optional)
Note.5
Voltage
Adj. Rang
(Optional)
Note.5
%EFF.
(Typ.)
Note.8
LDM60S120
LDM60S240
LDM60S360
LDM60S480
12V
24V
36V
48V
5.00A
2.50A
1.67A
1.25A
120mV
120mV
120mV
120mV
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±2%
±2%
±2%
±2%
6.5V~12V
13V~24V
19V~36V
26V~48V
3A~5A
1.5A~2.5A
1.0A~1.67A
0.75A~1.25A
10.8V~13.2V
21.6V~26.4V
32.4V~39.6V
43.2V~52.8V
87%
88%
89%
90%
Ordering information
Model No.
LDM60SXXX
CODE: xx
01: Constant Current Mode (IP67)
03A: Constant Current Mode (IP65)
No dimming
Dimming:1~10Vdc or PWM and Resistance
No adjustment for output voltage and output current
With adjustment for output voltage and output current
02: Constant Current Mode (IP65)
04: Constant Current Mode (IP67)
No dimming
Dimming: DALI
With adjustment for output voltage and output current
No adjustment for output voltage and output current
04A: Constant Current Mode (IP65)
03: Constant Current Mode (IP67)
Dimming: 1~10Vdc or PWM and Resistance
Dimming: DALI
No adjustment for output voltage and output current
With adjustment for output voltage and output current
1
Specifications
INPUT SPECIFICATIONS:
Voltage …........……........….…....................... 90~305Vac or 127~420Vdc
Frequency ………………………………..……….……………..... 47 to 63Hz
Inrush Current …………………….60A max. @240Vac, Cold Start @25℃
Conducted EMI ………………......….……..…..…… CISPR/FCC Class B
Power Factor ……………………….…………..…………….......PF> = 0.9
Leakage Current………………...………..….………………..……1mA max.
Input Current……….……………………….0.6A typ. @110Vac ,Pout=59W
…………….……………….0.31A typ. @230Vac ,Pout=59W
Output current(%)
100
90
80
70
60
50
40
30
20
10
0
0
1
2
3
4
5
6

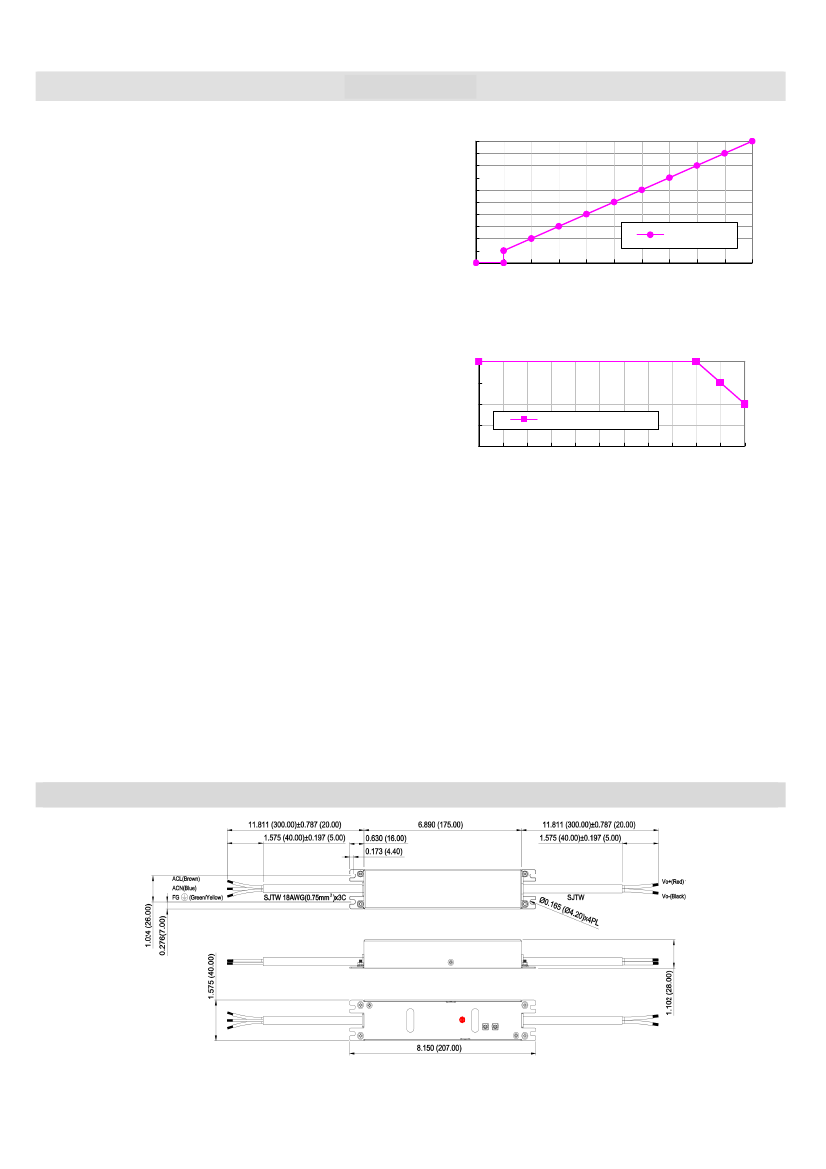

1~10V Dimming function for output current curve:
Typical curve
OUTPUT SPECIFICATIONS:
Holdup Time …………………………….…………… 16ms typ. @115Vac
Short Circuit Protection ……………...………Hiccup Mode (Auto Recover)
Temperature Coefficient .……………….…..........................… ±0.05% /
℃
Over Voltage Protection ………….....……..…TVS Component to Clamp
Over current Limit…………..…….…..…..constant current mode (note 9)
Over Temperature Protection…………….……….……….……..110
℃
typ
Altitude……………………..…………….…..………….……………2000 m
Startup time………………………………………..……….………….2.5s typ.
Rise time………………………………….…………………………50ms typ.
MTBF….….…..... MIL-HDBK-217F, GB, at 25
℃
/115VAC…150KHrs typ.
Life time……………………………………………...40000Hrs max,@ 25
℃
Vibration….……..15~2000Hz 4G period for 60min,each along X Y Z axes
7
8
9
10
DIM(V)<1V,the output will be shut down
Derating curve:
100
Rated Load(%)
75
50
25
0
-40 -30 -20 -10
0
10
20
30
40
50
60
70
Ambient Temperature(
o
C)
20LFM(Natural Convection)
SAFETY AND EMC :
Emission and Immunity …………..………..…………EN55015 ,CISPR22
EN61547, EN61000-3-2, EN61000-3-3
Isolation Voltage…………….……………………………..I/P-O/P 3750VAC
Surge……………………………………….……………………………….4KV
Safety………………….………………UL8750, EN61347-1,EN61347-2-13
Harmonic Current…………..………… EN61000-3-2 Class C (>60% load)
Isolation Resistance……………………….…………………...100M
Ω
min.
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple, Noise measuring @20MHz BW and 95% rated current.
2. Voltage accuracy is set of 90% rated current.
3. Line regulation is measured from High Line to Low Line with 90% Rated
current.
4 .Load regulation is measured from 90% to 10% Rated current.
5 .Can be adjusted by internal potentiometer.
6 .Output Constant Current Accuracy ±5%
7. IP67 for model:LDM60SXXX-01, LDM60SXXX-03, LDM60SXXX-04
IP65 for model: LDM60SXXX-02 , LDM60SXXX-03A, LDM60SXXX-04A
8. Efficiency is measured 95% rated power at Vin=230VAC.
9. Less than 50% (Typ.) of the rated output voltage will enter hiccup mode.
10.PWM function is signal reception, Non-Output PWM signal.
11.No load power consumption<0.75W for LDM60SXXX-01, -02
No load power consumption<1.5W for LDM60SXXX--03, -03A, -04, -04A
Stand by power consumption<1.0W for LDM60SXXX-03, -03A, -04, -04A
GENERAL SPECIFICATIONS:
Operating Temperature ...........................-40 ~ 70
℃
(see Derating Curve)
Storage Temperature ………………….………..….......……........ -40~85
℃
Cooling ………………………….…………...…….……..Natural Convection
MECHANICAL CHARACTERISTICS:
Dimensions …………..….. 1.5748x8.149x1.1023 Inches (40x207x28mm)
Weight …………………………………..……………………………454g typ.
Mechanical Specification
All Dimensions in Inches(mm)
Tolerance
Inches:x.xxx±0.02
Millimeters:x.xx±0.5
T case
＊
T case:Max. Case Temperature
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
