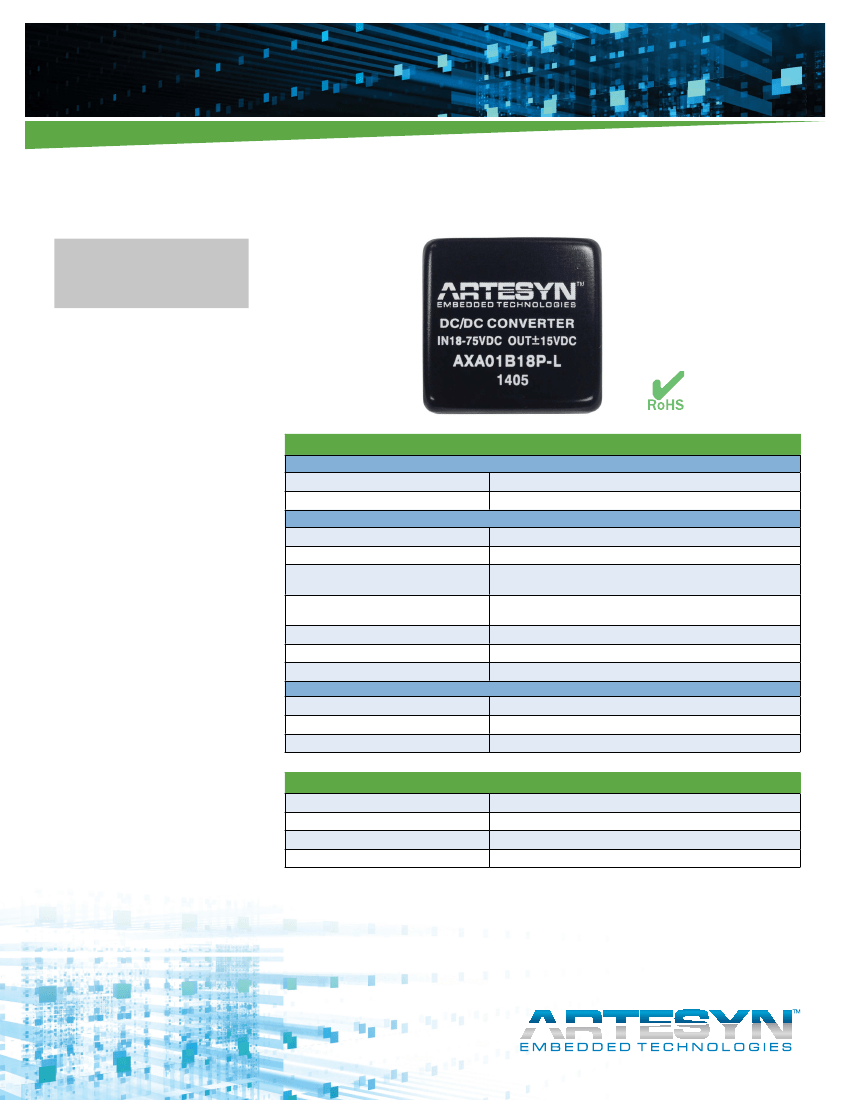

POWER
Data Sheet
Total Power:
20 W
Input Voltage: 24 or 48 V
# of Outputs:
Single and Dual
Special featureS
Package size 1.0” x 1.0” x 0.4”
Ultra-wide 4:1 input range:
9 - 36 Vin, 18 - 75 Vin
Very high efficiency up to 90%
Operating temperature range:
-40 °C to +85 °C
Output voltage adjustable
I/O isolation voltage 1500 VDC
Remote ON/OFF control
Metal case with isolated baseplate
CSA/UL/IEC/EN 60950-1
Safety Approval
AXA Series
20 Watts
Electrical Specifications
Input
Input range:
Efficiency:
9 - 36 Vdc, 18 - 75 Vdc
89% @ 12 Vo
±1.0%
±0.2% for single output, ±0.5% for dual output
±0.2% for 12 V, 15 V and 24 V, ±0.5% for 3.3 V and 5 V.
±1.0% for dual output
3.3 V and 5 V Models: 75 mV; 12 V and 15 V Models: 100 mV;
24 V Models: 150 mV; Dual Output Models: 100 mV
150% typ of Io max, hiccup
Hiccup mode
330 KHz
I/O: 1500 Vdc
1000 Mohm
1500 pF
Output
Voltage tolerance:
Line regulation:
Load regulation:
Noise/ripple:
Overload protection:
Short circuit protection:
Switching frequency
SafetY
cUL/UL 60950-1
IEC/EN 60950-1
Isolation
I/O isolation:
Insulation resistance:
Insulation capacitance:
Environmental Specifications
Operating ambient temperature range:
Storage temperature:
Humidity:
MTBF:
-40 °C to +85 °C
-50 °C to +125 °C
5% to 95% non-condensing
346 Khrs calculated
AXA Series Data Sheet
Ordering Information
Part Number
Input Voltage
Output Voltage
Output Current
Efficiency
Power
AXA04F18-L
AXA04A18-L
AXA01B18-L
AXA01C18-L
AXA00H18-L
AXA00BB18-L
AXA00CC18-L
AXA04F36-L
AXA04A36-L
AXA01B36-L
AXA01C36-L
AXA00H36-L
AXA00BB36-L
AXA00CC36-L
9 - 36 Vdc
9 - 36 Vdc
9 - 36 Vdc
9 - 36 Vdc
9 - 36 Vdc
9 - 36 Vdc
9 - 36 Vdc
18 - 75 Vdc
18 - 75 Vdc
18 - 75 Vdc
18 - 75 Vdc
18 - 75 Vdc
18 - 75 Vdc
18 - 75 Vdc
3 V3
5V
12 V
15 V
24 V
±12 V
±15 V
3 V3
5V
12 V
15 V
24 V
±12 V
±15 V
4.5 A
4A
1.67 A
1.33 A
0.835 A
±0.835 A
±0.67 A
4.5 A
4A
1.67 A
1.33 A
0.835 A
±0.835 A
±0.67 A
87%
89%
89%
89%
88%
89%
89%
88%
89%
89%
89%
88%
89%
89%
15 W
20 W
20 W
20 W
20 W
20 W
20 W
15 W
20 W
20 W
20 W
20 W
20 W
20 W
To order the converter with heatsink, please add a suffix –HS (e.g. AXA01B36-LHS) to order code.

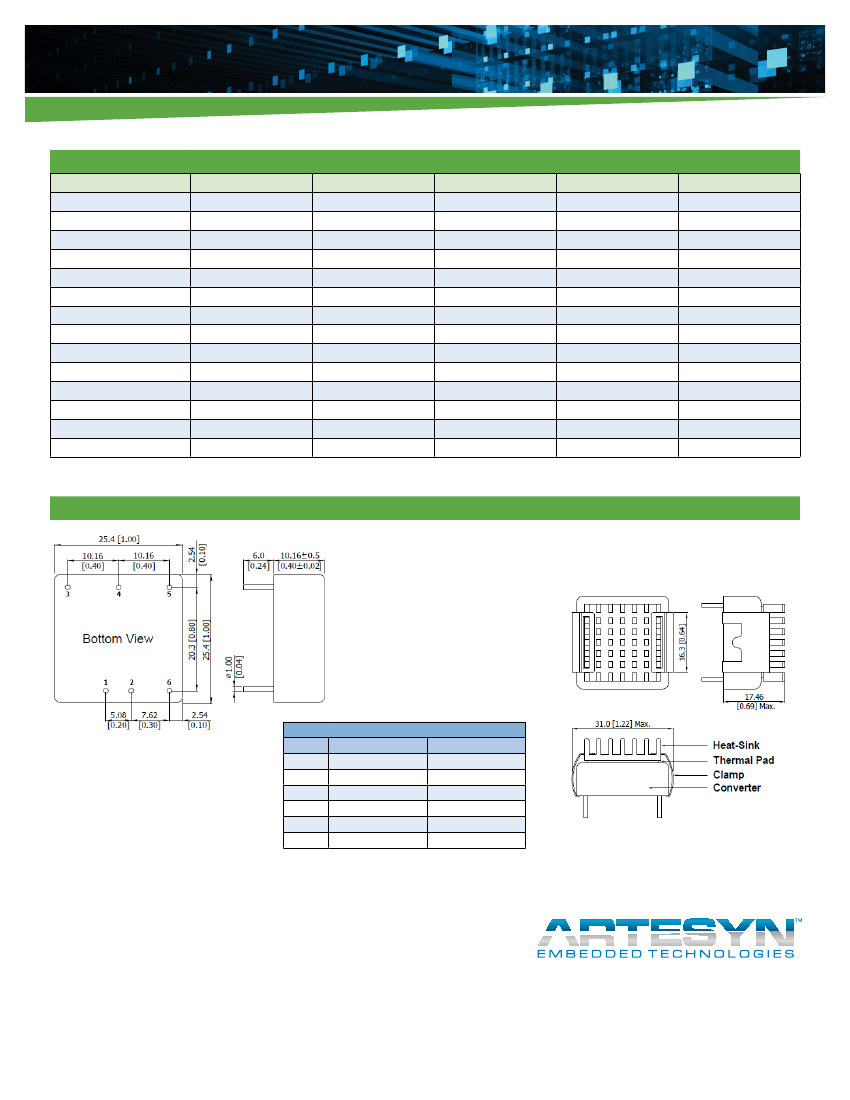

Mechanical Dimensions
Heatsink (Option –HS)
• All dimensions in mm (inches)
• Tolerance: X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
• Pin diameter Ø 1.0 ±0.05 (0.04±0.002)
Pin Connections
Pin
1
2
3
4
5
6
Single Output
+Vin
-Vin
+Vout
Trim
-Vout
Remote On/Off
Dual Output
+Vin
-Vin
+Vout
Common
-Vout
Remote On/Off
