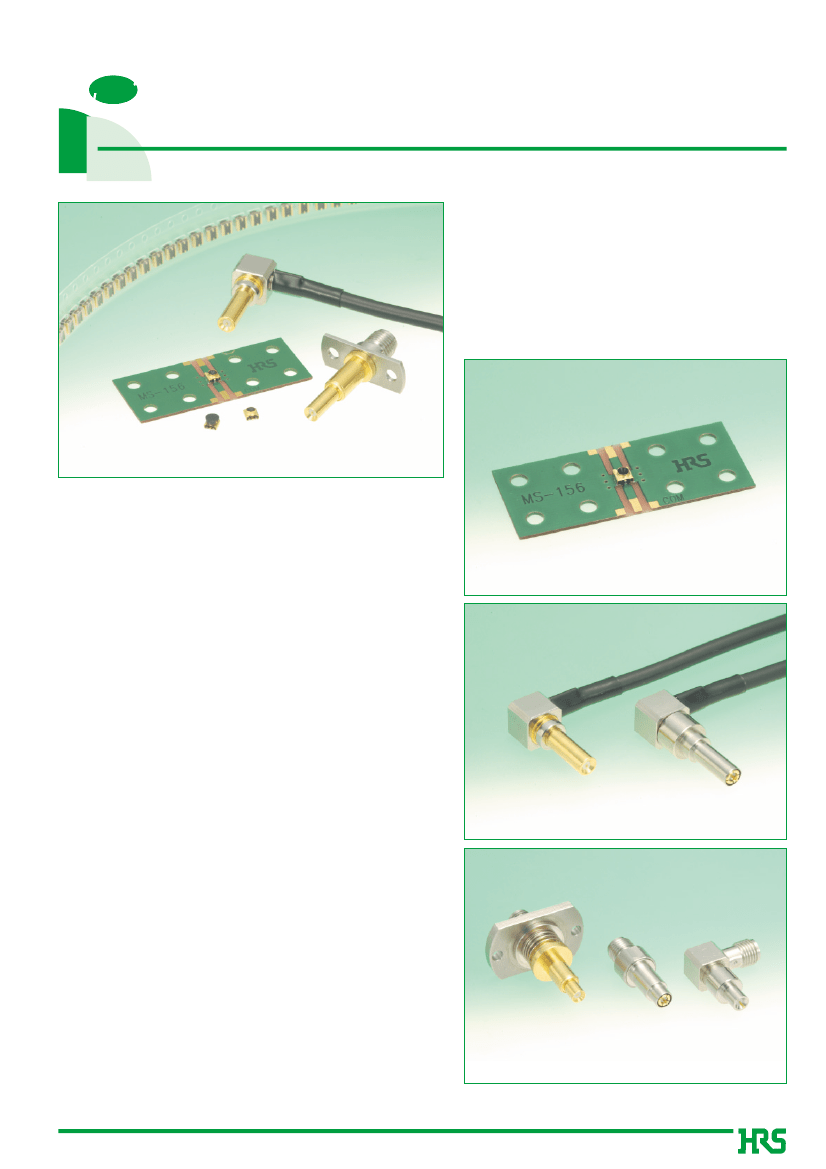

Subminiature Coaxial Switch 1.6 mm High, DC to 6 GHz
MS-156 Series
s
Overview
Developed for inspection of high frequency
circuits used in portable terminals.Verification of
the circuit performance is accomplished by simply
inserting the external plug in the board mounted
receptacle.This action re-directs the circuit from
normal condition to the plug side. Removing the
plug restores circuit to its normal condition.
Space-saving design
Low profile -1.6 mm protrusion above the board.
Lightweight -0.025 g. total weight.
s
Features
1. Low insertion loss
0.1 dB typical at 6 GHz (not mated with the plug).
2. Space-saving design
2.7 mm x 2.7 mm occupied board space.
MS-156
3. Low profile
1.6 mm protrusion above the board.
Several types of plugs
4. Lightweight
0.025 g. total weight (without vacuum cap).
5. Durability
100 mating/unmating cycles, with corresponding plug.
6. Performs over a wide frequency range
Applicable frequencies range over a wide band,
from DC to 6 GHz.
7. Board placement with automatic equipment
Packaged on tape-and-reel. Also available with a
vacuum cap over each switch.
Several types of SMA conversion adapters
8. Supports lead-free environments
All components use lead-free materials.
s
Applications
Portable terminals, ETC, notebook computers (Bluetooth),
wireless LAN, POS terminals, GPS terminals, PDA, and any
small devices requiring verification of antenna/circuit
performance.
2003.11
1
sProduct
Specifications
Not mated with the plug
Operating temperature range
Rated power
Frequency range
Insertion loss
-40ç to +85ç
2W
DC to 6GHz
0.1 dB max.(DC to 3.0GHz)
0.15 dB max.(3.0GHz to 6.0GHz)
Mated (MS-156-HRMJ-3)
-40ç to +85ç
2W
DC to 6GHz
0.5 dB max.(DC to 3.0GHz)
1.2 dB max.(3.0GHz to 6.0GHz)
Isolation loss
20 dB max.(DC to 2.0GHz)
15 dB max.(2.0GHz to 4.0GHz)
13 dB max.(4.0GHz to 6.0GHz)
1.2 max.(DC to 2.5GHz)
1.3 max.(2.5GHz to 6.0GHz)
1.4 max.(DC to 3.0GHz)
1.8 max.(3.0GHz to 6.0GHz)
V.S.W.R
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Vibration
100 m ohms max.
1000 M ohms min.
Specification
100 mA max.
100 V DC
Conditions
No flashover or insulation breakdown
100 V AC / 1 minute
Frequency:10 to 55 Hz, single amplitude of
0.75 mm, 2 hours in each of the 3 axis.
Acceleration of 490 m/s
2
, 6 ms duration, sine half-
wave waveform, 3 cycles in each of the 3 axis
Temperature: -55ç
/
+5ç to +35ç
/
+85ç
/+5ç
to +35ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
100 cycles
100 cycles
No electrical discontinuity of 1 µs or more
5. Shock
Contact resistance: 100 m ohms max.
Insulation resistance: 10 M ohms min.
Contact resistance: 100 m ohms max.
6. Thermal shock
7. Durability (mating/un-mating,
with corresponding plug)
sMaterials
Part
Shell
Insulator
Common terminal
Antenna terminal
Material
Phosphor bronze
9T Nylon
Beryllium copper
Phosphor bronze
Finish
Gold plating
--------------
-------------
Gold plating
Gold plating
Remarks
--------------
-------------
UL94V0
--------------
-------------
--------------
-------------
2
