POWER
Data Sheet
Total Power:
60 - 80 Watts
Input Voltage:
85 - 264 Vac
120 - 300 Vdc
# of Outputs:
Triple

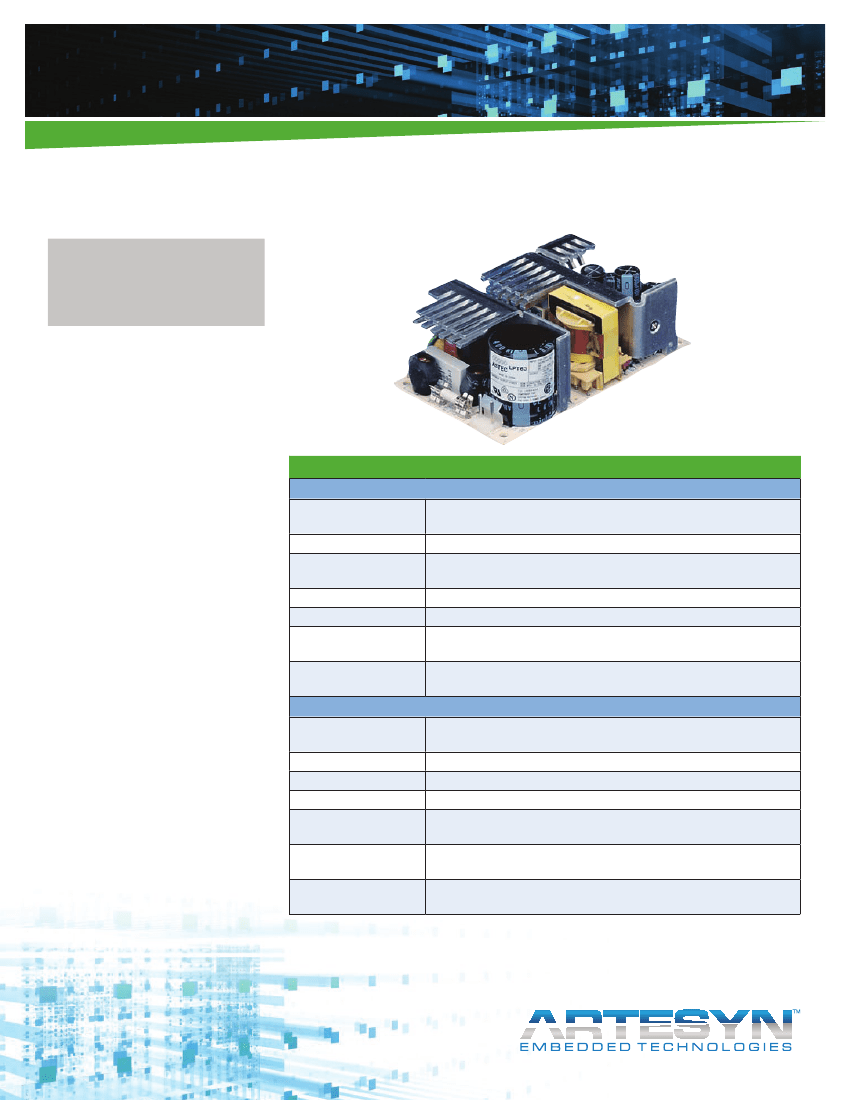

SPECIAL FEATURES
Universal input
3” x 5” footprint
Remote sense on main output
Built-in EMI filter
Low output ripple
Adjustable main output
Overvoltage protection
Overload protection
110 KHz switching frequency
LPX60 enclosure kit available
RoHS compliant
LPT60 Series
60 Watts
Electrical Specifications
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI
Safety ground
leakage current
Output
Maximum power
Cross regulation
Adjustment range
Hold-up time
Overload protection
Overvoltage protection
Remote sense
60 W for convection (LPT61, 35 W);
80 W with 30CFW forced air (LPT61, 55 W)
±2% on output 1; ±5% on outputs 2, 3
-5, +10% minimum
20 ms @ 40 W load, 115 Vac nominal line
Short circuit protection on all outputs. Case overload protected @ 110%
to 145% above peak rating
5.7 to 6.7 Vdc on the main output
LPT41: 3.6 to 4.6 Vdc
Compensates for 0.5 V lead drop min. Will operate without remote
sense connected. Reverse connection protected.
85 - 264 Vac
120 - 300 Vdc
47 - 440 Hz
<18 A peak @ 115 Vac;
<36 A peak @ 230 Vac, cold start @ 25 °C
1.5 A max. (RMS) @ 115 Vac
70% typical at full load (60% for LPT61)
FCC Class B conducted; CISPR 22 Class B conducted EN55022 Class
B conducted; VDE 0878 PT3 Class B conducted
<0.5 mA @ 50/60 Hz, 264 Vac input
SAFETY
60950
E132002
cUL :
60950
LR53982C
NEMKO: EN 60950/EMKO-TUE
P95100123 (74-sec) 203
CB:
Certificate and report
1518, 1519, 1520
CE:
Mark (LVD)
UL:
LPT60 Series Data Sheet
Environmental Specifications
Operating temperature
Electromagnetic susceptibility
Humidity
Vibration
Storage temperature
Temperature coefficient
MTBF demonstrated
0 °C to 50 °C ambient derate each output at 2.5% per degree from 50 to 70 °C, -20 °C startup
Designed to meet IEC 801, -2, -3, -4, -5, -6, Level 3
Operating; non-condensing 5% to 95%
Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell at four major resonances 0.75G peak 5 Hz to 500
Hz, operational
-40 °C to 85 °C
±.04% per °C
>550,000 hours at full load and 25 °C ambient conditions
Ordering Information
Model
Number
LPT61
Output
Voltage
+3.3 V
+5 V
+12 V
+5 V
+12 V
-12 V
+5 V
+15 V
-15 V
+5 V
+12 V
-5 V
+5 V
+24 V
+12 V
Minimum
Load
0.7 A
0A
0A
0.7 A
0.3 A
0A
0.7 A
0.3 A
0A
0.7 A
0.3 A
0A
0.7 A
0.1 A
0A
Maximum Load with Maximum Load with
Convection Cooling 30CFM Forced Air
5A
2.5 A
0.5 A
7A
3A
0.7 A
7A
2.8 A
0.7 A
7A
3A
0.7 A
7A
1.5 A
0.7 A
8.5 A
3.0 A
1.0 A
8A
3.5 A
1A
8A
3.3 A
1A
8A
3.5 A
1A
8A
2.0 A
1A
Peak Load
1
9.5 A
3.3 A
1A
10 A
6A
1.5 A
10 A
4A
1.5 A
10 A
6A
1.5 A
10 A
3A
1.5 A
Regulation
2
±2%
±2%
±5%
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±7%
±5%
Ripple
P/P (PARD)
3
50 mV
50 mV
120 mV
50 mV
120 mV
120 mV
50 mV
150 mV
150 mV
50 mV
120 mV
50 mV
50 mV
240 mV
120 mV
LPT62
LPT63
LPT64
LPT65
1.
2.
3.
4.
Peak current lasting <30 seconds with a maximum 10% duty cycle.
At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
Peak-to-peak with 20 MHz bandwidth and 10 μF in parallel with a 0.1 μF capacitor at rated line voltage and load ranges.
Minimum Loads are required.
5. This product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated
as a standalone product. EMC compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and
System Integrators, including through Distribution Channels. It is not intended for sale to End Users.

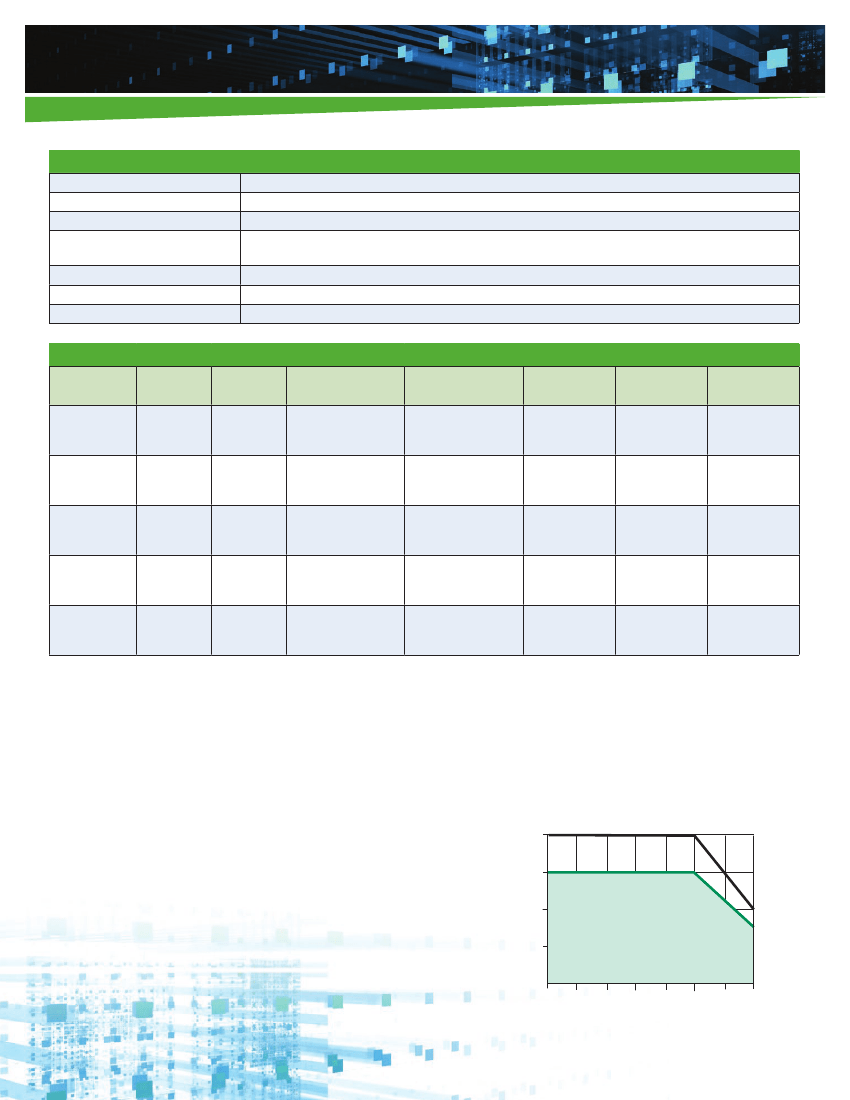

Power Derating Curve
80W
30 CFM Forced Air Cooling
60W
Output
Power
(Watts)
40W
20W
0W
Natural
Convection
Cooling
40W
30W
0°C 10°C 20°C 30°C 40°C 50°C 60°C 70°C
TA – Ambient Temperature – °C
LPT60 Series Data Sheet

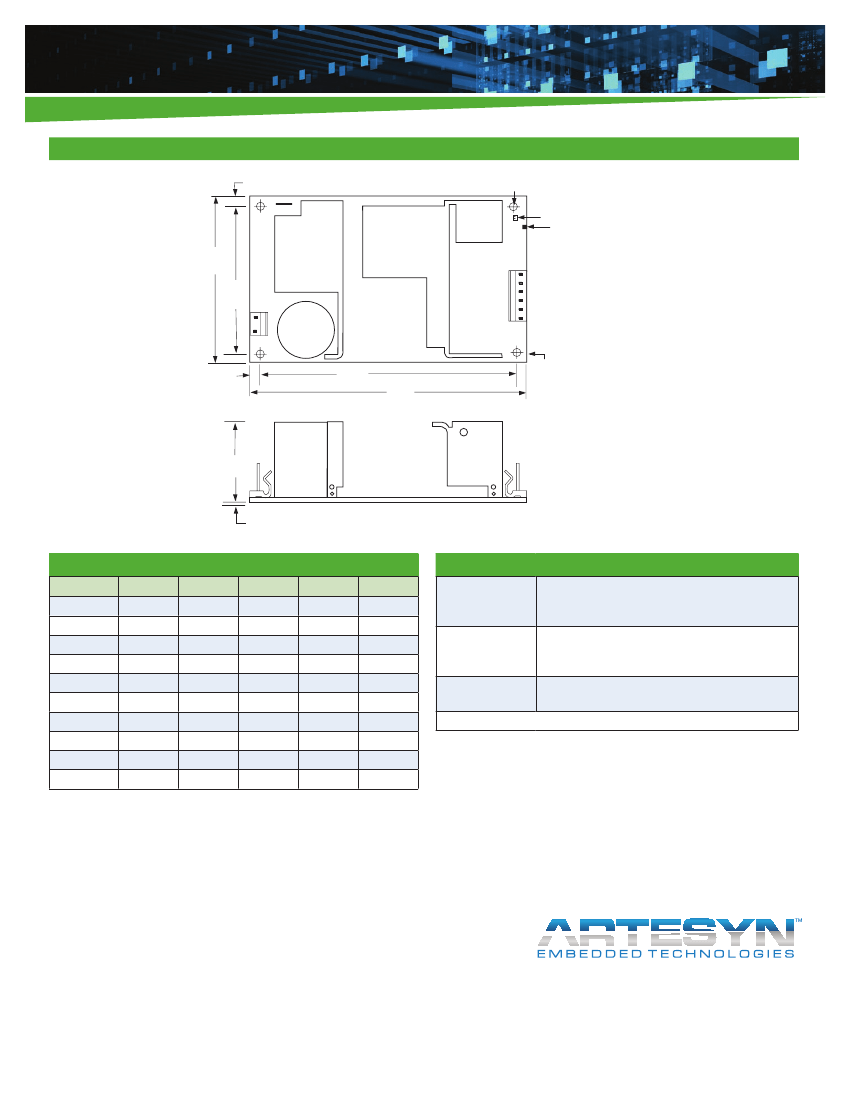

Mechanical Drawing
0.22"
(5.6)
M1
GND
M2
+
SK201
_
Remote Sense
Connector
Voltage
Adj. Pot
3.00"
(76.2)
2.55"
(64.8)
3
1
SK 1
N
L
1
2
3
4
5
6
SK 2
0.22"
(5.6)
4.56"
(115.8)
5.00"
(127)
0.15" (4)
DIA (4 places)
1.69"
(42.9)
0.12"
(3)
Pin Assignments
Connector
SK1-1
SK1-3
SK2-1
SK2-2
SK2-3
SK2-4
SK2-5
SK2-6
SK201-1
SK201-2
LPT61
Line
Neutral
5V
3.3V
3.3V
Common
Common
+12V
+Sense
-Sense
LPT62
Line
Neutral
+12V
+5V
+5V
Common
Common
-12V
+Sense
-Sense
LPT63
Line
Neutral
+15V
+5V
+5V
Common
Common
-15V
+Sense
-Sense
LPT64
Line
Neutral
+12V
+5V
+5V
Common
Common
-5V
+Sense
-Sense
LPT65
Line
Neutral
+24V
+5V
+5V
Common
Common
+12V
+Sense
-Sense
Mating Connectors
AC Input
Molex 09-50-8031 (USA)
09-93-0300(UK)
PINS: 08-58-0111
Molex 09-50-8061 (USA)
09-93-0600 (UK)
PINS: 08-52-0113
Molex 22-01-2025
PINS: 08-52-0113
DC Outputs
Remote Sense
Astec Connector Kit #70-841-006, includes all of the above
Specifications subject to change without notice.
All dimensions in inches (mm), tolerance is ±0.02” (±0.5mm)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Mounting hole M1 is safety ground connection.
Specifications are for convection rating at factory settings at 115
Vac input, 25 °C unless otherwise stated.
6. Warranty: 2 year
7. Weight: 0.75lbs/0.34kg
1.
2.
3.
4.
5.
