POWER
Data Sheet

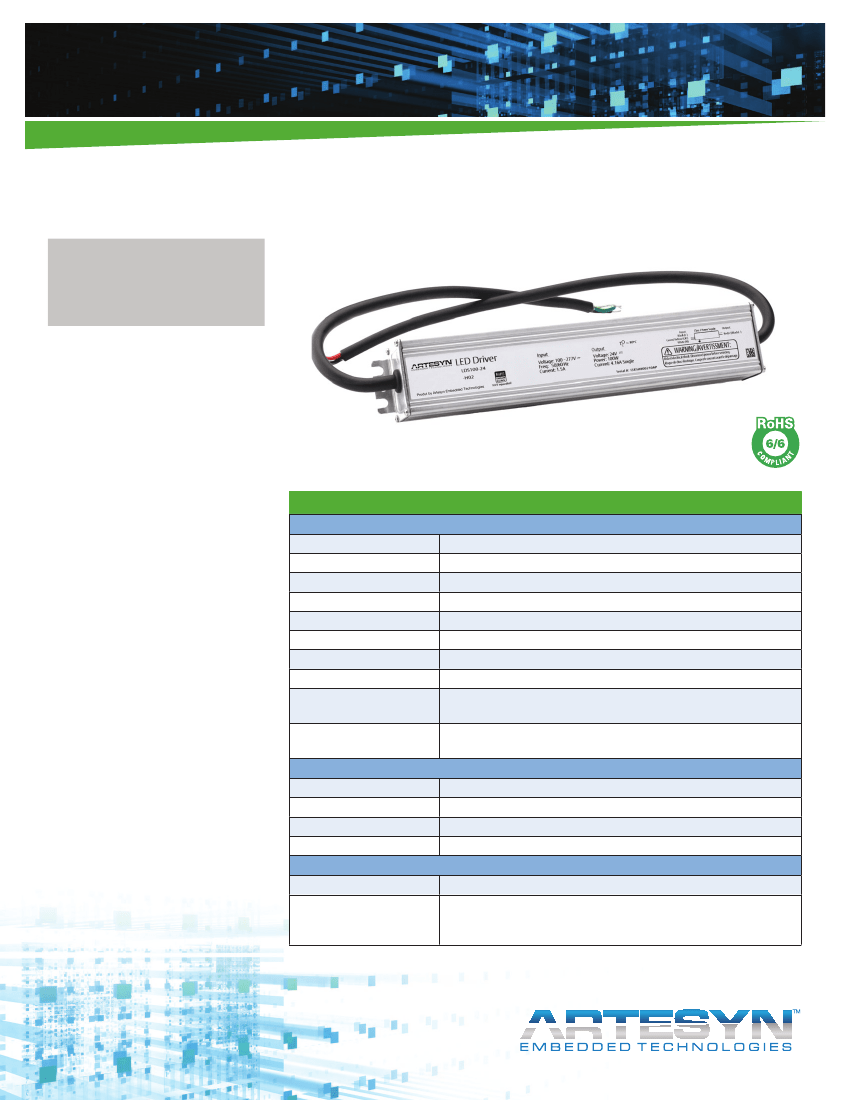

LED Lighting Power Supply - Class 2
LDS100 Series
Total Power:
100 Watts
# of Outputs:
Single
Special FeatureS
Constant Current & Constant
Voltage operation
Dimming options
Free-Air rated - No forced air
necessary for cooling
compliance
Class 2 Outputs
IP64 to IP67 Water Protection
CISPR 15 / FCC Part 15 EMI
Performance
Class C Harmonics
<1.5 W No-load power
> 0.9 Power Factor
Electrical Specifications
Input
Input range nom:
Input range max:
Input frequency:
Inrush current:
Leakage current:
Input power (no-load):
100 - 240 Vac (U models); 120-277 Vac (H models)
90-264 Vac (U models); 90-305 Vac (H models); Derating may apply
47 - 63 Hz
< 50 A max., cold start @ 25 °C
750 µA, at 264 Vac 50/60 Hz
< 1.5 W, at no load
< 118 W, at full load
Internally fused
CISPR 15
FCC Part 15
90% - 230 Vac
89% - 115 Vac
Programmable current levels. Refer to model table for details
No load to Full load operation. Refer to model table for details
100 W maximum. Class 2 rated outputs
< 2%
Programmable. Refer to model table for details
Short Circuit
Overvoltage
Overtemperature
SaFety
EN
UL
CSA
CE
61347-2-13
1310 / 8750
C22.2 No. 107.1
Mark (LVD)
Input power (max):
Input fusing:
EMI/RFI:
Efficiency (typical):
Output
Constant current:
Constant voltage:
Output power:
Ripple voltage:
Control and Protection
Current limit:
Protection:
Warranty
Standard 5-Year Warranty
LDS100 Series Data Sheet
Environmental Specifications
Criteria
Power Factor
Harmonics
THD - Input Current
Surge Immunity
EMC Compliance
Temperature (case)
Ingress Protection
-40 °C to 90 °C
IP67
Specification
> 0.9
Class C
< 20%
Level 3
6 kV ring wave
Reference
Energy Star
IEC 61000-3-2
ANSI C82.11
IEC 61000-4-5
ANSI C62.41
IEC 61000-4-2, -3, -4, -5, -6, -8, -11
Operating
Refer to model table for details

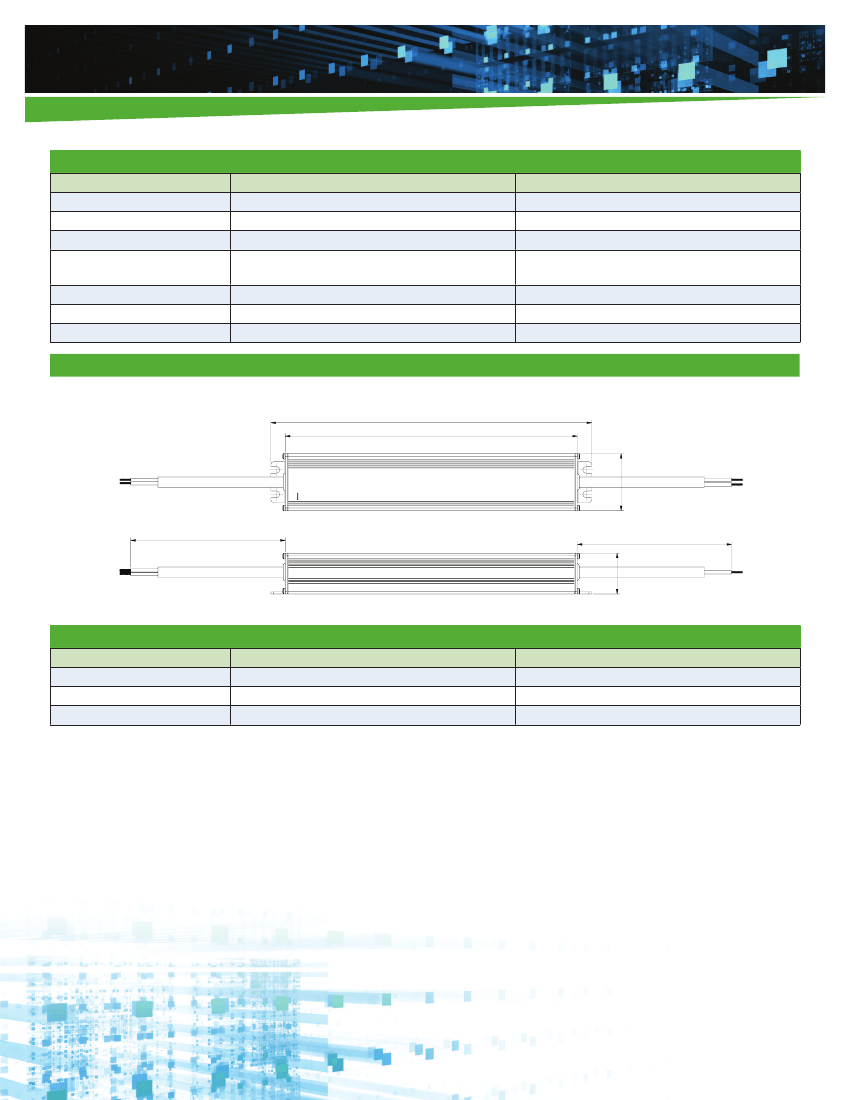

Mechanical Drawing
235.0
215.0
350±10
INPUT:
BLACK (L)
Green/Yellow (GR)
White (N)
42
350±10
UL1015 18AWG ×2C
30
OUTPUT:
Red (+)
Black (-)
UL1015 18AWG ×3C
227.5
225.5
Mechanical Miscellaneous
Criteria
Input Wiring
Output Wiring
Weight
30
Specification
300 mm
300 mm
625 grams
Ø5
(2P
L)
5
(4PL)
18
Reference
3-wire
4-wire
LDS100 Series Data Sheet
Ordering Information
Model
Number
LDS100-24-U00
LDS100-24-U04
LDS100-24-H00
LDS100-24-H03
LDS100-24-H04
LDS100-31-H03
LDS100-31-H04
LDS100-48-H03
Rated Output
Voltage
24 Vdc
24 Vdc
24 Vdc
24 Vdc
24 Vdc
31 Vdc
31 Vdc
48 Vdc
Rated Output Current
4.1 Adc
4.1 Adc
4.1 Adc
4.1 Adc
4.1 Adc
3.16 Adc
3.16 Adc
2.0 Adc
1 - 10 V
Programmable
1 - 10 V
Programmable
1
1 - 10 V
1
Dimming Interface
IP Rating
IP67
Programmable
1
IP67
IP67
IP67
IP67
IP67
IP67
IP67
Notes:
1. The Dimming Interface on these highly-flexible models can be programmed via a Graphical User-Interface. The options include 0-10 V, 1-10 V
and Bi-Level dimming. Maximum and minimum current levels and threshold levels are also programmable.

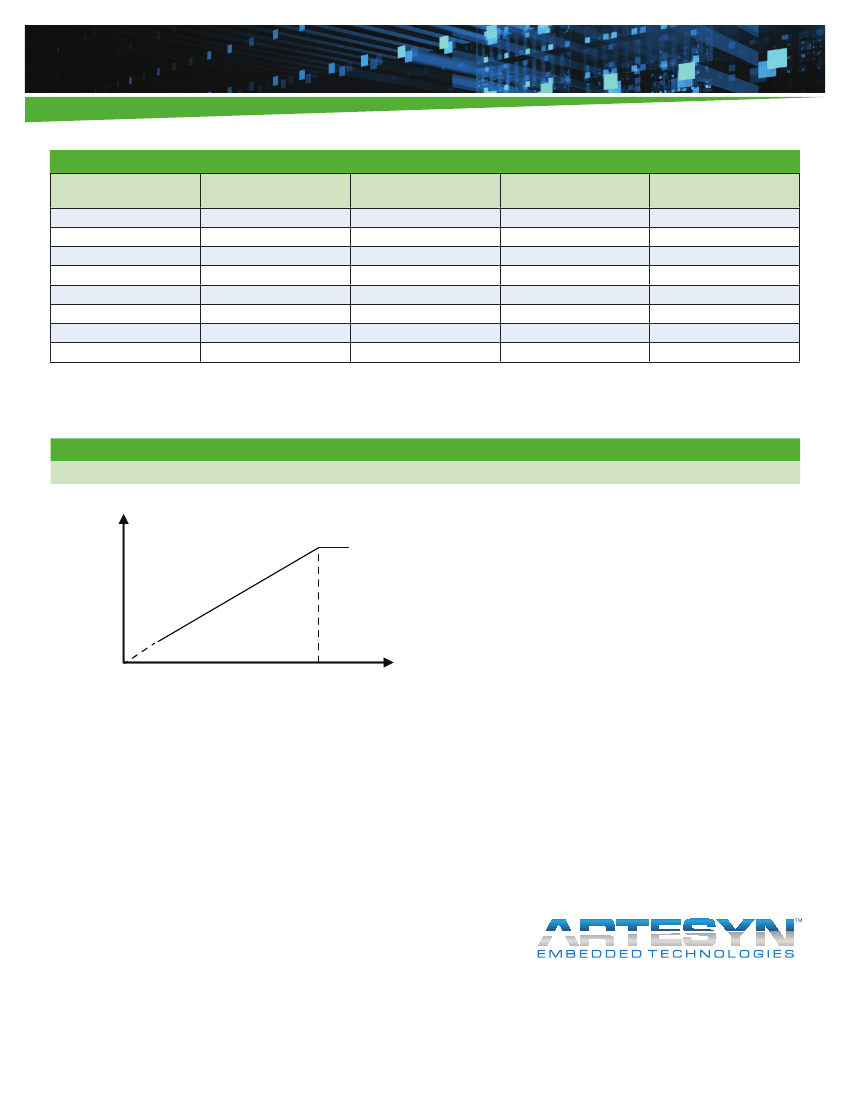

Current Adjust and Dimming Description
0 - 10 V Between Purple & Grey Wires (for model -H03 only)
Output
Current
100%
10%
1V
10 V
1 – 10 V
Signal
