AIF120F300-NTL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> AIF120F300-NTL

AIF120F300-NTL: DescriptionHeat Sinks Heatsink vertical fins 0.6" ht.; Categorysemiconductor Power management; File Size167KB，2 Pages; ManufacturerArtesyn; Websitehttp://www.artesyn.com

Download Datasheet Parametric Compare View All

AIF120F300-NTL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AIF120F300-NTL	-	-	View	Buy Now

AIF120F300-NTL Overview

Heat Sinks Heatsink vertical fins 0.6" ht.

AIF120F300-NTL Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	Artesyn
RoHS	Details
Number of Outputs	1 Output
Output Power	600 W
Input Voltage	250 V to 420 V
Output Voltage-Channel 1	3.3 V
Output Current-Channel 1	120 A
Mounting Style	SMD/SMT
Commercial/Medical	Commercial
Product	Isolated
Factory Pack Quantity	64

Preview

Download Datasheet

View All

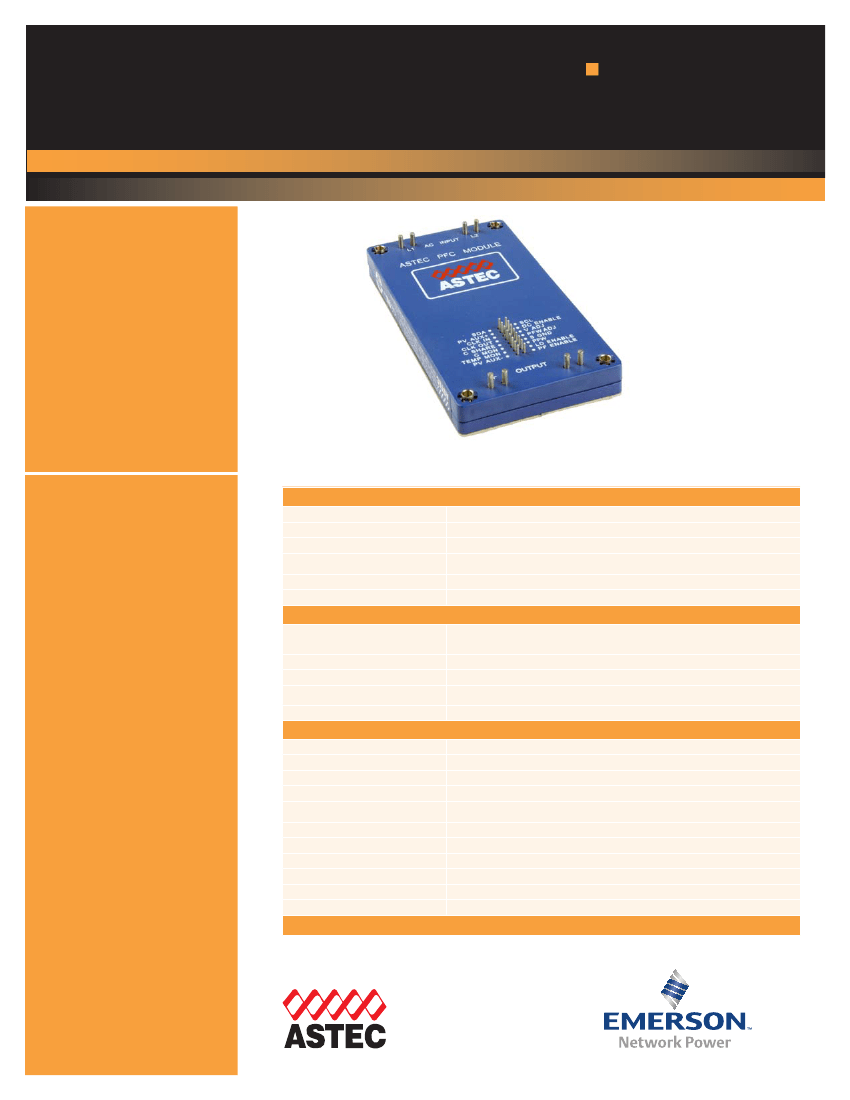

Embedded Power for

Business-Critical Continuity

AIF - PFC Series

1600 Watts

Total Power:

1600 Watts

/120 - 370VDC

(Configurable)

Input Voltage: 85 - 264VAC

# of Outputs:

Single

Rev. 09.07.10

AIF-PFC Series

1 of 2

Electrical Specifications

Special Features

•

Unity power factor

High efficiency - up to 95%

Universal input voltage

and frequency range

Up to 1600W output power

Positive and Negative

enable function

Parallelable with accurate

current sharing

<10% harmonic distortion

conforming to IEC1000-3-2

Compliance

100°C baseplate operating

temperature

DC Input option

Power fail warning signal

Enable output to control

DC-DC Converter

EEPROM data storage via

I2C Interface

External inrush current

limited protection

Power Density up to 290W/in

Input

Input ra nge

Input surge

Input Frequency

Efficiency

Total Harmonic Distortion

Power Factor

85 - 264 Vac / 120 - 370 Vdc (configurable)

290 Vac / 1s

50/60 Hz

95% @ 230Vac, 1600 W (typical)

Less than 10%

0.99 typical (Po ± 500 W); 0.97 typical (Po ± 1000 W)

380V typical(Io =4.2A / Vi > 180 Vac); 393V typical (Io = 0A)

Note: Vin peak must always be lower than Vout

10% max

430 max

Vin = 85Vac, Pmax = 1000W; Vin = 230Vac, Pmax = 1600W

Vin = 370Vdc, Pmax =1600W

Direct drive output to opto-isolator

195 to 355Vdc adjustable

Direct drive output to opto-isolator

TTL compatiable

76% to 100% Vo

6Vp-p typical @ 1MHz ± 5%

10mV/°C

0 to 1mA (1mA = 4.2A output)

Output

Output Voltage

Current Share Accuracy

Overvoltage Protection

Power Limit for AC input

for DC input

Control

Power Fail Warning

Power Fail Warning Adjust

LD Enable

PFC Enable

Voltage Adjust

DC Input Enable

Clock Input (external sync)

Clock Output (int. clock)

Temperature Monitor Output

Current Monitor Output

C Interface

Safety

cUL

TUV

60950 Recognized

EN60950

Licensed

Notes

Nominal values apply with sense pins disconnected and other control pin unconnected.

AIF120F300-NTL Related Products

	AIF120F300-NTL	AIF120Y300-NTL
Description	Heat Sinks Heatsink vertical fins 0.6" ht.	Heat Sinks Heatsink vertical fins 0.6" ht.
Product Category	Isolated DC/DC Converters	Isolated DC/DC Converters
Manufacturer	Artesyn	Artesyn
RoHS	Details	Details
Number of Outputs	1 Output	1 Output
Output Power	600 W	600 W
