HLN-80H-54B datasheet, PDF - EEWORLD Datasheet

HLN-80H-54B: DescriptionAC/DC LED Power Supply 81W Single 7-Pin; File Size618KB，5 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com

Download Datasheet Parametric Compare View All

HLN-80H-54B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLN-80H-54B	-	-	View	Buy Now

HLN-80H-54B Overview

AC/DC LED Power Supply 81W Single 7-Pin

HLN-80H-54B Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.20
Type	Constant Current
Input/Output Type	AC/DC
Number of Outputs	1
Output Voltage Range (VDC)	32.4 to 54
Maximum Output Current (mA)	1500
Output Power (W)	81
Input Voltage Range	90VAC to 305VAC\|127VDC to 431VDC
Dimming	1-10V/PWM/Resistor
Power Factor Correction	0.96(Min)
Efficiency (%)	91(Typ)
Termination Style	Lead Wire
IP Rating	IP64
Warranty	3Year
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	50
Product Weight (g)	500
Pin Count	7
Mounting	Screw
Package Height	35
Package Length	181
Package Width	61.5
PCB changed	7
Lead Shape	Lead Wire

Preview

Download Datasheet

View All

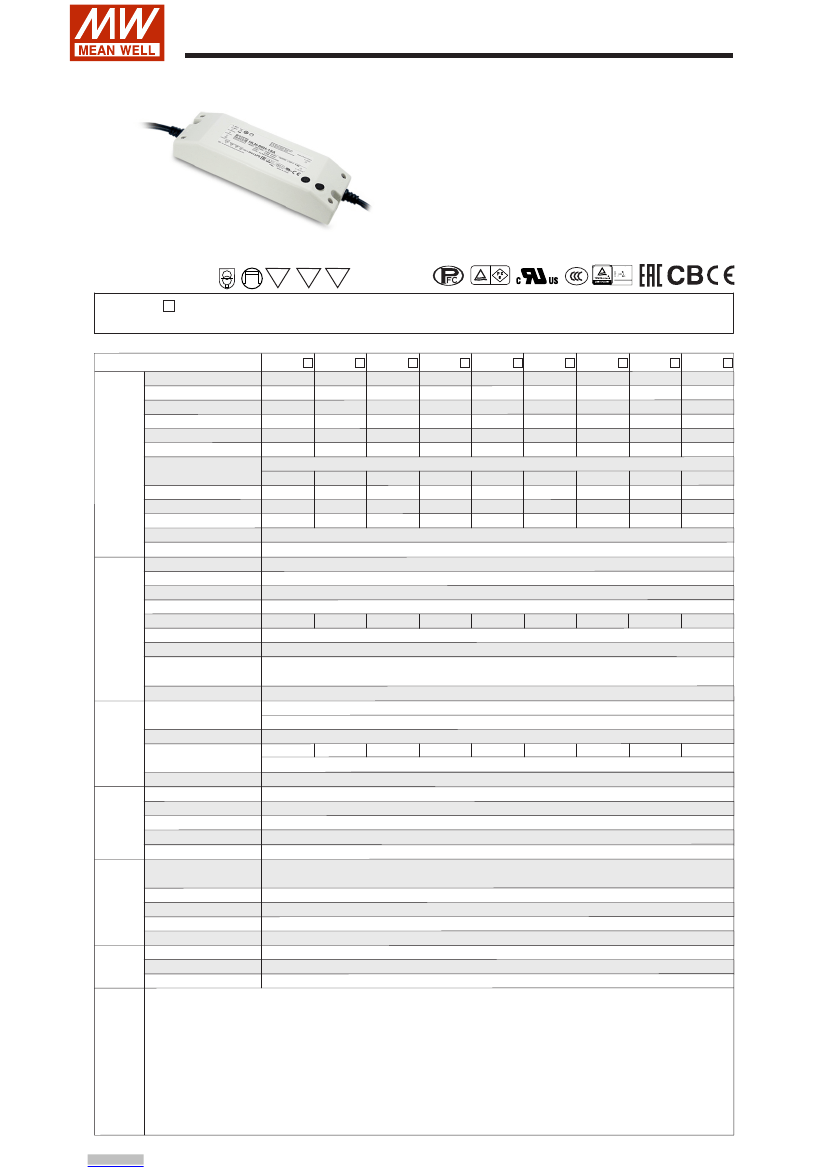

80W Single Output Switching Power Supply

■



HLN-80H

series

‧



‧



‧



‧



‧



‧



‧



‧



‧



‧



‧



‧











IP64

Bauar t gepruft

Sicherheit

egel ma ge

o s

be wac

www.tuv.com

ID 2000000000

 





SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

RATED POWER

HLN-80H-12

12V

60W

CONSTANT CURRENT REGION

Note.4

7.2 ~12V

HLN-80H-15

15V

9 ~ 15V

75W

150mVp-p

13.5 ~ 17V

3 ~ 5A

±2.0%

±0.5%

±1.5%

HLN-80H-20

20V

12 ~ 20V

80W

150mVp-p

17 ~ 22V

2.4 ~ 4A

±1.0%

±0.5%

HLN-80H-24

24V

14.4 ~ 24V

3.4A

81.6W

150mVp-p

22 ~ 27V

2.04 ~ 3.4A

±1.0%

±0.5%

HLN-80H-30

30V

18 ~ 30V

2.7A

81W

200mVp-p

27 ~ 33V

1.62 ~ 2.7A

±1.0%

±0.5%

HLN-80H-36

36V

21.6 ~ 36V

2.3A

82.8W

200mVp-p

33 ~ 40V

1.38 ~ 2.3A

±1.0%

±0.5%

HLN-80H-42

42V

25.2 ~ 42V

1.95A

81.9W

200mVp-p

38 ~ 46V

HLN-80H-48

48V

28.8 ~ 48V

1.7A

81.6W

200mVp-p

43 ~ 53V

HLN-80H-54

54V

32.4 ~ 54V

1.5A

81W

200mVp-p

49 ~ 58V

0.9 ~ 1.5A

±1.0%

±0.5%

RIPPLE & NOISE (max.)

Note.2

150mVp-p

VOLTAGE ADJ. RANGE

Note.6

10.8 ~ 13.5V

OUTPUT

CURRENT ADJ. RANGE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

TOTAL HARMONIC DISTORTION

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT(Typ.)

3 ~ 5A

±0.5%

±2.0%

Can be adjusted by internal potentiometer A type only

1.17 ~ 1.95A 1.02 ~ 1.7A

±1.0%

±0.5%

VOLTAGE TOLERANCE

Note.3

±2.5%

Note.8

1200ms,80ms/115VAC

±0.5%

±1.0%

±0.5%

500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load

16ms at full load

Note.5

90 ~ 305VAC

230VAC /115VAC

127 ~ 431VDC

47 ~ 63Hz

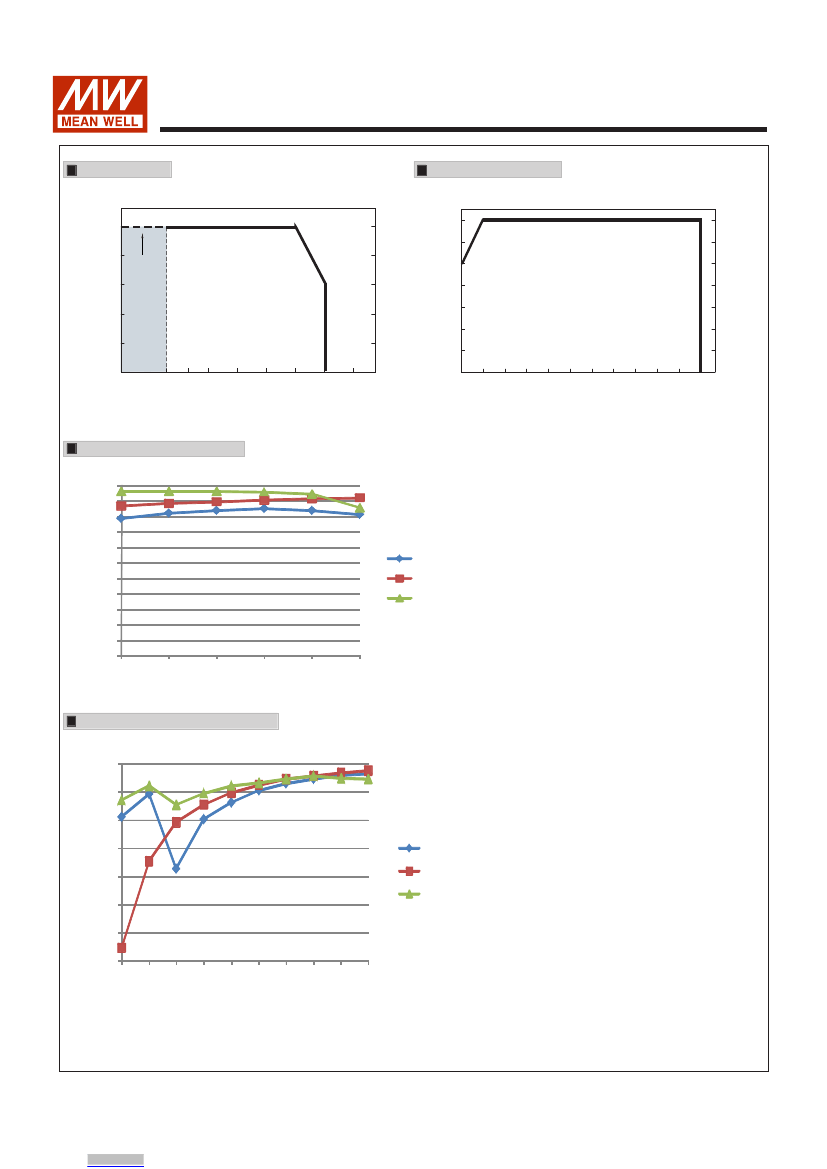

PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input

88%

90%

91%

89%

90.5%

0.85A / 115VAC

0.425A / 230VAC

0.4A / 277VAC

COLD START 70A(twidth=485

s measured at 50% Ipeak) at 230VAC

91%

INPUT

MAX. No. of PSUs on 16A

CIRCUIT BREAKER

LEAKAGE CURRENT

OVER CURRENT

SHORT CIRCUIT

Note.4

3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC

<0.75mA / 277VAC

95 ~ 108%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

Hiccup mode, recovers automatically after fault condition is removed

48 ~ 58V

35 ~ 43V

14 ~ 17V

18 ~ 24V

28 ~ 35V

41 ~ 49V

23 ~ 30V

Protection type :

Shut down o/p voltage, re-power on to recover

-40 ~ +50℃ (Refer to "Derating Curve")

20 ~ 95% RH non-condensing

-40 ~ +80℃, 10 ~ 95% RH

±0.03%/℃

(0 ~ 40℃)

10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent ; IP64, J61347-1,J61347-2-13,

EAC TP TC 004

GB19510.1,GB19510.14

approved ; Design refer to UL60950-1

I/P-O/P:3.75KVAC

I/P-FG:2KVAC

O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

Compliance to EN55015, EN61000-3-2 Class C (≧60% load, 12V model

≧65%

load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020

356.4Khrs min. MIL-HDBK-217F (25℃)

181*61.5*35mm (L*W*H)

0.5Kg; 24pcs/13Kg/0.87CUFT

PROTECTION

OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

54 ~ 63V

59 ~ 68V

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

Note.7

SAFETY & WITHSTAND VOLTAGE

EMC

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

OTHERS

NOTE

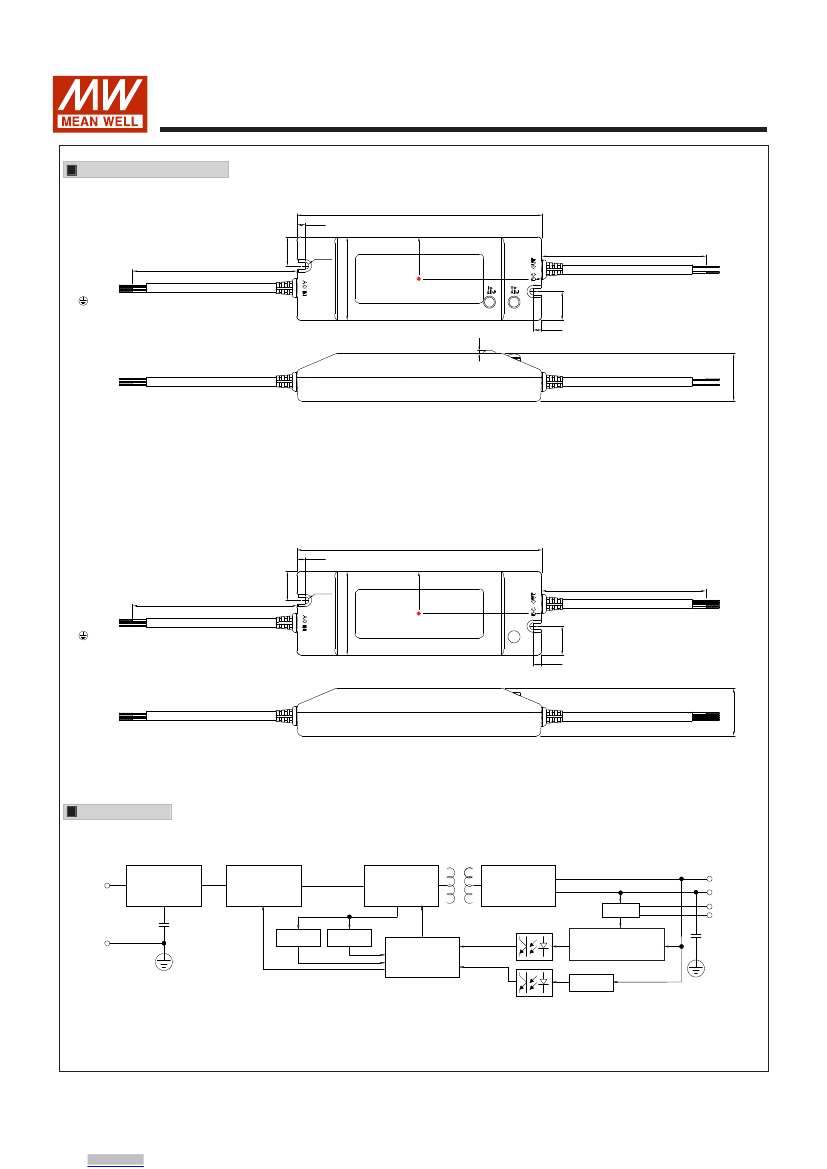

DIMENSION

PACKING

℃























℃℃





※

Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

File Name:HLN-80H-SPEC

2020-12-10
