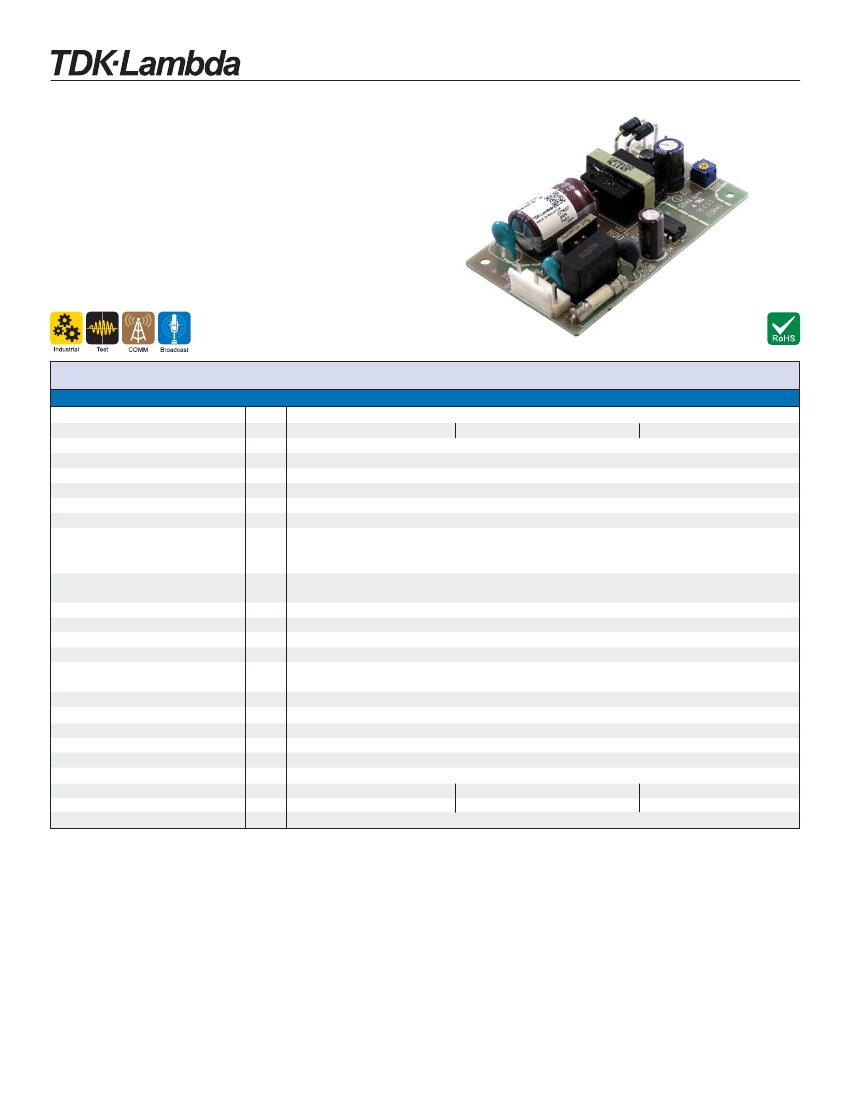

ZWS10-30B Series
10-30W Single Output, High Reliability Power Supplies
Features
Universal Input (85 - 265VAC)
5 year warranty
Small Size
<0.5W off load power draw
10 year E-cap lifetime
Key Market Segments & Applications
ZWS15B Shown
Specifications
Model
Input Voltage range (1)
Input Current (100 / 200VAC)
Inrush Current (100 / 200VAC)
No Load Power Draw
Leakage Current (100 / 200VAC)
Temperature Coefficient
Overcurrent Protection
Hold Up Time (Typ) @ 100VAC
Operating Temperature
Convection Cooled
Operating Temperature
Forced Air Cooled (0.7m/s)
Storage Temperature
E-cap Lifetime
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Certifications
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (WxHxD)
Warranty
V
A
A
W
mA
°C
%
ms
°C
ZWS15B
ZWS30B
85 - 265VAC (47 - 63Hz), 120 - 370VDC*
0.25 / 0.13A
0.34 / 0.17A
0.65 / 0.35A
15 / 30A
Typically 0.2W at 100/200VAC, 0.5W maximum
< 150uA / 300uA
<0.02%/°C
> 105% of maximum current rating
20ms
ZWS10B: -10 to +70°C, derate linearly to 20% load from 50 to 70°C
ZWS15B: -10 to +70°C, derate linearly to 40% load from 50 to 70°C
ZWS30B: -10 to +70°C, derate linearly to 20% load from 50 to 70°C
-10 to +70°C, derate linearly to 70% load from 60 to 70°C
-30 to +75°C
10 year E-cap lifetime (80% load, 24 hours per day, 50°C ambient)
Operating 30 - 90%RH, Storage 10 - 90%RH
Convection or forced air
Input to Ground 2kVAC (10mA), Input to Output 3kVAC (10mA)
Output to Ground 500VAC (20mA) for 1 minute
>100M at 25°C & 70%RH, Output to Ground 500VDC
10 - 55Hz (1 minute sweep), 19.6m/s
2
constant. X, Y, Z for 1 hour each
< 196m/s
2
UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark
EN55011 / EN55022-B, FCC-B, VCCI-B
IEC61000-4-2 (lv 4), -3 (lvl 3), -4 (lvl 4), -5 (lvl 4), -6 (lvl 3), -8 (lvl 4), -11
45g
55g
105g
50 x 22 x 73.5mm
50 x 22 x 87.5mm
50 x 26.5 x 105mm
Five Years
*Safety certified for AC input only
ZWS10B
°C
°C
-
%RH
-
VAC
M
Hz
m/s
2
-
-
-
g
mm
yrs
Notes:
(1)
Derate linearly to 90% load from 90VAC to 85VAC input
Refer to detailed specifications and application notes on web page
1-800-526-2324 • www.us.tdk-lambda.com/lp/
73
Disclaimer: us.tdk-lambda.com/lp/legal.htm
ZWS10-30B Series
Model Selector
Model
ZWS10B-3
ZWS15B-3
ZWS30B-3
ZWS10B-5
ZWS15B-5
ZWS30B-5
ZWS10B-12
ZWS15B-12
ZWS30B-12
ZWS10B-15
ZWS15B-15
ZWS30B-15
ZWS10B-24
ZWS15B-24
ZWS30B-24
Voltage
3.3V
3.3V
3.3V
5V
5V
5V
12V
12V
12V
15V
15V
15V
24V
24V
24V
Adjust
Range
2.97-3.63
2.97-3.63
2.97-3.63
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
13.5-16.5
13.5-16.5
13.5-16.5
21.6-26.4
21.6-26.4
21.6-26.4
Max
Current
A
2
3
6
2
3
6
0.9
1.3
2.5
0.7
1
2
0.5
0.7
1.3
Load
Reg
mV
40
40
40
40
40
96
96
96
120
120
120
120
150
150
150
Line
Reg
mV
20
20
20
20
20
48
48
48
60
60
60
60
96
96
96
Ripple
Noise
mV
120
120
120
120
120
120
150
150
150
150
150
150
150
150
150
Efficiency
%
70 / 70
70 / 71
75 / 77
77 / 78
76 / 78
80 / 82
82 / 83
80 / 83
84 / 86
83 / 84
81 / 84
85 / 87
84 / 85
82 / 85
86 / 88
OVP
V
4 - 5.25
4 - 5.25
4 - 5.25
5.75 - 7
5.75 - 7
5.75 - 7
13.8 - 16.2
13.8 - 16.2
13.8 - 16.2
17.3 - 20.3
17.3 - 20.3
17.3 - 20.3
27.6 - 32.4
27.6 - 32.4
27.6 - 32.4

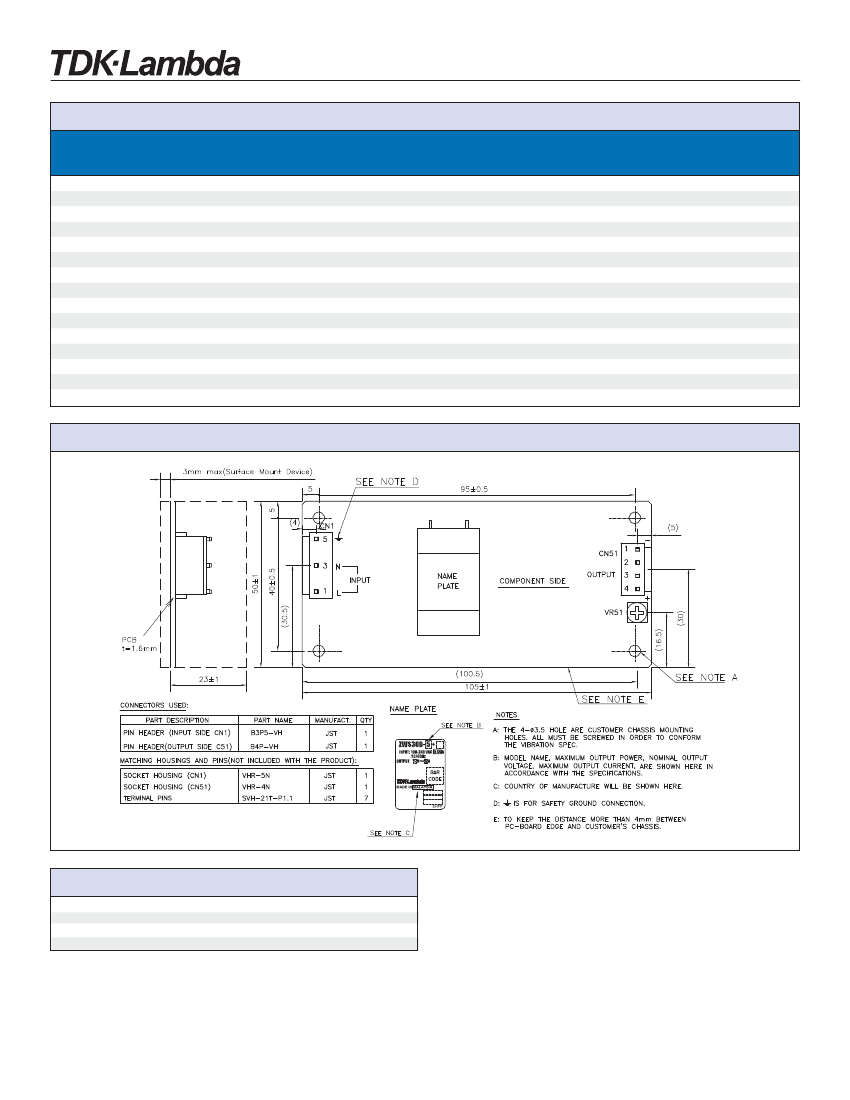

ZWS30-B Outline Drawing
(see website for ZWS10B & 15B outlines)
ZWS10B & 15B use 2Pin output connector
Other Industrial Products
ZWS-BAF
ZWD/ZWQ
NV175
HWS
50W to 150W Active PFC
100W to 440W Single & multiple output
175W, 1-4 outputs 3 x 5”
15W to 1800W Single output enclosed
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zws-b-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
74
Revision A3: Apr 2015
