390MP-0-HG: DescriptionCoin Cell Battery 3V 20X3.2MM 225mAH; CategoryPower/power management; File Size56KB，1 Pages; ManufacturerRenata SA; Websitehttp://www.renata.com/

Download Datasheet Parametric View All

390MP-0-HG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390MP-0-HG	-	-	View	Buy Now

390MP-0-HG Overview

Coin Cell Battery 3V 20X3.2MM 225mAH

390MP-0-HG Parametric

Parameter Name	Attribute value
Product Category	Coin Cell Battery
Manufacturer	Renata SA
RoHS	Not Applicable
Battery Size	390
Output Voltage	1.55 V
Capacity	60 mAh
Chemistry	Silver Oxide
Termination Style	Pressure Contacts
Orientation	-
Diameter	11.6 mm
Height	3.05 mm
Rechargeable/Non-Rechargeable	Non-Rechargeable
Maximum Operating Temperature	+ 60 C
Minimum Operating Temperature	- 10 C
Operating Temperature Range	-10 C to 60 C
Factory Pack Quantity	10
Unit Weight	0.040918 oz

Preview

Download Datasheet

View All

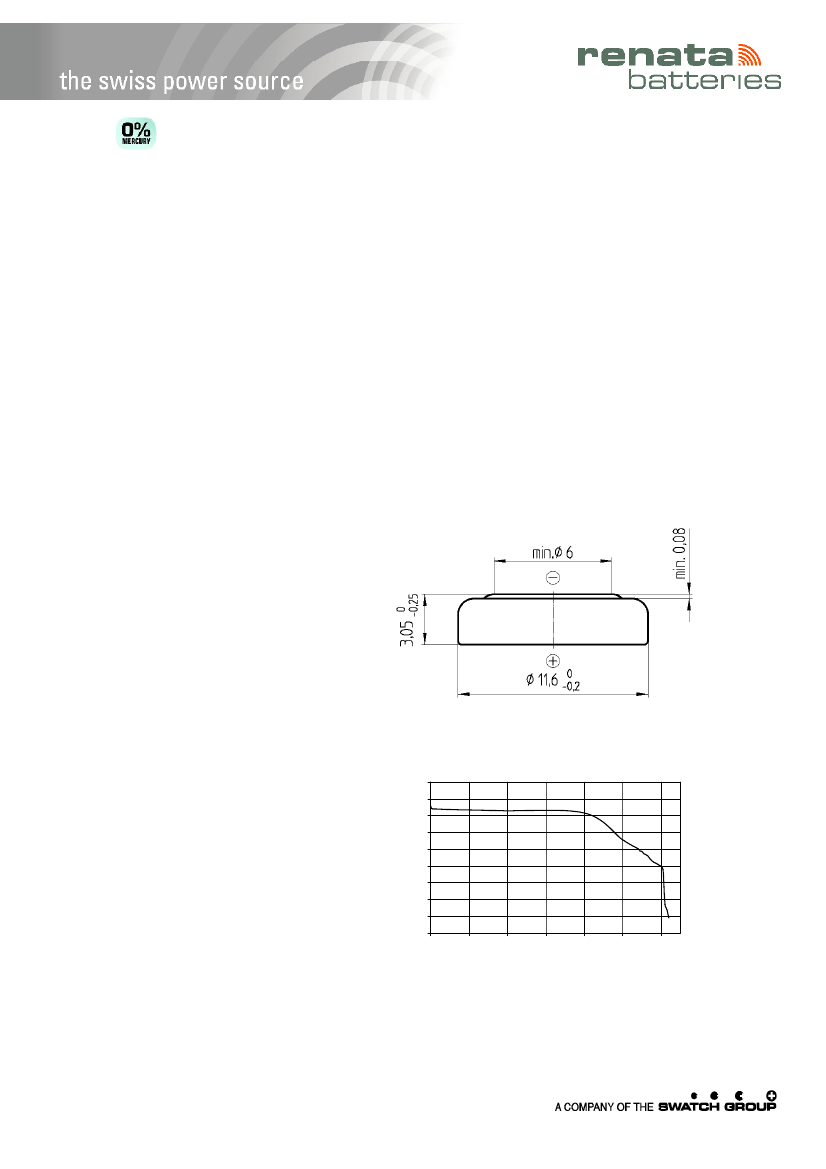

390

SR1130SW

Watch Battery

Swiss Made

Technical Data Sheet

Specifications

Chemical system

Nominal Voltage

Capacity

Operating Temperature*

Self Discharge

Weight

Zinc / Monovalent Silver Oxide, low drain

1,55 V

60 mAh, Discharge over 15 kΩ at 20°C to 0,9 V

-10°C – 60°C

Less than 5% per year at 20°C

~1,16 g

Dimensions

(according IEC 60086-3)

Diameter

Height

11,60 mm (0,457“)

3,05 mm (0,120“)

Discharge Curve

1.7

1.6

1.5

Constant Load

Starting Drain

Temperature

15 kΩ

104

µA

20°C

Voltage [V]

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0

100

200

300

400

500

600

Time [h]

Information and contents in this data sheet are for reference purpose only. They do not constitute any warranty or representation

and are subject to change without notice. For most current information and further details, please contact your Renata representative.

For safety related information please consult the PSDS document related to that product or product family.

*Condensing humidity not allowed

Rev. 390MF.05 2014/10

Renata SA

CH-4452 Itingen/Switzerland

Tel. +41 (0)61 975 75 75

Fax. +41 (0)61 975 75 95

sales@renata.com

www.renata.com
