1571005-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1571005-1

1571005-1: DescriptionSLIDE SWITCH, SPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT; CategoryMechanical and electronic products switch; File Size258KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1571005-1 Overview

SLIDE SWITCH, SPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT

1571005-1 Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	TOP TYPE
body width	5 mm
body height	8 mm
Body length or diameter	9.5 mm
Contact (AC) maximum rated R load	.05A@48VAC
Maximum contact current (AC)	0.05 A
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@48VDC
Maximum contact voltage (AC)	48 V
Maximum contact voltage (DC)	48 V
JESD-609 code	e0
Manufacturer's serial number	1571005
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	4.9 N
method of packing	BULK
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	Tin/Lead (Sn/Pb)
Termination type	SOLDER
Base Number Matches	1

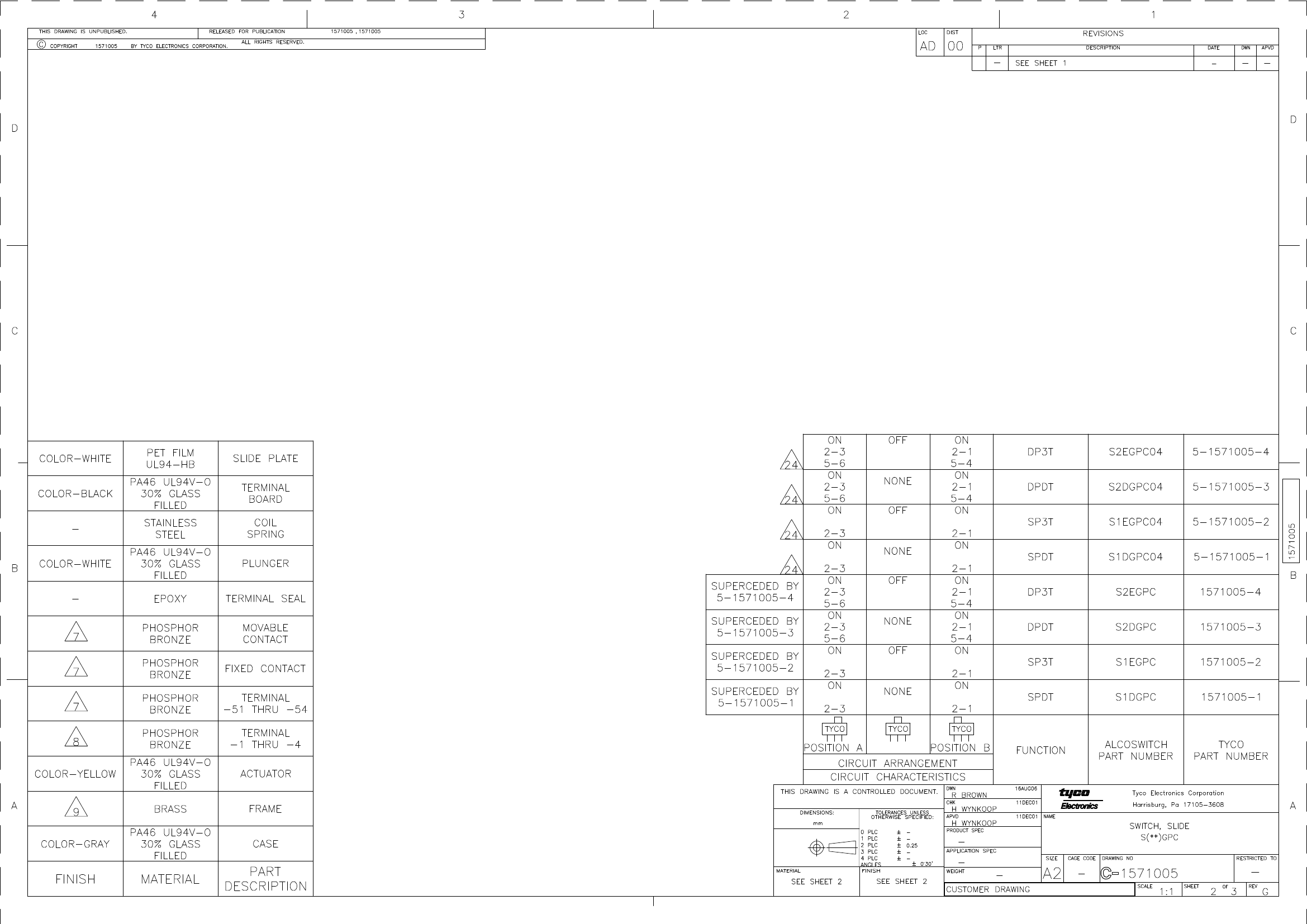

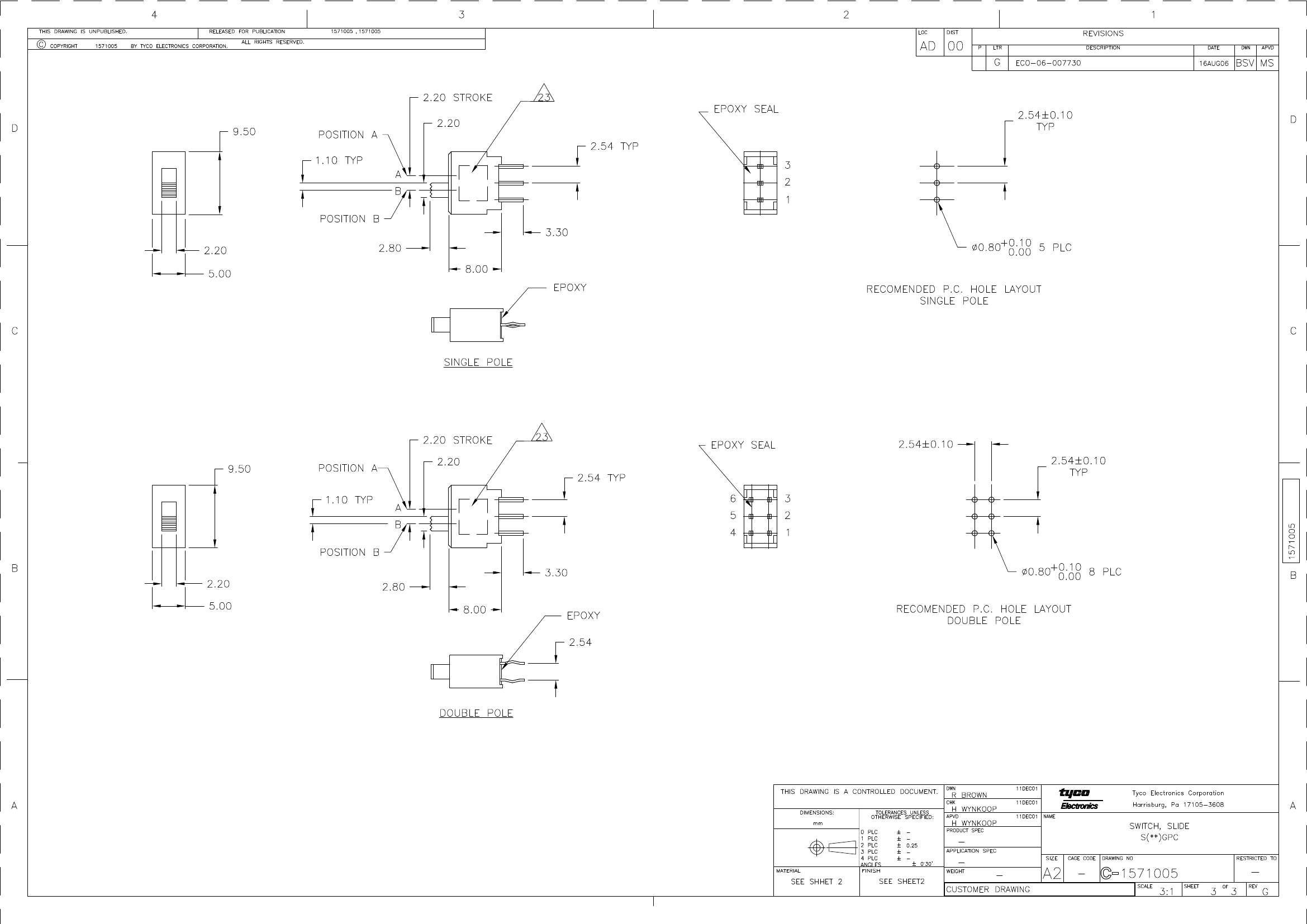

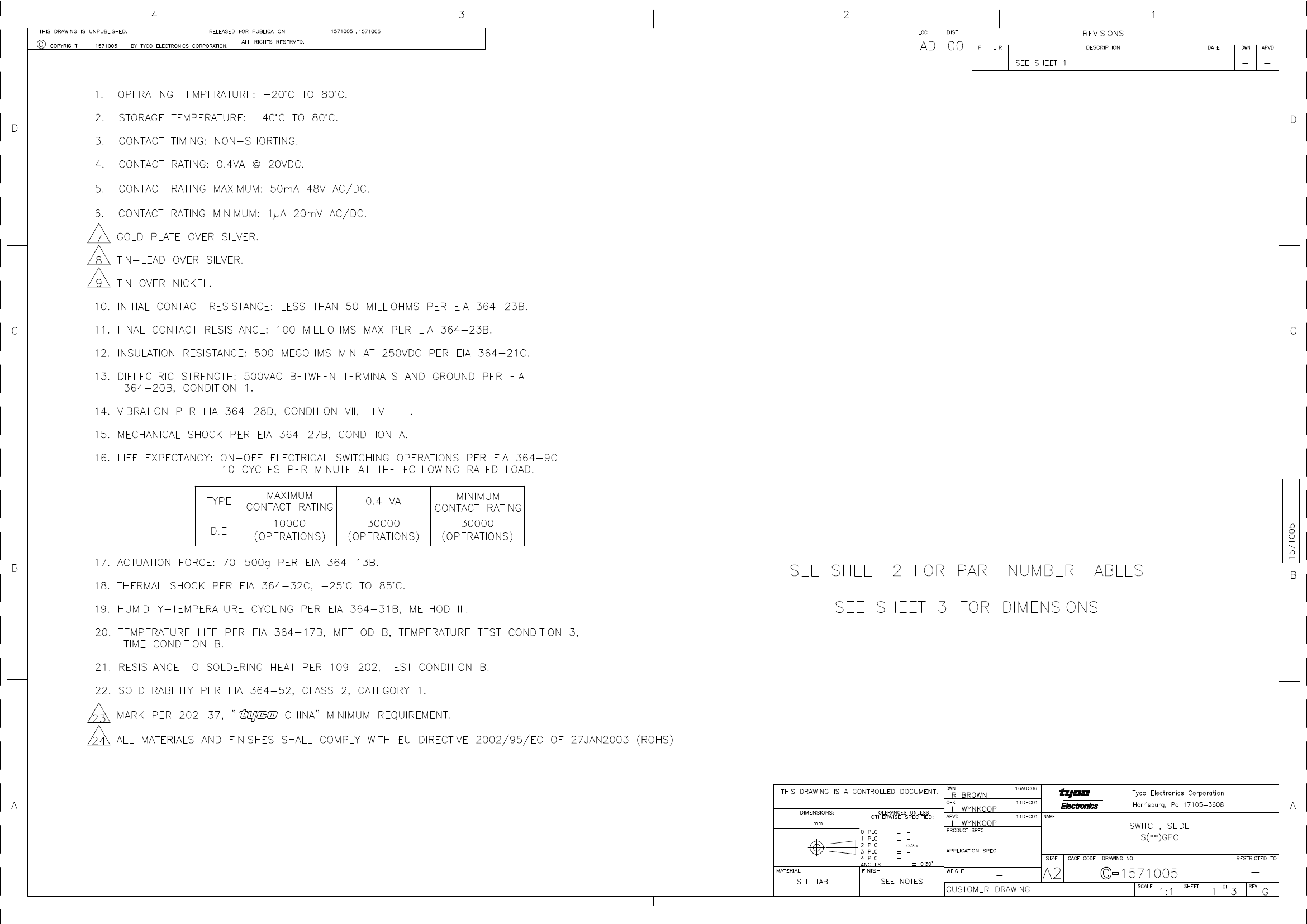

Preview

Download Datasheet

View All

1571005-1 Related Products

	1571005-1	1571005-3	1571005-4	1571005-2
Description	SLIDE SWITCH, SPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT	SLIDE SWITCH, DPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT	SLIDE SWITCH, DP3T, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT	SLIDE SWITCH, SP3T, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT
Brand Name	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator type	TOP TYPE	TOP TYPE	TOP TYPE	TOP TYPE
body width	5 mm	5 mm	5 mm	5 mm
body height	8 mm	8 mm	8 mm	8 mm
Body length or diameter	9.5 mm	9.5 mm	9.5 mm	9.5 mm
Contact (AC) maximum rated R load	.05A@48VAC	.05A@48VAC	.05A@48VAC	.05A@48VAC
Maximum contact current (AC)	0.05 A	0.05 A	0.05 A	0.05 A
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@48VDC	.05A@48VDC	.05A@48VDC	.05A@48VDC
Maximum contact voltage (AC)	48 V	48 V	48 V	48 V
Maximum contact voltage (DC)	48 V	48 V	48 V	48 V
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	1571005	1571005	1571005	1571005
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating force	4.9 N	4.9 N	4.9 N	4.9 N
method of packing	BULK	BULK	BULK	BULK
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SPDT	DPDT	DPDT	SPDT
Switch type	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1
