MZ1216: DescriptionPower Line Filters Filter 250V 16A; Categorysemiconductor Power management; File Size247KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

MZ1216 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MZ1216	-	-	View	Buy Now

MZ1216 Overview

Power Line Filters Filter 250V 16A

MZ1216 Parametric

Parameter Name	Attribute value
Product Category	Power Line Filters
Manufacturer	TDK Corporation
RoHS	Details
Voltage Rating	250 VAC, 250 VDC
Current Rating	16 A
Factory Pack Quantity	1

Preview

Download Datasheet

View All

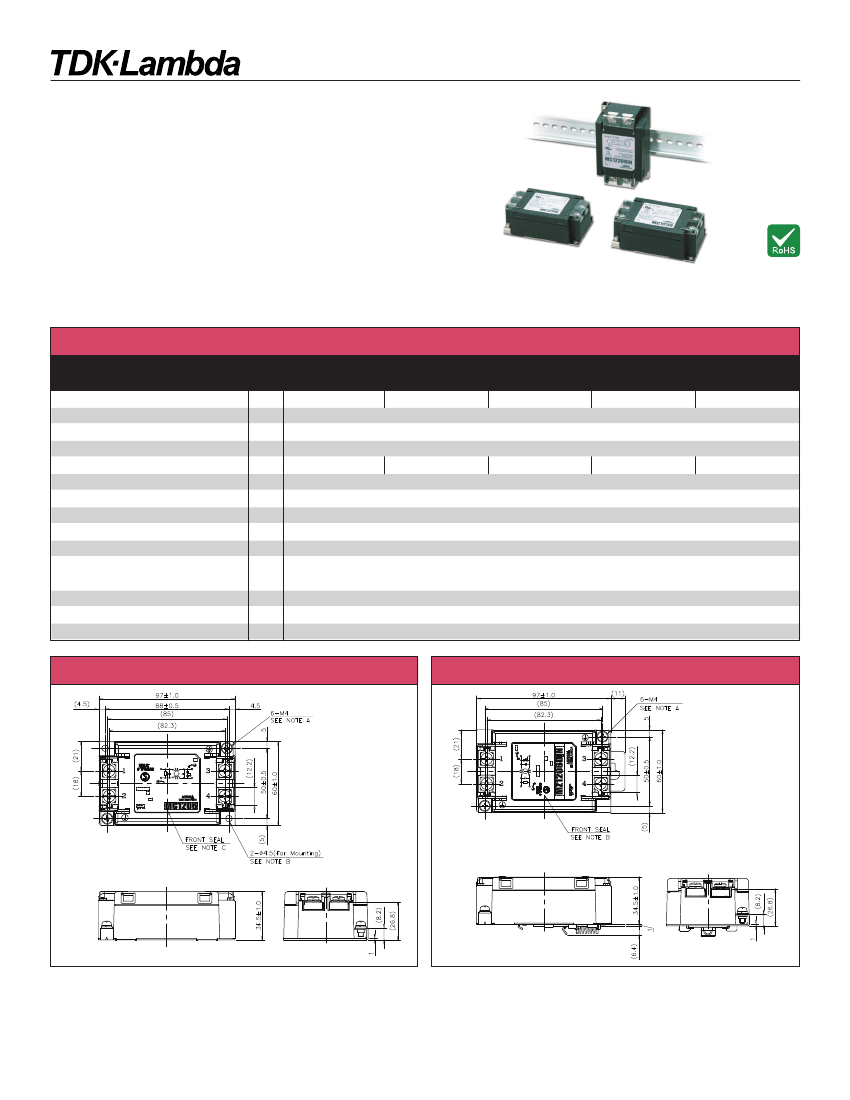

MC/MZ12 Series

6A to 30A, 250VAC EMI Filters

Features

u

Low Leakage Current Versions

u

Chassis or DIN Rail mount

u

Safety Agency Approved

u

High Pulse or Noise Attenuation Versions

u

Easy Connection and Installation

u

RoHS Compliant

Last time buy - June 1, 2014

Speciﬁcations

Model

Rated Current

Rated Voltage

Test Voltage (For 1 min.)

Isolation Resistance

DC Resistance (both lines)

Temperature Rise

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Vibration

Safety Standards

Weight (Typ)

Warranty

MC1206

MZ1206

6A

MC1216

MC1220

MC1230

MZ1216

MZ1220

MZ1230

16A

20A

30A

250

Terminals to Case: 2500VAC

100MΩ minimum (terminals to case, 500VDC)

130

50

24

15

7

30

-25 to +85°C (see derating curve)

-40 to +85

30 to 95% RH (non condensing)

10 to 95% RH (non condensing)

10-55-10Hz sweep for 1 minute

Amplitude 1.5mm constant (max 88.3m/s

2

, X, Y, Z (2 hours each)

Approved by UL1283, CSA Std C22.2 No.8 (CUL), EN133200 (SEMKO)

300

1 Year

MC1210

MZ1210

10A

A

VAC

V

MΩ

mΩ

°C

-

g

yr

MC/MZ12 Outline Drawing

MC/MZ12 DIN Outline Drawing

2x5.8mH 2x0.47uF(X2)SH

2x4700pF(Y2) 1x470k

Ω

SM

NOISE FILTER

1

LINE

LF3

SM

LOAD

2

4

250Vac 6A 50/60Hz

TV2500Vac 1MIN

25/100/21(6A MAX@55°C )

1-800-526-2324 • www.us.tdk-lambda.com/lp/

11

LINE

2x14.3mH 2x0.47uF(X2)SH 2x4700pF(Y2) 1x470k

Ω

Disclaimer: us.tdk-lambda.com/lp/legal.htm

EN133200

NOISE FILTER

3

1

2

250Vac 6A 50/60Hz

TV2500Vac 1MIN

25/100/21(6A MAX@55 °C

)

3

4

LOAD
