CS4200V-01L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> CS4200V-01L

CS4200V-01L: DescriptionProximity Sensors Long Dist Prox u0026 ALS Up to 1m - IR 940nm; CategoryPower management transformer; File Size132KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CS4200V-01L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CS4200V-01L	-	-	View	Buy Now

CS4200V-01L Overview

Proximity Sensors Long Dist Prox u0026 ALS Up to 1m - IR 940nm

CS4200V-01L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL
high	19.05 mm
JESD-609 code	e2
length	19.56 mm
Load Resistance	200 Ω
Installation features	THROUGH HOLE MOUNTED
Maximum operating frequency	50 kHz
Minimum operating frequency	20 kHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Peak primary current	35 A
physical size	L19.56XB14.48XH19.05 (mm)
primary type	WOUND PRIMARY
secondary inductance	800 µH
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Transformer type	CURRENT SENSE TRANSFORMER
width	14.48 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Document 132

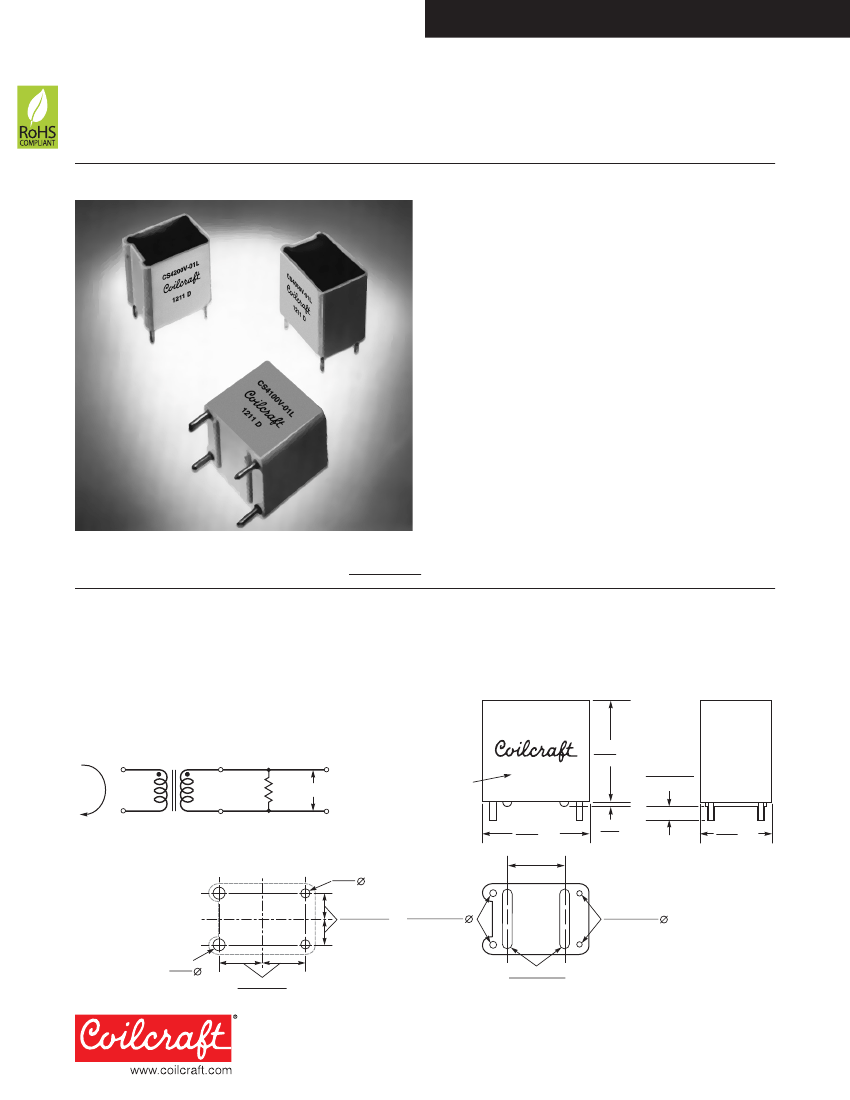

Current Sense Transformers

These low cost Coilcraft current sensing transformers

are designed for use up to 1 MHz. They incorporate the

current and sense windings in one small, encapsulated

package requiring minimum board space.

Coilcraft current sensing transformers are designed to

meet UL/CSA/IEC 60950 Reinforced Insulation specifi-

cation and provide 3 mm creepage/clearance between

primary and secondary windings. Winding to winding

isolation (hipot) is 3750 Vrms, tested for one minute.

Applications include feedback control, overload sensing,

detecting load drop or shutdown, and proportional output.

Coilcraft

Designer’s Kit P403

contains the three stan-

dard current sensing transformers, sensor-only versions

of each, plus two 50/60Hz current sensors. To order,

contact Coilcraft or visit

http://order.coilcraft.com.

Part number

CS4050V-01L

CS4100V-01L

CS4200V-01L

Turns (N)

pri : sec

1 : 50

1 : 100

1 : 200

Inductance

min (mH)

DCR max

(Ohms)

pri

sec

0.001

0.7

1.4

4.0

Frequency

range

(kHz)

3 – 1000

2 – 1000

1 – 1000

Volt-time

product

(Vµsec)

149

298

596

Sensed

current

max (A)

Terminating

resistance R

(Ohms)

1.4

2.9

5.7

1. Inductance is for the secondary, measured at 15.75 kHz, 1 Vrms.

2. Volt-time product is for the secondary, based on 2000 Gauss.

3. Terminating resistance (R

) value is based on 1 Volt output with 35 Amps

flowing through the primary. Varying terminating resistance increases or

decreases output Voltage/Ampere according to the following equation:

= V

out

× N

sec

4. Ambient temperature range –40°C to +85°C.

5. Electrical specifications at 25°C.

Typical Circuit

CS4

0V-AL

0.75

max

19,05

Pri

(1 turn)

Sec

(N turns)

out

Internal

code

XXXX Y

0.105/0.150

2,67/3,81

Recommended PC Board Layout

(viewed from top)

0.77

max

19,56

0.40 ±0.01

10,16 ±0,25

0.03

0,76

0.57

max

14,48

0.069

1,76

0.20 ±0.005

5,08 ±0,125

0.051 ±0.003

1,295 ±0,076

0.041 ±0.003

1,041 ±0,076

0.079

2,01

0.30 ±0.005

7,62 ±0,125

0.060 × 0.460

1,52 × 11,68

Weight:

8.8 – 9.3 g

Terminations:

Tin-silver over copper

Packaging:

29 per tube

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 132

Revised 11/20/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

CS4200V-01L Related Products

	CS4200V-01L	CS4100V-01L	CS4050V-01L
Description	Proximity Sensors Long Dist Prox u0026 ALS Up to 1m - IR 940nm		Switching Voltage Regulators
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Certification	UL	UL	UL
high	19.05 mm	19.05 mm	19.05 mm
JESD-609 code	e2	e2	e2
length	19.56 mm	19.56 mm	19.56 mm
Load Resistance	200 Ω	100 Ω	50 Ω
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Maximum operating frequency	50 kHz	50 kHz	50 kHz
Minimum operating frequency	20 kHz	20 kHz	20 kHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Peak primary current	35 A	24 A	10 A
physical size	L19.56XB14.48XH19.05 (mm)	L19.56XB14.48XH19.05 (mm)	L19.56XB14.48XH19.05 (mm)
primary type	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY
secondary inductance	800 µH	200 µH	5000 µH
surface mount	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Transformer type	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER
width	14.48 mm	14.48 mm	14.48 mm
Base Number Matches	1	1	1
