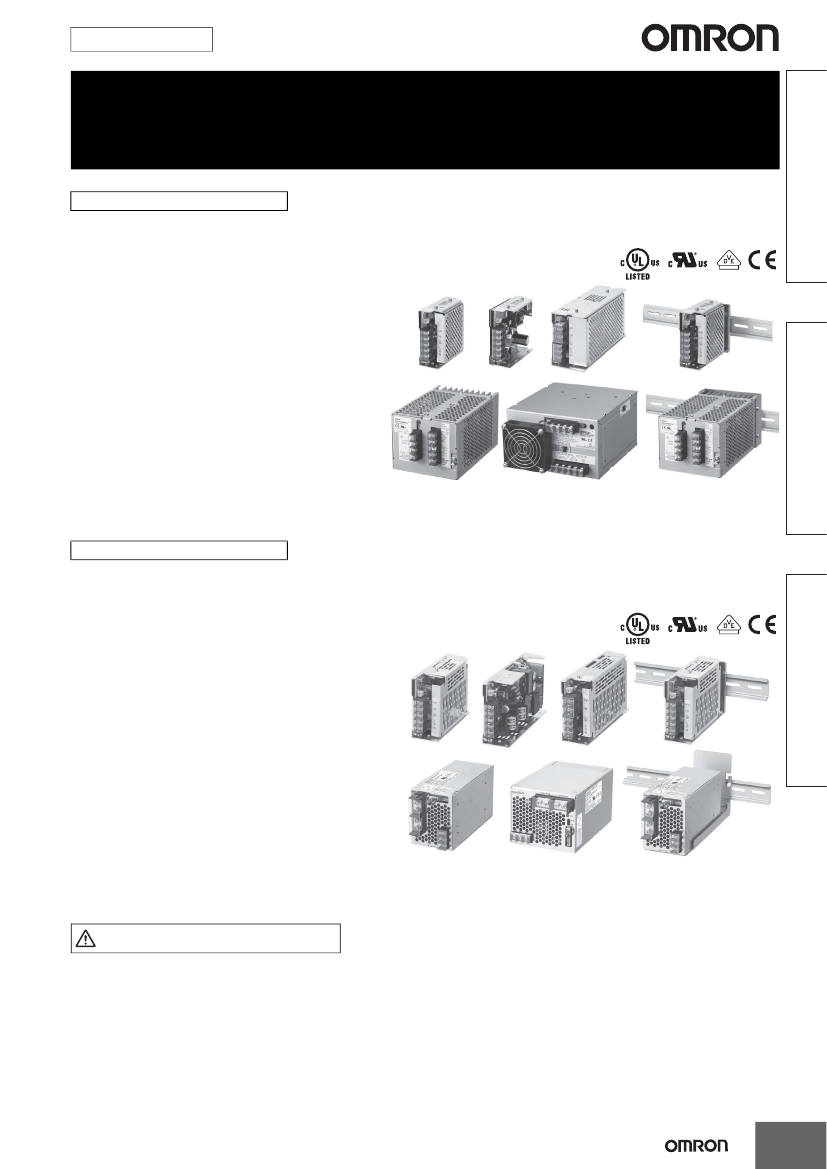

New Product
Switch Mode Power Supply
S8JX
(15/35/50/100/150/300/600-W Models)
S8JX-G Series
S8JX-G
Easy-to-use, Widely range from 15 W to 600 W (Output Voltage: 5 V to 48 V)
• Easy Mounting:
Front-mounted type, DIN rail-mounted type are
available.
Screw-mount at the top. (except 300-/600-W models)
• Safety standards:
UL 508/60950-1
cUL CSA C22.2 No. 107.1
cUR CSA C22.2 No. 60950-1
EN 50178 (= VDE 0160) Over voltage
category III
EN 60950-1 (= VDE 0805 Teil 1)
• EMC: Conforms to EN 61204-3.
(EMI:EN55011 ClassA)
• Input conditions:
The input voltage range of 15-W, 35-W,
50-W, 100-W, and 150-W models has
been increased to 80 to 370 VDC (EC
Directives and safety standards do not
apply.).
S8JX-P Series
S8JX-P
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
S8JX-P Series with EMI ClassB and Power Factor Correction is newly
added to S8JX Series.
(Applicable to all capacities from 50 W to 600 W)
• Limits for harmonic current emissions (conforms to
EN61000-3-2)
• Conforms to EMI EN55011 Class B
• Applicable to input free voltage: 100 to 240 VAC
• Extended DC input voltage range: 80 to 370 VDC
*
DC input is not subject to EC directives and safety standards.
Common Precautions
• Easy mounting: Front-mounting bracket type and
DIN-Rail mounting type are included
as standard with the product.
Screw-mount at the top.
(except 300-/600-W models)
• Safety standards
- UL508/60950-1, cUL CSA C22.2 No.107.1,
cUR CSA C22.2 No.60950-1
- EN50178 (=VDE0160) Over voltage category III
EN60950-1 (=VDE0805 Teil1)
<Applicable only for 300 W and 600 W>
• High capacity application-covered functions are
included as standard with the product.
• Alarm detection function, Remote control function,
Remote sensing function
Refer to
Safety Precautions
on page 55.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
1
S8JX
Model Number Structure
Model Number Legend
Note:
Not all combinations are possible. Refer to
List of Models
in
Ordering Information
on page 3.
S8JX-G
S8JX-P
Common Precautions
15-/35-/50-/100-/150-W Models
S8JX-G@@@@@@@
1
1. Power Ratings
015: 15 W
035: 35 W
050: 50 W
100: 100 W
150: 150 W
2. Output Voltage
05: 5 V
12: 12 V
15: 15 V
24: 24 V
48: 48 V
2
3 4
3. Configuration (15/35/50/100/150 W model)
None: Open type
C: Covered
4. Configuration/mounting
None: Front-mounting
D: DIN Rail-mounting
300-/600-W Models
S8JX-G@@@@@@
1
1. Power Ratings
300: 300 W
600: 600 W
2
3
2. Output Voltage
05: 5V
12: 12 V
24: 24 V
48: 48 V
3. Configuration/mounting (covered type)
C: Front-mounting
CD: DIN Rail-mounting
Note:
Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details.
2
