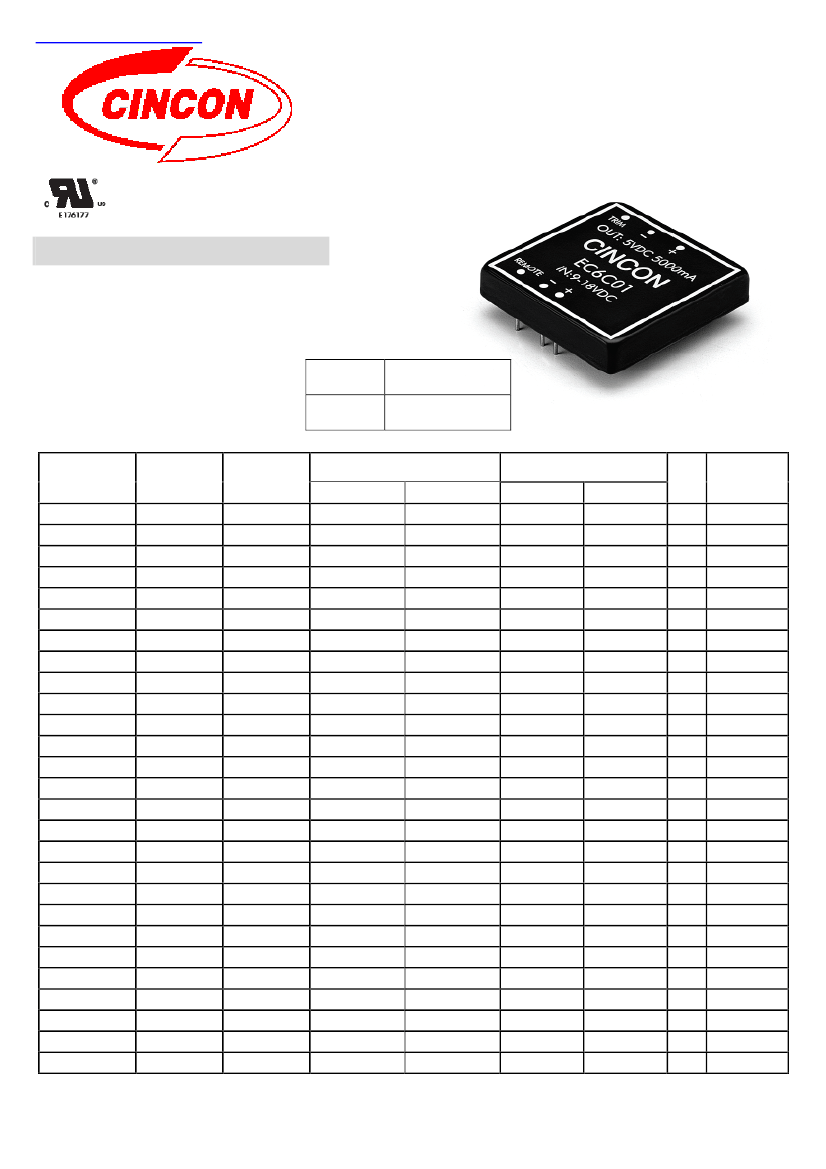

http://www.cincon.com
REVISION: March 3, 2010 V11
SPECIFICATIONS
All Specifications Typical At Nominal Line, Full Load, and 25
℃
Unless Otherwise Noted
INPUT SPECIFICATIONS:
Input Voltage Range ....…………….......... 12V ....................…….….. 9 – 18V
24V ………..……….……. 18 – 36V
48V …………..…..……… 36 – 72V
Input Surge Voltage (100ms max.) ……….…… 12V …............... 25Vdc max.
24V ................... 50Vdc max.
48V ................. 100Vdc max.
Input Filter …………………………………………………..…………..... Pi Type
GENERAL SPECIFICATIONS:
Efficiency ................................................................................... See Table
Isolation Voltage ..............................................................… 500 VDC min.
9
Isolation Resistance .........................................……….......…… 10 ohms
Isolation Capacitance …………………..…………………..…… 500pF typ.
Switching Frequency ............................................................ 300KHz typ.
Case Grounding ……………….………….. Connected to Output Common
Operating Ambient Temperature Range …..................... –25
℃
to +71
℃
De-rating, Above 60
℃
….……………….. Linearly to Zero power at 100
℃
Case Temperature (note 3) .……………………………......... 100
℃
max.
Cooling …………………………..…………………….. Natural Convection
Storage Temperature Range ………….…....………..... –55
℃
to +105
℃
Humidity .................................................... 95% RH max. Non condensing
MTBF ……… MIL-STD-217F, GB, 25
℃
, Full Load ………… 900Khrs typ.
EMI/RFI …………………………………….…. Six-Sided Continuous Shield
Dimensions ……………… 2.00×2.00×0.40 inches (50.8×50.8×10.2mm)
Case Material ………… Black Coated Copper With Non-Conductive Base
Weight ……………..……………….…………………………………….. 65g
OUTPUT SPECIFICATIONS:
Voltage Accuracy
Single Output ………………….………………………….….. ±2.0% max.
Dual +Output …………………………………………..…….. ±2.0% max.
Dual – Output ………………….…………………………..… ±3.0% max.
Triple, 5V ………………………….………………..………… ±2.0% max.
12V/15V …………………..…………………………... ±5.0% max.
Voltage Balance (Dual) ……………………………………………… ±1.0% max.
Transient Response.
Single 25% Step Load Change ……………………………….… <500us
Dual FL-1/2L±1% Error Band ……………….……………..……. <500us
External Trim Adj. Range …………………………………………………… ±10%
Ripple and Noise, 20MHz BW …………… 10mV RMS. max., 75mV p-p max.
Temperature Coefficient …………………………………………….. ±0.02%/℃
Short Circuit Protection …………………….………..……………. Continuous
Line Regulation Single/Dual (note 1) …………..............…..……
±0.5%
max.
Triple …………………….…….……………………
±1.0%
max.
Load Regulation Single/Dual (note 2) ……..………….…......…......
±1.0%
max.
Triple ………..……………………...………………
±5.0%
max.
Start up time …………………………………….………………..…... 900ms typ.
Typical Derating curve for Natural Convection
120%
-25
100%
80%
60%
40%
20%
0%
-25
60
NOTE:
1. Measured From High Line to Low Line
2. Measured From Full Load to 1/4 Full Load
3. Maximum case temperature under any operating condition should
not be exceeded 100℃
TRIPLE OUTPUT LOADING TABLE (1)
Output
(Pin No.)
7
8&5
8&5
Amperes
Voltage
Min. (2)
+5
+12 & -12
+15 & -15
0.50
0.10
0.10
Nom.
3.5
0.31
0.25
LOAD(%)
Natural
Convection
100
NOTE:
1. Maximum total power from all outputs is limited to 25 watts
but no output should be allowed to exceed its maximum current
2.
Minimum current on each output is required to maintain specified regulation
0
25
50
75
o
Ambient Temperature( C)
100
Remote On/Off Control
Case C Dimensions:
All Dimensions In Inches(mm)
Tolerances
Inches: X.XX= ±0.04 , X.XXX= ±0.010
Millimeters: X.X= ±1.0 , X.XX=±0.25
Logic Compatibility
Ec-On
CMOS or Open Collector TTL
>+5.5 VDC t0 75Vdc
or Open Circuit
Ec-Off
Shutdown ldle Current
Control Common
8
7
6
5
1.
PIN CONNECTION
Pin Single
Dual
Triple
<1.8 VDC
10mA
Referenced to Input Minus
BOTTOM VIEW
Remote On/Off Control
2. No Pin
No Pin No Pin
-Vin
-Vin
3. -Vin
+Vin
+Vin
4. +Vin
5. Trim
6. -Vout
7. +Vout
8. No Pin
Trim
-Vout
+Vout
-Aux. Out
Common
+Aux. Out
EXTERNAL OUTPUT TRIM
4 3 2 1
Common +5Vout
DIA
章 節
頁 次
2
min.
C-7
1-2
