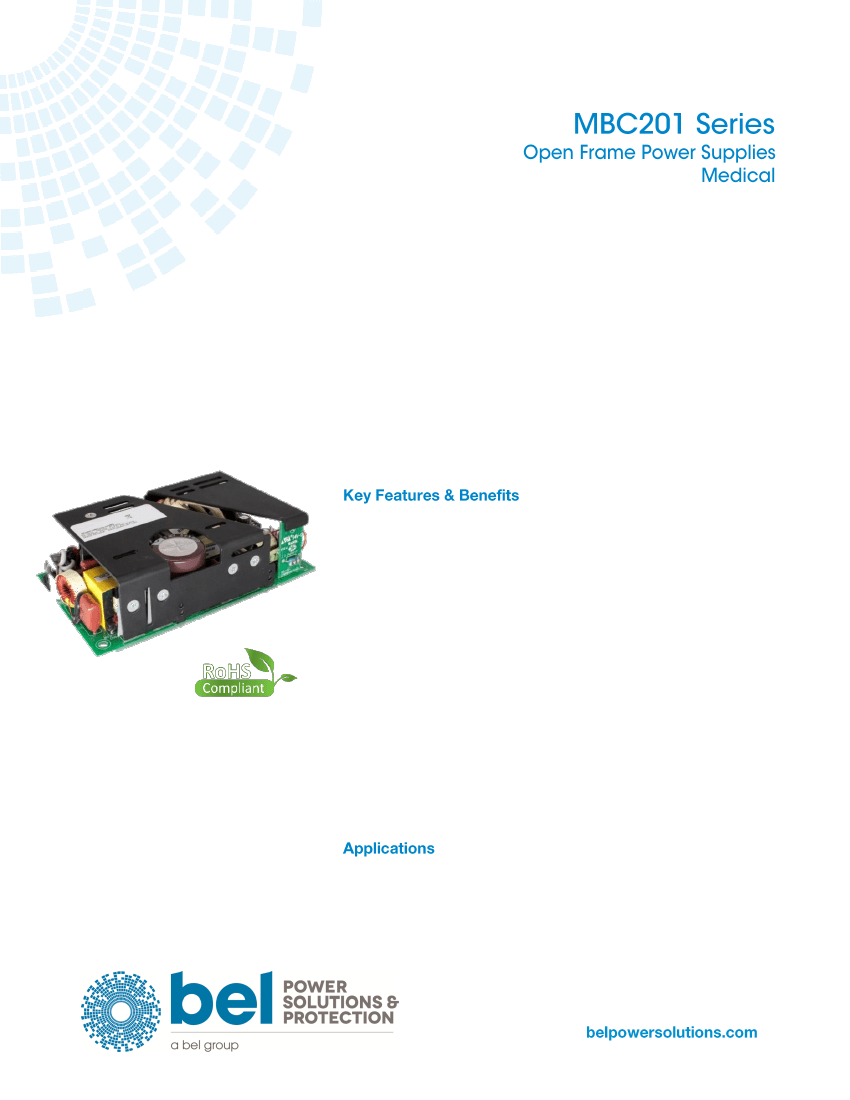

The MBC201 Series of open-frame medical power supplies, with its
wide universal input range 90-264 VAC, is available at 200 W of
output power with forced-air cooling and a variety of single output
voltages.
The MBC Series is designed and approved to the latest medical
standards (EN/IEC 60601-1), providing 2 x MOPP isolation for Class I
& Class II applications.
These power supplies are ideal for medical, telecom, datacom,
industrial equipment and other applications.
5 x 3 x 1.5 Inch Form Factor
200 W with Forced-Air Cooling
High Efficiency > 88%
12 V Fan & 5 V Standby Outputs
Remote Sense
IEC Protection Class Options:
Class I: Earthing Tab J4 (no suffix)
Class II: No Earthing Tab (-2 suffix)
Medical Safety Agency Approvals
RoHS Compliant
CE Marked
Diagnostic
Drug Pump
Monitoring
Dialysis
Home Health Care
Portable Equipment
2
MBC201 Series
MODEL
3
MBC201-1005G
MBC201-1T05G
MBC201-1012G
MBC201-1T12G
MBC201-1015G
MBC201-1T15G
MBC201-1024G
MBC201-1T24G
MBC201-1030G
MBC201-1T30G
MBC201-1048G
MBC201-1T48G
COVER-201-XBC
1
2
CONNECTOR
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
OUTPUT VOLTAGE
5.0 VDC
5.0 VDC
12 VDC
12
15
15
24
24
30
30
48
48
MAX LOAD
CONVECTION
1
26.0 A
26.0 A
13.33 A
13.33 A
10.66 A
10.66 A
6.66 A
6.66 A
5.33 A
5.33 A
3.33 A
3.33 A
MAX LOAD
300 LFM
1, 4, 5
26.0 A
35.0 A
16.67 A
16.67 A
13.33 A
13.33 A
8.33 A
8.33 A
6.66 A
6.66 A
4.17 A
4.17 A
MINIMUM LOAD
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
RIPPLE &
NOISE
2
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
Metal cover kit accessory
3
4
5
Combined output power from V1, VSTBY and VFAN should not exceed the total output power rating.
Ripple is 2% up to 20% load and < 1% above 20% load. Ripple is peak to peak with 20 MHz bandwidth and 10
μF
(Tantalum
capacitor) in parallel with a 0.1
μF
capacitor at rated line voltage and load ranges.
For Class II (without input Earth pin) add suffix -2 (e.g.: MBC201-1012G-2).
Fan output voltage tolerance is +/-20%. During V1 full load, VFAN needs min. 20 mA load to be within regulation band.
Peak current for fan output is 1 A.
Specifications are for nominal input voltage, 25°C unless otherwise stated.
PARAMETER
Input Voltage
Input Frequency
Input Current
Inrush Current
Leakage Current
Power Factor
Switching Frequency
120 VAC:
230 VAC:
120 VAC:
230 VAC:
120 VAC:
230 VAC:
120 VAC:
230 VAC:
PFC converter (variable)
Resonant converter (variable)
DESCRIPTION / CONDITION
Universal
SPECIFICATION
90-264 VAC / 120-390 VDC
47 to 63 Hz
2.4 A max.
1.2 A max.
35 A max.
65 A max.
< 150
μA
< 300
μA
0.99
0.95
35 to 250 kHz, 90 kHz typical
35 to 250 kHz, 90 kHz typical
tech.support@psbel.com
MBC201 Series
PARAMETER
Efficiency
Hold Up Time
Output Power
Line Regulation
Load Regulation
Transient Response
Rise Time
Set Point Accuracy
Voltage Adjustment
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Short term, auto recovery
V1
V1 only
Main output 50 to 100% load change,
50 Hz, 50% duty cycle, 0.1A / uSec
3
DESCRIPTION / CONDITION
120 VAC:
230 VAC:
120 / 230 VAC
SPECIFICATION
84% typical
86% typical
10 ms
160 W to 200 W
+/-0.5%
+/-2.0%
< 10%,
recovery time < 5 ms
< 100 ms
± 1%
±3%
110 to 150 %
110% typical above rating
Derate output power linearly to 80% from 90 V to 80 VAC input.
Peak Power: 250 W for 0.2 s
PARAMETER
Operating Temperature
Storage Temperature
DESCRIPTION / CONDITION
Refer to derating curve (
Figure 1
)
Start-up is guaranteed
Convection:
300 LFM:
Convection:
300 LFM:
SPECIFICATION
-20 to 70°C
-20 to 0°C
-40 to 70° C
130 W
175 W
160 W
200 W
95%
10,000 ft.
40,000 ft.
1.6 million hours
5 V model
Cooling
Other models
Humidity
Altitude
Reliability
Non Condensing
Operating:
Non-Operating:
MTBF according to Telcordia –SR332-Issue 3
PARAMETER
Conducted Emissions
Radiated Emissions
Harmonic Current
Static Discharge
RF Field Susceptibility
Fast Transients/Bursts
Surge Susceptibility
AC Flicker
DESCRIPTION / CONDITION
EN55022-B, CISPR22-B, FCC PART15, EN60601-1-2
EN55022-B, CISPR22-B, FCC PART15-B
EN61000-3-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-3-3:
SPECIFICATION
Class B
To be controlled in end system
Class D
Level 3
Level-3
Level 3
Level-3
Pass
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00289_AE
© 2017 Bel Power Solutions & Protection
4
MBC201 Series
DESCRIPTION / CONDITION
Input to Output:
Approved to the latest edition of the following standards:
CSA/UL60601-1, EN60601-1 and IEC60601-1.
Nemko, UL, C-UL
Complies with LVD Directive
PARAMETER
Isolation Voltage
Safety Standards
Agency Approvals
CE mark
SPECIFICATION
Min. 5900 VDC
PARAMETER
Power Good Signal
Power Fail Signal
Remote ON / OFF
Remote Sense
DESCRIPTION / CONDITION
TTL signal goes high after main output is in regulation band. Delay is 0.1 to 0.3 sec.
TTL signal goes low 1 msec advance before output goes out of regulation due to mains failure
To turn-on power supply short J3 pin 4 to pin 6 (PSU is shipped in this configuration)
Compensates for 200 mV cable drop
CONNECTOR
AC Input Connector
PIN
J1
DESCRIPTION / CONDITION
Pin 1
AC Neutral
Pin 2
AC Line
Pin 1,2,3
Pin 4,5,6
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
RTN
Vout
+VE Remote Sense
VFAN (+12 V/0.5 A)
-VE Remote Sense
Remote ON/OFF
VSTBY (+5 V/1 A, +/-5%)
RTN (Signal)
Power Fail
Power Good
DC Output Connector
J2
MANUFACTURER / PN
Molex: 26-60-4030 or equivalent;
Mating: 09-50-3031; Pins: 08-50-0106
Option 1: Tyco: 2-1776112-3 or equivalent
Mating: 13 AWG wire
Option 2: JST: B6P-VH-B (LF) (SN) or B6P-VH (LF) (SN) or
equivalent
Mating: VHR-6M; Pins: SVH-41T-P1.1
Signals & Aux Power
J3*
Molex: 22-23-2081 or equivalent
Mating: 22-01-2087, Pins: 08-50-0113
Earthing Tab
J4
Molex: 19705-4301 or equivalent
Mating: 190030001
* PSU is supplied with J3 housing, pin-4 and pin-6 shorted to enable main output without remote on/off feature.
PARAMETER
Weight
Dimensions
Cooling
DESCRIPTION / CONDITION
325 g (0.72 lbs.)
127.0 x 76.2 x 38.1 mm (5 x 3 x 1.5 inch)
Convection: 83 W; 300 LFM: 175 W (5 V model)
Convection: 160 W; 300 LFM: 200 W (other models)
tech.support@psbel.com
MBC201 Series
5

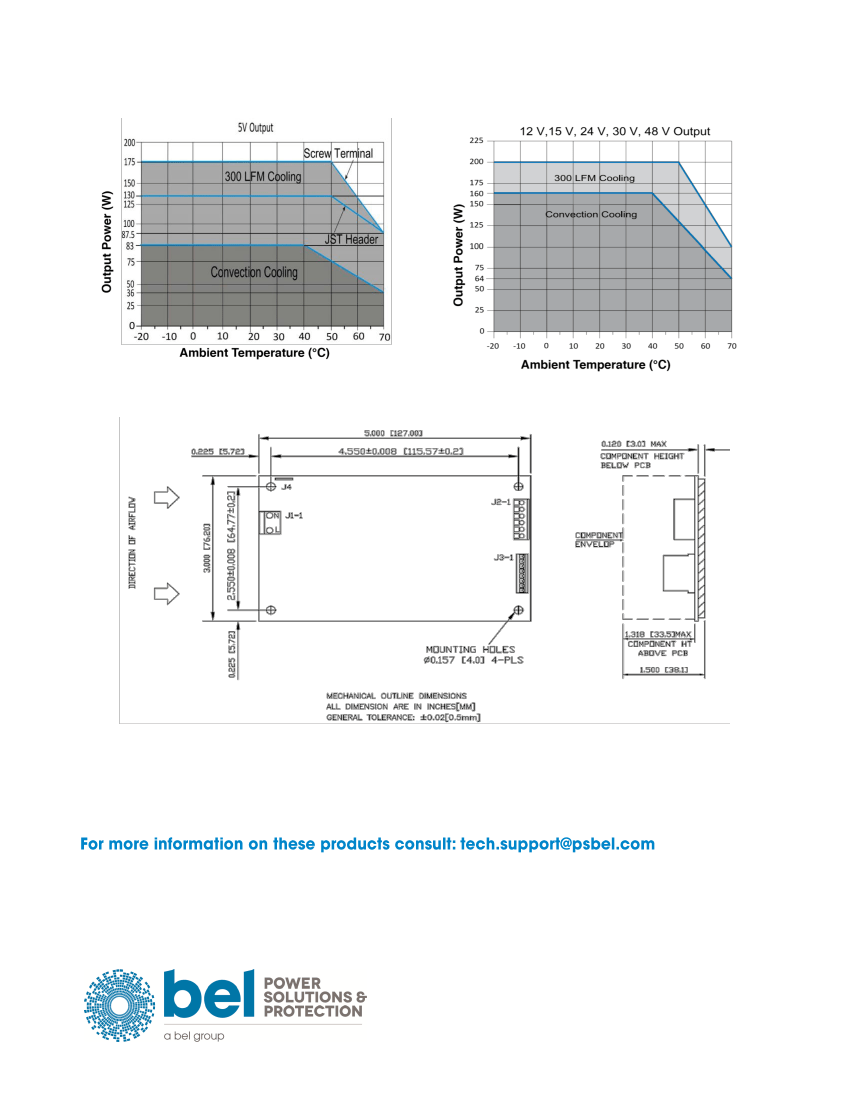

Figure 1 - Output Power Vs. Temperature
Figure 2 - Mechanical Drawing
NOTES:
In case the PCB is mounted in a metal enclosure, using metal hardware ensure the following:
1
Stand off, used to mount PCB has OD of 5.4 mm max.
2
Screws, used to fix PCB on stand off, have head dia of 6.0 mm max.
3
Washer, if used, to have dia of 6.5 mm max.
NUCLEAR AND MEDICAL APPLICATIONS
- Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS
- The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00289_AE
© 2017 Bel Power Solutions & Protection
