AD584LCSA: DescriptionVoltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size340KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AD584LCSA Overview

Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDSO8, SOP-8

AD584LCSA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
package instruction	SOP-8
Reach Compliance Code	_compli
Other features	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	2.502 V
Minimum output voltage	2.497 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	10 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.1%

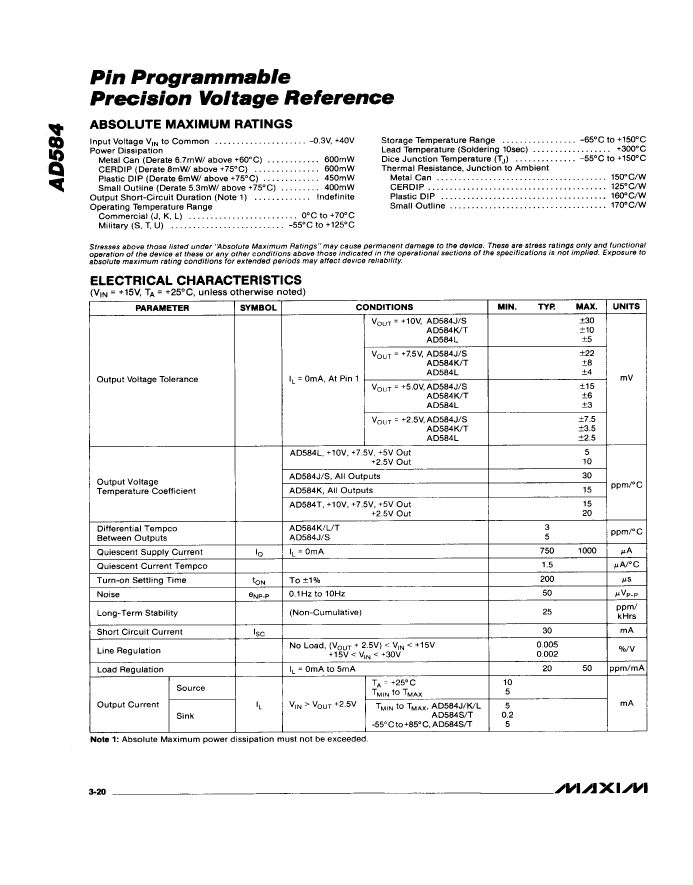

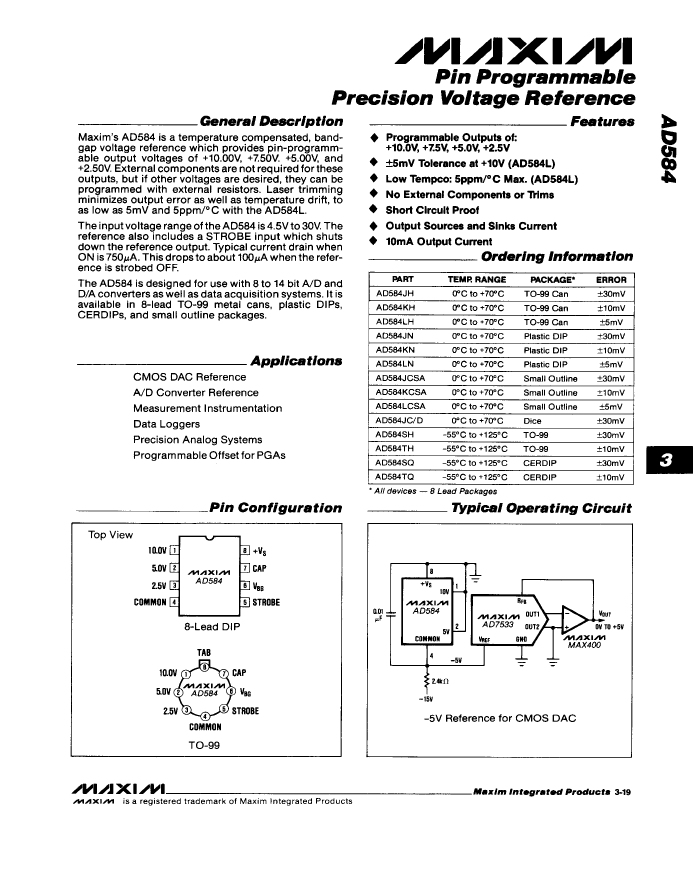

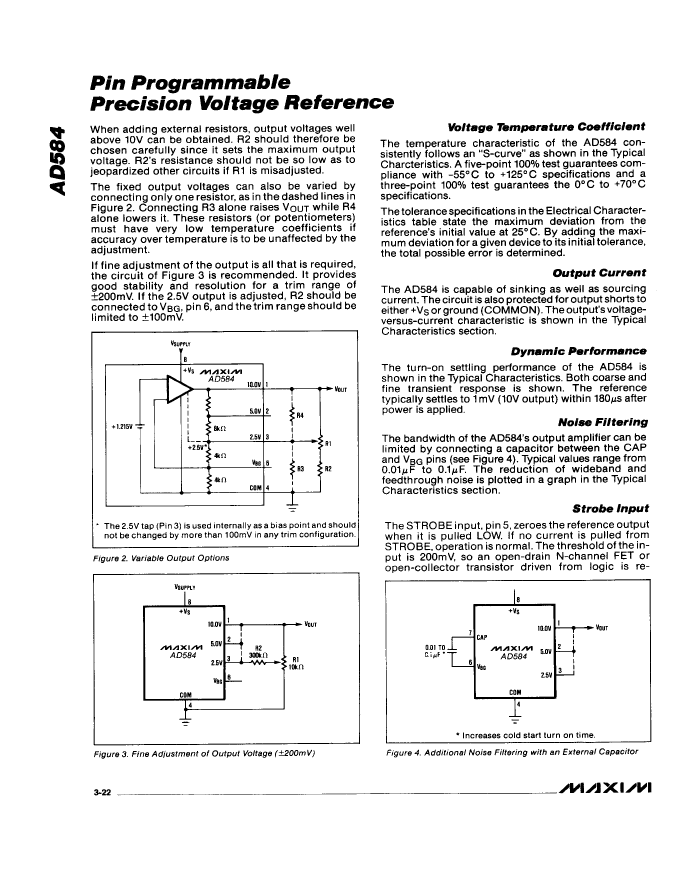

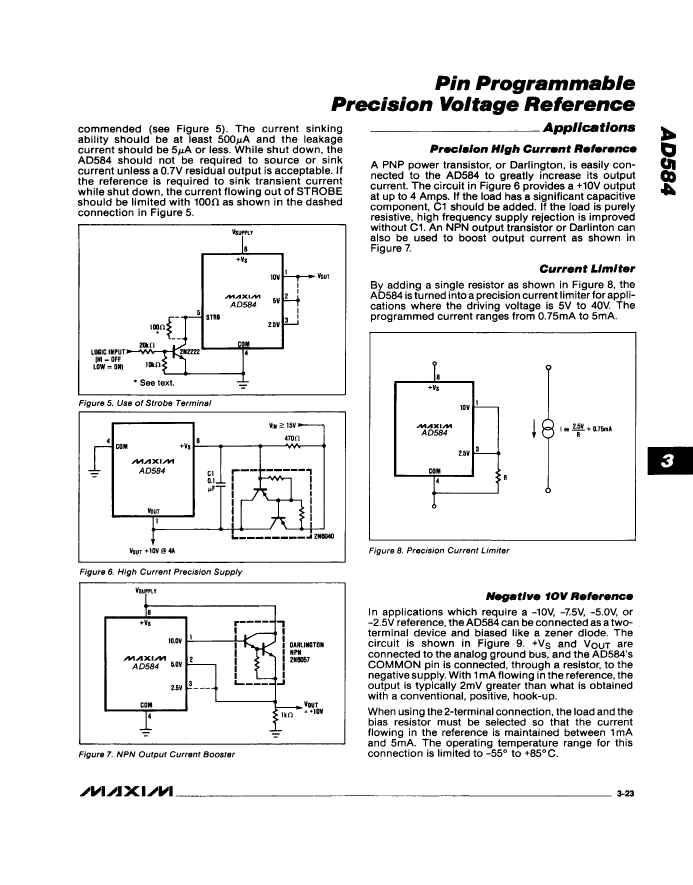

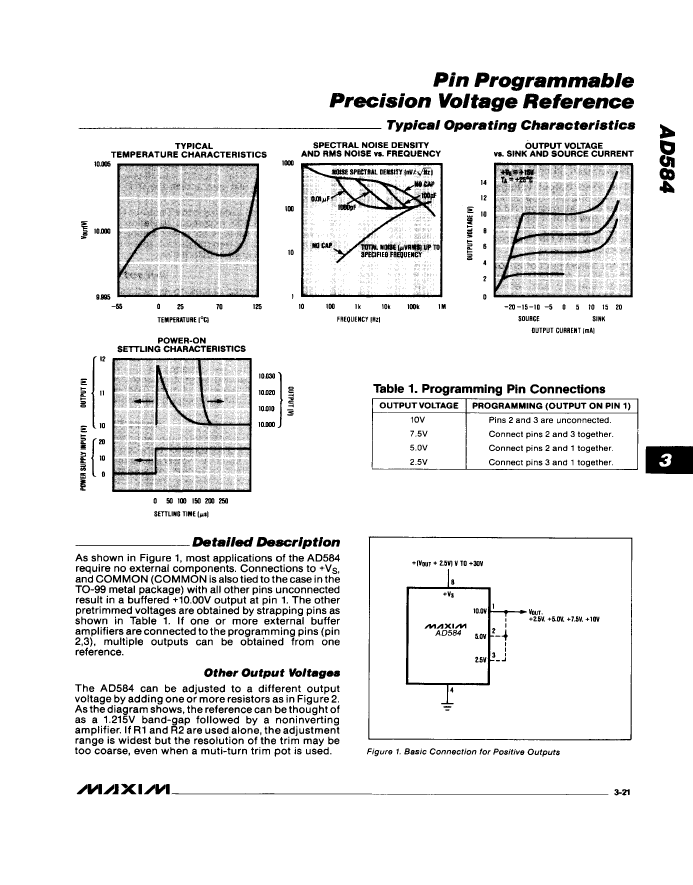

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AD584LCSA Related Products

	AD584LCSA	AD584SQ	AD584LN	AD584JN	AD584JCSA	AD584KCSA
Description	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDSO8, SOP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, CDIP8, CERAMIC, DIP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDIP8, PLASTIC, DIP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDIP8, PLASTIC, DIP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDSO8, SOP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDSO8, SOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP-8	CERAMIC, DIP-8	PLASTIC, DIP-8	PLASTIC, DIP-8	SOP-8	SOP-8
Reach Compliance Code	_compli	_compli	not_compliant	not_compliant	not_compliant	not_compliant
Other features	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE
JESD-30 code	R-PDSO-G8	R-CDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Maximum output voltage	2.502 V	2.507 V	2.502 V	2.507 V	2.507 V	2.503 V
Minimum output voltage	2.497 V	2.492 V	2.497 V	2.492 V	2.492 V	2.496 V
Nominal output voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	DIP8,.3	DIP8,.3	DIP8,.3	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply voltage (Vsup)	30 V	30 V	30 V	30 V	30 V	30 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	10 ppm/°C	30 ppm/°C	10 ppm/°C	30 ppm/°C	30 ppm/°C	15 ppm/°C
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES
Maximum voltage tolerance	0.1%	0.3%	0.1%	0.3%	0.3%	0.14%
Maker	Maxim	Maxim	-	Maxim	Maxim	Maxim
Base Number Matches	-	-	1	1	1	1
