4078B Overview

AC Power Cords Int 2.5m 3x1.00 C13 EURO Power Cord

4078B Parametric

Parameter Name	Attribute value
Product Category	Function Generators & Synthesizers
Manufacturer	BK Precision
RoHS	Details
Frequency	1 uHz to 30 MHz
Equipment Type	Arbitrary Wave Form Generator
AC Supply Voltage	100 V to 240 V
Input Voltage	100 V to 240 V
Factory Pack Quantity	1
Unit Weight	6 lbs

Preview

Download Datasheet

View All

Data Sheet

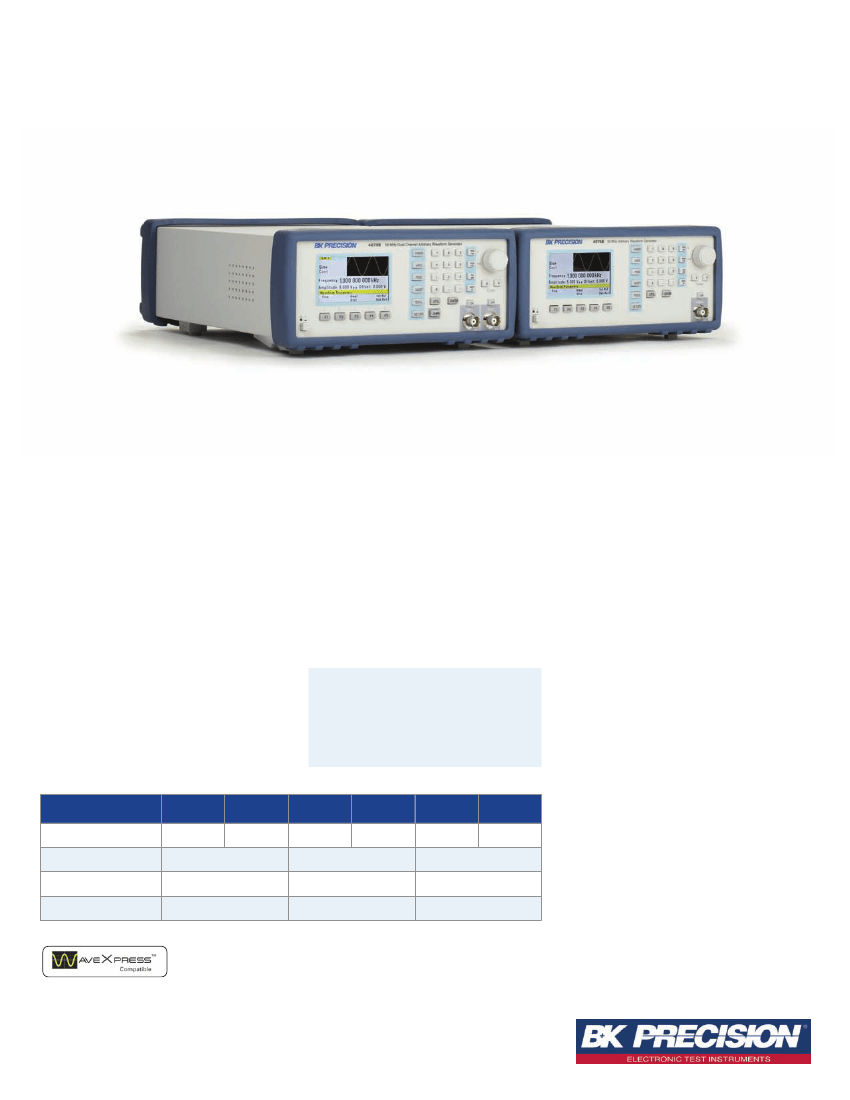

Arbitrary/Function Waveform Generators

4075B Series

Point-by-Point Signal Integrity

The 4075B Series Arbitrary/Function Waveform

Generators are versatile high-performance

single- and dual-channel arbitrary waveform

generators with large arbitrary memory depth. The

instruments provide variable output voltages from

0 to 10 Vp-p into 50 ohms or up to 20 Vp-p into

open circuit and a continuously variable DC offset

that allows the output to be injected directly into

circuits at the correct bias level.

These generators combine the benefits of DDS

(direct digital synthesis) and true AWG (arbitrary

waveform generator) architectures without the

limitations of either. Standard waveforms such as

sine, square, and triangle are generated with a

DDS chip, delivering great frequency resolution at

a low cost. Custom arbitrary waveform generation

is implemented with a true point-by-point design,

offering improved signal integrity by producing

significantly less jitter and distortion compared

to a DDS-only architecture. This point-by-point

generation capability allows these instruments

to be used for simulating reliable clock signals,

generating triggers, or validating serial data

buses.

Additionally, these generators can be used with

B&K Precision’s waveform editing software

WaveXpress to create complex arbitrary

waveforms.

Extensive features such as internal or external

AM, FM, and FSK modulation along with

versatile sweep capabilities and variable edge

pulse generation make these generators suitable

for a wide range of applications.

Features

14-bit, 200 MSa/s, 16 Mpts arbitrary

waveform generator

Generate sine waveforms up to 80 MHz

Bright color LCD display

Linear and logarithmic sweep

AM/FM/FSK modulation

Variable DC offset

Adjustable duty cycle

Output ON/OFF button

Internal/external triggering

Gate and burst mode

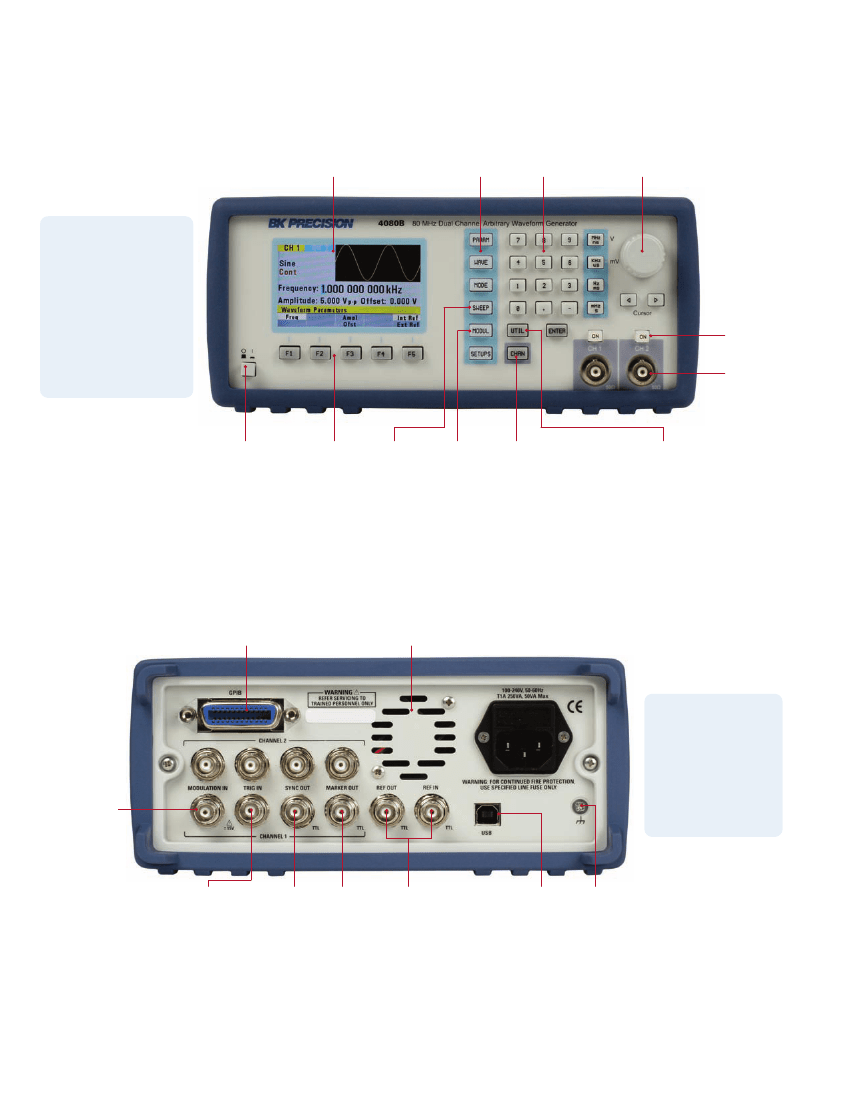

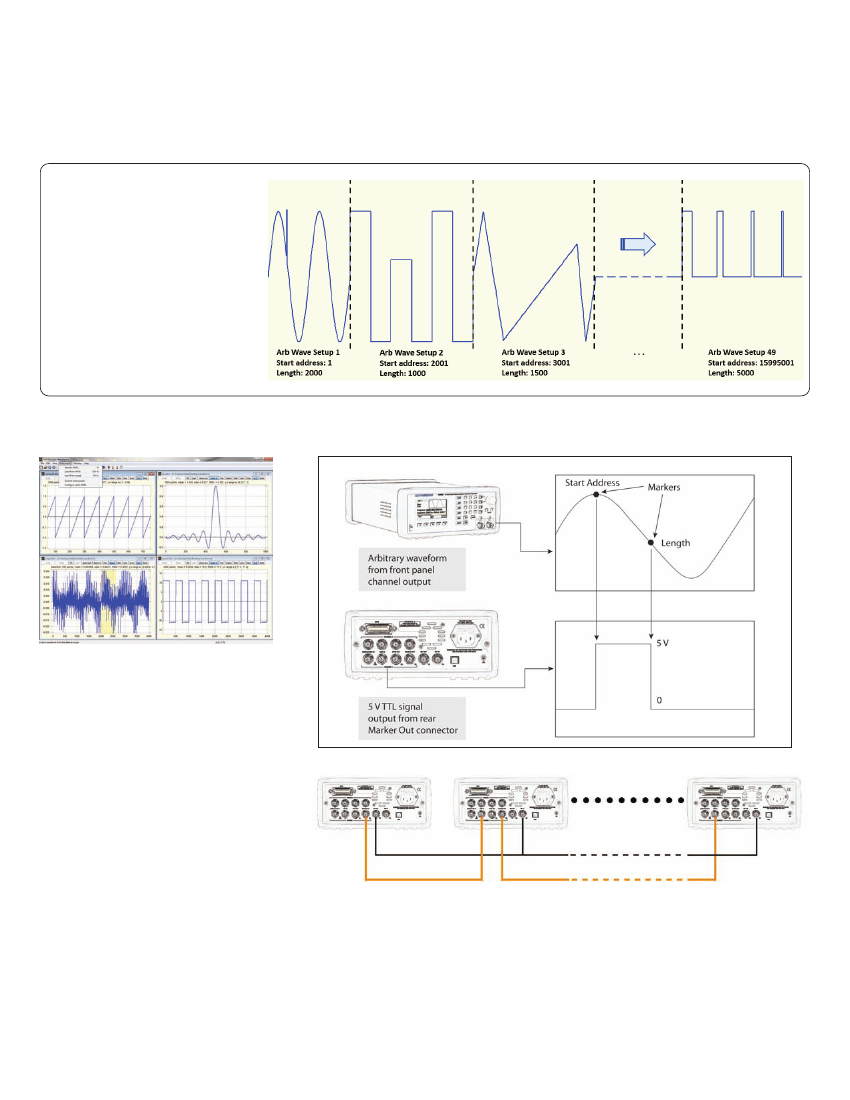

Fully programmable markers

Store/recall up to 49 instrument settings

Standard USBTMC interface (all models) and

GPIB interface (50 MHz & 80 MHz models

only) supporting SCPI commands

Applications

These generators are suitable for applications

such as electronic design, sensor simulation,

functional test, or generation of I/Q modulated

signals.

Closed case calibration

Short circuit protection for resistive and

capacitive loads on outputs and overvoltage

protection on inputs

Model

Channels

Sine frequency range

Square frequency range

Arbitrary waveform length

4075B

4078B

4076B

4079B

4077B

4080B

Dual-channel models

1 µHz – 30 MHz

1 Mpts

1 µHz – 50 MHz

4 Mpts

1 µHz – 80 MHz

1 µHz – 60 MHz

Both channels offer full functionality and all

parameters can be set independently

Synchronize the phase of both channels with

the push of a button

16 Mpts

For more information, visit www.bkprecision.com/WaveXpress

Technical data subject to change

www.bkprecision.com
