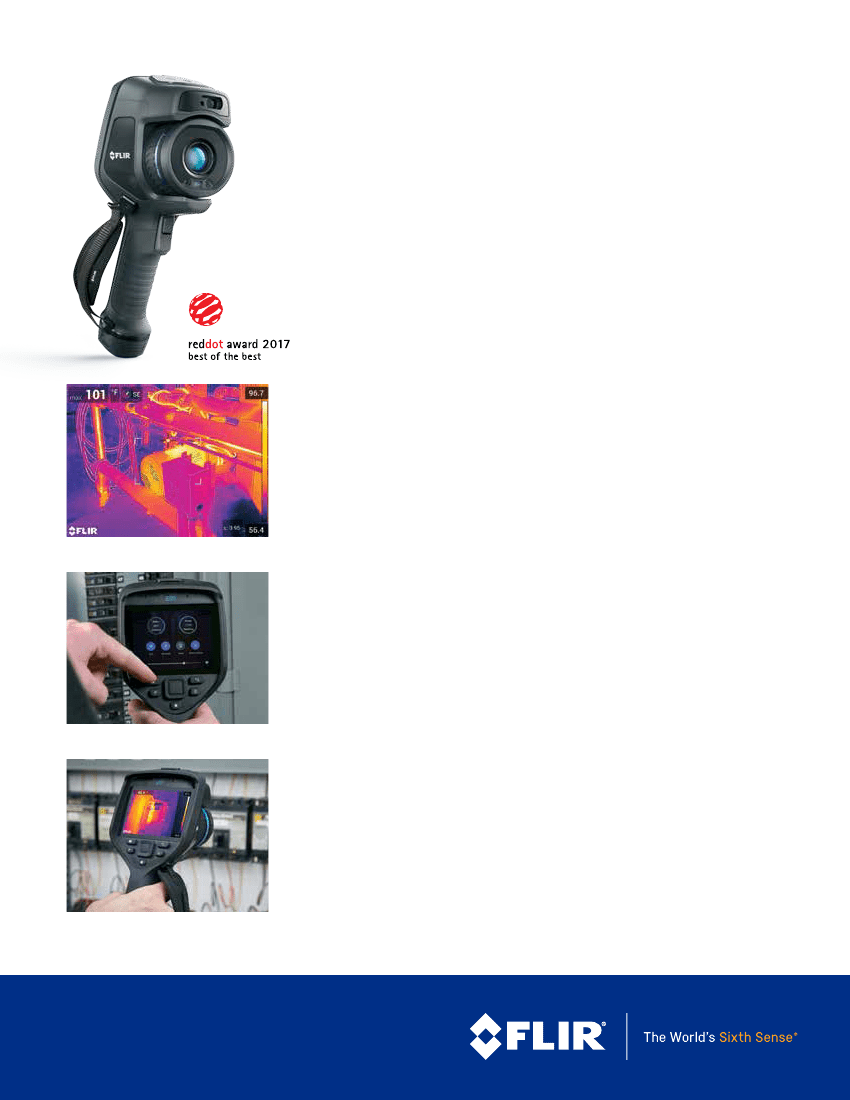

FLIR
Advanced Thermal Imaging Cameras
for Electrical and Mechanical Applications
FLIR E75, E85, and E95 cameras offer the superior resolution and range performance
needed to quickly identify hot spots and discover potential points of failure in electrical
distribution and mechanical systems. With up to 161,472 pixel resolution and a larger,
more vibrant LCD screen than any other pistol-grip thermal camera, the Exx-Series
makes it easier than ever to diagnose problems – even at a distance. Avoid costly
shutdowns and lost production time through regular predictive maintenance routines
with these rugged, intuitive cameras.
Exx-Series
™
Improve Plant Reliability
Equipment failures are costly and can impact on-time delivery, so it’s important
to have the right tools to find potential problems before they happen.
• High-resolution infrared detectors, up to 464 x 348, for crisp, detailed images
• Wide temperature ranges: -40°C to 120°C, 0°C to 650°C, 300°C up to 1500°C (E95)
• Superior spot-size performance for accurate temperature measurements on smaller, more
distant targets
• Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
Increase Plant Safety
The Exx-Series improves plant safety by helping you diagnose and report
electrical problems before they result in fire or damage.
Find problems quickly and eliminate costly
plant shutdowns
• Detect temperature differences down to 30 mK for immediate identification of
failing components
• Interchangeable lenses, from wide angle to telephoto, offer complete coverage of near
and far targets
• Lenses auto-calibrate with camera for the most precise temperature readings
• MSX
®
image enhancement adds the depth and detail to image
Designed to Make Your Work Easier
FLIR designed the E75, E85, and E95 to make your work faster, safer, and
more efficient.
• Rapid-response touch screen with intuitive new user interface
Streamlined data collection and sharing
speeds analysis and repairs
• Convenient menu buttons allow for one-handed operation
• New folder and naming structure that makes finding images easier
• Connect over Wi-Fi to mobile devices or via METERLiNK
®
to FLIR clamps and multimeters
Key Features:
• 320 x 240 – 464 x 348 true native resolution
• Laser-assisted autofocus
• Wide temperature ranges, up to 1500°C
• Vibrant, 4” optically-bonded PCAP touchscreen with 160° viewing angle
• Wi-Fi, METERLiNK
®
connectivity
One-handed operation with convenient buttons
helps maintain workplace safety
• Streamlined reporting features
• FLIR’s industry-leading 2-5-10 warranty
www.flir.com/Exx-Electrical
Specifications
Features By Camera
IR Resolution
Object Temperature Range
E75
320 x 240
-20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1200°F)
Optional 300°C to 1000°C
(572°F to 1830°F)
No
No
1 in live mode
No
E85
384 x 288
-20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1200°F)
300°C to 1200°C
(572°F to 2192°F)
No
Yes
3 in live mode
3 in live mode
E95
464 x 348
-20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1200°F)
300°C to 1500°C
(572°F to 2732°F)
10 sec to 24 hours
Yes
3 in live mode
3 in live mode
Time-lapse (Infrared)
Area Measurement Information
Spotmeter
Area
Measurement Features by Camera
PORTLAND
Corporate Headquarters
FLIR Systems, Inc.
27700 SW Parkway Ave.
Wilsonville, OR 97070
PH: +1 866.477.3687
NASHUA
FLIR Systems, Inc.
9 Townsend West
Nashua, NH 03063
PH: +1 866.477.3687
CANADA
FLIR Systems, Ltd.
920 Sheldon Court
Burlington, ON L7L 5K6
Canada
PH: +1 800.613.0507
LATIN AMERICA
FLIR Systems Brasil
Av. Antonio Bardella,
320 Sorocaba,
SP 18085-852
Brasil
PH: +55 15 3238 7080
CHINA
FLIR Systems Co., Ltd
Rm 1613-16, Tower II
Grand Central Plaza 1
38 Shatin Rural
Committee Rd.
Shatin, New Territories
Hong Kong
PH: +852 2792 8955
BELGIUM
FLIR Systems
Luxemburgstraat 2
2321 Meer
Belgium
PH: +32 (0) 3665 5100
UNITED KINGDOM
FLIR Systems UK
2 Kings Hill Ave., Kings Hill
West Malling, Kent
ME19 4AQ
United Kingdom
PH +44 (0)1732 220 011
www.flir.com
NASDAQ: FLIR
Common Features
Detector Type and Pitch
Thermal Sensitivity/NETD
Spectral Range
Image Frequency
Field of View (FOV)
F-Number
Lens Identification
Focus
Digital Zoom
Exx-Series
Uncooled microbolometer, 17 µm
< 0.03°C @ 30°C (86°F)
7.5 - 14.0 µm
30 Hz
24° x 18° (17 mm lens), 42° x 32° (10 mm lens), 14° x 10° (29 mm lens)
f/1.3, f/1.1
Automatic
Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual
1-4x continuous
4”, 640 x 480 optically-bonded PCAP touchscreen, with 400 cd/m
2
surface brightness
5 MP, 53° x 41° FOV
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Infrared, visual, MSX
®
, Picture-in-Picture
Resizable and movable
Embosses visual details on full resolution thermal image
Super-resolution process quadruples pixel count, activated in FLIR Tools+
±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object
temperature above 0°C (32°F)
Moisture alarm, insulation alarm, measurement alarms
Above/below/interval/condensation/insulation
Yes, on-screen
No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Yes; automatic GPS image tagging
Yes; several readings
Removable SD card (8 GB)
Standard radiometric JPEG, measurement data included
Real-time radiometric recording (.csq)
H.264 to memory card
Yes, over UVC or Wi-Fi
H.264 or MPEG-4 over Wi-Fi
MJPEG over UVC or Wi-Fi
USB 2.0, Bluetooth, Wi-Fi
DisplayPort over USB Type-C
Li-ion battery, charged in camera or on separate charger
Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use
–15°C to 50°C (5°F to 122°F)
–40°C to 70°C (-40°F to 158°F)
25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1
1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in)
Infrared camera with lens, battery (2 ea), battery charger with power supply, front lens and light protection,
straps (hand and wrist), lanyards, lens caps (front and rear), lens cleaning cloth, 15 W3 A power supply,
printed documentation, 8 GB SD card, Torx screwdriver, cables (USB 2.0 A to USB Type-C,USB Type-C to
HDMI, USB Type-C to USB Type-C)
Image Presentation and Modes
Display
Digital Camera
Color Palettes
Image Modes
Picture-in-Picture
MSX
®
UltraMax
™
Measurement and Analysis
Accuracy
Alarms
Color Alarm (Isotherm)
Laser Distance Measurement
Measurement Presets
Compass, GPS
METERLiNK
®
Image Storage
Storage Media
Image File Format
Video Recording and Streaming
Radiometric IR Video Recording
Non-Radiometric IR
or Visual Video
Radiometric IR Video Streaming
Non-Radiometric IR Video
Streaming
Communication Interfaces
Video Out
Additional Data
Battery Type
Battery Operating Time
Operating Temperature Range
Storage Temperature Range
Shock/Vibration/
Encapsulation; Safety
Weight/Dimensions w/o Lens
Box Contents
Packaging
Equipment described herein
may require US Government
authorization for export
purposes. Diversion contrary
to US law is prohibited. Imagery
for illustration purposes only.
Specifications are subject to
change without notice. ©2017
FLIR Systems, Inc. All rights
reserved. (01/17) 16-1455
Specifications are subject to change without notice.
For the most up-to-date specs, go to www.support.flir.com
www.flir.com/Exx-Electrical
