Model 3269
Adapter – BNC Female To
Miniature Double Banana Plug
FEATURES:
•
Allows a BNC male to be used with equipment having .5” (12,7) spaced miniature .104” (2,4) dia.
banana jacks
•
Excellent for adapting test equipment to BNC coaxial cables
MATERIALS:
Upper Conn: BNC Female.
Finish: Tarnish Resistant
Center Contact: Gold plated
Insulation: ABS molded to BNC male and Banana Plug
Color: Black
Marking: “POMONA ELECTRONICS CALIF. 3269”
Lower Conn: Miniature Double Banana Plug
Material: Spring, Beryllium Copper
Plug Body: Brass
Finish: Gold plated
RATINGS:
Operating Temperature: +50º C. (+122º F.) Max.
Operating Voltage: Hand-Held Testing: 30VAC/60VDC Max.
Hands Free Testing in controlled voltage environments: 500 VRMS Max.
ORDERING INFORMATION:
Model 3269

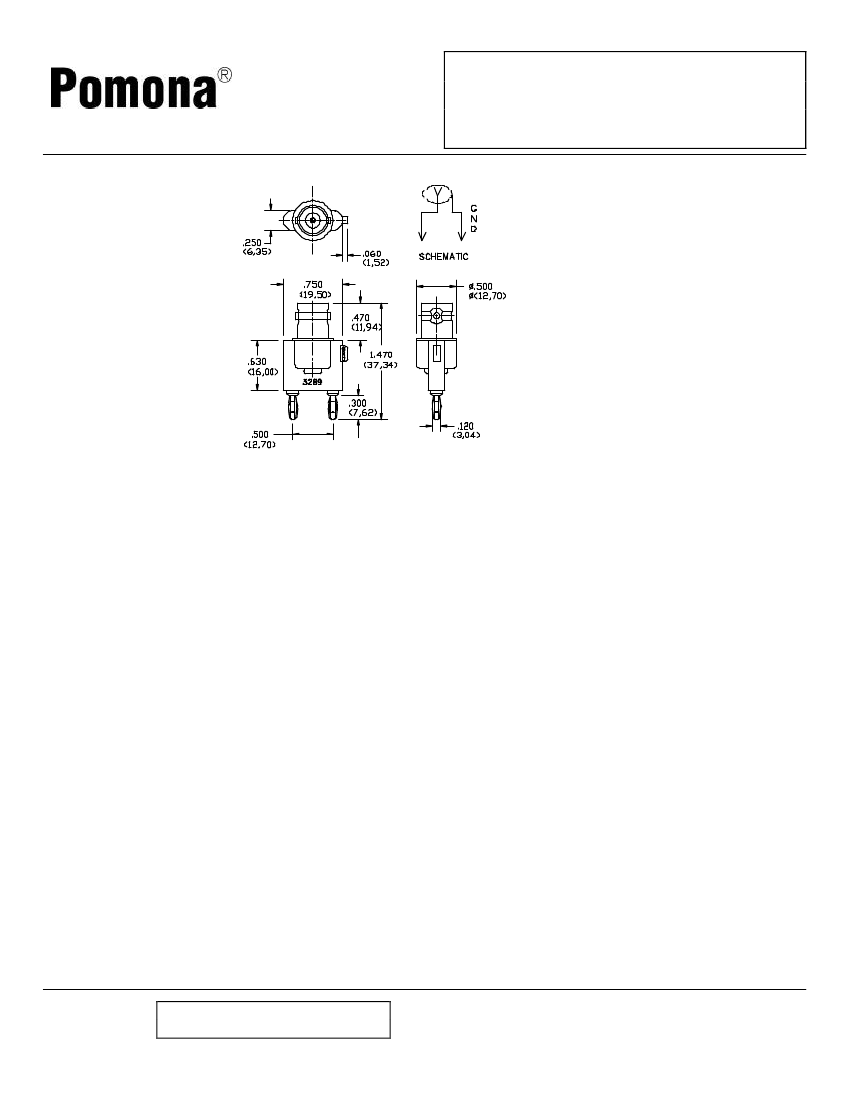

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
5/28/02 SY/EH/LS
Last saved by PN
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90572
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
