Fluke CNX 3000
Series Test Tools
The Fluke Wireless Team
Technical Data
The new Fluke wireless troubleshooting
team lets you see live measurements
from multiple modules simultaneously
and remotely on a single screen. This
customizable tool set, built with the
durability, reliability and quality you’ve come
to expect from Fluke tools, will change the
way you work.
Wireless multimeter displays readings
from up to three wireless modules, plus
the meter from up to 20 meters away. Add
a laptop and review ten measurements at
once.
™
Fluke CNX 3000 Series
•
•
•
•
•
•
Digital Multimeter
AC Voltage Module
AC True-rms Current Clamp Module
iFlex True-rms AC Current Clamp Module
K-Type Temperature Module
PC Adapter
Productivity
•
Save money and time by taking multiple measure-
ments simultaneously
•
Isolate intermittent events or record signal fluc-
tuations without even being there using the log
function on the modules
•
Work with fewer interruptions by recording multiple
sessions before downloading. Data is saved to a PC
in .csv format (comma separated variable) file format
for easy viewing at your convenience
•
Capture readings at different intervals, with user-set
recording intervals from one second to one hour
•
Choose the module(s) that work best for your
applications
•
No more writing data down. Capture up to 65000
sets of min/max/avg readings over single or multiple
logging sessions using the recording capability.
Each reading and session is time stamped
•
Avoid awkward or uncomfortable measurement
positions. Set up the measurement once, step
back and read it as many times as you want, when
you want
•
Identify up to 10 placed modules with meter or PC
and choose only the ones you need
•
View up to 10 live readings at once on a PC to get a
complete understanding of the situation
•
Easily see backlit displays in dark or dimly lit work
environments
•
Choose auto or manual ranging
•
Use the optional TPak magnetic hanger for even
more hands-free working
•
Integrated holster protects the meters, while probe
holders keep accessories organized
Safety
Convenience
•
No more run-around. See up to four measurements
(DMM and 3 modules) on one screen, in one place
at the same time.
•
Increase safety by taking readings in a separate
location than the point of measurement
•
Fluke CNX meets Measurement Category 1000 V
CAT III and Category IV 600 V safety standards: AC
current clamp 600 V CAT III; AC Voltage Module and
iFlex Clamp Meters 600 V CAT IV / 1000 CAT III
Specifications

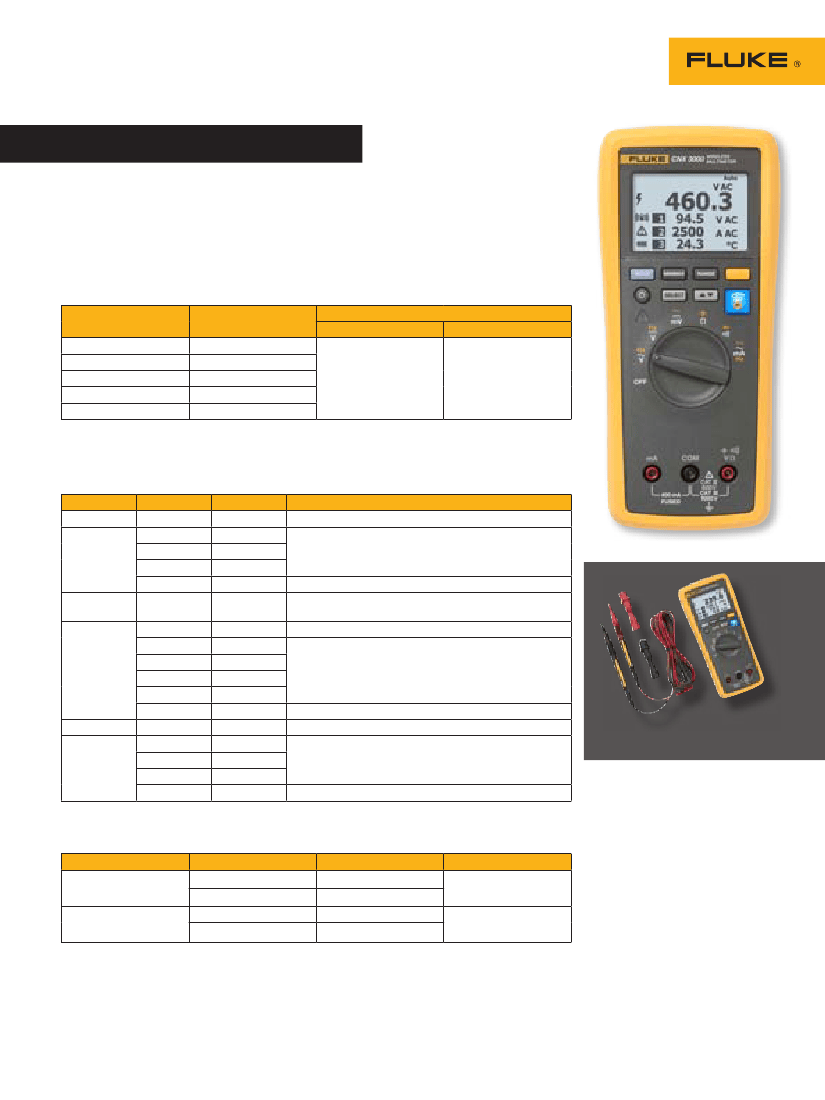

Fluke CNX 3000 Series Wireless Multimeter
Detailed specifications
For all specifications: accuracy is specified for one year after calibration, at operating tem-
peratures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications
take the form of ± ([ % of Reading ] + [ Number of least significant digits ]).
AC voltage
Range
1
600.0 mV
6.000 V
60.00 V
600.0 V
1000 V
1
2
3
Resolution
0.1 mV
0.001 V
0.01 V
0.1 V
1 V
Accuracy
2,3
45 Hz to 500 Hz
500 Hz to 1 kHz
1.0 % + 3
2.0 % + 3
All ac voltage ranges are specified from 1 % of range to 100 % of range.
Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
For non-sinusoidial waveforms, add –(2 % of reading + 2 % full scale) typical, for crest factor up to 3.
DC voltage, continuity, resistance, diode test and capacitance
Function
mV
V
Range
600.0 mV
6.000 V
60.00 V
600.0 V
1000 V
600 Ω
600.0 Ω
6.000 kΩ
60.00 kΩ
60.00 kΩ
600.0 kΩ
50.00 MΩ
2.000 V
1000 nF
10.00 μF
100.0 μF
9999 μF
1
Resolution
0.1 mV
0.001 V
0.01 V
0.1 V
1 V
1 Ω
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.001 V
1 nF
0.01 μF
0.1 μF
1 μF
Accuracy
0.09 % + 2
0.09 % + 2
0.15 % + 2
Meter beeps at < 25 Ω, beeper detects opens or shorts
of 250 μs or longer.
0.5 % + 2
0.5 % + 1
1.5 % + 3
1 % + 2
1.2 % + 2
10 % typical
Ω
Ω
Diode test
µF
Contents
1
In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2 % + 2.
AC and DC current
Function
mA AC (45 Hz to 1 kHZ)
mA DC
2
1
2
3
Range
1
60.00 mA
400.0 mA
3
60.00 mA
400.0 mA
Resolution
0.01 mA
0.1 mA
0.01 mA
0.1 mA
Accuracy
1.5 % + 3
0.5 % + 3
All ac current ranges are specified from 5 % of range to 100 % of range.
Input burden voltage (typical): 400 mA input 2 mV/mA.
400.0 mA accuracy specified up to 600 mA overload.
2 Fluke Corporation
Fluke CNX 3000 Series Test Tools. The Fluke Wireless Team.
Frequency
Range
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
1
Resolution
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
Accuracy
[1]
0.1 % + 1
Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input characteristics
Function
Overload
Protection
1100 V rms
1100 V rms
1100 V rms
Input Impedance
(nominal)
> 10 MΩ < 100 pF
> 10 MΩ < 100 pF
> 10 MΩ < 100 pF
Common Mode Rejection Ratio (1 kΩ unbalance)
> 120 dB at dc, 50 Hz or 60 Hz
> 60 dB, dc to 60 Hz
> 120 dB at dc, 50 Hz or 60 Hz
Full scale voltage
To 6 MΩ
< 0.7 V dc
2.000 V dc
50 MΩ
< 0.9 V dc
> 60 dB at 50 Hz or 60 Hz
Typical short circuit current
< 350 mA
< 1.1 mA
Normal Mode Rejection
> 60 dB at 50 Hz or 60 Hz
Open circuit test voltage
1100 V rms
1100 V rms
Function
mA
< 2.7 V dc
< 2.7 V dc
Overload Protection
Fused, 44/100 A, 1000 V FAST Fuse
Overload
600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX recording
Function
DC functions
AC functions
Accuracy
The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration.
The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration.
General specifications
Maximum voltage between any
terminal and earth ground
Ω fuse protection from A inputs
Display (LCD)
1000 V dc or ac rms
0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Update rate: 4/sec
Votls, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Three AA Alkaline batteries, NEDA 15A IEC LR6
300 hours minimum
2.4 GHZ ISM Band
20 meters
Operating: -10 °C to 50 °C
Storage: -40 °C to 60 °C
0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
Operating: 2,000 m
Storage: 12,000 m
EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249,
FCCID : T68-FWCS IC:6627A-FWCS
US ANSI: ANSI/ISA 61010-1 / (82.02.01): 3
rd
edition
CSA: CAN/CSA-C22.2 No 61010-1-12: 3
rd
edition
CE European: IEC/EN 61010-1:2010
CSA, FCC, CE
IP54
4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in)
340 g (12 oz)
Battery type
Battery life
RF communications
RF communication range
Temperature
Temperature coefficient
Relative humidity
Altitude
Electromagnetic compatibilty
EMI, RFI, EMC, RF
Safety compliance
Certifications
Ingress Protection (IP) rating
Size (H x W x L)
Weight
3 Fluke Corporation
Fluke CNX 3000 Series Test Tools. The Fluke Wireless Team.

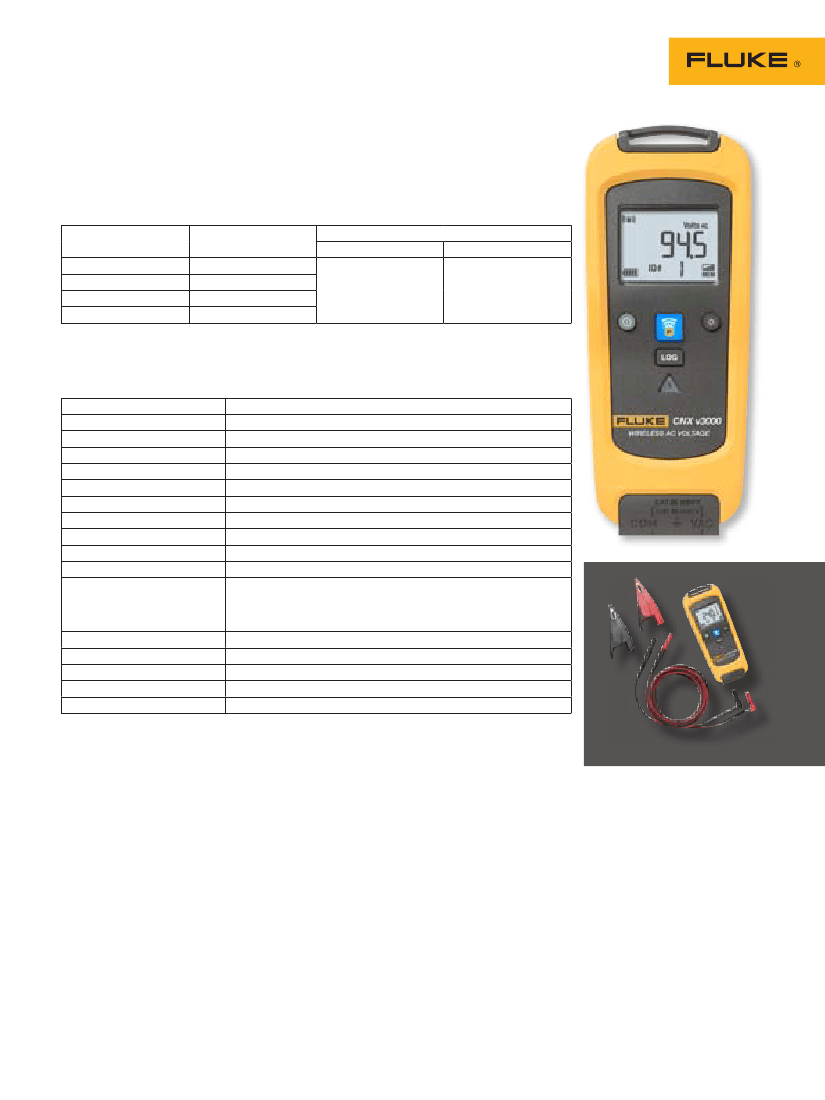

Fluke CNX 3000 Series AC Voltage Module
Accuracy is specified as ± ([% of reading] + [number of least significant digits]). All ranges
are autoranging. Accuracy is specified from 5 % to 100 % of the range obtained by
autoranging, from 18 °C to 28 °C.
AC voltage
Range
1
6.000 V
60.00 V
600.0 V
1000 V
1
2
3
Resolution
0.001 V
0.01 V
0.1 V
1 V
Accuracy
2,3
45 Hz to 500 Hz
500 Hz to 1 kHz
1.0 % + 3
2.0 % + 3
All ac voltage ranges are specified from 1 % of range to 100 % of range.
Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor ≤ 1.5 at 1000 V.
For non-sinusoidial waveforms, add –(2 % of reading + 2 % full scale) typical, for crest factor up to 3.
General specifications
LCD w/backlight
Battery type
Battery life
Memory
RF communications
RF communication range
Operating temperature
Storage temperature
Temperature coefficient
Operating humidity
EMC
Safety compliance
3½ digits, 6000 counts, updates 4/sec
2 AA, NEDA 15 A, IEC LR6
400 Hours
Record up to 65000 readings
2.4 GHZ ISM Band
20 meters
-10 °C to +50 °C
-40 °C to +60 °C
0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C)
90 % at 35 °C, 45 % at 40 °C, 45 % at 50 °C
EN 61326-1:2006
EN/IEC 61010-1:2010 to 1000 V Measurement Category (CAT) III
600 V Measurement Category (CAT) IV
EN/IEC 61010-2-030:2010
EN/IEC 61010-031:2002+A1:2008
CAT IV 600 V, CAT III 1000 V
CSA, FCC T68-FWCS IC:6627A-FWCS
IP42
16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
.22 kg (8 oz)
Safety rating
Certifications
Ingress Protection (IP) rating
Size (HxWxD)
Weight
Contents
4 Fluke Corporation
Fluke CNX 3000 Series Test Tools. The Fluke Wireless Team.

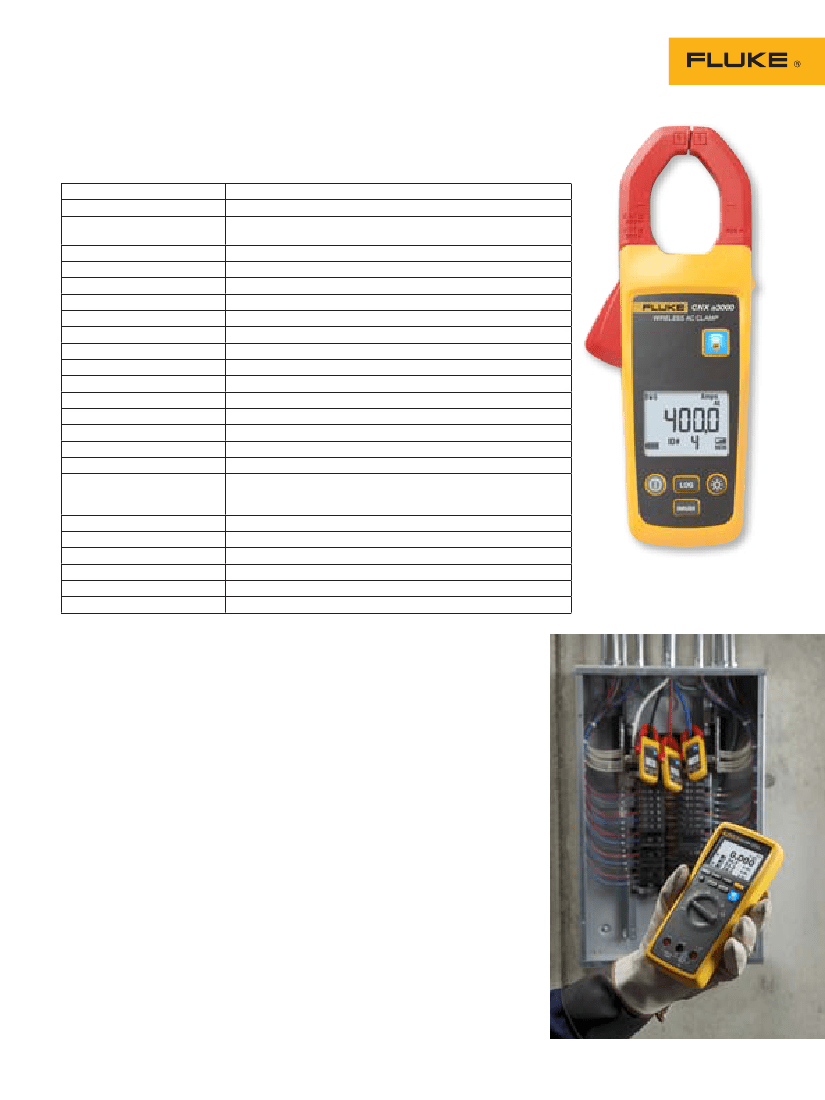

Fluke CNX 3000 Series
True-rms AC Current Clamp Module
General specifications
Range
Resolution
Accuracy
Inrush
Crest factor (50 Hz/60 Hz)
LCD w/backlight
Log rate/interval
Battery type
Battery life
Memory
RF communications
RF communication range
Operating temperature
Storage temperature
Temperature coefficient
Operating humidity
EMC
Safety compliance
Safety rating
Certifications
Ingress Protection (IP) rating
Jaw opening
Size (HxWxD)
Weight
0.5 A to 400.0 A
0.1 A
400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz
to 500 Hz)
Max displayed reading: 999.9A
3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2
3½ digits
1 sec minimum/adjustable by PC
2 AA, NEDA 15 A, IEC LR6
400 hours
Record up to 65,000 readings
2.4 GHZ ISM Band
20 meters
-10 °C to +50 °C
-40 °C to +60 °C
Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)
90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C
EN 61326-1:2006
EN/IEC 61010-1-030:2010 to 600 V Measurement Category (CAT) III
EN/IEC 61010-2-030:2010
EN/IEC 61010-032:2002
CAT III 600 V
CSA, FCC T68-FWCS IC:6627A-FWCS
IP30
34 mm (1.33 in)
20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
.22 kg (8 oz)
5 Fluke Corporation
Fluke CNX 3000 Series Test Tools. The Fluke Wireless Team.
