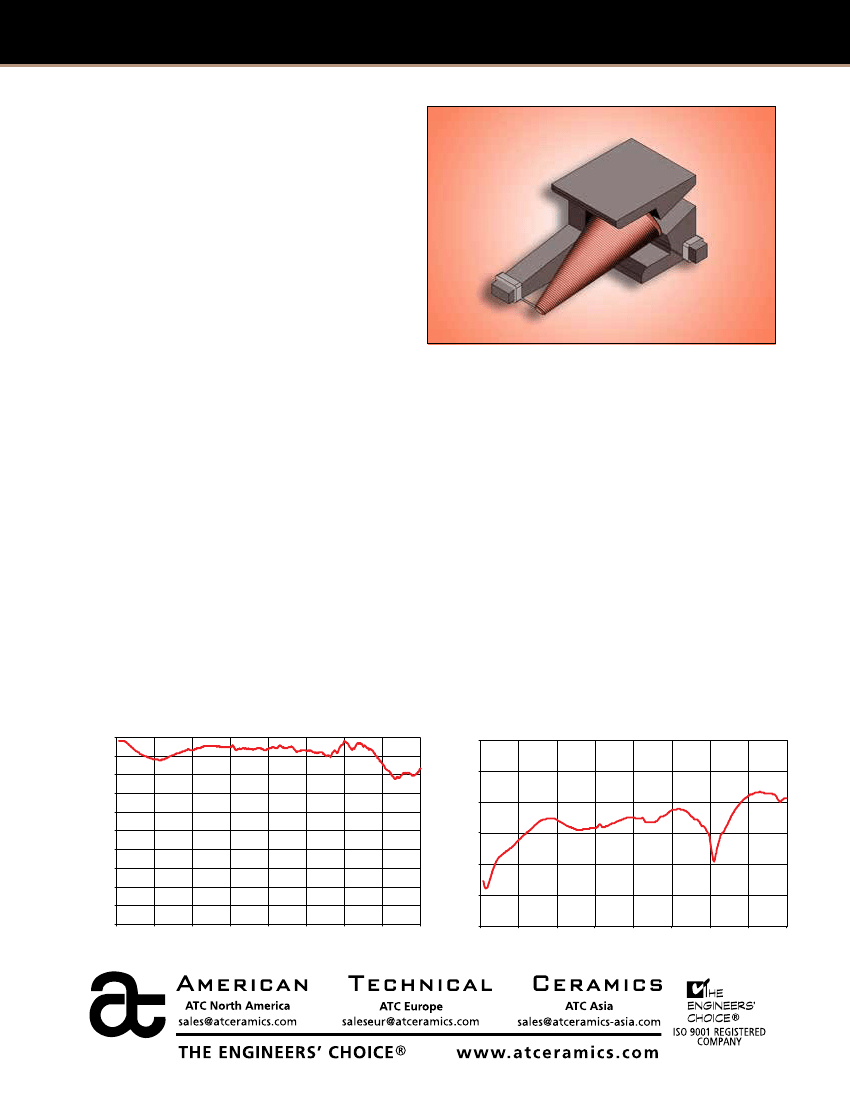

AT C 5 0 6 W L S S E R I E S U B L S M T I N D U C T O R S
ATC 506WLSN10R7KT150T
Ultra-Broadband
SMT Inductor
Features:
• Inductance: 10.7 µH
• Operating Frequency:
400 KHz (-3 dB roll-off) through 40+ GHz, typ.
• Insertion Loss (shunt mounted): <0.4 dB, typ.
• Return Loss (shunt mounted): >17 dB, typ.
• Operating Temperature Range: -55°C to +125°C
• Lead-Free, RoHS Compliant Terminations
ATC, the industry leader, is introducing the new 506WLS
Series High Frequency
Ultra-Broadband Inductor
(UBL).
This unique component provides low insertion loss and
an excellent match over multiple octaves of frequency
spectrum.
The 506WLS is ideal for ultra-broadband DC decoupling
networks and bias tee applications in optical
communications systems and equipment using high-
speed digital logic.
New Design
Advantages:
• Ultra-Broadband Performance
• Ultra-Low Insertion Loss
• Flat Frequency Response
• Excellent Return Loss Through 40 GHz
• Unit-to-Unit Performance Repeatability
• Rugged Powdered Iron Core
Electrical Specifications:
• Inductance: 10.7 µH ±10%*
• Rated DC Current
(IDC max.):
150 mA**
• DC Resistance (R
DC typ.):
7.10
,
typ. at +20°C, 10 mA current
.
*Inductance: measured at 1 MHz, 0.1 Vrms, 0 mA dc
with HP4291A impedance analyzer
**Current Rating: based on a 100 °C temperature rise
from a 25°C ambient.
ATC 506WLSN10R7 Insertion Loss (S21)
0
-0.2
-0.4
-10
0
ATC 506WLSN10R7 Return Loss (S11)
Magnitude (dB)
Magnitude (dB)
Typical
-0.6
-0.8
-1
dB
-1.2
-1.4
-1.6
-1.8
-2
0
5
10
15
20
25
-20
-30
dB
-40
-50
Typical
30
35
40
-60
Frequency (GHz)
0
5
10
15
20
25
30
35
40
Frequency (GHz)
ATC # 001-1111
Rev. G; 8/17
AT C 5 0 6 W L S S E R I E S U B L S M T I N D U C T O R S

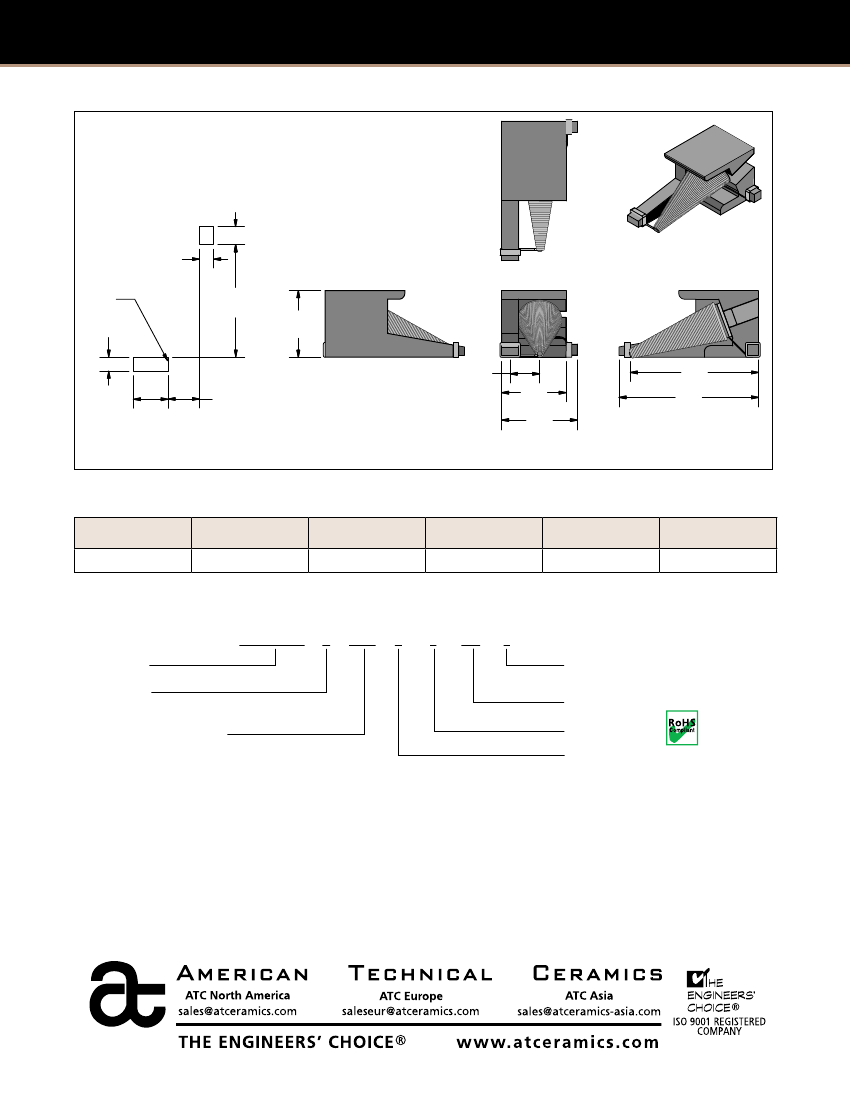

Outline Dimensions
Recommended
Foot Print
.032 (.813)
.025
(.635)
Note
.025
(.635)
.197
(5.004)
.117
(2.972)
.061
(1.549)
.055
(1.397)
.055±.005
(1.397 ±.127)
Note: Terminal is configured to facilitate attachment close to inductor tip.
.113
(2.870)
.133
(3.378)
.225
(5.715)
.245
(6.223)
Wire is copper plated with gold 20 µ in. ±5 µ in.
inches (mm)
Mechanical Configurations
Size
Length (L)
Width (W)
Height (H)
Cu Wire Size (AWG) Number of Turns
N
0.245 (6.223)
0.133 (3.378)
0.117 (2.972)
47
110
inches (mm)
Unless noted otherwise, all dimensions are held to ±0.10 (.254)
ATC PART NUMBER CODE
ATC 506WLS
Series
Case Size
Inductance Code (µH)
3 significant digits for induc-
tance
R = Decimal point
N
10R7
K
T
150
T
Packaging
T = Tape and Reel
Current (mA)
T = Tin Termination
Inductance Tolerance, (±10%)
The above part number refers to a 506WLS Series, Case Size N, 10. 7
µ
H inductor, K tolerance (±10%, typ.), with Tin Termination (T),
150 mA, tape and reel packaging..
ATC accepts orders for our parts using designations
with
or
without
the “ATC” prefix.
Consult factory for additional performance data.
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992). Copies of
these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms
and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties
which may result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
© 2010 American Technical Ceramics Corp. All Rights Reserved.
ATC # 001-1111 Rev. G; 8/17
