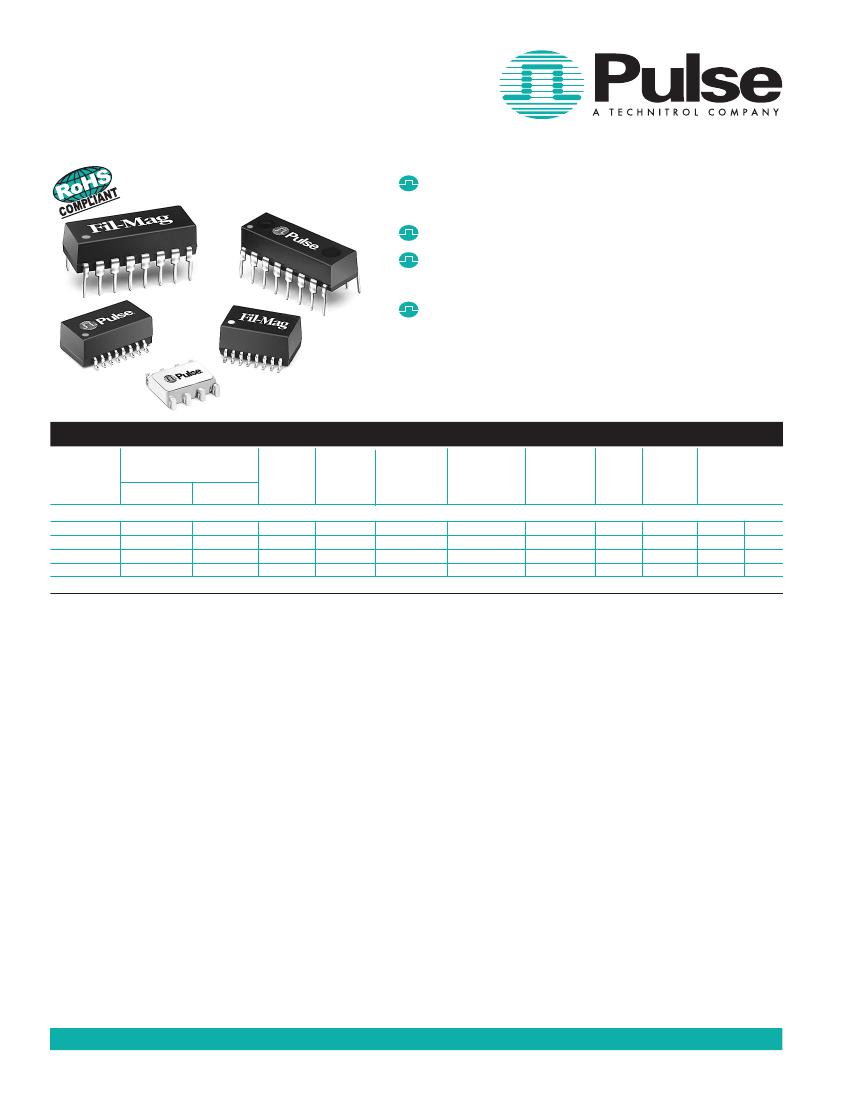

ISOLATION TRANSFORMERS
FOR 10BASE-T
For Adapter Cards, MAUs, Hubs,
and Motherboard Applications
www.pulseeng.com
Peak solder temperature ratings per
table 5-2 in IPC/JEDEC J-STD-020
Meets IEEE 802.3 specification
Available with common mode chokes
for EMI suppression
Through hole, auto-insertable, 16-pin
DIP package
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
Part
2
Number
Turns Ratio
(±5%)
Transmit
Receive
1CT:1CT
1CT: 1CT
1CT:1CT
1CT:1CT
Primary
Pins
Common
Mode
Choke
✓
✓
✓
—
Sine Wave Interwinding
Leakage
Inductance Capacitance Inductance
DCR
OCL
Cww
1
L
L
1
(W MAX)
(µH MIN)
(pF MAX)
(µH MAX)
140
200
350
140
12
15
30
12
0.2
0.5
0.8
0.2
0.6
0.4
0.6
0.3
Hipot
(Vrms)
Schem. Mech
S
urface
M
ount
2
23Z467SMNL
4a
1CT:2CT
4a
E2023NL
1CT: 2.5CT
EX2024NL
4a
1CT: 2.5CT
PE-65745
4c
1CT: 1.414CT
pageS
6-7
pageS
8-9
6-8/1-3
6-8/1-3
6-8/1-3
6-8/1-3
2000
2000
2000
1500
T7
T10
T10
T4
SMT5
SMT4
SMT4
SMT4
1. OCL, Cww
and
L
L
are measured at 20 mVrms, 100 kHz.
2. For
Tape & Reel packaging, add the suffix
“T”
to the end of the part number when ordering. e.g. E2023NL.
3. Part
numbers denoted ”EX” are extended temperature parts -40°C to 85°C, electrical specifications @ 25°C.
4. MSL =
Moisture Sensitivity Level a=1 b=2 c=3 d=4
USA 858 674 8100
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai
86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
www.pulseeng.com
1
EC100 .O (7/10)
ISOLATION TRANSFORMERS

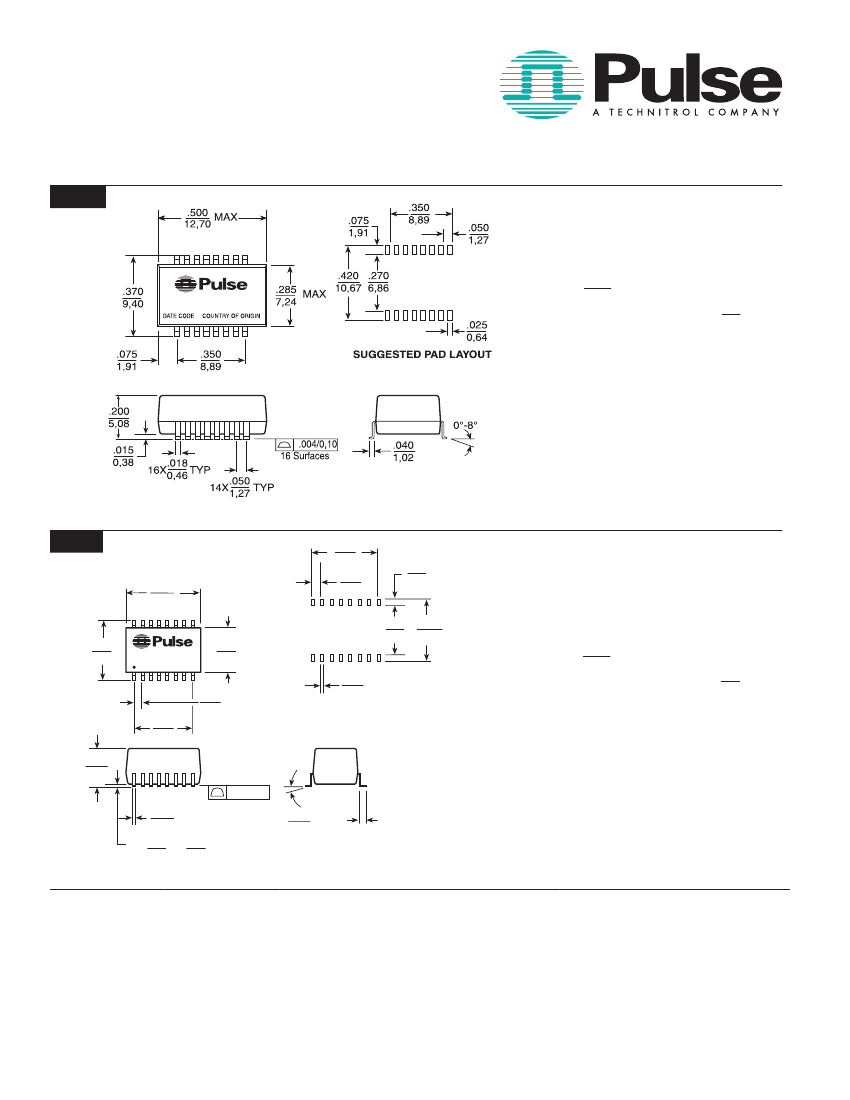

Surface Mount Mechanicals
SMT4
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Weight
. . . . . . . . . . . . 0.82 grams
Tube
. . . . . . . . . . . . . . . . .40/tube
Tape & Reel
. . . . . . . . . . 900/reel
Through Hole Mechanicals
SMT5
.450
11,43
.350
8,89
.050
1,27
.070
1,78
.260 .400
6,60 10,16
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .005
0,13
.360
9,14
DATE CODE CTRY ORIGIN
.265
6,73
.050
TYP
1,27
.030
0,76
.350
8,89
.215
5,46
SUGGESTED PAD LAYOUT
Weight
. . . . . . . . . . . . 0.85 grams
Tube
. . . . . . . . . . . . . . . . .50/tube
Tape & Reel
. . . . . . . . . . 750/reel
0°-8°
.004/0,10
.018
TYP
0,46
.005
.010
16X
to
0,13
0,25
16 Surfaces
.020 ± 0,10
0,51
