BX4107NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> BX4107NL

BX4107NL: DescriptionAudio Transformers / Signal Transformers SMD VDSL Line Xfmr 8000uH; CategoryPassive components; File Size36KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

BX4107NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BX4107NL	-	-	View	Buy Now

BX4107NL Overview

Audio Transformers / Signal Transformers SMD VDSL Line Xfmr 8000uH

BX4107NL Parametric

Parameter Name	Attribute value
Product Category	Audio Transformers / Signal Transformers
Manufacturer	Pulse A Technitrol Company
RoHS	Details
Product	Signal
Application	VDSL
Factory Pack Quantity	45
Unit Weight	0.060318 oz

Preview

Download Datasheet

View All

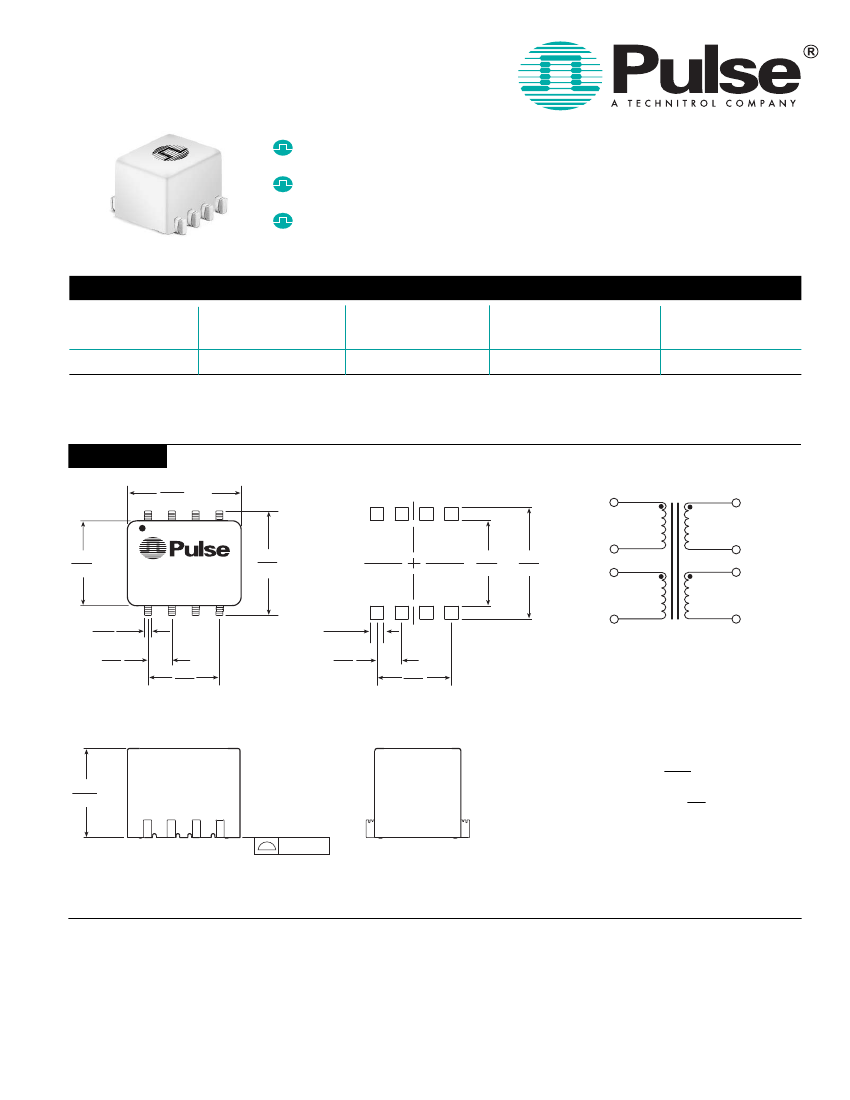

VDSL LINE TRANSFORMER

For Use With Infineon Chipsets

Matched to Infineon VDSL 5000i and 6000i chipset

For CO applications over frequency range of 138kHz to 12MHz

Designed to meet EN60950 functional insulation requirements

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

BX4107

Turns Ratio

(Pri:Sec)

1.33:1

OCL Primary

(mH ±30%)

8.0

THD

30kHz, 4Vp-p

(dB MIN)

-70

Isolation

Voltage

(Vrms)

1500

NOTE:

Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix

“T”

to the part number (i.e. BX4107T).

Mechanical

BX4107

.413 MAX

10,50

Schematic

.275 MAX

7,00

BX4107

Date Code

Country ofOrigin

.365

9,27 MAX

.236

6,00

.370

9,40

PRI

SEC

.050

1,27

.100

2,54

.300

7,62

.070

1,78

.100

2,54

.300

7,62

SUGGESTED PAD LAYOUT

Weight

. . . . . . . . . . . . . .1.8 grams

Tape & Reel

. . . . . . . . . . . .300/reel

Tray

. . . . . . . . . . . . . . . . . . .95/tray

.433

11,00MAX

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.006/0,15

8 SURFACES

For More Information:

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

3 Huxley Road

Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

Unit 11, 11/F

Wah Lai Industrial Centre

10-14 Kwei Tei Street,

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

B876.A (2/05)
