Resistance Weld SMD Crystal
For use with IDT’s VCXO-based Synchronization PLLs
278-25.78125-1
DATASHEET
Specifications
Parameters
Frequency
Resonance Mode
Frequency Tolerance @ 25°C
Frequency Stability, ref @ 25°C
Over Operating Temperature Range
Temperature Range
Operating (T
OPR
)
Temperature Range, Storage (T
STG
)
Equivalent Series Resistance (ESR)
Shunt Capacitance (C
O
)
Load Capacitance (C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish (96.5% - 3% - 0.5%)
Weight (TYP)
Ratings/Units
25.78125 MHz
Fundamental
±20 PPM
±20 PPM
-40°C ~ +85°C
-40°C ~ +85°C
20 Ohms
7 pF
10 pF
0.5 mW
±5 PPM
260°C / 10 Seconds
1
Sn - Ag - Cu
649.385 mg
Note: Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, is believed to be accurate at the time of publication; however, no responsibility is assumed by IDT for
inaccuracies. All specifications subject to change without notice.

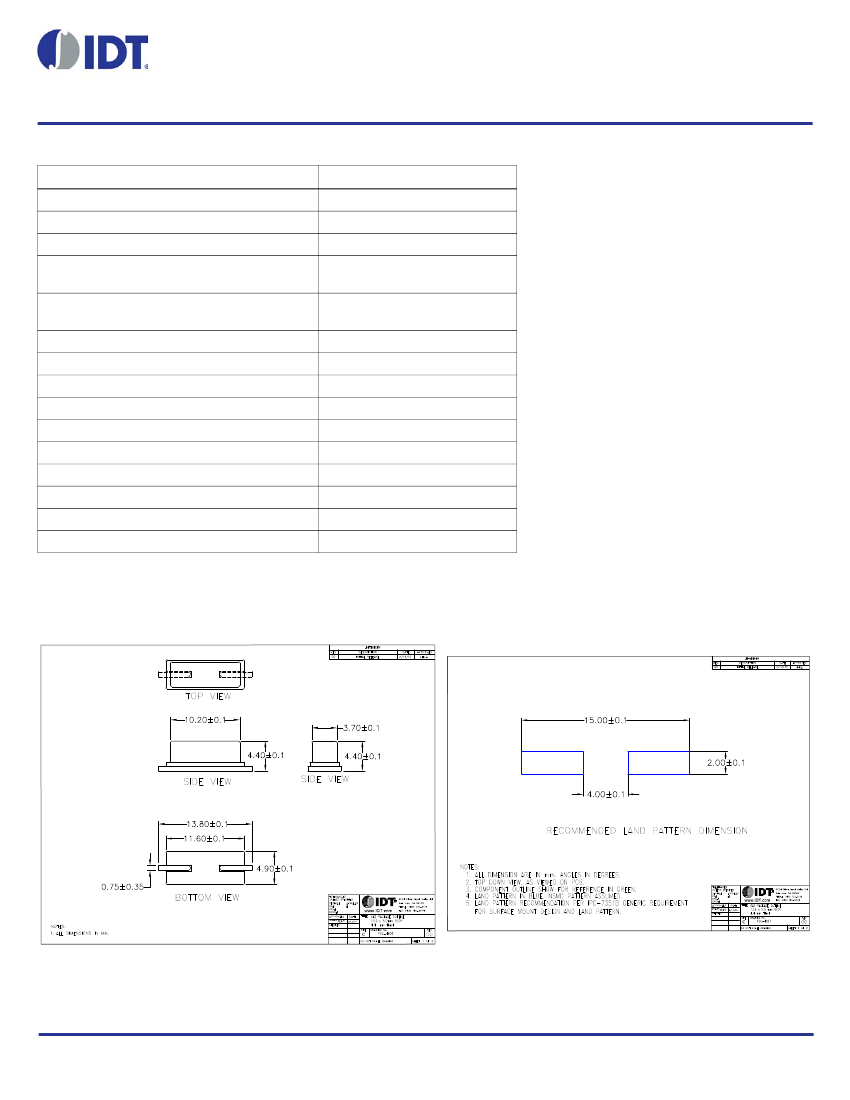

Package Outline and Dimensions (SA2)
278-25.78125-1 REVISION A 04/03/15
1
©2015 Integrated Device Technology, Inc.
Ordering Information
Part / Order Number
278-25.78125-1SA2I
278-2578125-1SA2I8
Shipping Packaging
Cut-Tape
Tape and Reel
Package
13.9 x 5.0 x 4.4 mm SA2
13.9 x 5.0 x 4.4 mm SA2
Temperature
-40° to +85°
-40° to +85°
